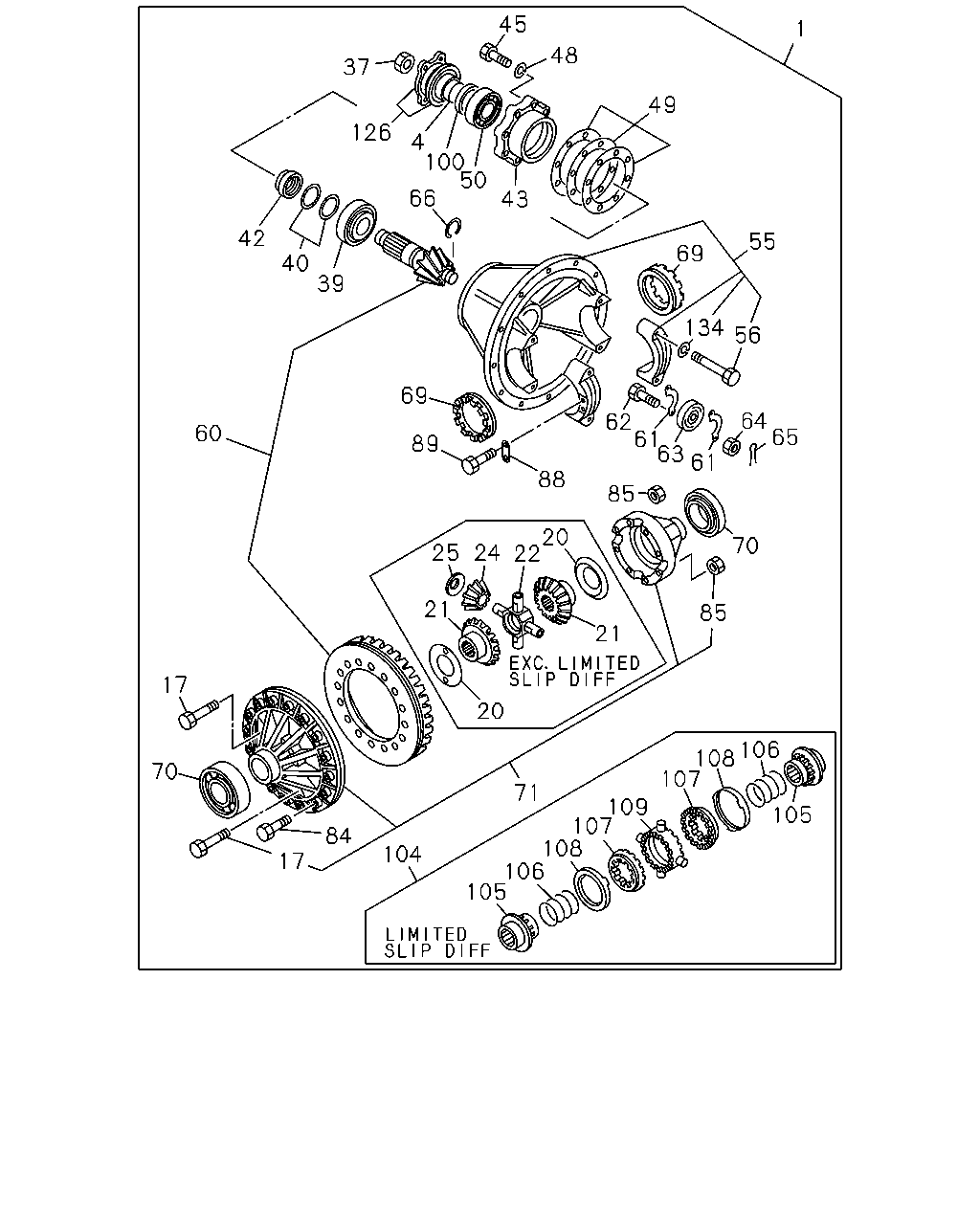

4-25B — REAR FINAL DRIVE (#48) — 105 parça

45 1 48 37 49 126 4 100 50 66 43 42 55 69 40 39 134 56 69 64 65 62 61 63 61 60 89 88 85 20 22 70 25 24 21 85 21 17 20 106 108 107 70 71 109 107 108 106 105 105 84 104 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-339-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-307-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-337-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-306-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/9	1-41001-587-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/9	1-41001-351-0	01	1	9202-				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9202-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.75	1-41562-139-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-140-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.85	1-41562-141-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-142-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.95	1-41562-143-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-144-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.05	1-41562-145-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-146-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.15	1-41562-147-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-148-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.25	1-41562-149-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-150-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.35	1-41562-151-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-152-0	AR	1	9202-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.45	1-41562-153-0	AR	1	9202-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-075-0	02	1	9202-	●	●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=30	1-41521-014-1	01	1	9202-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-010-2	04	1	9202-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-012-0	04	1	9202-	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9202-	●	●	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9202-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9202-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9202-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9202-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9202-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9202-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9202-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9202-	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9202-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9202-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9202-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9202-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9202-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9202-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9202-	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9202-	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9202-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9202-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9202-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9202-			●
60	GEAR SET; FINAL DRIVE,RR 43/9	1-41210-342-3	01	1	9202-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9202-	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9202-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9202-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9202-	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9202-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9202-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9202-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9202-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9202-	●	●	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9202-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9202-	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9202-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9202-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9202-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9202-	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-005-0	02	1	9202-	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-002-0	02	1	9202-	●	●	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9202-9204	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9202-	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-032-0	01	1	9202-	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-083-0	02	1	9202-	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-314-0	02	1	9202-	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-003-0	02	1	9202-	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-032-0	02	1	9202-	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41521-034-0	01	1	9202-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9202-	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9202-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
