4-01 — PROPELLER SHAFT (#47995) — 967 parça

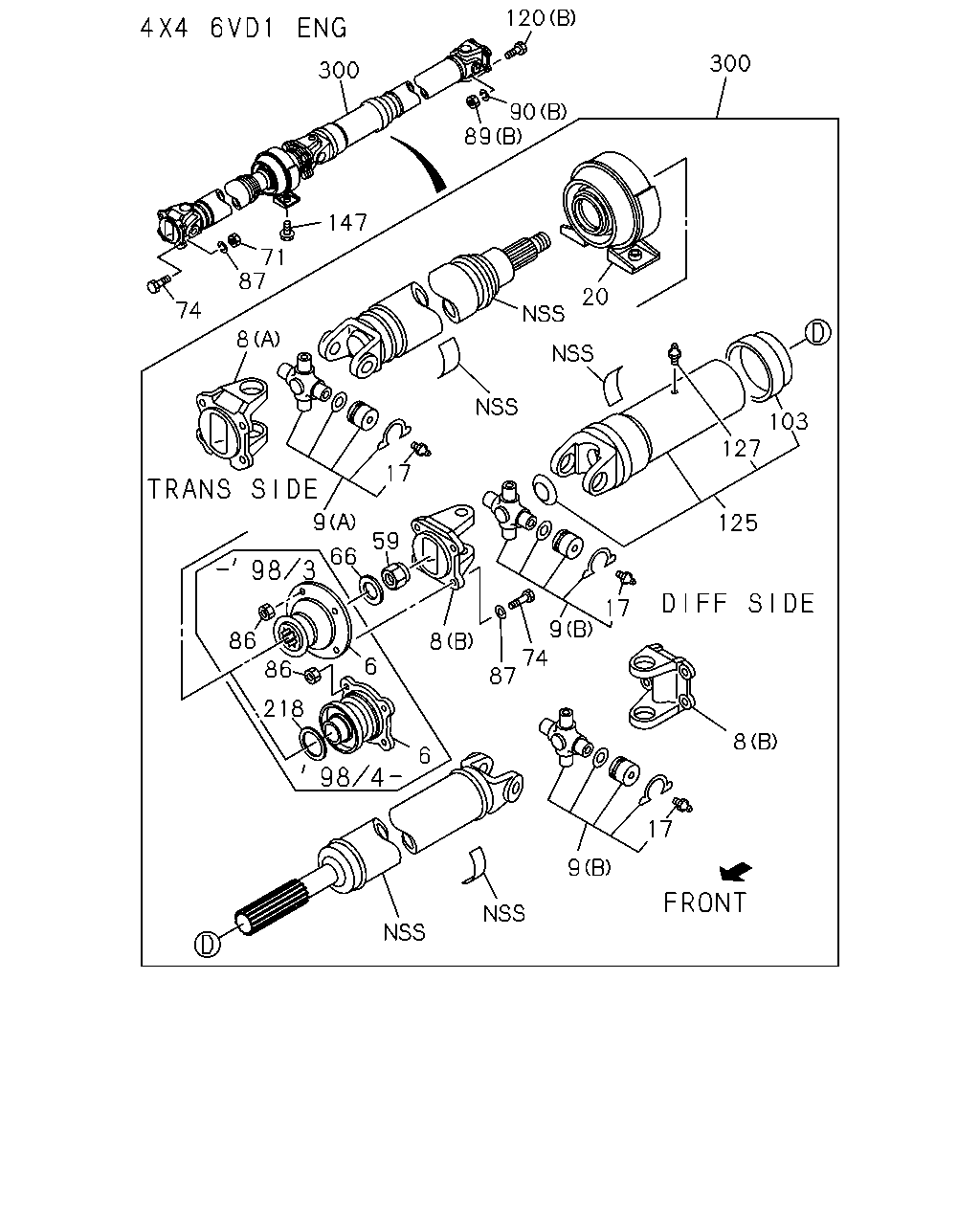

çizim 67326
120 300 300 90 89 147 71 87 20 74 8 103 127 17 9 125 59 66 86 86 17 9 74 87 8 6 218 8 6 17 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9712-9803 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97192-631-0 01 1 9804- ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9611-9711 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94457-119-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9712-9803 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-97202-891-0 01 1 9804- ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-97202-891-0 01 1 9804- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.586 REAR 		8-94310-818-0 03 1 9712-9803 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9712-9801 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9802-9803 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-800-0 01 1 9611- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-799-0 01 1 9611- ● ● ● ●
59 05.586 NUT; RET TO SUPPORT
05.595 REAR M18 		8-08937-737-0 01 1 9611- ● ● ● ● ● ● ●
66 05.595 WASHER
REAR ID=18.5 OD=35 		8-03431-198-0 01 1 9611- ● ● ● ● ● ● ●
71 05.586 NUT; YOKE
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) REAR M10 		8-94159-009-1 04 1 9712- ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 		8-97020-597-1 01 1 9712- ● ● ● ●
103 05.544 BOOT; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.586 		5-37249-004-0 01 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9712-9803 ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=148 		8-94460-089-0 01 1 9712-9803 ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=163 		8-97202-890-0 01 1 9804- ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=163 		8-97202-890-0 01 1 9804- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
6VD1 ENG(RLV) REAR L=177 		8-97049-301-1 01 1 9712- ●
127 05.586 NIPPLE; GREASE,SPLINED YOKE
6VD1 ENG(RLV) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 01 1 9712- ●
147 05.586 BOLT; CENTER BRG MTG
06.225 REAR M12X20 W/LK WASHER 		0-50041-220-0 02 1 9611-9711 ● ● ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
06.056 REAR M12X20 FLANGE 		0-28081-220-0 02 1 9712- ● ● ● ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
REAR ID=30 H=40 L=35 		8-97192-641-0 01 1 9804- ● ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-94328-804-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94328-804-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94381-418-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-94328-803-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94328-803-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) 		8-94460-049-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 		8-94460-048-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94460-048-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94460-696-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97178-845-1 01 1 9712- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-812-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-417-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-809-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-808-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-94367-302-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-807-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) 		8-94328-805-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) 		8-97178-858-1 01 1 9712- ●

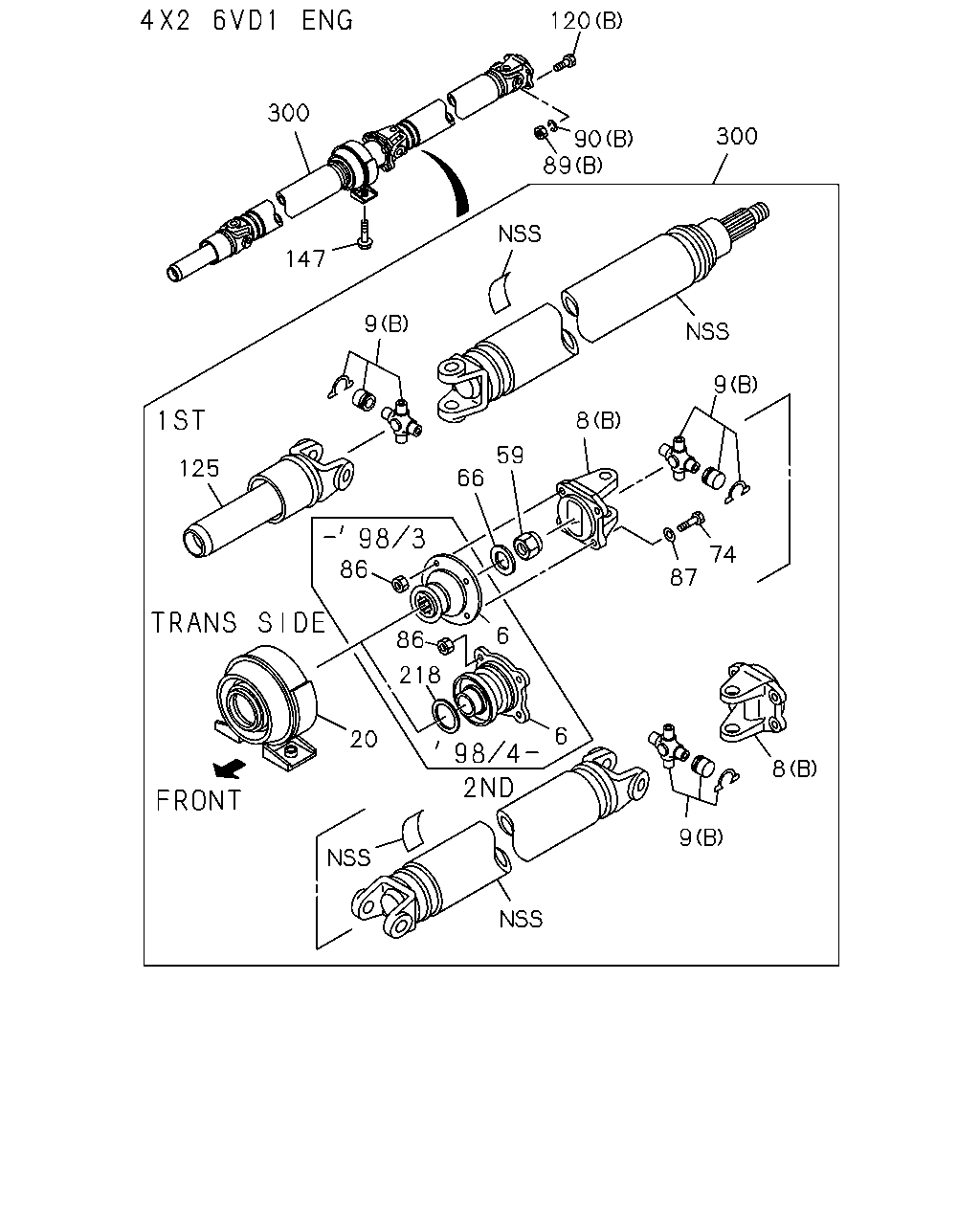

çizim 67357
120 300 300 90 89 147 9 9 8 59 66 125 74 87 86 6 86 218 6 20 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9712-9803 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97192-631-0 01 1 9804- ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9611-9711 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94457-119-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9712-9803 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-97202-891-0 01 1 9804- ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-97202-891-0 01 1 9804- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●

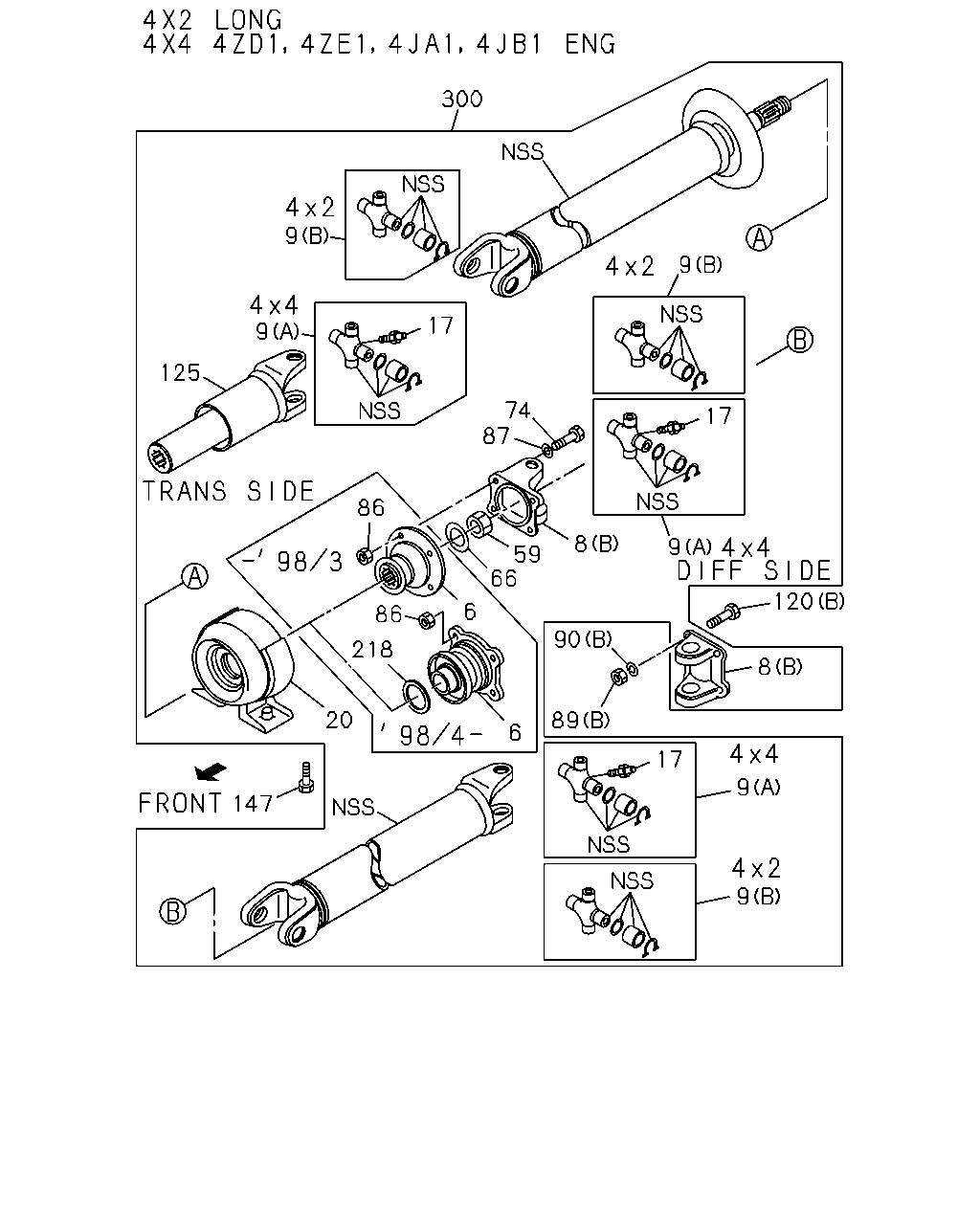

20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-800-0 01 1 9611- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-799-0 01 1 9611- ● ● ● ●
59 05.586 NUT; RET TO SUPPORT
05.595 REAR M18 		8-08937-737-0 01 1 9611- ● ● ● ● ● ● ●
66 05.595 WASHER
REAR ID=18.5 OD=35 		8-03431-198-0 01 1 9611- ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9712-9803 ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=148 		8-94460-089-0 01 1 9712-9803 ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=163 		8-97202-890-0 01 1 9804- ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=163 		8-97202-890-0 01 1 9804- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
6VD1 ENG(RLV) REAR L=177 		8-97049-301-1 01 1 9712- ●
147 05.586 BOLT; CENTER BRG MTG
06.225 REAR M12X20 W/LK WASHER 		0-50041-220-0 02 1 9611-9711 ● ● ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
06.056 REAR M12X20 FLANGE 		0-28081-220-0 02 1 9712- ● ● ● ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
REAR ID=30 H=40 L=35 		8-97192-641-0 01 1 9804- ● ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-94328-804-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94328-804-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94381-418-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-94328-803-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94328-803-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) 		8-94460-049-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 		8-94460-048-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94460-048-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94460-696-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97178-845-1 01 1 9712- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-812-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-417-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-809-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-808-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-94367-302-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-807-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) 		8-94328-805-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) 		8-97178-858-1 01 1 9712- ●

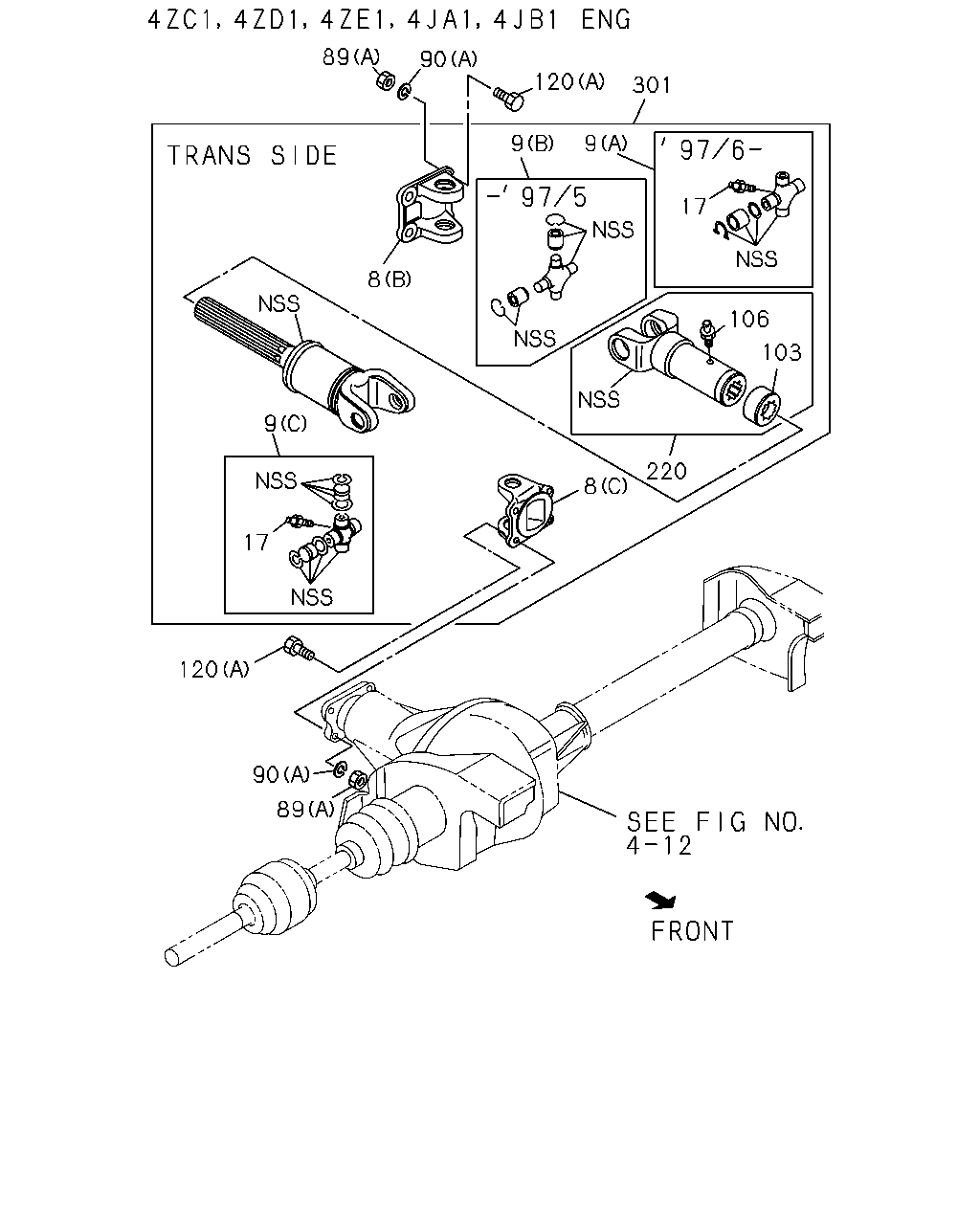

çizim 68984
89 120 301 9 9 17 8 106 103 9 220 8 17 120 90 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.586 REAR 		8-94310-818-0 03 1 9712-9803 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9712-9801 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9802-9803 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 		8-97020-597-1 01 1 9712- ● ● ● ●
103 05.544 BOOT; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.586 		5-37249-004-0 01 1 9712- ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9611-9612 ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9701-9711 ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
220 05.544 YOKE; SPLINED
05.555 		8-94462-760-0 01 1 9611-9705 ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MSG 5 SPEED(M75) 05.555 		8-94462-760-0 01 1 9706- ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.555 		8-94462-760-0 01 1 9706-9711 ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.545 L=177 		8-97049-301-1 01 1 9712- ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-94341-903-3 01 1 9611-9705 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-97180-427-0 01 1 9706- ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=407 		8-97117-210-0 01 1 9611-9705 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=407 		8-97180-422-0 01 1 9706-9711 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=404 		8-97180-424-0 01 1 9712- ● ● ● ●
çizim 69942
301 220 9 17 103 106 9 89 120 9 8 8 89 17 9 90 120 111 90
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.586 REAR 		8-94310-818-0 03 1 9712-9803 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9712-9801 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9802-9803 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 		8-97020-597-1 01 1 9712- ● ● ● ●
103 05.544 BOOT; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.586 		5-37249-004-0 01 1 9712- ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9611-9612 ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9701-9711 ● ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
111 05.545 RING; SLEEVE
M/T MUA 5 SPEED(RMN) 05.586 		5-37249-004-0 01 1 9611-9612 ● ● ● ●
111 05.545 RING; SLEEVE
05.586 		5-37249-004-0 01 1 9701-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
220 05.544 YOKE; SPLINED
05.555 		8-94462-760-0 01 1 9611-9705 ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MSG 5 SPEED(M75) 05.555 		8-94462-760-0 01 1 9706- ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.555 		8-94462-760-0 01 1 9706-9711 ● ● ● ●
220 05.544 YOKE; SPLINED
M/T MUA 5 SPEED(RMN) 05.545 L=177 		8-97049-301-1 01 1 9712- ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-94341-903-3 01 1 9611-9705 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MSG 5 SPEED(M75) L=545 		8-97180-427-0 01 1 9706- ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=407 		8-97117-210-0 01 1 9611-9705 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=407 		8-97180-422-0 01 1 9706-9711 ● ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=404 		8-97180-424-0 01 1 9712- ● ● ● ●
çizim 70236
300 9 9 9 17 125 74 87 17 86 59 66 6 8 9 120 86 90 218 8 20 89 6 9 17 147 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9611-9711 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97063-336-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97063-336-0 01 1 9712-9803 ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-97192-631-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97192-631-0 01 1 9804- ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9611-9711 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94457-119-0 01 1 9611-9711 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-94457-119-0 01 1 9712-9803 ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94457-119-0 01 1 9712-9803 ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
M/T MUA 5 SPEED(RMN) 		8-97202-891-0 01 1 9804- ● ● ● ● ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-97202-891-0 01 1 9804- ● ●
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-97202-891-0 01 1 9804- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 REAR 		8-94310-818-0 03 1 9611-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.586 REAR 		8-94310-818-0 03 1 9712-9803 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9712-9801 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
6VD1 ENG(RLV) 08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9802-9803 ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 REAR M6 STRAIGHT 		9-09031-006-0 03 1 9804- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.984 FRONT TRANS SIDE M6 STRAIGHT 		9-09031-006-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9706-9711 ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.556 FRONT DIFF SIDE 		9-09928-016-0 01 1 9712- ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 08.984 FRONT M6 STRAIGHT 		9-09031-006-0 02 1 9706- ● ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-800-0 01 1 9611- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
REAR 		8-94328-799-0 01 1 9611- ● ● ● ●
59 05.586 NUT; RET TO SUPPORT
05.595 REAR M18 		8-08937-737-0 01 1 9611- ● ● ● ● ● ● ●
66 05.595 WASHER
REAR ID=18.5 OD=35 		8-03431-198-0 01 1 9611- ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) REAR M8X26 		8-94437-365-0 04 1 9712- ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ●
74 05.586 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ●
74 05.586 BOLT; YOKE,TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
74 05.586 BOLT; YOKE,TRANS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR M10 		9-09110-510-0 04 1 9611-9711 ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
M/T MUA 5 SPEED(RMN) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR M10 		9-09110-510-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
M/T MUA 5 SPEED(RMN) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 00.002 REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9712-9803 ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=148 		8-94460-089-0 01 1 9712-9803 ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=163 		8-97202-890-0 01 1 9804- ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=163 		8-97202-890-0 01 1 9804- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
6VD1 ENG(RLV) REAR L=177 		8-97049-301-1 01 1 9712- ●
147 05.586 BOLT; CENTER BRG MTG
06.225 REAR M12X20 W/LK WASHER 		0-50041-220-0 02 1 9611-9711 ● ● ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
06.056 REAR M12X20 FLANGE 		0-28081-220-0 02 1 9712- ● ● ● ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
REAR ID=30 H=40 L=35 		8-97192-641-0 01 1 9804- ● ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-94328-804-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94328-804-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94381-418-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-94328-803-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94328-803-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) 		8-94460-049-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 		8-94460-048-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94460-048-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94460-696-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97178-845-1 01 1 9712- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-812-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-417-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-809-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-808-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-94367-302-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-807-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) 		8-94328-805-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) 		8-97178-858-1 01 1 9712- ●
çizim 72074
300 125 9 89 90 120 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9611-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) REAR 		8-94171-858-1 02 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 01 1 9611-9706 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 01 1 9707- ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) 05.545 (B) REAR 		8-94171-858-1 01 1 9611-9612 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (B) FRONT 		8-94171-858-1 01 1 9701- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR 		8-97087-078-0 02 1 9611-9711 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) (B) REAR 		8-97087-078-0 02 1 9712- ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9701-9711 ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 05.545 (C) FRONT DIFF SIDE 		5-37211-001-0 01 1 9712- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED(RMN) 05.545 (C) FRONT 		8-97020-310-0 02 1 9611- ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) T/M SIDE 		8-97178-365-0 01 1 9712-9801 ●
8 05.544 YOKE; FLANGE,PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97178-365-0 01 1 9802- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 03 1 9611- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (B) REAR OR FRONT 		8-97080-897-1 02 1 9611-9705 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97080-897-1 02 1 9706- ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97029-526-1 03 1 9611-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) REAR 		8-97029-526-1 03 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-97033-932-0 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (B) FRONT TRANS SIDE 		8-97080-897-1 01 1 9611-9707 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (C) FRONT DIFF SIDE 		8-94479-053-0 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9706-9711 ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT TRANS SIDE 		8-97029-526-1 01 1 9712- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED(RMN) (A) FRONT 		8-97029-526-1 02 1 9706- ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (A) T/M SIDE 		8-97167-317-0 01 1 9712- ●
9 05.548 JOURNAL ASM; PROP SHAFT
6VD1 ENG(RLV) (B) REAR 		8-97029-526-1 02 1 9712- ●
89 05.586 NUT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR M8 		9-09110-508-0 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9611-9711 ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10 		8-94159-009-1 04 1 9712- ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT M8 		9-09110-508-0 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9611-9711 ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10 		8-94159-009-1 08 1 9712- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=8.2 		9-09150-608-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9611-9711 ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.002 (B) REAR ID=10.2 		9-09150-610-0 04 1 9712- ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 (A) FRONT ID=8.2 		9-09150-608-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9611-9711 ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.002 (A) ID=10.2 		9-09150-610-0 08 1 9712- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) (B) REAR M8X26 		8-94437-365-1 04 1 9611-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M8X26 		8-94437-365-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (B) REAR M10X27 		8-94146-552-2 04 1 9611-9710 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9711-9711 ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),ARGENTINA EQUIPMENT(7SZ) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B) REAR M10X29 		8-97168-458-1 04 1 9712- ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9611-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (A) FRONT M8X26 		8-94437-365-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X27 		8-94146-552-2 08 1 9611-9710 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9711-9711 ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) (A) FRONT M10X29 		8-97168-458-1 08 1 9712- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=148 		8-94460-089-0 01 1 9712-9803 ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=148 		8-94460-089-0 01 1 9712-9803 ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
REAR L=163 		8-97202-890-0 01 1 9804- ● ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR L=163 		8-97202-890-0 01 1 9804- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
6VD1 ENG(RLV) REAR L=177 		8-97049-301-1 01 1 9712- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) 		8-94328-804-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94328-804-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-418-4 01 1 9712- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ARGENTINA EQUIPMENT(7SZ) 		8-94381-418-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. M/T LOW GEARED(6WF) 		8-94328-803-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94328-803-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-3 01 1 9611-9706 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74) 		8-94328-801-4 01 1 9707- ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) 		8-94460-049-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 		8-94460-048-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. COLOMBIA EQUIPMENT(X74),M/T LOW GEARED(6WF) 		8-94460-048-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94460-696-3 01 1 9611-9706 ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) EXC. COLOMBIA EQUIPMENT(X74) 		8-94460-696-4 01 1 9707- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97178-845-1 01 1 9712- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-812-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 		8-94381-417-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-3 01 1 9611-9711 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-811-4 01 1 9712- ● ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-94328-809-4 01 1 9611- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-94328-808-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-94367-302-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 		8-94328-807-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) 		8-94328-805-4 01 1 9611- ●
300 05.544 SHAFT ASM; PROP,RR
6VD1 ENG(RLV) 		8-97178-858-1 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
