◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#47994) — 25 parça

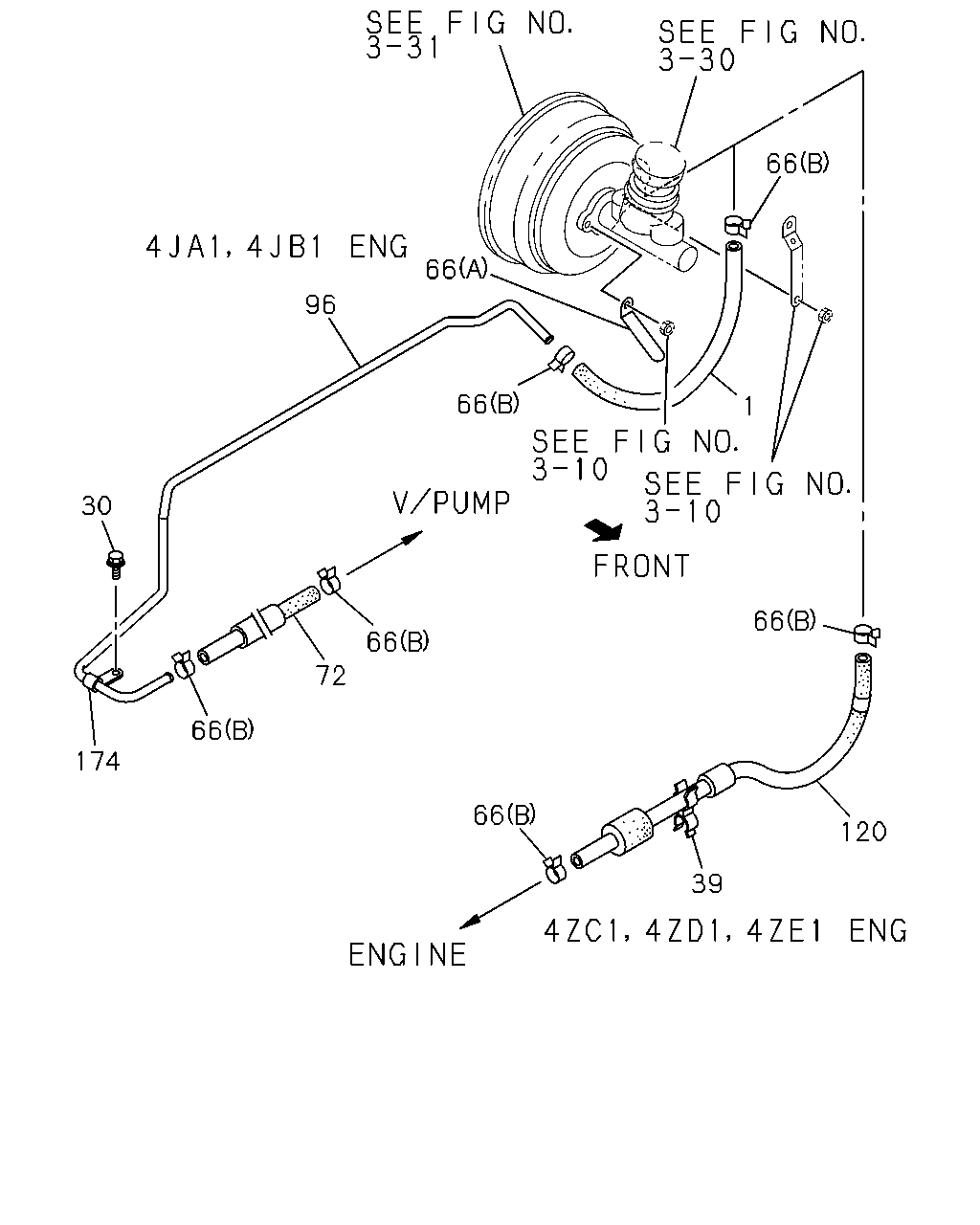

çizim 70198
66 66 96 66 1 30 66 66 72 66 174 66 120 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 9611- ● ● ● ● ● ● ● ●
30 04.686 BOLT; CLIP,VAC PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9611- ● ● ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.430 ID=6 & 16.5 		8-94165-402-0 01 1 9611- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5 		8-94329-956-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=91 ID=8.5 		8-94329-956-0 01 1 9712- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) ID=16 		8-94238-568-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (B) ID=16 		8-97173-222-0 04 1 9712- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) ID=16 		8-94238-568-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.681 (B) ID=16 		8-97173-222-0 02 1 9712- ● ● ● ● ● ● ● ●
72 04.931 HOSE; VAC,VAC PUMP TO PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97073-616-0 01 1 9611- ● ● ● ● ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97110-877-0 01 1 9611- ● ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94328-121-2 01 1 9611- ● ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94336-083-2 01 1 9611- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
6VD1 ENG(RLV) 		8-97163-843-2 01 1 9712- ● ●
174 04.930 CLIP; VAC HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=11 H=20 L=20 		9-09527-010-0 01 1 9611- ● ● ● ● ● ● ● ●
çizim 70260
66 120 66 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
66 04.930 CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5 		8-94329-956-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=91 ID=8.5 		8-94329-956-0 01 1 9712- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) ID=16 		8-94238-568-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (B) ID=16 		8-97173-222-0 04 1 9712- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) ID=16 		8-94238-568-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.681 (B) ID=16 		8-97173-222-0 02 1 9712- ● ● ● ● ● ● ● ●
106 04.930 CLIP; PIPE
6VD1 ENG(RLV) 04.931 		8-97049-783-1 01 1 9712- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94328-121-2 01 1 9611- ● ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-94336-083-2 01 1 9611- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
6VD1 ENG(RLV) 		8-97163-843-2 01 1 9712- ● ●
