3-58 — FIXING PARTS; OIL PIPING (#47993) — 55 parça

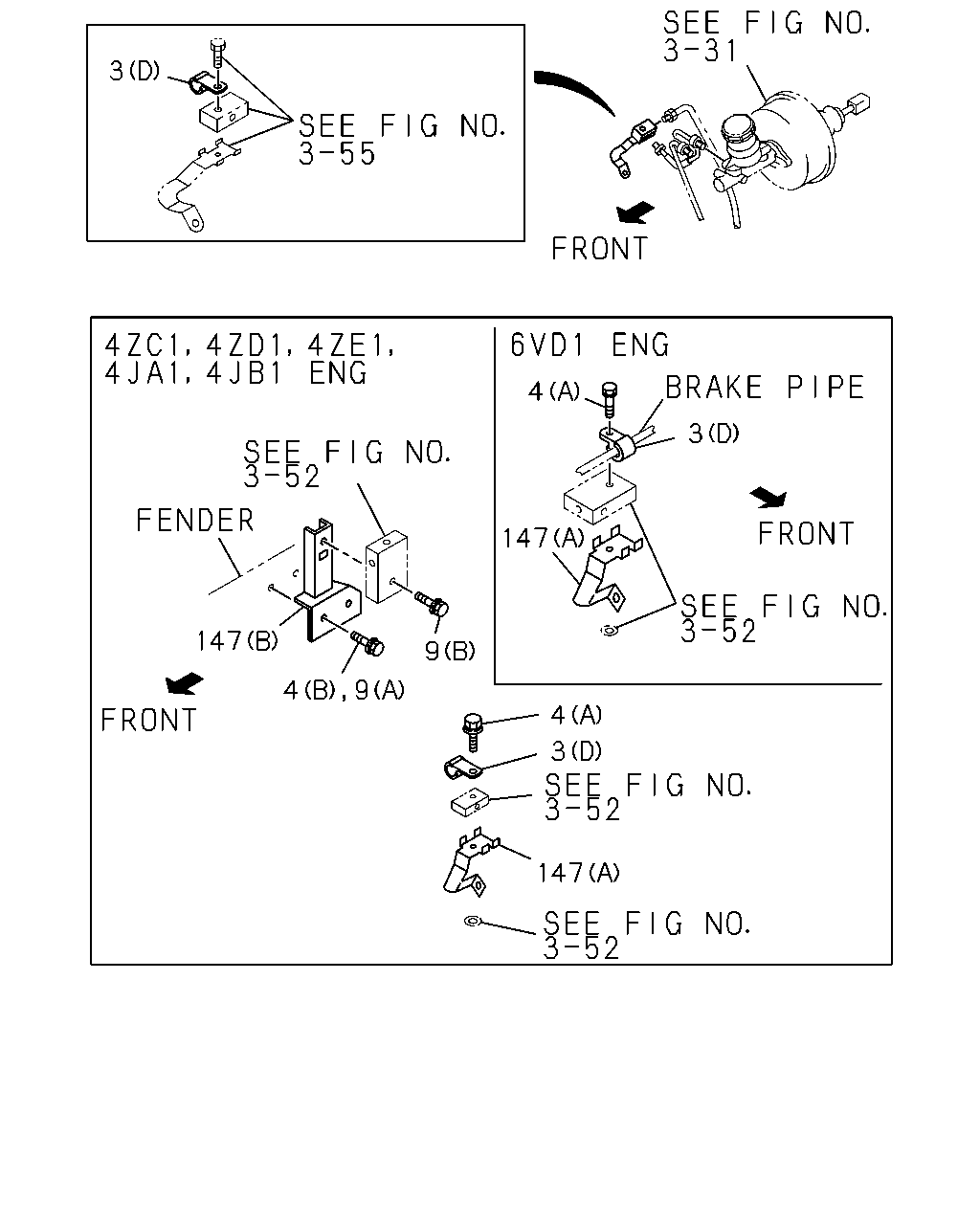

çizim 69590
3 4 3 147 147 4 9 4 3 147 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 04.685 CLIP; BRK PIPE
04.686 (D) 		9-09524-562-0 01 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZC1 ENG(LR9),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9611-9707 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ●
3 04.685 CLIP; BRK PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9611-9707 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9708- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9611-9711 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9712- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9712- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9803- ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 9712- ●
4 04.686 BOLT; BRKT
03.163 (A) M6X40 FLANGE 		0-28680-640-0 01 1 9611- ● ● ● ● ● ● ● ●
4 04.686 BOLT; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9712- ● ● ●
4 04.686 BOLT; BRKT
REAR AXLE W/LSPV<7KA> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9712- ● ●
9 04.686 BOLT; BRKT
REAR AXLE W/LSPV<7KA> 02.334 (A) M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9611-9711 ● ●
9 04.686 BOLT; BRKT
REAR AXLE W/LSPV<7KA> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9611-9711 ● ●
9 04.686 BOLT; BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9712- ● ● ●
9 04.686 BOLT; BRKT
REAR AXLE W/LSPV<7KA> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9712- ● ●
147 04.686 BRACKET; CONNECTOR
(A) 		8-94331-701-1 01 1 9611- ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
REAR AXLE W/LSPV<7KA> (B) 		8-94333-040-1 01 1 9611-9711 ● ●
147 04.686 BRACKET; CONNECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (B) 		8-94333-040-1 01 1 9712- ● ● ●
147 04.686 BRACKET; CONNECTOR
REAR AXLE W/LSPV<7KA> (B) 		8-94333-040-1 01 1 9712- ● ●

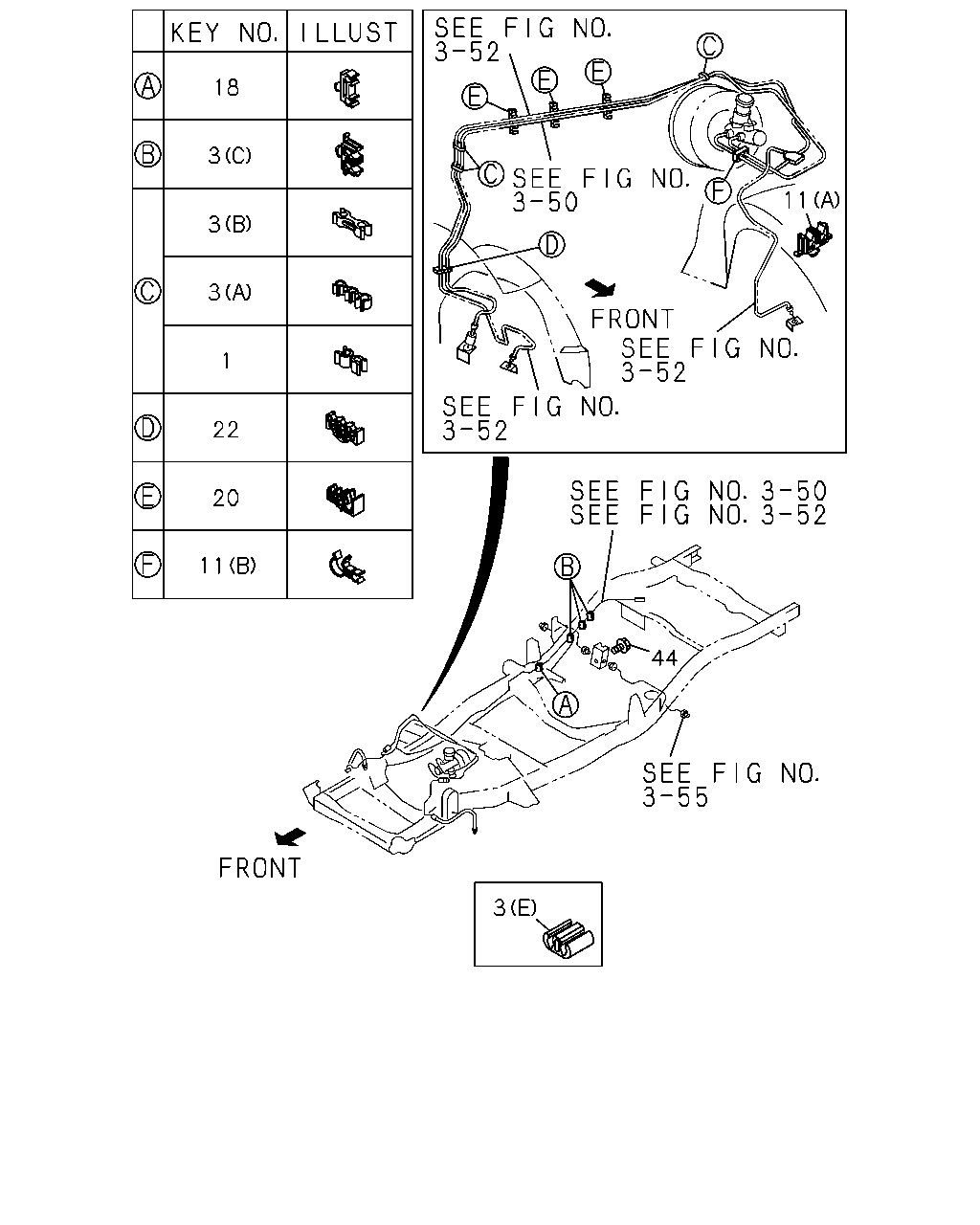

çizim 69701
18 3 11 3 3 1 22 20 11 44 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.686 CLIP; OIL PIPE TO BODY
6VD1 ENG(RLV) ID=6.4 & 4.8 		8-94257-329-0 02 1 9712- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (D) 		9-09524-562-0 01 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZC1 ENG(LR9),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9611-9707 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JB1 ENG(RLF) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 9708- ● ●
3 04.685 CLIP; BRK PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9611-9707 ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9708- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9611-9711 ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) TURBOCHARGER<K51> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9712- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 9712- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
6VD1 ENG(RLV) 04.686 (A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 9803- ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 04.686 (E) ID=4.8X2 		8-94389-060-0 01 1 9712- ●
11 04.686 CLIP; OIL PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9611-9711 ● ● ● ●
11 04.686 CLIP; OIL PIPE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) ID=4.8X2 		8-94113-470-0 01 1 9712- ● ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> (B) 		8-97084-569-0 01 1 9611-9711 ● ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (B) 		8-97084-569-0 01 1 9712- ● ● ● ● ●
11 04.686 CLIP; OIL PIPE
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> (B) 		8-97084-569-0 01 1 9712- ● ● ● ●
18 04.686 CLIP; BRK PIPE 8-94389-586-0 01 1 9611- ● ● ● ●
20 04.686 CLIP; BRK PIPE 8-97102-873-0 03 1 9611- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9611-9711 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94442-883-1 01 1 9712- ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 9611-9711 ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
6VD1 ENG(RLV) 		8-94442-883-1 02 1 9712- ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 02 1 9712- ● ● ● ●
44 04.686 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9611- ● ● ● ● ● ● ● ●
