◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#47992) — 31 parça

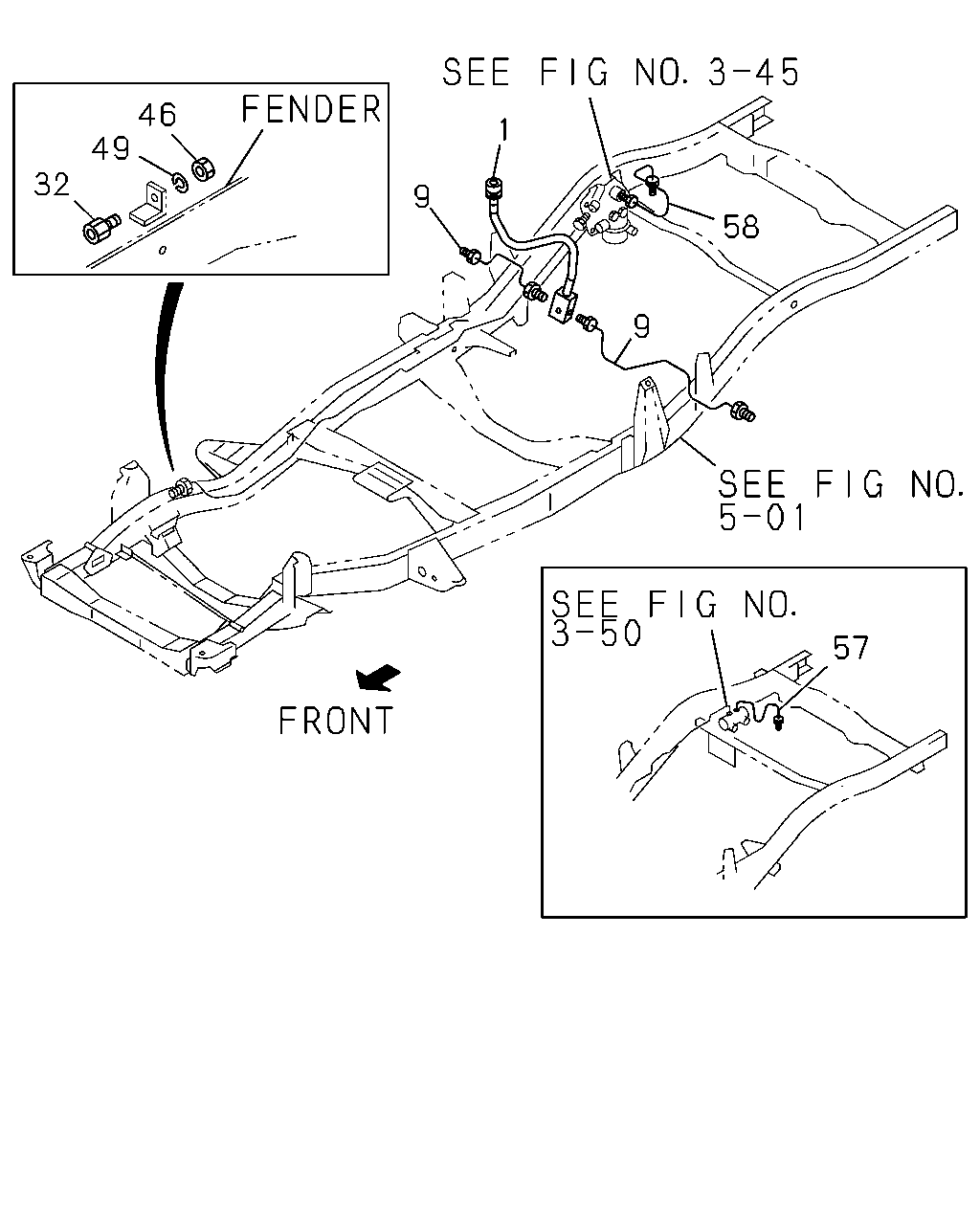

çizim 71148
46 49 32 1 9 58 9 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK 8-97134-832-0 01 1 9611-9711 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97134-832-0 01 1 9611-9711 ● ●
1 04.680 HOSE; FLEX,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 		8-97134-832-0 01 1 9712- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
SAUDI ARABIA EQUIPMENT(EU2) L=479.5 		8-97134-831-0 01 1 9611-9711 ● ●
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-97134-831-0 01 1 9611-9711 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) L=479.5 		8-97134-831-0 01 1 9712- ● ●
1 04.680 HOSE; FLEX,RR BRK
6VD1 ENG(RLV) L=479.5 		8-97134-831-0 01 1 9712- ●
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-97134-831-0 01 1 9712- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-94375-046-1 01 1 9611-9711 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94375-046-2 01 1 9712- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94375-048-2 01 1 9611- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3) M/T LOW GEARED(6WF) 		8-94375-047-4 01 1 9611- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94375-047-4 01 1 9611- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97113-093-1 01 1 9611-9711 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV) 		8-97113-093-2 01 1 9712- ●
9 04.685 PIPE; BRK,RR AXLE 8-97113-093-2 01 1 9712- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-97113-094-2 01 1 9611-9711 ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97113-094-2 01 1 9611-9711 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV) 		8-97113-094-3 01 1 9712- ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-97113-094-3 01 1 9712- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 		8-97113-094-3 01 1 9712- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-97113-095-2 01 1 9611- ● ● ● ●
32 04.686 UNION; OIL PIPE
M10 STRAIGHT OUTER M16X21 		9-09227-055-0 01 1 9611- ● ● ● ● ● ● ● ●
46 04.686 NUT; UNION,OIL PIPE
04.681 M16 		9-99111-416-0 01 1 9611- ● ● ● ● ● ● ● ●
49 04.686 WASHER; LK,UNION,OIL PIPE
06.897 ID=16.2 		9-09150-516-0 01 1 9611- ● ● ● ● ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL 8-94435-256-0 01 1 9611-9711 ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. REAR AXLE W/LSPV<7KA> 		8-94435-256-0 01 1 9611-9711 ● ● ● ●
57 04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-94435-256-0 01 1 9712- ● ● ● ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
REAR AXLE W/LSPV<7KA> 		8-94318-699-1 01 1 9611-9711 ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 		8-94318-699-1 01 1 9712- ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
REAR AXLE W/LSPV<7KA> 		8-94318-699-1 01 1 9712- ● ● ● ●
