3-52 — BRAKE PIPING; OIL,FRONT (#47991) — 103 parça

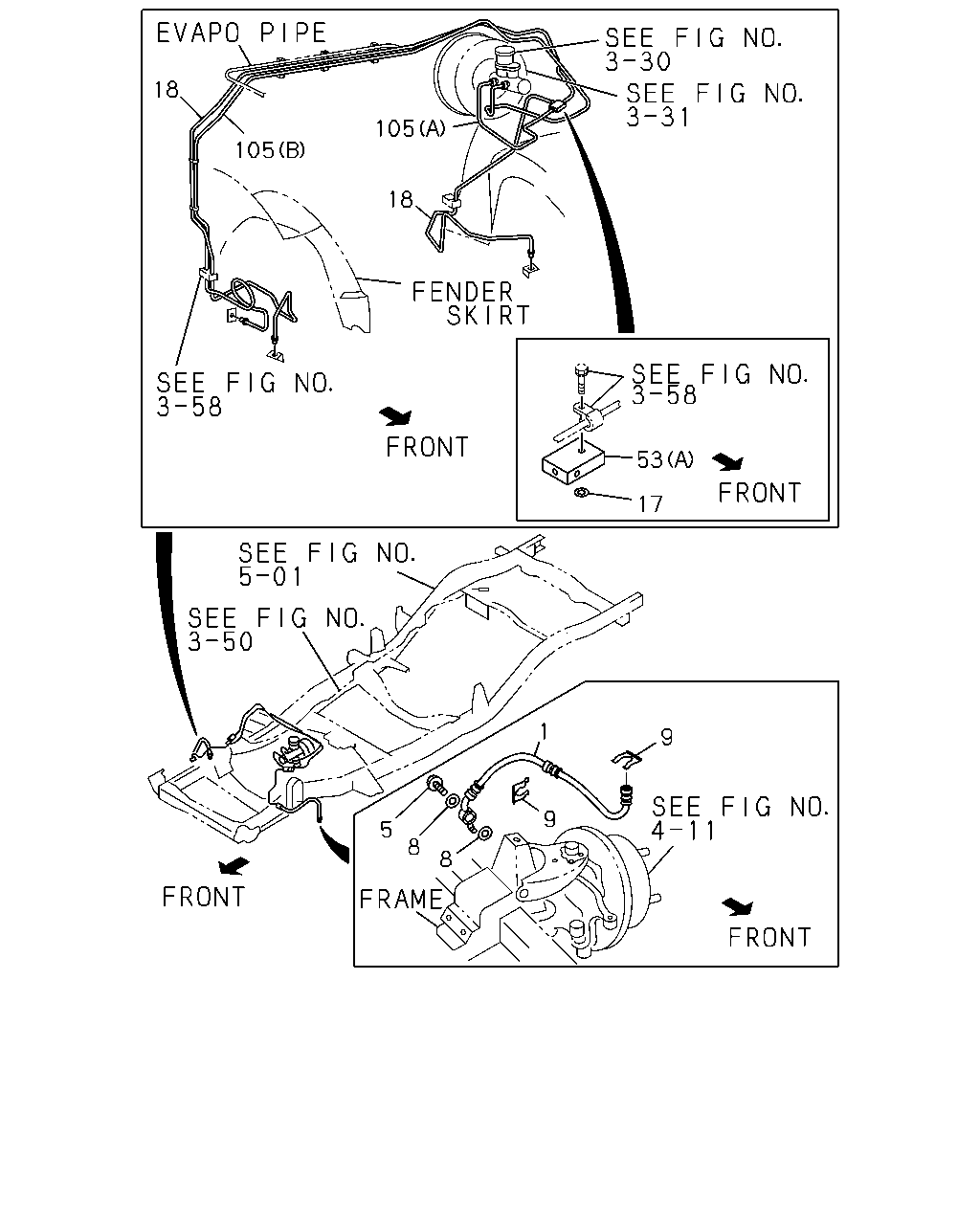

çizim 20574
18 105 105 18 53 17 1 9 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
L=500 		8-97134-829-0 02 1 9611-9711 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=500 		8-97134-829-0 02 1 9712- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) L=372 		8-97069-650-0 02 1 9712- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=436 		8-97134-830-0 02 1 9611-9711 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=436 		8-97134-830-0 02 1 9712- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9611- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9611- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9611- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9611-9711 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9712- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. TURBOCHARGER<K51>,REAR AXLE W/LSPV<7KA> 		8-94435-230-4 01 1 9611-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-94435-230-4 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94435-230-4 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97109-877-1 01 1 9611- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
TURBOCHARGER<K51> 		8-97175-832-0 01 1 9611-9705 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
TURBOCHARGER<K51> 		8-97182-317-0 01 1 9706-9711 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97182-317-0 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-94435-238-2 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-97086-043-0 01 1 9611-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-97086-043-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97086-043-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-625-2 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-660-2 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97110-223-0 01 1 9611-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97110-223-1 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-94435-231-4 01 1 9611-9611 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA> 		8-94435-231-4 01 1 9612-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-94435-231-5 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) 		8-97175-833-0 01 1 9611-9705 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) 		8-97182-318-0 01 1 9706-9711 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97182-318-1 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9611-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9712- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9611-9711 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9712- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9712- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9712- ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9611-9711 ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9712- ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9712- ● ●
105 04.686 PIPE; BRK,MASTER CYLINDER
6VD1 ENG(RLV) (A) M/C-3 WAY 		8-97179-622-0 01 1 9712- ● ●
105 04.686 PIPE; BRK,MASTER CYLINDER
6VD1 ENG(RLV) (B) M/C-2 WAY 		8-97179-623-1 01 1 9712- ● ●

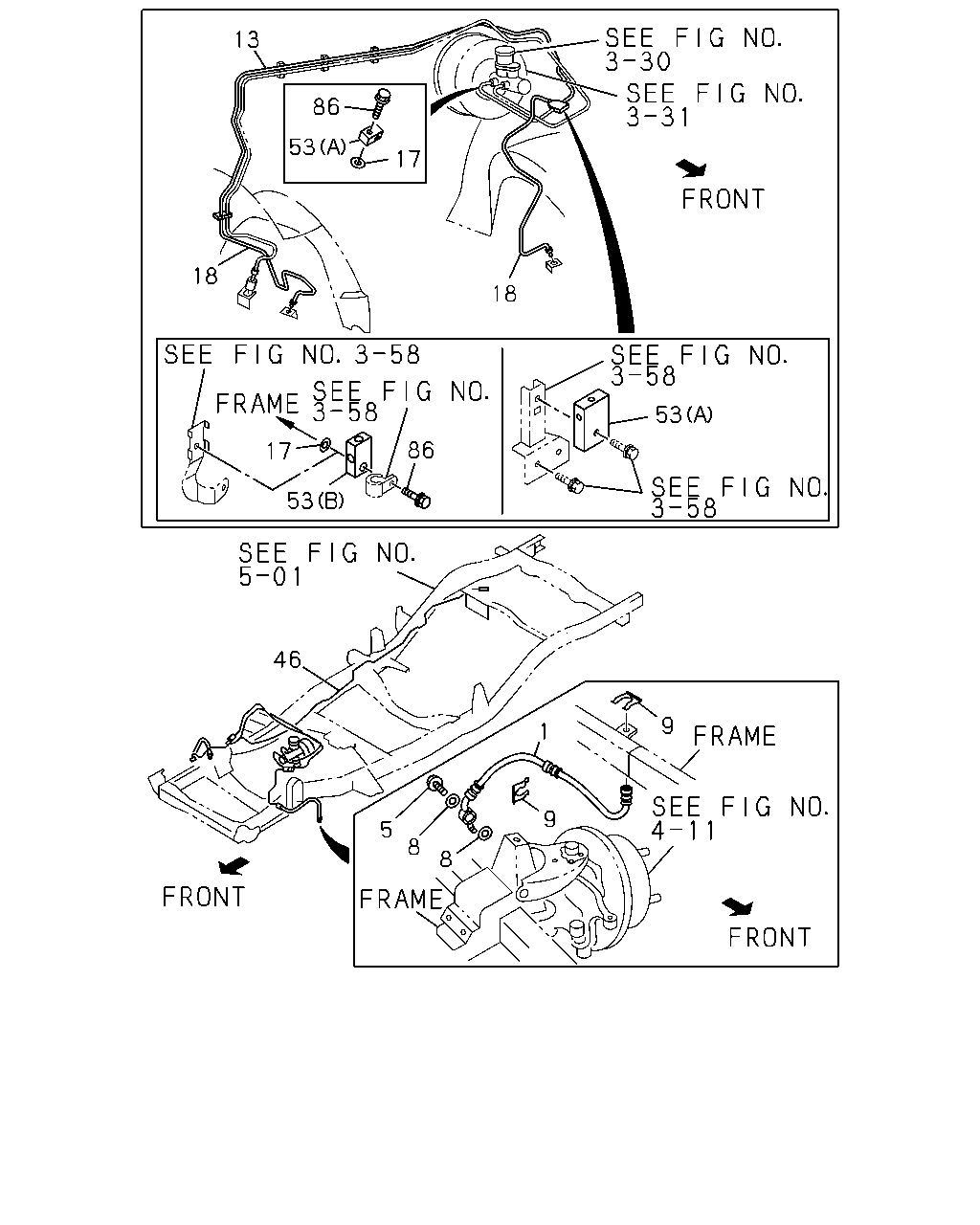

çizim 72232
13 86 53 17 18 18 53 86 17 53 46 9 1 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
L=500 		8-97134-829-0 02 1 9611-9711 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=500 		8-97134-829-0 02 1 9712- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) L=372 		8-97069-650-0 02 1 9712- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=436 		8-97134-830-0 02 1 9611-9711 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=436 		8-97134-830-0 02 1 9712- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9611- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9611- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9611- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-97081-807-1 01 1 9611-9711 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 		8-97081-807-2 01 1 9712- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-97081-807-2 01 1 9712- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-97115-646-0 01 1 9611- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-97081-808-1 01 1 9611-9711 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 		8-97081-808-2 01 1 9712- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-97081-808-2 01 1 9712- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-94333-041-1 01 1 9611- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9611-9711 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9712- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> ID=8.2 		8-94312-733-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. TURBOCHARGER<K51>,REAR AXLE W/LSPV<7KA> 		8-94435-230-4 01 1 9611-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-94435-230-4 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-94435-230-4 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97109-877-1 01 1 9611- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
TURBOCHARGER<K51> 		8-97175-832-0 01 1 9611-9705 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
TURBOCHARGER<K51> 		8-97182-317-0 01 1 9706-9711 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97182-317-0 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) REAR AXLE W/LSPV<7KA> 		8-94435-238-2 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-97086-043-0 01 1 9611-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3) REAR AXLE W/LSPV<7KA> 		8-97086-043-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97086-043-0 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-625-2 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-660-2 01 1 9712- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97110-223-0 01 1 9611-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97110-223-1 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) 		8-94435-231-4 01 1 9611-9611 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA> 		8-94435-231-4 01 1 9612-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-94435-231-5 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) 		8-97175-833-0 01 1 9611-9705 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) 		8-97182-318-0 01 1 9706-9711 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97182-318-1 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9611-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9712- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
REAR AXLE W/LSPV<7KA> 		8-97115-645-0 01 1 9712- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
REAR AXLE W/LSPV<7KA> 		8-97132-347-0 01 1 9611- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-97117-623-0 01 1 9712- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-97117-624-0 01 1 9712- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
REAR AXLE W/LSPV<7KA> 		8-97132-346-0 01 1 9611- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9611-9711 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9712- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9712- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (A) 		8-94406-895-0 01 1 9712- ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9611-9711 ● ●
53 04.686 CONNECTOR; OIL PIPE
REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9712- ● ●
53 04.686 CONNECTOR; OIL PIPE
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> (B) 		8-94328-125-0 01 1 9712- ● ●
86 04.686 BOLT; BRK PIPE
REAR AXLE W/LSPV<7KA> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9611-9711 ● ●
86 04.686 BOLT; BRK PIPE
REAR AXLE W/LSPV<7KA> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ●
86 04.686 BOLT; BRK PIPE
ARGENTINA EQUIPMENT(7SZ) EXC. REAR AXLE W/LSPV<7KA> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ●
