3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#47990) — 50 parça

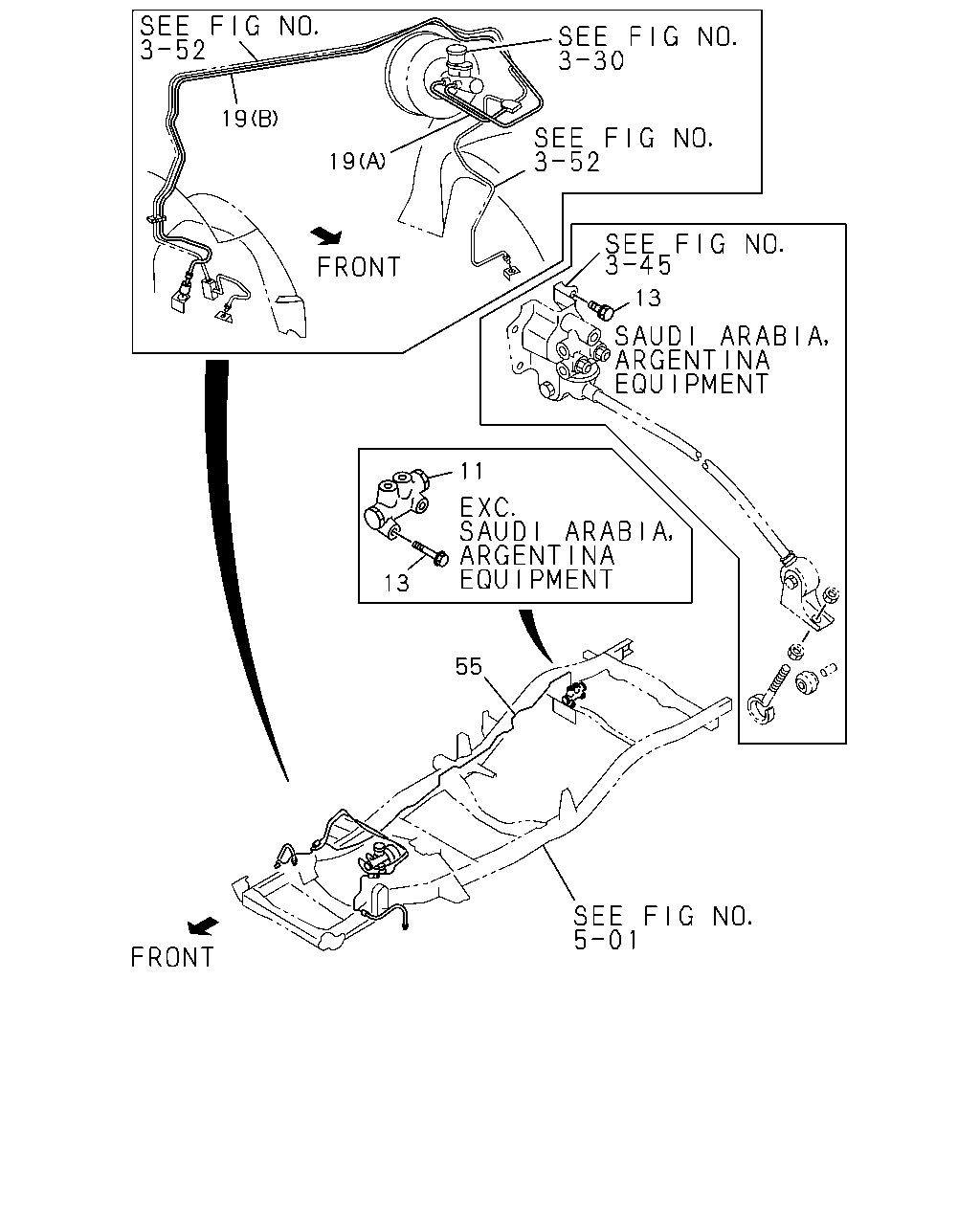

çizim 16338
19 19 13 13 55 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94126-764-3 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 		8-94126-764-3 01 1 9712- ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9712- ● ●
11 04.686 VALVE; BRK CONT 8-97171-502-0 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97171-502-0 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 		8-97171-502-0 01 1 9712- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9712- ● ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
SAUDI ARABIA EQUIPMENT(EU2) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611-9711 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9712- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-94435-233-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) 		8-94435-233-3 01 1 9712- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. TURBOCHARGER<K51> (B) 		8-94435-234-7 01 1 9611- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
TURBOCHARGER<K51> (B) 		8-97117-613-0 01 1 9611-9711 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (B) 		8-97117-613-1 01 1 9712- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97109-381-1 01 1 9712- ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-362-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) 		8-97165-362-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. CHINA EQUIPMENT(YT2),REAR AXLEW/LSPV<7KA> 		8-97117-625-0 01 1 9611-9702 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97117-625-0 01 1 9611-9702 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97117-625-0 01 1 9703-9711 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. CHINA EQUIPMENT(YT2),REAR AXLEW/LSPV<7KA> 		8-97117-625-0 01 1 9703-9711 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-97117-625-0 01 1 9703-9711 ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2),REAR AXLEW/LSPV<7KA>,ARGENTINA EQUIPMENT(7SZ) 		8-97117-625-0 01 1 9712- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97117-625-0 01 1 9712- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-97117-625-0 01 1 9712- ●
55 04.686 PIPE; BRK,VLV TO UNION
REAR AXLE W/LSPV<7KA> 		8-97132-344-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-97117-616-0 01 1 9712- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-363-0 01 1 9611-9711 ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-363-0 01 1 9712- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-97117-617-0 01 1 9712- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9611-9712 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-0 01 1 9801- ●
55 04.686 PIPE; BRK,VLV TO UNION
REAR AXLE W/LSPV<7KA> 		8-97132-343-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. REAR AXLE W/LSPV<7KA> 		8-97117-626-0 01 1 9611-9711 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. REAR AXLE W/LSPV<7KA>, ARGENTINA EQUIPMENT(7SZ) 		8-97117-626-0 01 1 9712- ● ●

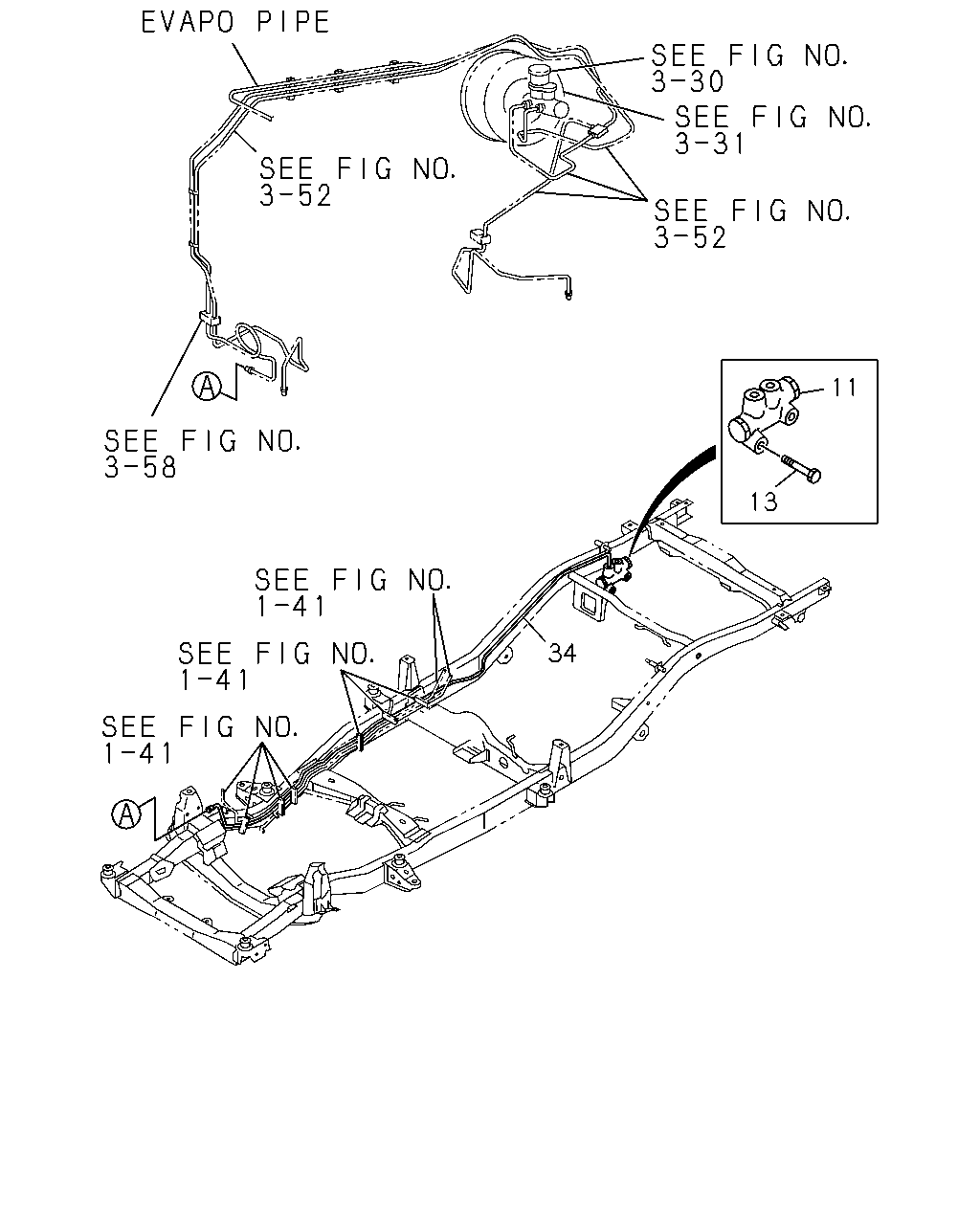

çizim 19737
11 13 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94126-764-3 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 		8-94126-764-3 01 1 9712- ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9712- ● ●
11 04.686 VALVE; BRK CONT 8-97171-502-0 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97171-502-0 01 1 9611-9711 ● ●
11 04.686 VALVE; BRK CONT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 		8-97171-502-0 01 1 9712- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9712- ● ● ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
SAUDI ARABIA EQUIPMENT(EU2) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611-9711 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9712- ● ● ● ● ●
34 04.685 PIPE; BRK,UNION TO DSPV
6VD1 ENG(RLV) 		8-97179-626-1 01 1 9712- ● ●
