◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50B - EXHAUST PIPE AND SILENCER ▶
1-50B — EXHAUST PIPE AND SILENCER (#4799) — 142 parça

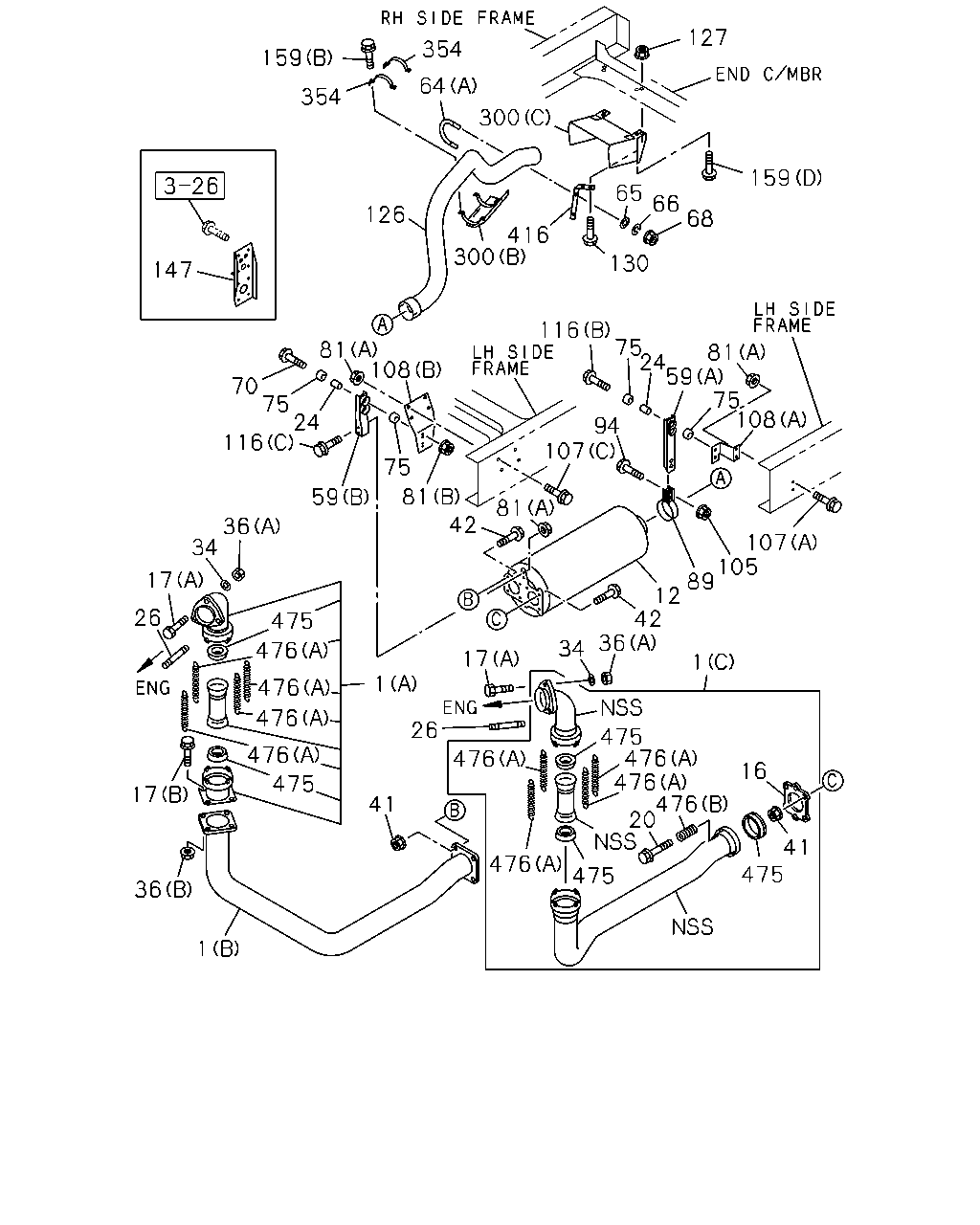

çizim 8753
127 354 159 64 354 300 159 65 66 68 126 416 300 130 147 108 116 75 81 24 59 75 108 81 70 75 24 116 94 107 81 75 81 59 42 36 34 107 105 89 12 42 36 17 26 475 34 476 476 476 17 1 1 26 475 476 476 476 20 476 476 16 475 17 41 41 475 476 475 36 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22122-752-0 01 1 9601-9904 ●
1 PIPE; EXH
(C) 		1-22122-752-0 01 1 9905- ● ●
1 PIPE; EXH
(A) 		1-22122-484-0 01 1 9601-9904 ●
1 PIPE; EXH
(A) 		1-22122-484-0 01 1 9905- ● ●
1 PIPE; EXH
(B) 		1-22122-751-0 01 1 9601-9904 ●
1 PIPE; EXH
(B) 		1-22122-751-0 01 1 9905- ● ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-753-4 01 1 9601-9904 ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-753-4 01 1 9905-0002 ● ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-920-2 01 1 0003- ● ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-681-0 01 1 9601-9904 ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-681-0 01 1 9905-0003 ● ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-932-1 01 1 0004- ● ●
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 9601- ● ●
17 BOLT; EXH PIPE
(B) M12X25 FLANGE 		1-09000-604-0 04 1 9905- ● ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-603-0 02 1 9601-9606 ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 02 1 9607-9904 ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 02 1 9905- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9601- ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 04 1 9601-9610 ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 04 1 9611-9904 ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9905-9907 ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9908- ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9908- ● ●
26 STUD; EXH MANIF 1-09302-161-0 04 1 9601-9606 ●
26 STUD; EXH MANIF 1-09302-165-0 04 1 9607-9904 ●
26 STUD; EXH MANIF 1-09302-165-0 04 1 9905- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 06 1 9601-9606 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 06 1 9607-9904 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 06 1 9905- ● ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9601-9603 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9604-9606 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91150-212-0 04 1 9607-9610 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9611-9904 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9905- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 9601-9807 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 06 1 9808-9904 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 06 1 9905- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91150-212-0 08 1 9702-9709 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9601-9606 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91150-212-0 08 1 9607-9701 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9710-9904 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9905- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9611-9904 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9905-9907 ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9908- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9601-9710 ●
59 BRACKET; EXH SILENCER,FRT
(A) REAR 		1-22151-504-0 01 1 9601-9904 ●
59 BRACKET; EXH SILENCER,FRT
(A) REAR 		1-22151-504-0 01 1 9905- ● ●
59 BRACKET; EXH SILENCER,FRT
(B) FRONT 		1-22151-623-0 01 1 9601-9904 ●
59 BRACKET; EXH SILENCER,FRT
(B) FRONT 		1-22151-623-0 01 1 9905- ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9905-9907 ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9908- ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9601-9904 ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9601-9904 ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9905-9907 ● ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9908- ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9601-9603 ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 04 1 9905- ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 04 1 9601-9904 ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9601-9610 ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9611-9904 ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9905-9907 ● ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9908- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9601-9610 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9611-9904 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9905- ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9905-9907 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9908- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9611-9904 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 08 1 9601-9606 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 9607-9802 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9803-9904 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9905-9907 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9905-9907 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9908- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9908- ● ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9601-9610 ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9611-9701 ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9702-9904 ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9905-9910 ● ●
89 CLAMP; EXH SILENCER,RR 1-22133-276-0 01 1 9911- ● ●
94 BOLT; CLAMP
M8X40 W/LK WASHER 		0-50040-840-0 02 1 9601-9606 ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9607-9904 ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9905-9907 ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9908- ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9611-9904 ●
105 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 9905-9907 ● ●
105 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 9908- ● ●
105 NUT; CLAMP
M8 		9-09110-408-0 02 1 9601-9904 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28081-035-0 02 1 9601-9606 ●
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ●
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9905-9907 ● ●
107 BOLT; BRKT
(C) M10X25 FLANGE 		0-28081-025-0 04 1 9601-9606 ●
107 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9904 ●
107 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 04 1 9905-9907 ● ●
107 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 04 1 9908- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22131-593-0 01 1 9601-9904 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22131-593-0 01 1 9905- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22151-660-0 01 1 9601-9904 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22151-660-0 01 1 9905- ● ●
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 9601-9904 ●
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 9905- ● ●
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 9611-9904 ●
116 BOLT; BRKT
(C) M10X70 FLANGE 		0-28081-070-0 02 1 9601-9904 ●
116 BOLT; BRKT
(C) M10X70 FLANGE 		0-28081-070-0 02 1 9905- ● ●
126 PIPE; EXH,RR 1-22126-173-0 01 1 9601-9904 ●
126 PIPE; EXH,RR 1-22126-173-0 01 1 9905- ● ●
127 NUT; BRKT
M8 		9-09110-408-0 02 1 9601-9606 ●
127 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
127 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904 ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
147 BRACKET; VERTICAL PIPE 1-48495-176-2 01 1 9601-9904 ●
147 BRACKET; VERTICAL PIPE 1-48495-176-2 01 1 9905- ● ●
147 BRACKET; VERTICAL PIPE 1-48495-181-1 01 1 9601-9904 ●
147 BRACKET; VERTICAL PIPE 1-48495-181-1 01 1 9905- ● ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28681-030-0 02 1 9607-9904 ●
159 BOLT; HEAT PROTECTOR
(D) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606 ●
159 BOLT; HEAT PROTECTOR
(D) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9904 ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ●
159 BOLT; HEAT PROTECTOR
(D) M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ●
300 PROTECTOR; HEAT,EXH PIPE
(B) REAR REAR 		1-22119-309-0 01 1 9601-9610 ●
300 PROTECTOR; HEAT,EXH PIPE
(B) REAR REAR 		1-22119-309-0 01 1 9905-9907 ● ●
300 PROTECTOR; HEAT,EXH PIPE
(B) REAR REAR 		1-22119-309-0 01 1 9908- ● ●
300 PROTECTOR; HEAT,EXH PIPE
(B) REAR REAR 		1-22119-309-0 01 1 9611-9904 ●
300 PROTECTOR; HEAT,EXH PIPE
(C) REAR FRONT 		1-22119-354-0 01 1 9601-9904 ●
300 PROTECTOR; HEAT,EXH PIPE
(C) REAR FRONT 		1-22119-354-0 01 1 9905- ● ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9601-9610 ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9611-9904 ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9905-9907 ● ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9908- ● ●
416 BRACKET; RR EXH PIPE 1-22131-700-0 01 1 9601-9904 ●
416 BRACKET; RR EXH PIPE 1-22131-700-0 01 1 9905- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 05 1 9705-9904 ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 05 1 9905- ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 08 1 9705-9904 ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 08 1 9905- ● ●
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 9909- ● ●
