3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#47988) — 43 parça

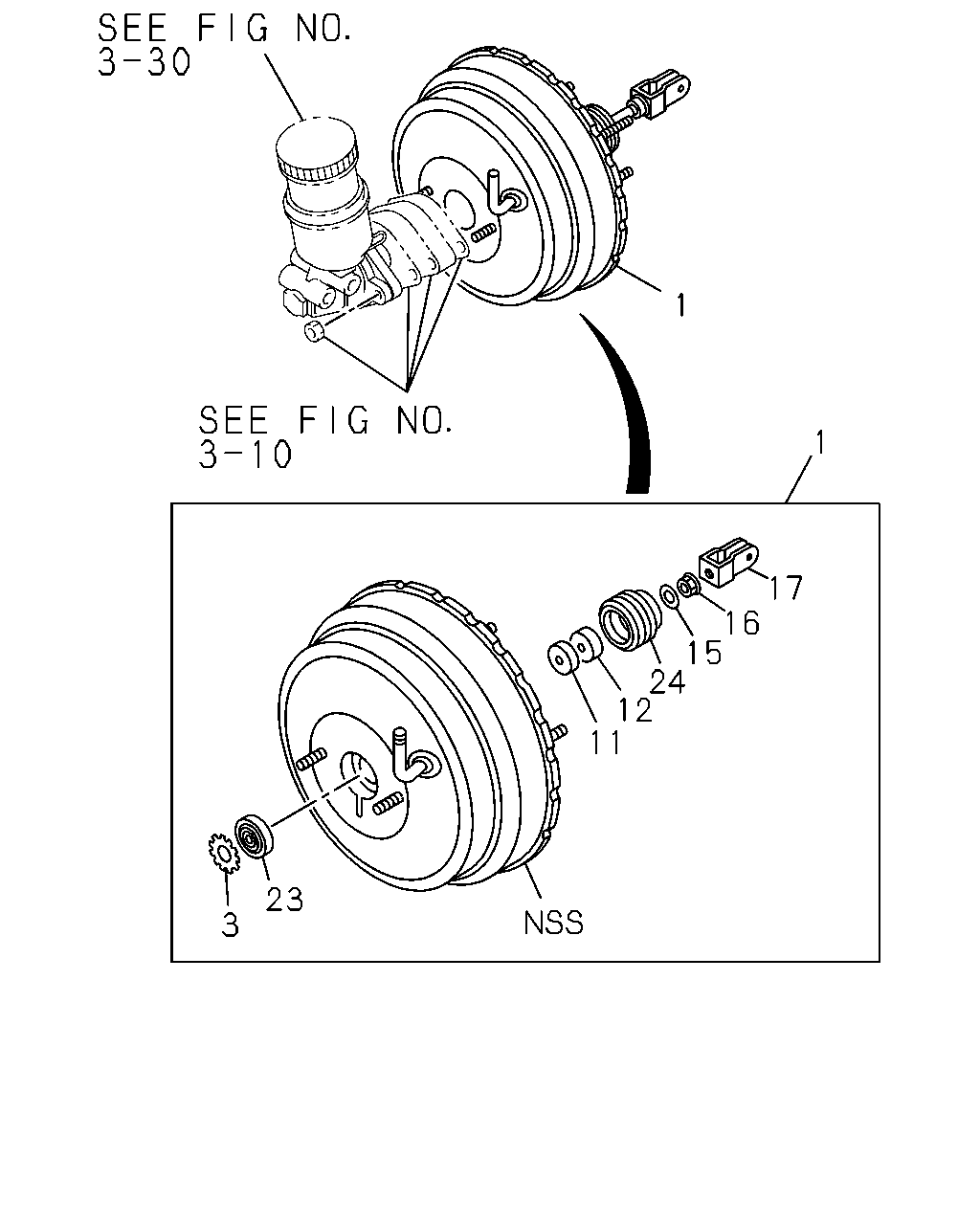

çizim 67307
1 1 17 16 15 24 12 23 3 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.901 MASTER VAC ASM; BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-942-1 01 1 9611- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-97021-941-1 01 1 9611- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
6VD1 ENG(RLV) 		8-97167-849-0 01 1 9712- ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		9-83315-319-0 01 1 9712- ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
6VD1 ENG(RLV) 		8-97046-827-0 02 1 9712- ● ●
11 04.906 FILTER; M/VAC
04.913 		9-83345-063-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.913 		9-83345-063-0 01 1 9712- ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
6VD1 ENG(RLV) 		8-97208-348-0 01 1 9712- ● ●
12 04.906 SILENCER; M/VAC 8-94341-722-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94341-722-0 01 1 9712- ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
6VD1 ENG(RLV) 		8-97208-349-0 01 1 9712- ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 9611- ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9611- ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94342-517-0 01 1 9611- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC 8-94152-349-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94152-349-0 01 1 9712- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
6VD1 ENG(RLV) 		8-97046-828-0 01 1 9712- ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-94375-084-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94375-084-0 01 1 9712- ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
6VD1 ENG(RLV) 		8-97208-350-0 01 1 9712- ● ●

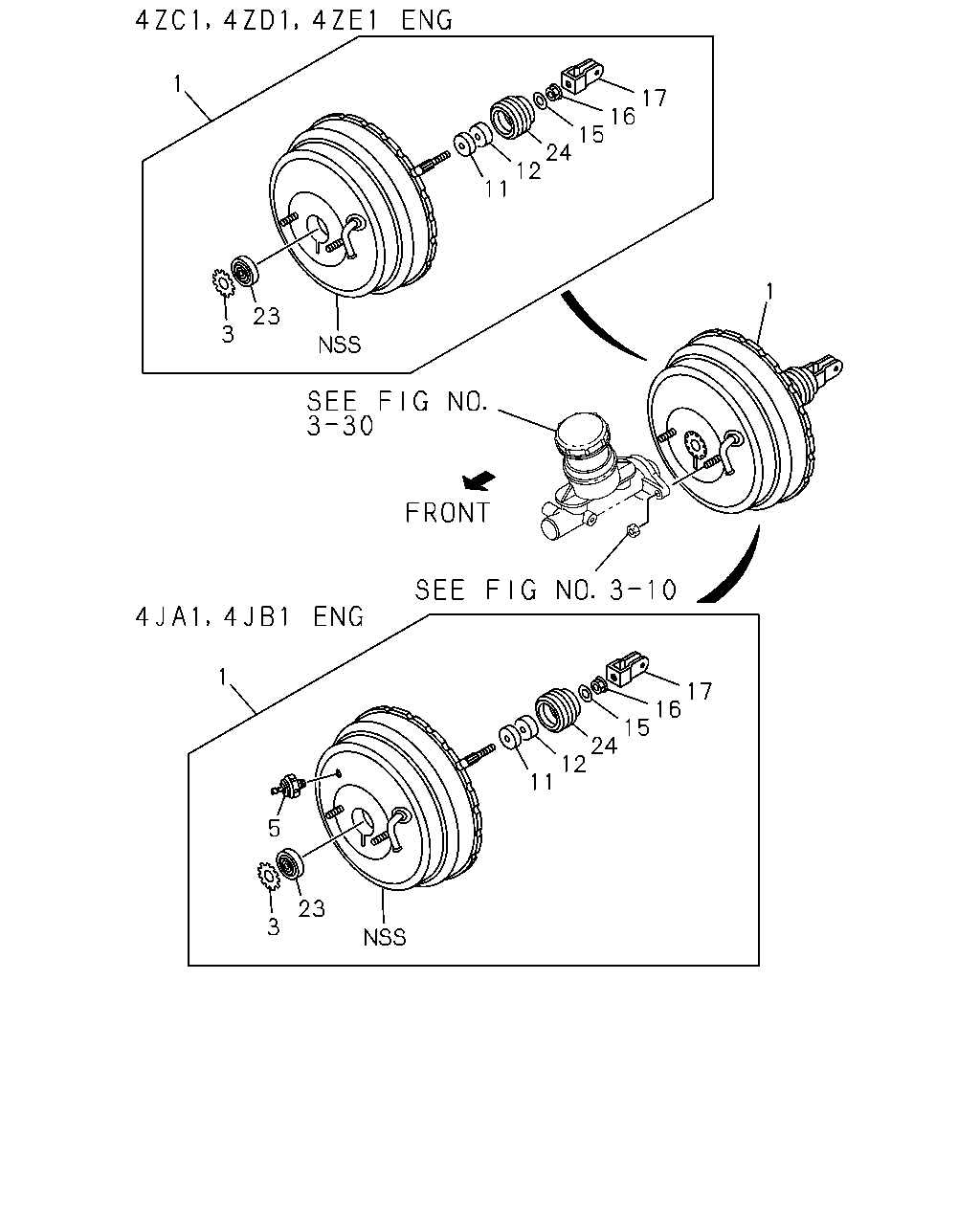

çizim 70359
1 17 16 15 24 12 11 1 23 3 1 17 16 15 24 12 11 5 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.901 MASTER VAC ASM; BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97021-942-1 01 1 9611- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-97021-941-1 01 1 9611- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
6VD1 ENG(RLV) 		8-97167-849-0 01 1 9712- ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		9-83315-319-0 01 1 9712- ● ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
6VD1 ENG(RLV) 		8-97046-827-0 02 1 9712- ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94460-517-0 01 1 9611- ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
04.913 		9-83345-063-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.913 		9-83345-063-0 01 1 9712- ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
6VD1 ENG(RLV) 		8-97208-348-0 01 1 9712- ● ●
12 04.906 SILENCER; M/VAC 8-94341-722-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94341-722-0 01 1 9712- ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
6VD1 ENG(RLV) 		8-97208-349-0 01 1 9712- ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 9611- ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9611- ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94342-517-0 01 1 9611- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC 8-94152-349-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94152-349-0 01 1 9712- ● ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
6VD1 ENG(RLV) 		8-97046-828-0 01 1 9712- ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-94375-084-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94375-084-0 01 1 9712- ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
6VD1 ENG(RLV) 		8-97208-350-0 01 1 9712- ● ●
