◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#47987) — 55 parça

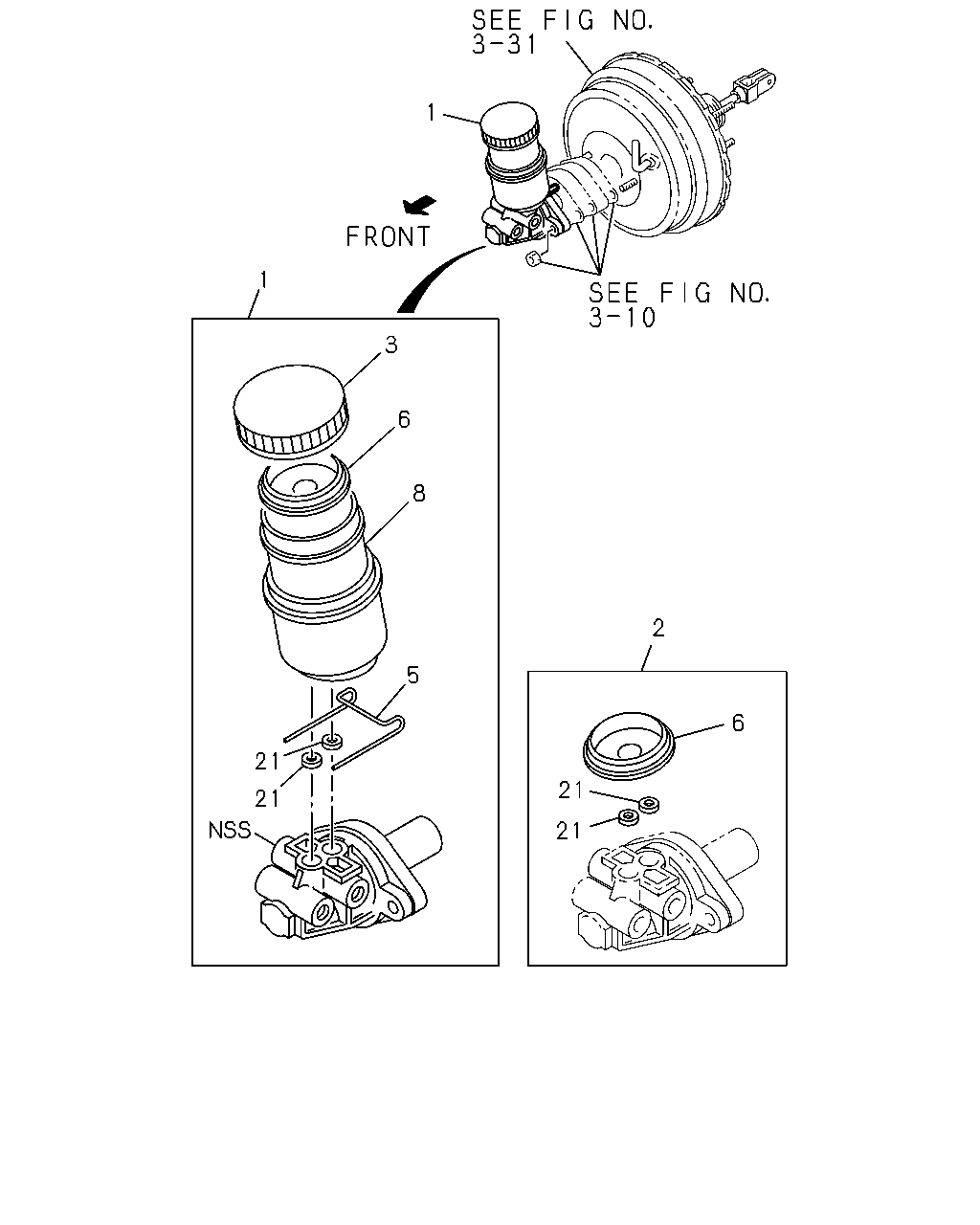

çizim 20686
1 1 3 6 8 2 5 6 21 21 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER 8-97148-431-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97148-431-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 9712- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9712- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9712- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97160-707-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97160-707-0 01 1 9712- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9712- ● ●
3 04.651 CAP; OIL TANK 8-94124-872-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-94124-872-0 01 1 9712- ● ● ●
3 04.651 CAP; OIL TANK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 9712- ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-94124-872-0 01 1 9712- ● ●
3 04.651 CAP; OIL TANK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9712- ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9712- ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) 		8-97061-568-0 01 1 9712- ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9611- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-97071-797-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97071-797-0 01 1 9712- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9712- ● ●
21 04.651 GROMMET; BRK M/CYL 8-94133-716-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94133-716-0 02 1 9712- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9712- ● ●

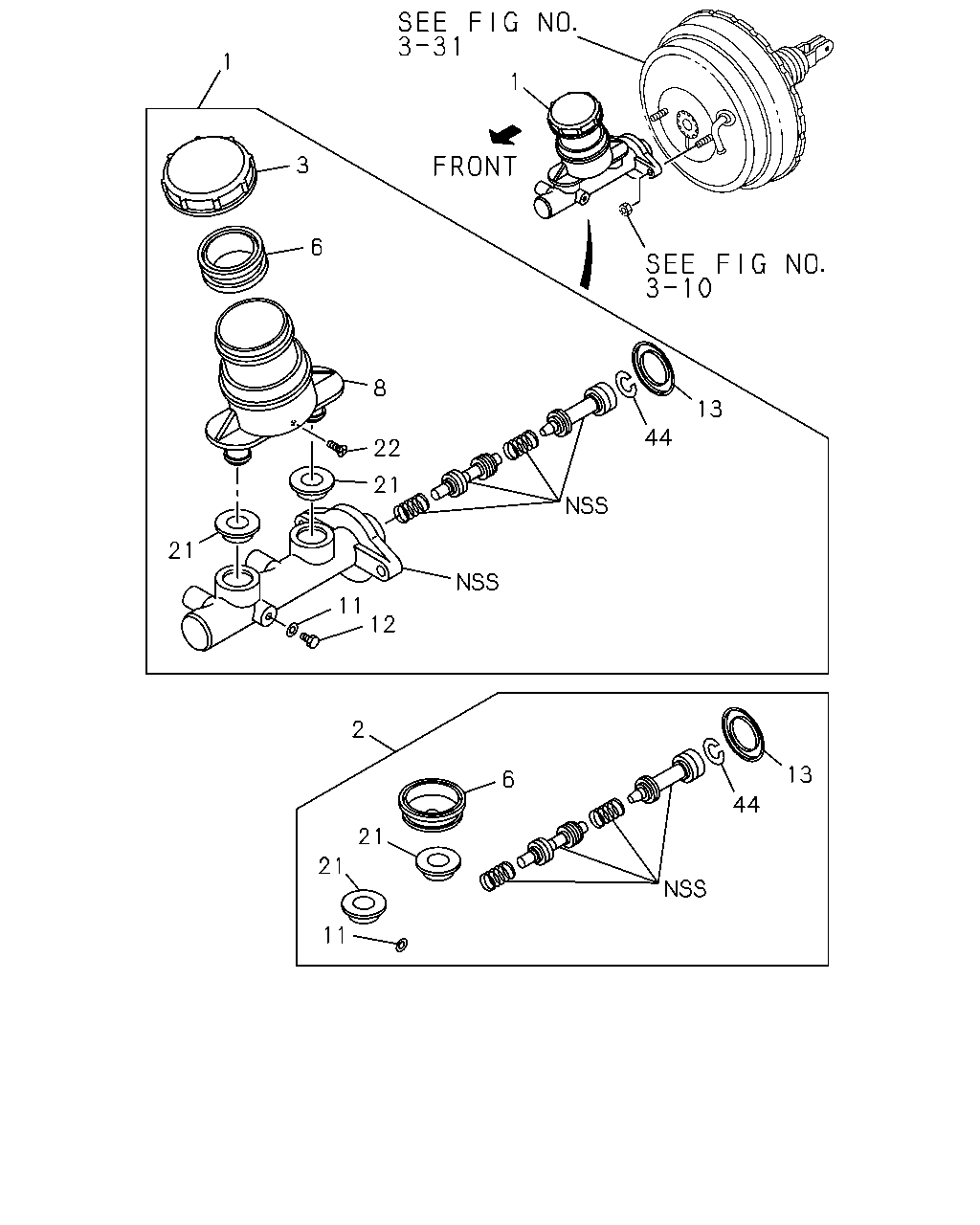

çizim 72229
1 1 3 6 8 13 44 22 21 21 12 2 13 6 44 21 21 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER 8-97148-431-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97148-431-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-97148-431-0 01 1 9712- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97148-432-0 01 1 9712- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) 		8-97178-010-0 01 1 9712- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97160-707-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97160-707-0 01 1 9712- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) 		8-97178-913-0 01 1 9712- ● ●
3 04.651 CAP; OIL TANK 8-94124-872-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-94124-872-0 01 1 9712- ● ● ●
3 04.651 CAP; OIL TANK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 		8-94124-872-0 01 1 9712- ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) 		8-94124-872-0 01 1 9712- ● ●
3 04.651 CAP; OIL TANK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9712- ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97138-667-0 01 1 9712- ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9611- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-97071-797-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97071-797-0 01 1 9712- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) 		8-97061-565-0 01 1 9712- ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-94107-675-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94107-675-0 01 1 9712- ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
M6X13 		8-94107-674-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M6X13 		8-94107-674-0 01 1 9712- ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC 8-94132-833-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94132-833-0 01 1 9712- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-94133-716-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94133-716-0 02 1 9712- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) 		8-97061-567-0 02 1 9712- ● ●
22 04.651 SCREW; OIL TANK 8-94230-600-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94230-600-1 01 1 9712- ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
04.017 OD=27.9 		9-09180-126-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.017 OD=27.9 		9-09180-126-0 01 1 9712- ● ● ● ● ● ● ● ●
