Sayfa 3-11 - Isuzu EPC

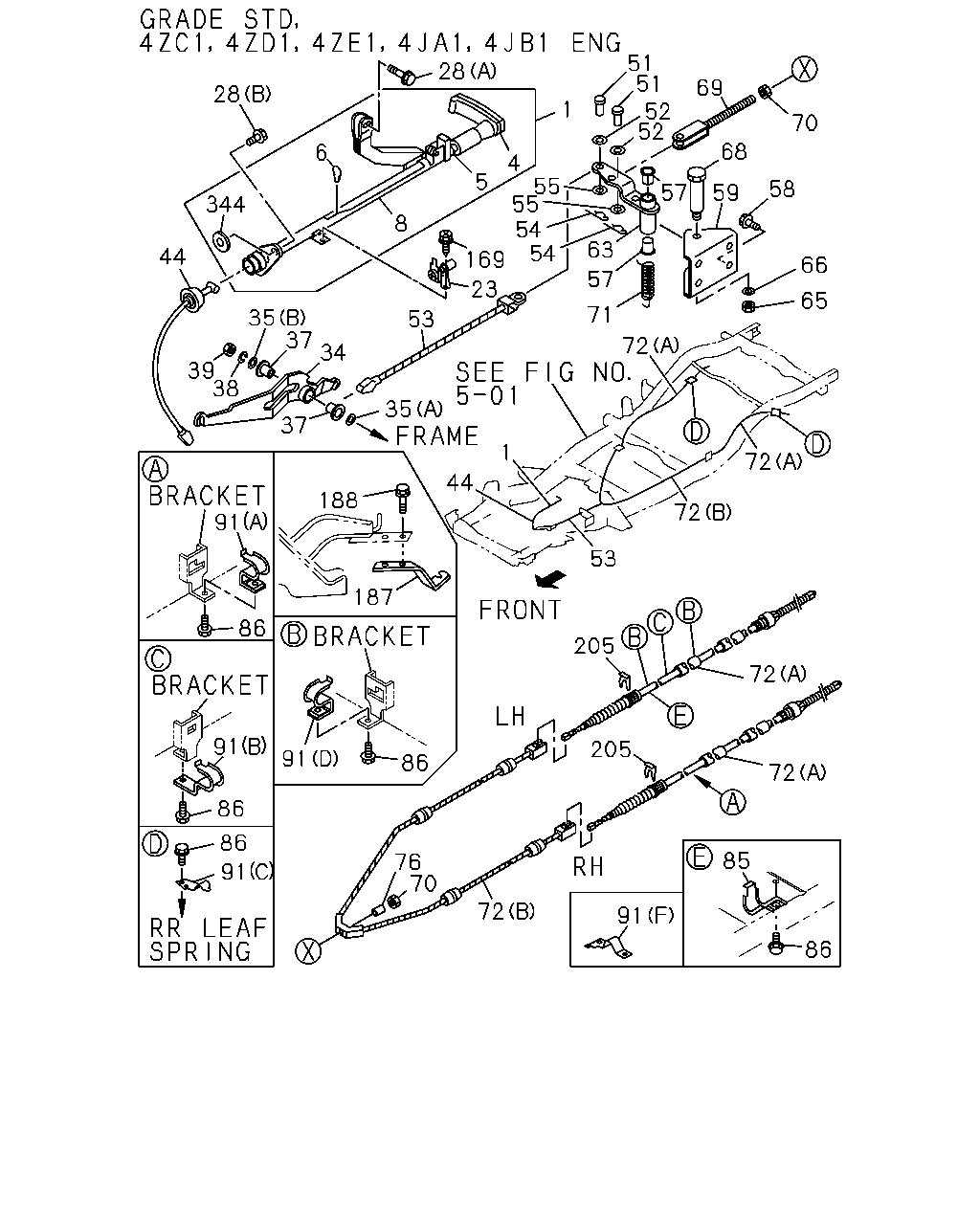

3-11 — PARKING BRAKE CONTROL (#47986) — 385 parça

51 51 52 52 28 69 28 70 68 4 55 55 54 54 169 23 5 58 57 59 344 8 63 57 44 66 65 71 72 35 37 34 53 39 38 35 37 1 72 44 188 72 91 53 187 86 205 72 91 86 205 91 72 86 86 91 85 76 70 72 91 86 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.592 STEM ASM; PARKING BRK	8-97131-923-0	01	1	9611-9711	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRADE STD(RBA)	8-97131-923-0	01	1	9611-9711						●	●
1	04.592 STEM ASM; PARKING BRK	8-97131-923-0	01	1	9712-	●	●	●		●
1	04.592 STEM ASM; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97131-923-0	01	1	9712-				●
1	04.592 STEM ASM; PARKING BRK GRADE STD(RBA)	8-97131-923-0	01	1	9712-						●	●
4	04.592 STEM; PARKING BRK	8-97162-053-0	01	1	9611-9711	●	●	●	●	●
4	04.592 STEM; PARKING BRK GRADE STD(RBA)	8-97162-053-0	01	1	9611-9711						●	●
4	04.592 STEM; PARKING BRK	8-97162-053-0	01	1	9712-	●	●	●		●
4	04.592 STEM; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97162-053-0	01	1	9712-				●
4	04.592 STEM; PARKING BRK GRADE STD(RBA)	8-97162-053-0	01	1	9712-						●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9611-9711	●	●	●	●	●
5	04.592 BUSHING; PARKING BRK GRADE STD(RBA)	9-46129-022-0	01	1	9611-9711						●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9712-	●	●	●		●
5	04.592 BUSHING; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	9-46129-022-0	01	1	9712-				●
5	04.592 BUSHING; PARKING BRK GRADE STD(RBA)	9-46129-022-0	01	1	9712-						●	●
6	04.589 PIN; STEM,PARK BRK	8-97162-045-0	01	1	9611-9711	●	●	●	●	●
6	04.589 PIN; STEM,PARK BRK GRADE STD(RBA)	8-97162-045-0	01	1	9611-9711						●	●
6	04.589 PIN; STEM,PARK BRK	8-97162-045-0	01	1	9712-	●	●	●		●
6	04.589 PIN; STEM,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97162-045-0	01	1	9712-				●
6	04.589 PIN; STEM,PARK BRK GRADE STD(RBA)	8-97162-045-0	01	1	9712-						●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9611-9711	●	●	●	●	●
8	04.592 GUIDE; PARKING BRK GRADE STD(RBA)	8-97076-059-0	01	1	9611-9711						●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9712-	●	●	●		●
8	04.592 GUIDE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97076-059-0	01	1	9712-				●
8	04.592 GUIDE; PARKING BRK GRADE STD(RBA)	8-97076-059-0	01	1	9712-						●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9611-9711	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE STD(RBA)	8-94328-267-0	01	1	9611-9711						●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9712-	●	●	●		●
23	04.589 SWITCH; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94328-267-0	01	1	9712-				●
23	04.589 SWITCH; PARKING BRK GRADE STD(RBA)	8-94328-267-0	01	1	9712-						●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9611-9711								●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9611-9711						●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9712-				●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9712-								●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9712-						●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9611-9711	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9712-					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9611-9711	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE STD(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9611-9711						●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●		●
28	04.594 BOLT; HAND BRK LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-				●
28	04.594 BOLT; HAND BRK LEVER GRADE STD(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-						●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9611-9711	●	●	●	●	●
34	04.591 LEVER; PARK BRK CONT GRADE STD(RBA)	8-94479-100-1	01	1	9611-9711						●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9712-	●	●	●		●
34	04.591 LEVER; PARK BRK CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-100-1	01	1	9712-				●
34	04.591 LEVER; PARK BRK CONT GRADE STD(RBA)	8-94479-100-1	01	1	9712-						●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9611-9711	●	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE STD(RBA) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9611-9711						●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9712-	●	●	●		●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9712-				●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE STD(RBA) (A) ID=15.5 OD=24	8-94222-473-0	01	1	9712-						●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9611-9711	●	●	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE STD(RBA) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9611-9711						●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9712-	●	●	●		●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9712-				●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK GRADE STD(RBA) (B) ID=10.5 OD=26	9-09160-710-0	01	1	9712-						●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9611-9711	●	●	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK GRADE STD(RBA)	8-94408-022-0	02	1	9611-9711						●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9712-	●	●	●		●
37	04.792 BUSHING; RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94408-022-0	02	1	9712-				●
37	04.792 BUSHING; RELAY LEVER,PARK BRK GRADE STD(RBA)	8-94408-022-0	02	1	9712-						●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9611-9711	●	●	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK GRADE STD(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9611-9711						●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9712-	●	●	●		●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-510-0	01	1	9712-				●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK GRADE STD(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9712-						●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9611-9711	●	●	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK GRADE STD(RBA) 09.011 M10	9-09110-410-0	01	1	9611-9711						●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9712-	●	●	●		●
39	04.792 NUT; RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10	9-09110-410-0	01	1	9712-				●
39	04.792 NUT; RELAY LEVER,PARK BRK GRADE STD(RBA) 09.011 M10	9-09110-410-0	01	1	9712-						●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9611-9711	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT GRADE STD(RBA)	8-94479-091-1	01	1	9611-9711						●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9712-	●	●	●		●
44	04.779 CABLE; PARKING BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-091-1	01	1	9712-				●
44	04.779 CABLE; PARKING BRK,FRT GRADE STD(RBA)	8-94479-091-1	01	1	9712-						●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9611-9711	●	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER GRADE STD(RBA) 08.942 OD=8 L=20	9-08233-820-0	02	1	9611-9711						●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9712-	●	●	●		●
51	04.785 PIN; JOINT,RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.942 OD=8 L=20	9-08233-820-0	02	1	9712-				●
51	04.785 PIN; JOINT,RELAY LEVER GRADE STD(RBA) 08.942 OD=8 L=20	9-08233-820-0	02	1	9712-						●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9611-9711	●	●	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER GRADE STD(RBA) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9611-9711						●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9712-	●	●	●		●
52	04.785 WASHER; CURVED RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9712-				●
52	04.785 WASHER; CURVED RELAY LEVER GRADE STD(RBA) 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9712-						●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9611-9711	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9712-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-095-0	01	1	9712-				●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-099-0	01	1	9611-					●
53	04.779 CABLE; PARK BRK,FRT LWR GRADE STD(RBA)	8-94479-099-0	01	1	9611-						●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9611-9711	●	●	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER GRADE STD(RBA) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9611-9711						●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9712-	●	●	●		●
54	04.606 PIN; SNAP,CABLE TO LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9712-				●
54	04.606 PIN; SNAP,CABLE TO LEVER GRADE STD(RBA) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9712-						●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9611-9711	●	●	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE GRADE STD(RBA) 16.674 ID=8.4	9-09160-508-0	02	1	9611-9711						●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9712-	●	●	●		●
55	04.792 WASHER; PL,PARK BRK CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.674 ID=8.4	9-09160-508-0	02	1	9712-				●
55	04.792 WASHER; PL,PARK BRK CABLE GRADE STD(RBA) 16.674 ID=8.4	9-09160-508-0	02	1	9712-						●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9611-9711	●	●	●	●	●
57	04.592 BUSHING; RELAY LEVER GRADE STD(RBA) 04.439	5-33659-053-0	02	1	9611-9711						●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9712-	●	●	●		●
57	04.592 BUSHING; RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.439	5-33659-053-0	02	1	9712-				●
57	04.592 BUSHING; RELAY LEVER GRADE STD(RBA) 04.439	5-33659-053-0	02	1	9712-						●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-9711	●	●	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK GRADE STD(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-9711						●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-	●	●	●		●
58	04.765 BOLT; RELAY LEVER,PARK BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-				●
58	04.765 BOLT; RELAY LEVER,PARK BRK GRADE STD(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-						●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9611-9711	●	●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9712-	●	●	●
59	04.765 BRACKET; RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94479-094-0	01	1	9712-				●
59	04.765 BRACKET; RELAY LEVER	8-94479-098-1	01	1	9611-					●
59	04.765 BRACKET; RELAY LEVER GRADE STD(RBA)	8-94479-098-1	01	1	9611-						●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9611-9711	●	●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9712-	●	●	●
63	04.792 LEVER; RELAY,HAND BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94324-632-0	01	1	9712-				●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-633-1	01	1	9611-					●
63	04.792 LEVER; RELAY,HAND BRK GRADE STD(RBA)	8-94324-633-1	01	1	9611-						●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9611-9711	●	●	●	●	●
65	04.594 NUT; RELAY LEVER GRADE STD(RBA) 09.011 M10	9-09110-410-0	01	1	9611-9711						●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9712-	●	●	●		●
65	04.594 NUT; RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10	9-09110-410-0	01	1	9712-				●
65	04.594 NUT; RELAY LEVER GRADE STD(RBA) 09.011 M10	9-09110-410-0	01	1	9712-						●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9611-9711	●	●	●	●	●
66	04.592 WASHER; LK,RELAY LEVER GRADE STD(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9611-9711						●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9712-	●	●	●		●
66	04.592 WASHER; LK,RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-510-0	01	1	9712-				●
66	04.592 WASHER; LK,RELAY LEVER GRADE STD(RBA) 00.002 ID=10.2	9-09150-510-0	01	1	9712-						●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9611-9711	●	●	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR GRADE STD(RBA)	8-94404-908-1	01	1	9611-9711						●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9712-	●	●	●		●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94404-908-1	01	1	9712-				●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR GRADE STD(RBA)	8-94404-908-1	01	1	9712-						●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9611-9711	●	●	●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9712-	●	●	●
69	04.589 ROD; RELAY LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94314-430-0	01	1	9712-				●
69	04.589 ROD; RELAY LEVER 04.765	8-94479-248-0	01	1	9611-					●
69	04.589 ROD; RELAY LEVER GRADE STD(RBA) 04.765	8-94479-248-0	01	1	9611-						●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9611-9711	●	●	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE GRADE STD(RBA) 00.787 M8	9-09111-408-0	02	1	9611-9711						●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9712-	●	●	●		●
70	04.606 NUT; EQUALIZER TO FRT CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.787 M8	9-09111-408-0	02	1	9712-				●
70	04.606 NUT; EQUALIZER TO FRT CABLE GRADE STD(RBA) 00.787 M8	9-09111-408-0	02	1	9712-						●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9611-9711	●	●	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO GRADE STD(RBA) 03.302	8-94479-600-2	01	1	9611-9711						●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9712-	●	●	●		●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.302	8-94479-600-2	01	1	9712-				●
71	04.606 SPRING; RETURN,PARKING BRK TO BO GRADE STD(RBA) 03.302	8-94479-600-2	01	1	9712-						●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) L=1850 WHITE	8-94367-286-0	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1604	8-94366-770-2	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1684	8-94366-769-2	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (B) L=1300	8-94367-285-0	01	1	9611-		●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-772-2	01	1	9611-		●
72	04.779 CABLE; PARKING BRK (A) L=1464	8-94366-771-2	01	1	9611-		●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV)	8-97191-104-0	01	1	9712-				●
72	04.779 CABLE; PARKING BRK	8-97111-566-2	01	1	9611-								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-566-2	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9611-9711								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-565-3	01	1	9611-9711						●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV)	8-97111-565-3	01	1	9712-				●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9712-								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-565-3	01	1	9712-						●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	9611-					●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (B) L=1380	8-94367-287-0	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK (A)	8-97138-841-1	01	1	9611-					●
72	04.779 CABLE; PARKING BRK (A)	8-97138-840-2	01	1	9611-					●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (A)	8-97138-839-1	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (A)	8-97138-838-2	01	1	9611-						●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9611-9711	●	●	●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK GRADE STD(RBA) 05.601	8-11042-301-3	01	1	9611-9711						●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9712-	●	●	●		●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.601	8-11042-301-3	01	1	9712-				●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK GRADE STD(RBA) 05.601	8-11042-301-3	01	1	9712-						●	●
85	04.785 CLIP; BRKT ID=14	9-09916-883-0	01	1	9611-		●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9611-	●	●	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9611-	●		●	●		●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-				●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-				●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-								●
86	04.785 BOLT GRADE LS(RBD) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-						●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9611-9711	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-640-1	01	1	9712-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9611-9711	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-639-1	01	1	9712-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9611-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9611-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	01	1	9611-		●			●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9611-								●
91	04.785 CLIP; PARKING BRK CABLE GRADE LS(RBD) (E) ID=14	9-09916-883-0	02	1	9611-						●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9611-9711					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9712-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9611-9711					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9712-					●	●	●	●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9611-9711	●	●	●	●	●
169	04.589 BOLT; SWITCH GRADE STD(RBA) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9611-9711						●	●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9712-	●	●	●		●
169	04.589 BOLT; SWITCH 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9712-				●
169	04.589 BOLT; SWITCH GRADE STD(RBA) 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9712-						●	●
187	04.606 BRACKET; HAND BRK	8-94327-452-0	01	1	9611-					●
187	04.606 BRACKET; HAND BRK GRADE STD(RBA)	8-94327-452-0	01	1	9611-						●	●
188	04.606 BOLT; BRKT SET 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-					●
188	04.606 BOLT; BRKT SET GRADE STD(RBA) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-						●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9611-9711	●	●	●	●	●
205	04.785 CLIP; 3RD C/MBR GRADE STD(RBA) 04.681	5-09709-039-0	02	1	9611-9711						●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9712-	●	●	●		●
205	04.785 CLIP; 3RD C/MBR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.681	5-09709-039-0	02	1	9712-				●
205	04.785 CLIP; 3RD C/MBR GRADE STD(RBA) 04.681	5-09709-039-0	02	1	9712-						●	●
344	04.595 GASKET; DASH LWR	8-94371-873-0	01	1	9611-9711	●	●	●	●	●
344	04.595 GASKET; DASH LWR GRADE STD(RBA)	8-94371-873-0	01	1	9611-9711						●	●
344	04.595 GASKET; DASH LWR	8-94371-873-0	01	1	9712-	●	●	●		●
344	04.595 GASKET; DASH LWR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94371-873-0	01	1	9712-				●
344	04.595 GASKET; DASH LWR GRADE STD(RBA)	8-94371-873-0	01	1	9712-						●	●

328 28 198 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9611-9711	●	●	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9712-					●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9611-9711	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER GRADE STD(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9611-9711						●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●		●
28	04.594 BOLT; HAND BRK LEVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-				●
28	04.594 BOLT; HAND BRK LEVER GRADE STD(RBA) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9712-						●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9611-	●	●	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9611-	●		●	●		●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-				●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-				●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-								●
86	04.785 BOLT GRADE LS(RBD) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-						●	●
198	04.785 BRACKET; CABLE 6VD1 ENG(RLV)	8-97189-469-0	01	1	9712-				●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9611-9711								●
328	04.784 PLATE; SEAL GRADE LS(RBD)	8-97064-242-1	01	1	9611-9711						●	●
328	04.784 PLATE; SEAL 6VD1 ENG(RLV)	8-97064-242-1	01	1	9712-				●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9712-								●
328	04.784 PLATE; SEAL GRADE LS(RBD)	8-97064-242-1	01	1	9712-						●	●

29 29 3 25 327 23 64 289 135 16 326 16 130 60 284 86 91 91 91 86 91 91 86 86 72 86 86 72 91 91 86 91 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	04.591 LEVER; PARKING BRK	8-97139-547-1	01	1	9611-9711								●
3	04.591 LEVER; PARKING BRK GRADE LS(RBD)	8-97139-547-1	01	1	9611-9711						●	●
3	04.591 LEVER; PARKING BRK 6VD1 ENG(RLV)	8-97177-396-1	01	1	9712-				●
3	04.591 LEVER; PARKING BRK	8-97177-396-1	01	1	9712-								●
3	04.591 LEVER; PARKING BRK GRADE LS(RBD)	8-97177-396-1	01	1	9712-						●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97046-793-2	01	1	9612-9711								●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (B)	8-97046-793-2	01	1	9612-9711						●	●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (B)	8-97177-857-0	01	1	9712-				●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9712-								●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (B)	8-97177-857-0	01	1	9712-						●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9612-9711								●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (A)	8-97142-956-2	01	1	9612-9711						●	●
16	04.591 BRACKET; PARKING BRK 6VD1 ENG(RLV) (A)	8-97142-956-2	01	1	9712-				●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9712-								●
16	04.591 BRACKET; PARKING BRK GRADE LS(RBD) (A)	8-97142-956-2	01	1	9712-						●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9611-9711	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK GRADE STD(RBA)	8-94328-267-0	01	1	9611-9711						●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9712-	●	●	●		●
23	04.589 SWITCH; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94328-267-0	01	1	9712-				●
23	04.589 SWITCH; PARKING BRK GRADE STD(RBA)	8-94328-267-0	01	1	9712-						●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9611-9711								●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9611-9711						●	●
23	04.589 SWITCH; PARKING BRK 6VD1 ENG(RLV)	8-97032-276-0	01	1	9712-				●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9712-								●
23	04.589 SWITCH; PARKING BRK GRADE LS(RBD)	8-97032-276-0	01	1	9712-						●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9611-9711								●
25	04.589 SCREW; SW,PARKING BRK GRADE LS(RBD)	8-97103-556-0	01	1	9611-9711						●	●
25	04.589 SCREW; SW,PARKING BRK 6VD1 ENG(RLV)	8-97103-556-0	01	1	9712-				●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9712-								●
25	04.589 SCREW; SW,PARKING BRK GRADE LS(RBD)	8-97103-556-0	01	1	9712-						●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-9711								●
29	04.595 BOLT; PARKING BRK LEVER TO BODY GRADE LS(RBD) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-9711						●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 6VD1 ENG(RLV) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-				●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-								●
29	04.595 BOLT; PARKING BRK LEVER TO BODY GRADE LS(RBD) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-						●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9612-9711								●
60	04.595 GASKET; PARKING BRK GRADE LS(RBD)	8-97046-789-1	01	1	9612-9711						●	●
60	04.595 GASKET; PARKING BRK 6VD1 ENG(RLV)	8-97046-789-1	01	1	9712-				●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9712-								●
60	04.595 GASKET; PARKING BRK GRADE LS(RBD)	8-97046-789-1	01	1	9712-						●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9611-9711								●
64	04.595 NUT; PARKING BRK GRADE LS(RBD) 02.559 M8	9-09110-408-0	01	1	9611-9711						●	●
64	04.595 NUT; PARKING BRK 6VD1 ENG(RLV) 02.559 M8	9-09110-408-0	01	1	9712-				●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9712-								●
64	04.595 NUT; PARKING BRK GRADE LS(RBD) 02.559 M8	9-09110-408-0	01	1	9712-						●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (B) L=1850 WHITE	8-94367-286-0	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1604	8-94366-770-2	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9611-9711	●		●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9712-	●		●
72	04.779 CABLE; PARKING BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) L=1684	8-94366-769-2	01	1	9712-				●
72	04.779 CABLE; PARKING BRK (B) L=1300	8-94367-285-0	01	1	9611-		●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-772-2	01	1	9611-		●
72	04.779 CABLE; PARKING BRK (A) L=1464	8-94366-771-2	01	1	9611-		●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV)	8-97191-104-0	01	1	9712-				●
72	04.779 CABLE; PARKING BRK	8-97111-566-2	01	1	9611-								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-566-2	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9611-9711								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-565-3	01	1	9611-9711						●	●
72	04.779 CABLE; PARKING BRK 6VD1 ENG(RLV)	8-97111-565-3	01	1	9712-				●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9712-								●
72	04.779 CABLE; PARKING BRK GRADE LS(RBD)	8-97111-565-3	01	1	9712-						●	●
72	04.779 CABLE; PARKING BRK (B) L=1380	8-94367-287-0	01	1	9611-					●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (B) L=1380	8-94367-287-0	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK (A)	8-97138-841-1	01	1	9611-					●
72	04.779 CABLE; PARKING BRK (A)	8-97138-840-2	01	1	9611-					●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (A)	8-97138-839-1	01	1	9611-						●	●
72	04.779 CABLE; PARKING BRK GRADE STD(RBA) (A)	8-97138-838-2	01	1	9611-						●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9611-	●	●	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9611-	●		●	●		●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9711		●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●			●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
86	04.785 BOLT 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-				●
86	04.785 BOLT 6VD1 ENG(RLV) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-				●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-								●
86	04.785 BOLT GRADE LS(RBD) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-						●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9611-9711	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-640-1	01	1	9712-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9611-9711	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C)	8-94126-639-1	01	1	9712-	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9611-	●	●	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9611-	●		●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	01	1	9611-		●			●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (E) ID=14	9-09916-883-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9611-								●
91	04.785 CLIP; PARKING BRK CABLE GRADE LS(RBD) (E) ID=14	9-09916-883-0	02	1	9611-						●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9611-9711					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-002-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-002-0	01	1	9712-					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9611-9711					●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 6VD1 ENG(RLV) (F)	8-97087-001-0	01	1	9712-				●
91	04.785 CLIP; PARKING BRK CABLE (F)	8-97087-001-0	01	1	9712-					●	●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9612-9711								●
130	04.591 COVER; DUST,PARK BRK LEVER GRADE LS(RBD)	8-97142-954-0	01	1	9612-9711						●	●
130	04.591 COVER; DUST,PARK BRK LEVER 6VD1 ENG(RLV)	8-97142-954-0	01	1	9712-				●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9712-								●
130	04.591 COVER; DUST,PARK BRK LEVER GRADE LS(RBD)	8-97142-954-0	01	1	9712-						●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9611-9711								●
135	04.591 BOLT; PARKING BRK BRKT GRADE LS(RBD) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9611-9711						●	●
135	04.591 BOLT; PARKING BRK BRKT 6VD1 ENG(RLV) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9712-				●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9712-								●
135	04.591 BOLT; PARKING BRK BRKT GRADE LS(RBD) 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9712-						●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9612-9711								●
284	04.595 ROD; HAND BRK GRADE LS(RBD)	8-97161-636-1	01	1	9612-9711						●	●
284	04.595 ROD; HAND BRK 6VD1 ENG(RLV)	8-97161-636-1	01	1	9712-				●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9712-								●
284	04.595 ROD; HAND BRK GRADE LS(RBD)	8-97161-636-1	01	1	9712-						●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9612-9711								●
289	04.594 NUT; PARKING BRK GRADE LS(RBD) 07.633 M8 FLANGE	0-91150-108-0	01	1	9612-9711						●	●
289	04.594 NUT; PARKING BRK 6VD1 ENG(RLV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-				●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-								●
289	04.594 NUT; PARKING BRK GRADE LS(RBD) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-						●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9611-9711								●
326	04.785 RETAINER; PARK CABLE GRADE LS(RBD)	8-97024-708-0	01	1	9611-9711						●	●
326	04.785 RETAINER; PARK CABLE 6VD1 ENG(RLV)	8-97024-708-0	01	1	9712-				●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9712-								●
326	04.785 RETAINER; PARK CABLE GRADE LS(RBD)	8-97024-708-0	01	1	9712-						●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-9711								●
327	04.785 BOLT; RETAINER GRADE LS(RBD) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-9711						●	●
327	04.785 BOLT; RETAINER 6VD1 ENG(RLV) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-				●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-								●
327	04.785 BOLT; RETAINER GRADE LS(RBD) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-						●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
