◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#47984) — 78 parça

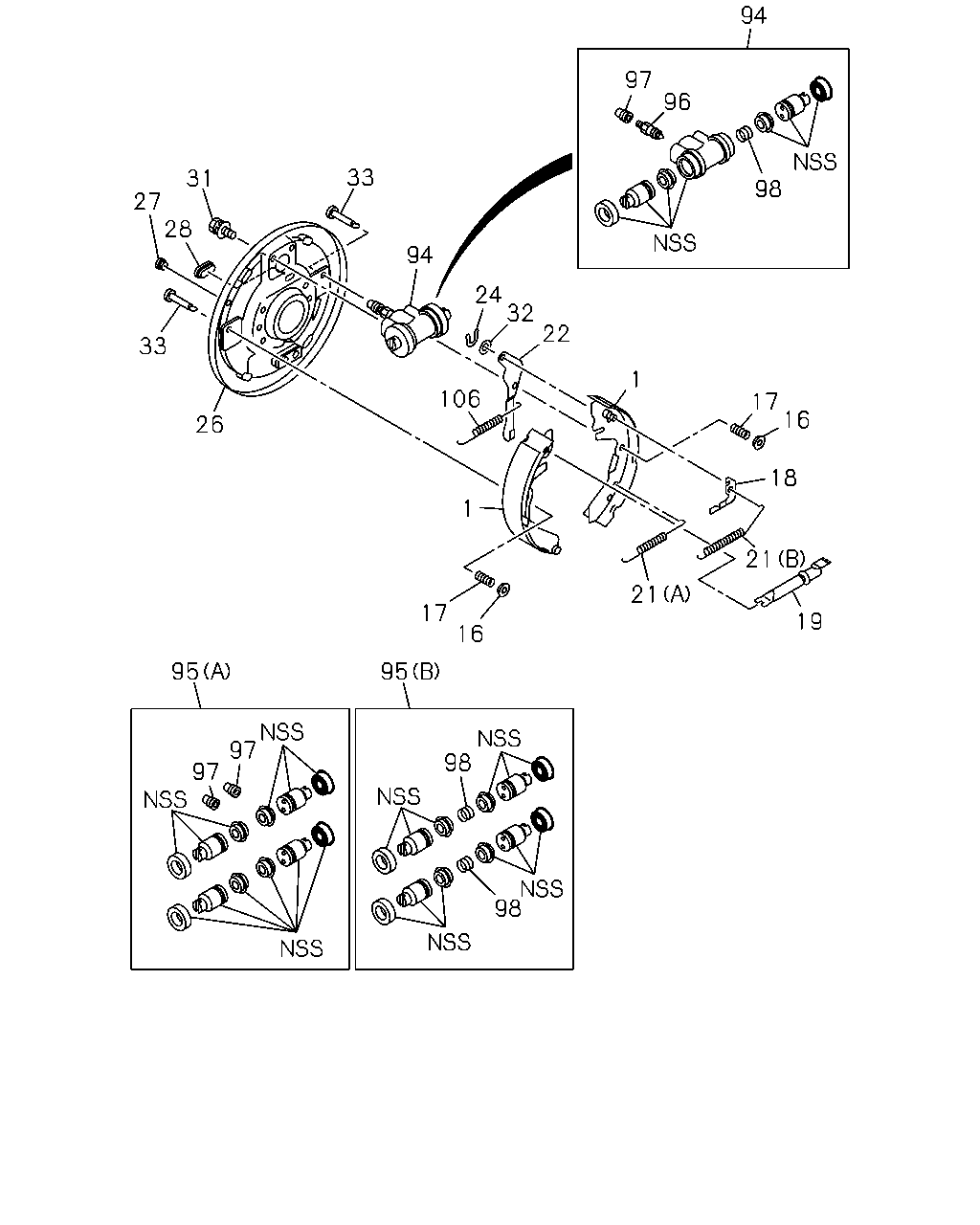

çizim 67227
19 21 18 16 17 1 22 32 24 94 33 31 27 33 26 17 16 1 106 21 98 96 97 94 98 98 95 95 97 97 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 05.017 SHOE; BRK,RR
LEADING 		8-97147-565-0 02 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) LEADING 		8-97147-565-0 02 1 9712- ● ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97049-177-0 01 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97049-177-0 01 1 9712- ● ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97049-176-0 01 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97049-176-0 01 1 9712- ● ● ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97113-220-1 02 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) LEADING 		8-97113-220-1 02 1 9712- ●
1 05.017 SHOE; BRK,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) LEADING 		8-97113-220-1 02 1 9712- ● ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97113-220-1 02 1 9712- ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-219-1 01 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) TRAILING 		8-97113-219-1 01 1 9712- ●
1 05.017 SHOE; BRK,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97113-219-1 01 1 9712- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-219-1 01 1 9712- ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-218-1 01 1 9611-9711 ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) TRAILING 		8-97113-218-1 01 1 9712- ●
1 05.017 SHOE; BRK,RR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97113-218-1 01 1 9712- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-218-1 01 1 9712- ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 04 1 9611- ● ● ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		8-94134-106-0 04 1 9611- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-866-1 01 1 9611- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-865-1 01 1 9611- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-078-1 01 1 9611- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-077-1 01 1 9611- ● ● ● ● ● ● ● ●
21 05.026 SPRING; SHOE,RET
(A) LOWER 		8-94127-066-0 02 1 9611- ● ● ● ● ● ● ● ●
21 05.026 SPRING; SHOE,RET
(B) UPPER 		8-94480-191-0 02 1 9611- ● ● ● ● ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-868-2 01 1 9611-9711 ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.158 		8-94124-868-2 01 1 9712- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-867-2 01 1 9611-9711 ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.158 		8-94124-867-2 01 1 9712- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-628-1 01 1 9611-9711 ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
6VD1 ENG(RLV) 		8-97127-628-1 01 1 9712- ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97127-628-1 01 1 9712- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-628-1 01 1 9712- ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-627-1 01 1 9611-9711 ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
6VD1 ENG(RLV) 		8-97127-627-1 01 1 9712- ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97127-627-1 01 1 9712- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-627-1 01 1 9712- ●
24 05.158 RETAINER; PARKING BRK 9-46349-005-1 02 1 9611- ● ● ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97147-567-0 01 1 9611-9711 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97147-567-0 01 1 9712- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97147-566-0 01 1 9611-9711 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97147-566-0 01 1 9712- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-217-1 01 1 9611-9711 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
6VD1 ENG(RLV) 		8-97113-217-1 01 1 9712- ●
26 05.001 PLATE; BACK,RR BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97113-217-1 01 1 9712- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-217-1 01 1 9712- ●
26 05.001 PLATE; BACK,RR BRK 8-97113-216-1 01 1 9611-9711 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
6VD1 ENG(RLV) 		8-97113-216-1 01 1 9712- ●
26 05.001 PLATE; BACK,RR BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97113-216-1 01 1 9712- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-216-1 01 1 9712- ●
27 05.810 COVER; CHECK HOLE,DRUM COVER 8-97122-854-0 02 1 9611- ● ● ● ● ● ● ● ●
28 05.117 COVER; ADJ HOLE 8-94111-509-0 02 1 9611-9711 ● ● ● ●
28 05.117 COVER; ADJ HOLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94111-509-0 02 1 9712- ● ● ● ●
28 05.117 COVER; ADJ HOLE 8-97123-320-0 02 1 9611-9711 ● ● ● ●
28 05.117 COVER; ADJ HOLE
6VD1 ENG(RLV) 		8-97123-320-0 02 1 9712- ●
28 05.117 COVER; ADJ HOLE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97123-320-0 02 1 9712- ● ● ●
28 05.117 COVER; ADJ HOLE 8-97123-320-0 02 1 9712- ●
31 04.665 BOLT; RR WHEEL CYL
05.056 M6X10 FLANGE 		8-94134-103-0 04 1 9611- ● ● ● ● ● ● ● ●
32 05.056 WASHER; LK
05.158 ID=9.5 		9-09850-529-0 02 1 9611- ● ● ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 9611- ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-94233-500-6 02 1 9611- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. REAR AXLE W/LSPV<7KA> 		8-94233-500-6 02 1 9611- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE W/LSPV<7KA> 		8-97127-616-0 02 1 9611- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97127-616-0 02 1 9611- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87830-489-3 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. REAR AXLE W/LSPV<7KA> (A) W/PISTON 		5-87830-489-3 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE W/LSPV<7KA> (B) 		5-87831-543-0 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
(B) 		5-87831-543-0 01 1 9611- ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 9611- ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 9611-9711 ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		1-47619-009-0 02 1 9712- ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-94482-339-0 02 1 9611-9711 ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
6VD1 ENG(RLV) 		8-94482-339-0 02 1 9712- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94482-339-0 02 1 9712- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-94482-339-0 02 1 9712- ●
98 04.669 SPRING; RR WHEEL CYL 8-94230-597-2 02 1 9611- ● ● ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER
05.026 		8-94480-190-0 02 1 9611- ● ● ● ● ● ● ● ●
