3-02 — FRONT DISC BRAKE CALIPER (#47983) — 91 parça

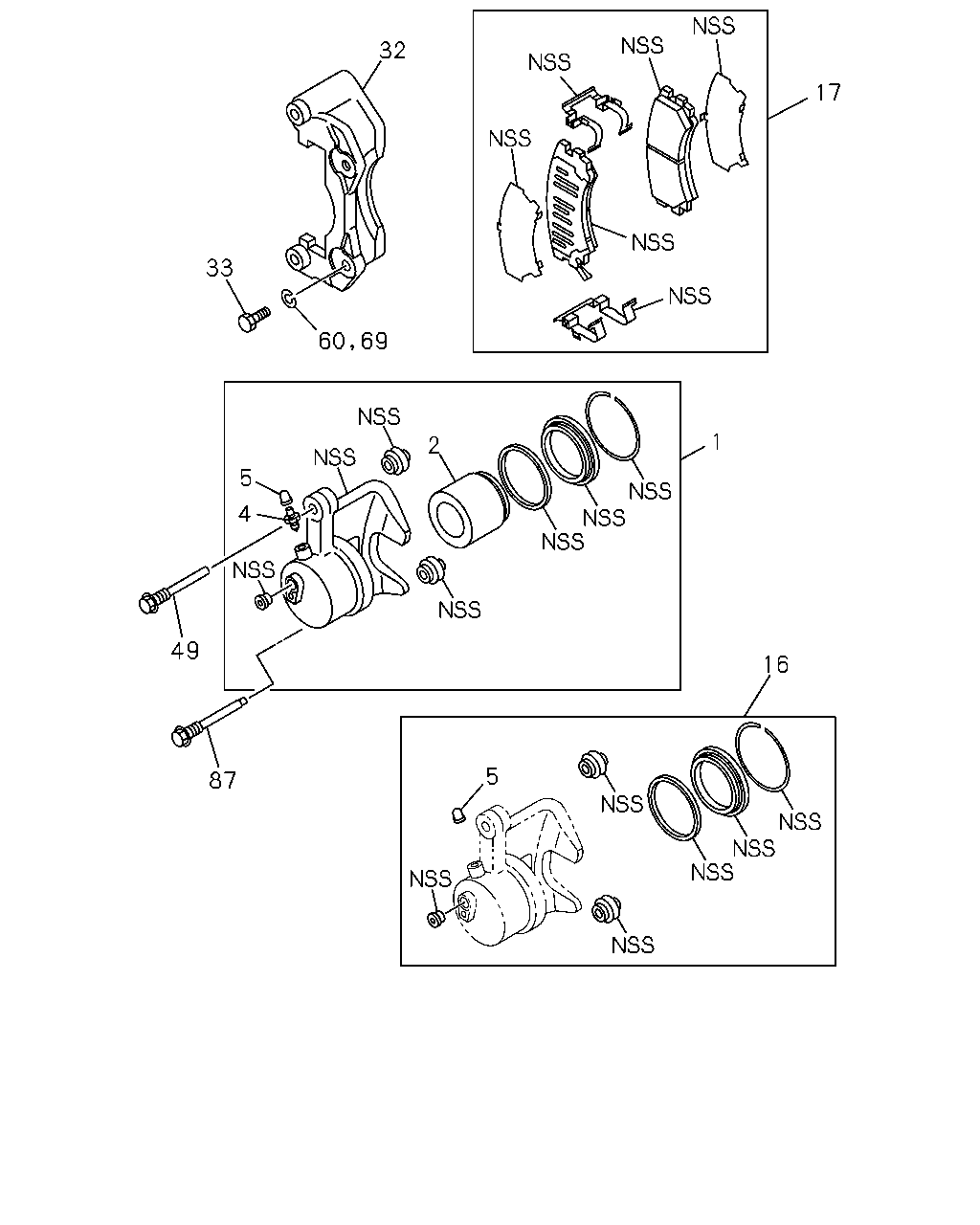

32 17 33 60 69 1 2 5 4 49 16 5 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.665 CALIPER; FRT DISC BRK	8-94388-013-0	01	1	9611-9711	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-013-0	01	1	9712-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-012-0	01	1	9611-9711	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-012-0	01	1	9712-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 6VD1 ENG(RLV)	8-97144-477-0	01	1	9712-				●	●
1	04.665 CALIPER; FRT DISC BRK 6VD1 ENG(RLV)	8-97144-476-0	01	1	9712-				●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-017-0	01	1	9611-9711					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-017-0	01	1	9712-					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-016-0	01	1	9611-9711					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-016-0	01	1	9712-					●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94438-689-0	02	1	9611-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-94438-713-0	02	1	9611-9711	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94438-713-0	01	1	9712-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665	8-97113-867-0	01	1	9712-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 6VD1 ENG(RLV) 04.665	8-97113-867-0	02	1	9712-				●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	5-47619-007-2	02	1	9611-9711	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	1-47619-009-0	01	1	9712-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	5-47619-007-2	01	1	9712-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 6VD1 ENG(RLV)	1-47619-009-0	02	1	9712-				●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-94388-022-0	01	1	9611-9711	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97134-715-0	01	1	9712-	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 6VD1 ENG(RLV)	8-97134-716-0	01	1	9712-				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97164-183-0	01	1	9611-9711	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ)	8-97164-183-0	01	1	9712-	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ)	8-97114-300-0	01	1	9712-			●	●	●	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 6VD1 ENG(RLV)	8-97035-257-1	01	1	9712-				●	●
32	04.665 SUPPORT; FRT DISC BRK	8-94438-690-0	02	1	9611-9711	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94438-690-0	02	1	9712-	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK 6VD1 ENG(RLV)	8-97035-250-1	02	1	9712-				●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK M10X59.5	8-94438-712-0	02	1	9611-9711	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M10X59.5	8-94438-712-0	02	1	9712-	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 6VD1 ENG(RLV) M14X29	8-97126-347-0	04	1	9712-				●	●
49	04.665 PIN; SLIDE,CALIPER 6VD1 ENG(RLV)	8-97035-254-0	02	1	9712-				●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9611-9711					●	●	●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK 6VD1 ENG(RLV) 05.422 ID=14.2	9-09150-814-0	02	1	9712-				●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9712-					●	●	●	●
69	04.665 WASHER; LK,FRT DISC BRK 6VD1 ENG(RLV) 05.422 ID=14.2	9-09150-814-0	02	1	9712-				●	●
87	04.665 PIN; LOCK 6VD1 ENG(RLV)	8-97035-255-0	02	1	9712-				●	●

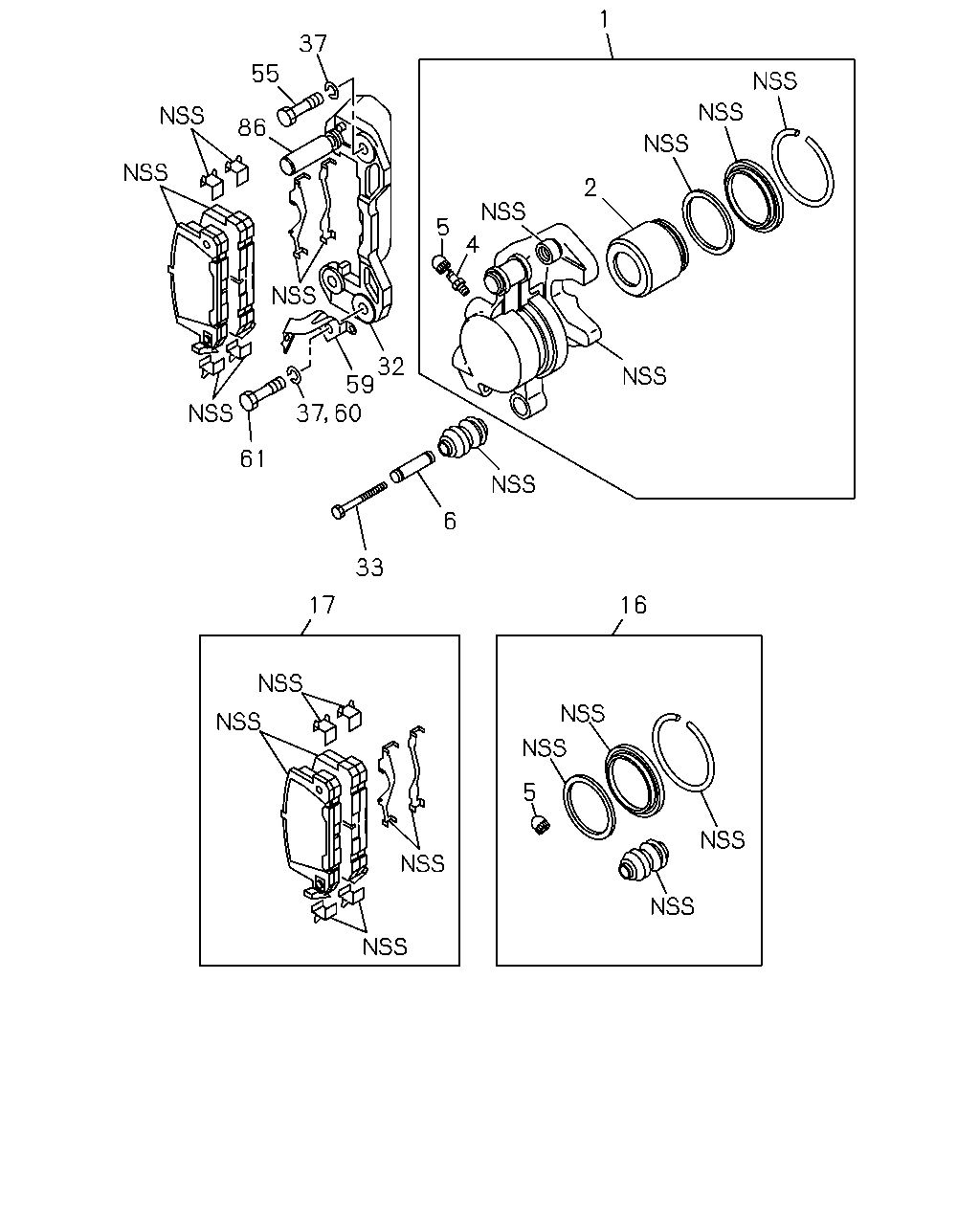

1 37 55 86 2 5 4 32 59 61 6 33 17 16 5 60 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	04.665 CALIPER; FRT DISC BRK	8-94388-013-0	01	1	9611-9711	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-013-0	01	1	9712-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-012-0	01	1	9611-9711	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-012-0	01	1	9712-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 6VD1 ENG(RLV)	8-97144-477-0	01	1	9712-				●	●
1	04.665 CALIPER; FRT DISC BRK 6VD1 ENG(RLV)	8-97144-476-0	01	1	9712-				●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-017-0	01	1	9611-9711					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-017-0	01	1	9712-					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK	8-94388-016-0	01	1	9611-9711					●	●	●	●
1	04.665 CALIPER; FRT DISC BRK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94388-016-0	01	1	9712-					●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94438-689-0	02	1	9611-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-94438-713-0	02	1	9611-9711	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94438-713-0	01	1	9712-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665	8-97113-867-0	01	1	9712-	●	●	●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 6VD1 ENG(RLV) 04.665	8-97113-867-0	02	1	9712-				●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	5-47619-007-2	02	1	9611-9711	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	1-47619-009-0	01	1	9712-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	5-47619-007-2	01	1	9712-	●	●	●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 6VD1 ENG(RLV)	1-47619-009-0	02	1	9712-				●	●
6	04.681 SLEEVE; BOOT,CALIPER	8-94136-644-0	02	1	9611-9711	●	●	●	●	●	●	●	●
6	04.681 SLEEVE; BOOT,CALIPER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94136-644-0	02	1	9712-	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-94388-022-0	01	1	9611-9711	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-97134-715-0	01	1	9712-	●	●	●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 6VD1 ENG(RLV)	8-97134-716-0	01	1	9712-				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97164-183-0	01	1	9611-9711	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. ARGENTINA EQUIPMENT(7SZ)	8-97164-183-0	01	1	9712-	●	●	●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ)	8-97114-300-0	01	1	9712-			●	●	●	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 6VD1 ENG(RLV)	8-97035-257-1	01	1	9712-				●	●
32	04.665 SUPPORT; FRT DISC BRK	8-94438-690-0	02	1	9611-9711	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94438-690-0	02	1	9712-	●	●	●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK 6VD1 ENG(RLV)	8-97035-250-1	02	1	9712-				●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK M10X59.5	8-94438-712-0	02	1	9611-9711	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M10X59.5	8-94438-712-0	02	1	9712-	●	●	●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 6VD1 ENG(RLV) M14X29	8-97126-347-0	04	1	9712-				●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	9611-9711	●	●	●	●
37	04.665 WASHER; LK EXC. MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	04	1	9611-9711					●	●	●	●
37	04.665 WASHER; LK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9712-					●	●	●	●
37	04.665 WASHER; LK MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9611-9711					●	●	●	●
37	04.665 WASHER; LK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.422 ID=14.2	9-09150-814-0	04	1	9712-	●	●	●	●
37	04.665 WASHER; LK 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	04	1	9712-					●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 M14X29	8-97126-347-0	02	1	9611-9711	●	●	●	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665 M14X29	8-97126-347-0	02	1	9712-	●	●	●	●	●	●	●	●
59	04.665 BRACKET; FLEX HOSE,FRT	8-94433-667-0	01	1	9611-9711	●	●	●	●
59	04.665 BRACKET; FLEX HOSE,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94433-667-0	01	1	9712-	●	●	●	●
59	04.665 BRACKET; FLEX HOSE,FRT	8-94433-666-0	01	1	9611-9711	●	●	●	●
59	04.665 BRACKET; FLEX HOSE,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94433-666-0	01	1	9712-	●	●	●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9611-9711					●	●	●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK 6VD1 ENG(RLV) 05.422 ID=14.2	9-09150-814-0	02	1	9712-				●	●
60	04.665 WASHER; LK,SUPPORT BRKT TO KNUCK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2	9-09150-814-0	02	1	9712-					●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE M14X29	8-97126-347-0	02	1	9611-9711	●	●	●	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X29	8-97126-347-0	02	1	9712-	●	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE	8-94438-694-0	02	1	9611-9711	●	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94438-694-0	02	1	9712-	●	●	●	●	●	●	●	●
