2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#47981) — 166 parça

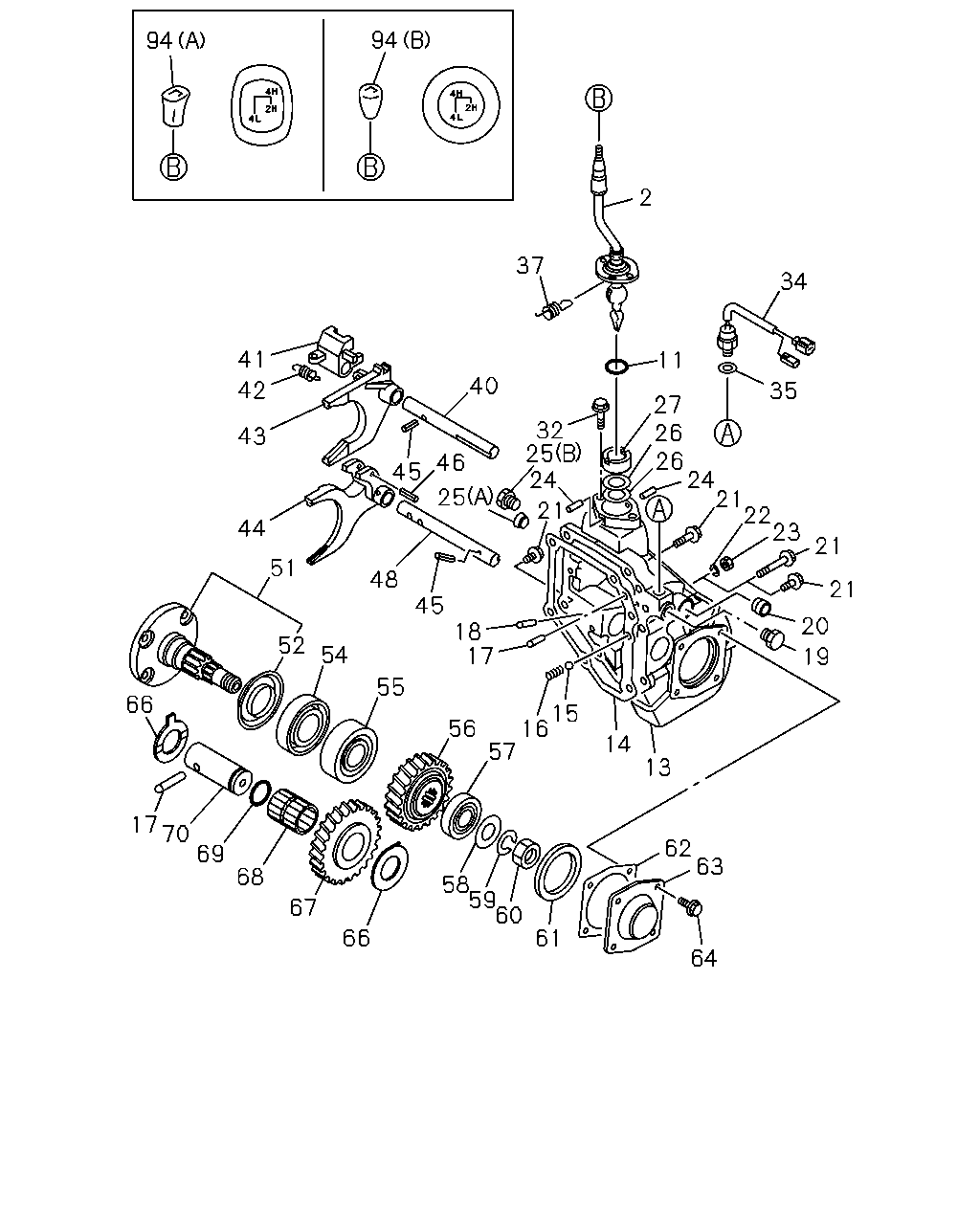

94 94 2 37 34 41 42 40 35 27 26 26 24 21 22 23 21 32 25 24 21 43 46 45 25 44 51 48 45 18 17 21 20 19 52 54 55 66 15 56 16 57 14 13 17 70 69 68 62 63 58 59 60 61 67 66 64 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9611-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) (A)	8-97031-493-2	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) (A)	8-97182-130-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (A)	8-94441-917-3	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (A)	8-97182-132-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-97182-121-0	01	1	9712-9802				●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-97182-126-0	01	1	9803-				●
11	04.570 GASKET; CHANGE LEVER ID=35.2	9-09561-235-0	01	1	9611-9802	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9803-	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9803-	●	●	●	●
13	04.510 CASE; SIDE,TRANSFER M/T MSG 5 SPEED(M75)	5-36131-009-3	01	1	9712-	●	●	●	●
14	04.515 GASKET; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75)	8-94482-497-0	01	1	9611-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9712-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9611-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9712-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9611-	●	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=20	9-08160-820-0	01	1	9712-	●	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=45	9-08160-845-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9611-	●	●	●	●
19	04.520 PLUG; 2-4 SHIFT ROD,RR,TRANSFER M/T MSG 5 SPEED(M75) M16X8 PLUG	9-09661-005-0	01	1	9712-	●	●	●	●
20	04.520 PLUG; HIGH-LOW SHIFT ROD,RR,TRAN M/T MSG 5 SPEED(M75)	9-33545-601-0	01	1	9712-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X25 FLANGE	0-28181-025-0	01	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X30 FLANGE	0-28181-030-0	02	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X75	8-94473-960-1	01	1	9611-	●	●	●	●
22	04.525 WASHER; LK,TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 ID=10.2	9-09150-510-0	01	1	9611-	●	●	●	●
23	04.525 NUT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 M10	9-09110-510-0	01	1	9611-	●	●	●	●
24	04.105 PIN; BALL SEAT,CHANGE LEVER,TRAN M/T MSG 5 SPEED(M75)	9-09878-094-0	02	1	9712-	●	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) 04.309 (A) OD=14	5-09609-004-0	01	1	9712-	●	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) (B) M16X8 PLUG	9-09661-005-0	01	1	9712-	●	●	●	●
26	04.570 SPRING; BALL SEAT,CHANGE LEVER,T M/T MSG 5 SPEED(M75)	9-33619-632-0	02	1	9712-	●	●	●	●
27	04.570 SEAT; BALL,CHANGE LEVER,TRANSFER M/T MSG 5 SPEED(M75)	5-33619-042-0	01	1	9712-	●	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9712-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9611-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9712-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-	●	●	●	●
37	04.570 SPRING; SELECT RETURN,CHANGE LEV M/T MSG 5 SPEED(M75)	8-97104-789-0	01	1	9611-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9712-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9611-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9712-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9611-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9712-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9611-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9712-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9611-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9712-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9611-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9712-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9611-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9712-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9611-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9712-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-882-1	01	1	9611-9708	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9709-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9712-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9611-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9712-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9712-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9611-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9712-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9611-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9712-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9611-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9712-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9611-	●	●	●	●
58	04.525 WASHER; PL,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.929 ID=21	9-09160-520-0	01	1	9712-	●	●	●	●
59	04.525 WASHER; LK,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.931 ID=20.2	9-09150-520-0	01	1	9712-	●	●	●	●
60	04.525 NUT; OUTPUT GEAR,TRANSFER FLANGE M/T MSG 5 SPEED(M75) 08.915 M20	9-99111-520-0	01	1	9712-	●	●	●	●
61	04.540 PIECE; DIST,OUTPUT GEAR BRG M/T MSG 5 SPEED(M75) 04.525	5-36315-001-0	01	1	9712-	●	●	●	●
62	04.515 GASKET; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	5-36152-003-0	01	1	9712-	●	●	●	●
63	04.510 COVER; OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75)	5-36151-001-0	01	1	9712-	●	●	●	●
64	04.525 BOLT; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	8-94318-919-0	04	1	9712-	●	●	●	●
66	04.525 WASHER; THRUST,IDLE GEAR,TRANSFE M/T MSG 5 SPEED(M75)	5-36279-002-0	02	1	9712-	●	●	●	●
67	04.535 GEAR; IDLE,TRANSFER M/T MSG 5 SPEED(M75) Z=33	8-94435-147-1	01	1	9712-	●	●	●	●
68	04.520 BEARING; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75)	9-00096-606-0	02	1	9712-	●	●	●	●
69	04.515 GASKET; IDLE GEAR SHAFT,TRANSFER M/T MSG 5 SPEED(M75) ID=20.8	9-09565-221-0	01	1	9712-	●	●	●	●
70	04.439 SHAFT; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75) 04.530	5-36251-007-0	01	1	9712-	●	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9611-		●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9611-		●	●	●

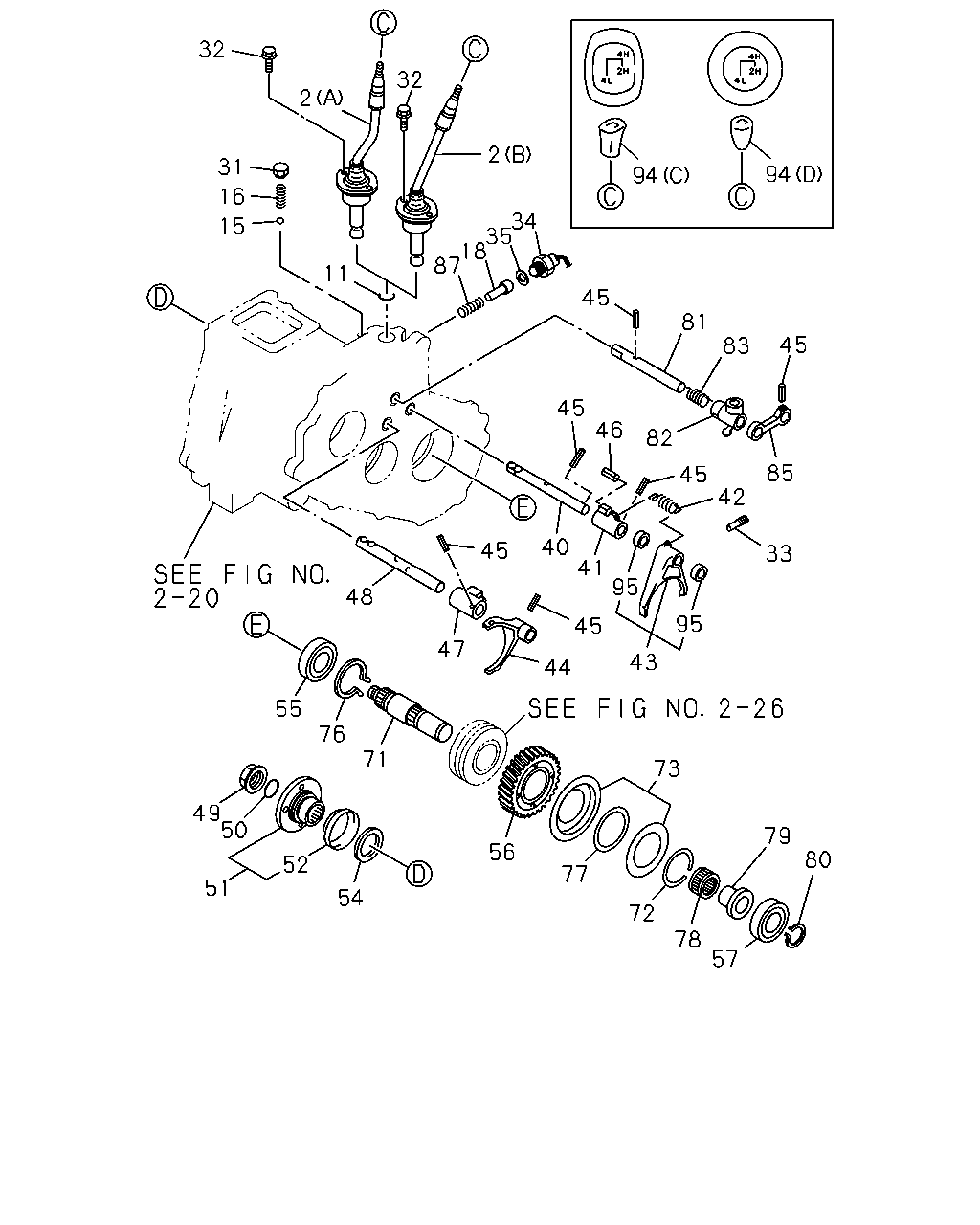

32 32 2 31 16 15 94 94 34 35 18 87 45 81 45 83 45 46 82 85 45 42 40 95 45 48 95 45 47 43 55 76 49 50 80 56 52 51 54 72 78 57 2 11 33 41 44 71 77 73 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9611-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) (A)	8-97031-493-2	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) (A)	8-97182-130-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (A)	8-94441-917-3	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (A)	8-97182-132-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-97182-121-0	01	1	9712-9802				●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-97182-126-0	01	1	9803-				●
11	04.570 GASKET; CHANGE LEVER ID=35.2	9-09561-235-0	01	1	9611-9802	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9803-	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9803-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9712-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9611-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9712-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9611-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9611-	●	●	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M/T MUA 5 SPEED(RMN) M12X9	9-99202-312-0	02	1	9611-	●	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER M/T MUA 5 SPEED(RMN) M6X18	8-94448-812-1	01	1	9611-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9712-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9611-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9712-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9712-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9611-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9712-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9611-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9712-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9611-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9712-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9611-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9712-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9611-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9712-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9611-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9712-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9611-	●	●	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-883-1	01	1	9611-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9712-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-882-1	01	1	9611-9708	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9709-	●	●	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M/T MUA 5 SPEED(RMN) M27 FLANGE	8-94422-073-0	01	1	9611-	●	●	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP M/T MUA 5 SPEED(RMN) ID=29.7 OD=36.1	8-94483-035-0	01	1	9611-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9712-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9611-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9712-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9712-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9611-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9712-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9611-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9712-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9611-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9712-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9611-	●	●	●	●
71	05.555 SHAFT; TRANSFER OUTPUT M/T MUA 5 SPEED(RMN)	8-94377-437-5	01	1	9611-	●	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9611-	●	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9611-	●	●	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER M/T MUA 5 SPEED(RMN) OD=77.0	8-94422-092-0	01	1	9611-	●	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9611-	●	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE M/T MUA 5 SPEED(RMN) 04.419 NSK	8-94422-064-0	01	1	9611-	●	●	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER M/T MUA 5 SPEED(RMN) 04.419	8-94422-076-1	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.55 WHITE	8-94422-180-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.60 YELLOW	8-94422-181-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.65 BLUE	8-94422-182-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.70 PINK	8-94422-183-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.75 GREEN	8-94422-184-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.80 BROWN	8-94422-185-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.85 RED	8-94422-186-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.90 ORANGE	8-94422-187-0	01	1	9611-	●	●	●	●
81	04.309 ROD; TRANSFER SELECT M/T MUA 5 SPEED(RMN)	8-94370-499-2	01	1	9611-	●	●	●	●
82	04.555 BLOCK; TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-092-1	01	1	9611-	●	●	●	●
83	04.515 SPRING; SELECT M/T MUA 5 SPEED(RMN)	8-94462-235-0	01	1	9611-	●	●	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-97128-522-0	01	1	9611-	●	●	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER M/T MUA 5 SPEED(RMN)	8-94461-897-0	01	1	9611-	●	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9611-		●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9611-		●	●	●
95	04.570 BUSHING M/T MUA 5 SPEED(RMN)	8-97103-115-0	02	1	9611-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
