Sayfa 2-30 - Isuzu EPC

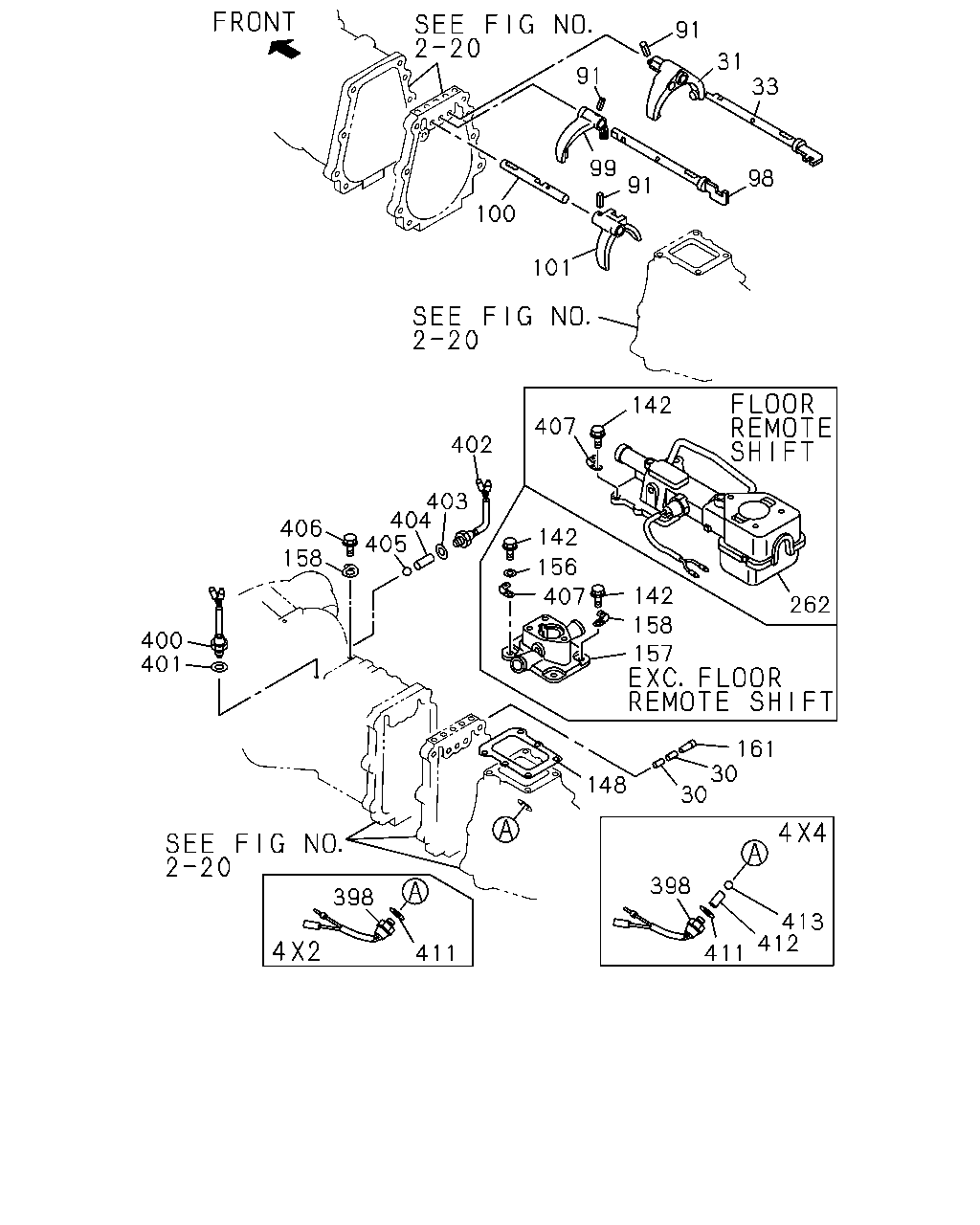

2-30 — GEAR SHIFTER AND QUADRANT BOX (#47979) — 151 parça

91 31 33 91 99 91 98 100 101 142 407 402 403 404 405 406 158 142 156 407 142 158 157 262 400 401 161 30 30 148 398 398 413 412 411 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9611-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9611-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4(TFS***)	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-4	01	1	9611-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9611-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X4(TFS***)	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-4	01	1	9611-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9611-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9611-		●
100	04.309 ROD; SHIFT,REV & 5TH	8-97115-185-0	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X4(TFS***)	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9611-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9611-	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94462-113-0	01	1	9611-9709	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9710-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9611-		●
156	00.349 WASHER; PL,HARNESS CLIP 4X4(TFS***) 16.674 ID=8.4	9-09160-508-0	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>,ELECTRIC FUEL INJECTION<6GG>	8-94161-143-5	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9611-		●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9611-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9611-	●	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9611-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9611-		●
400	02.698 SWITCH; SHIFT,TOP 3RD 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 04.439	8-94411-366-1	01	1	9611-	●
401	04.075 GASKET; SWITCH,TOP & 3RD 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2	8-94462-114-0	01	1	9611-	●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-		●
402	02.698 SWITCH; SHIFT,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 04.439	8-94411-366-1	01	1	9611-	●
403	04.075 GASKET; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2	8-94462-114-0	01	1	9611-	●
404	04.075 PLUNGER; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) D=5.5 L=20.7	8-94225-228-0	01	1	9611-	●
405	04.307 BALL; SWITCH,2ND 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2)	9-00097-517-0	01	1	9611-	●
406	02.559 BOLT; HARNESS CLIP 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
406	02.559 BOLT; HARNESS CLIP 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
406	02.559 BOLT; HARNESS CLIP 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9611-	●
407	02.698 CLIP; SWITCH HARNESS 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9611-	●
407	02.698 CLIP; SWITCH HARNESS 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9611-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9611-	●
413	04.307 BALL; BACK SW 4X4(TFS***)	9-00097-517-0	01	1	9611-	●

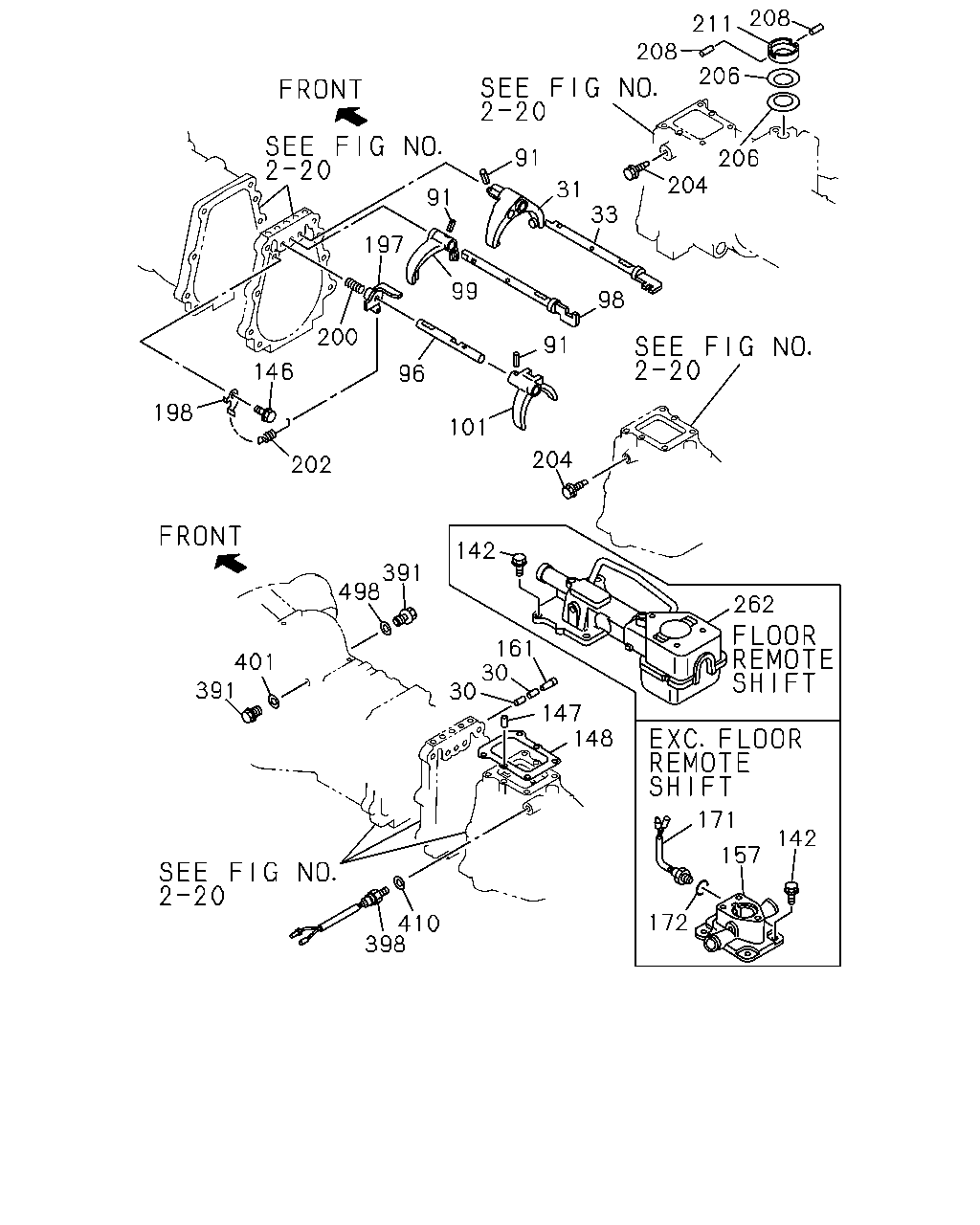

208 208 206 206 204 91 31 33 91 197 99 98 200 146 91 96 198 101 204 202 142 391 498 262 161 30 30 401 391 147 148 171 142 157 172 410 398 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9611-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9611-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4(TFS***)	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-4	01	1	9611-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9611-	●	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X4(TFS***)	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-4	01	1	9611-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9611-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X4(TFS***)	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9611-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9611-	●	●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9611-		●
147	04.020 PIN; KNOCK 4X2(TFB***) 04.510 OD=6 L=12	9-08150-612-0	02	1	9611-9711		●
147	04.020 PIN; KNOCK 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.510 OD=6 L=12	9-08150-612-0	02	1	9712-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94462-113-0	01	1	9611-9709	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9710-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9611-		●
157	04.105 BOX; QUAD,TRANS 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>,ELECTRIC FUEL INJECTION<6GG>	8-94161-143-5	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9611-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9611-	●	●
171	04.054 SWITCH; NEUTRAL 4ZC1 ENG(LR9)	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRICFUEL INJECTION<6GG>	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRICFUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9611-9612		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOWGEARED(6WF)	8-97138-631-0	01	1	9701-	●	●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	8-97138-631-0	01	1	9701-	●	●
171	04.054 SWITCH; NEUTRAL 4ZC1 ENG(LR9)	8-97138-631-0	01	1	9701-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG>. 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-		●
197	04.309 INHIBITOR; REV SHIFT 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94448-753-0	01	1	9611-		●
197	04.309 INHIBITOR; REV SHIFT 4X4(TFS***)	8-94448-753-0	01	1	9611-		●
197	04.309 INHIBITOR; REV SHIFT 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-94448-201-1	01	1	9611-		●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9611-		●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9611-		●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9611-		●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9611-		●
206	04.307 SPRING; BALL SEAT 4X4(TFS***) 04.570	9-33619-632-0	02	1	9611-9707		●
208	04.307 PIN; BALL SEAT 4X4(TFS***)	8-94204-186-0	02	1	9611-9707		●
211	04.307 SEAT; BALL 4X4(TFS***) 04.570	5-33619-042-0	01	1	9611-9707		●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9611-		●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9611-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9611-		●
401	04.075 GASKET; SWITCH,TOP & 3RD 4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2	8-94462-114-0	01	1	9611-	●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-		●

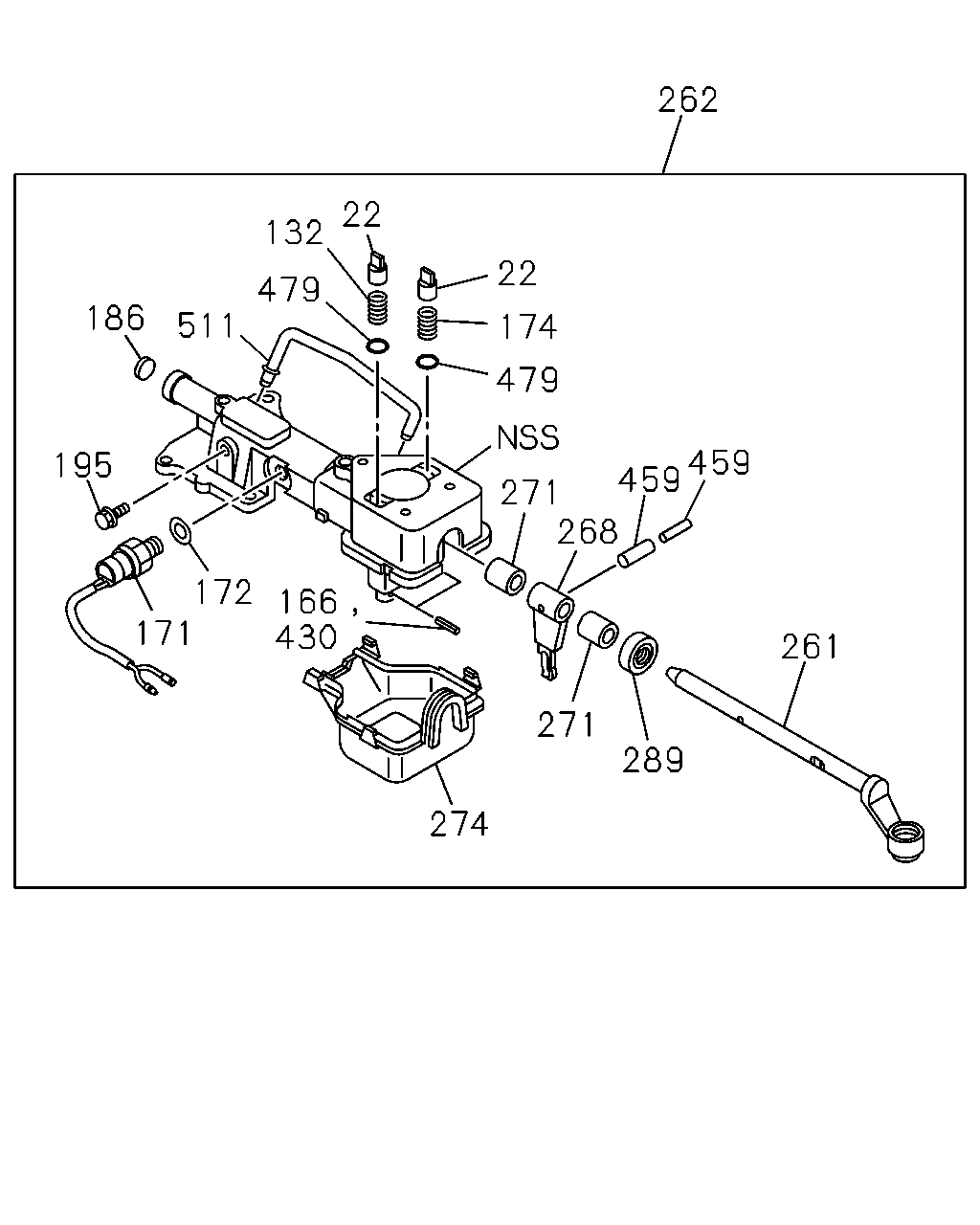

262 22 132 22 479 186 174 479 459 459 195 271 268 172 166 171 430 261 271 289 274 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.307 CAP; RETURN SPR,SHIFT BLOCK FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9611-	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9611-	●	●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9611-		●
171	04.054 SWITCH; NEUTRAL 4ZC1 ENG(LR9)	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRICFUEL INJECTION<6GG>	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRICFUEL INJECTION<6GG>,M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9611-9612	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	5-82440-004-1	01	1	9611-9612		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG>,M/T LOWGEARED(6WF)	8-97138-631-0	01	1	9701-	●	●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) M/T LOW GEARED(6WF)	8-97138-631-0	01	1	9701-	●	●
171	04.054 SWITCH; NEUTRAL 4ZC1 ENG(LR9)	8-97138-631-0	01	1	9701-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG>. 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-		●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9611-	●	●
186	04.105 PLUG; SHIFTER ROD FLOOR REMOTE SHIFT<M11> 00.253 OD=16	9-11129-081-0	01	1	9611-	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9611-	●	●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-090-1	01	1	9611-	●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9611-		●
261	04.309 ROD; GEAR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9611-	●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. ELECTRIC FUEL INJECTION<6GG>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9611-	●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9611-		●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9611-	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9611-	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9611-	●	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> D=4.2 L=25	8-97103-142-0	02	1	9611-	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9611-	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9611-	●	●
479	04.307 PLATE; SELECT FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9611-	●	●
511	04.302 PIPE; AIR FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
