2-25 — SPEEDOMETER DRIVEN GEAR (#47977) — 171 parça

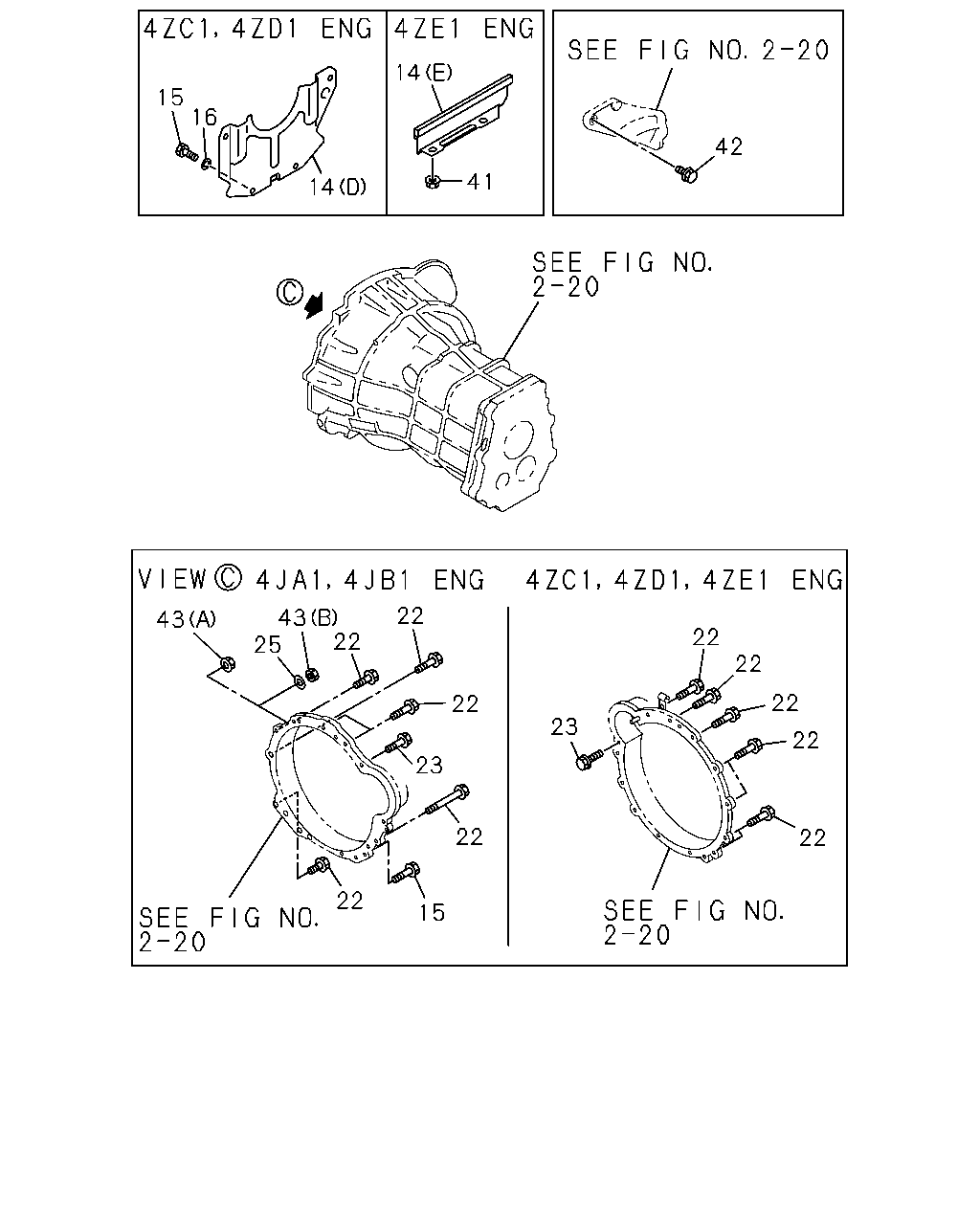

çizim 67268
14 15 16 42 41 22 43 25 22 43 22 22 22 22 23 22 23 22 22 22 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
16 00.685 WASHER; LK,UNDER COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) M10X60 FLANGE 		0-28081-060-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) M10X65 W/FLANGE 		8-97165-414-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) M10X60 FLANGE 		0-28081-060-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) 02.042 (A) M12X80 		0-28081-280-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9712- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28781-035-0 01 1 9611- ● ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) M12X68 FLANGE 		8-94480-344-1 02 1 9611-9801 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) M12X70 FLANGE 		0-28081-270-0 02 1 9802- ●
25 00.685 WASHER; PL,TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.430 ID=12.5 		9-09160-512-0 01 1 9611- ●
41 04.105 NUT; UNDER COVER
4ZE1 ENG(RLJ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M10X72 FLANGE 		8-94475-057-1 02 1 9611-9705 ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.706 M10X70 FLANGE 		0-28081-070-0 02 1 9706- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
6VD1 ENG(RLV) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9611- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.586 (B) M12 FLANGE 		0-91150-112-0 02 1 9611- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.816 (B) M12 		9-99110-412-0 01 1 9611- ●

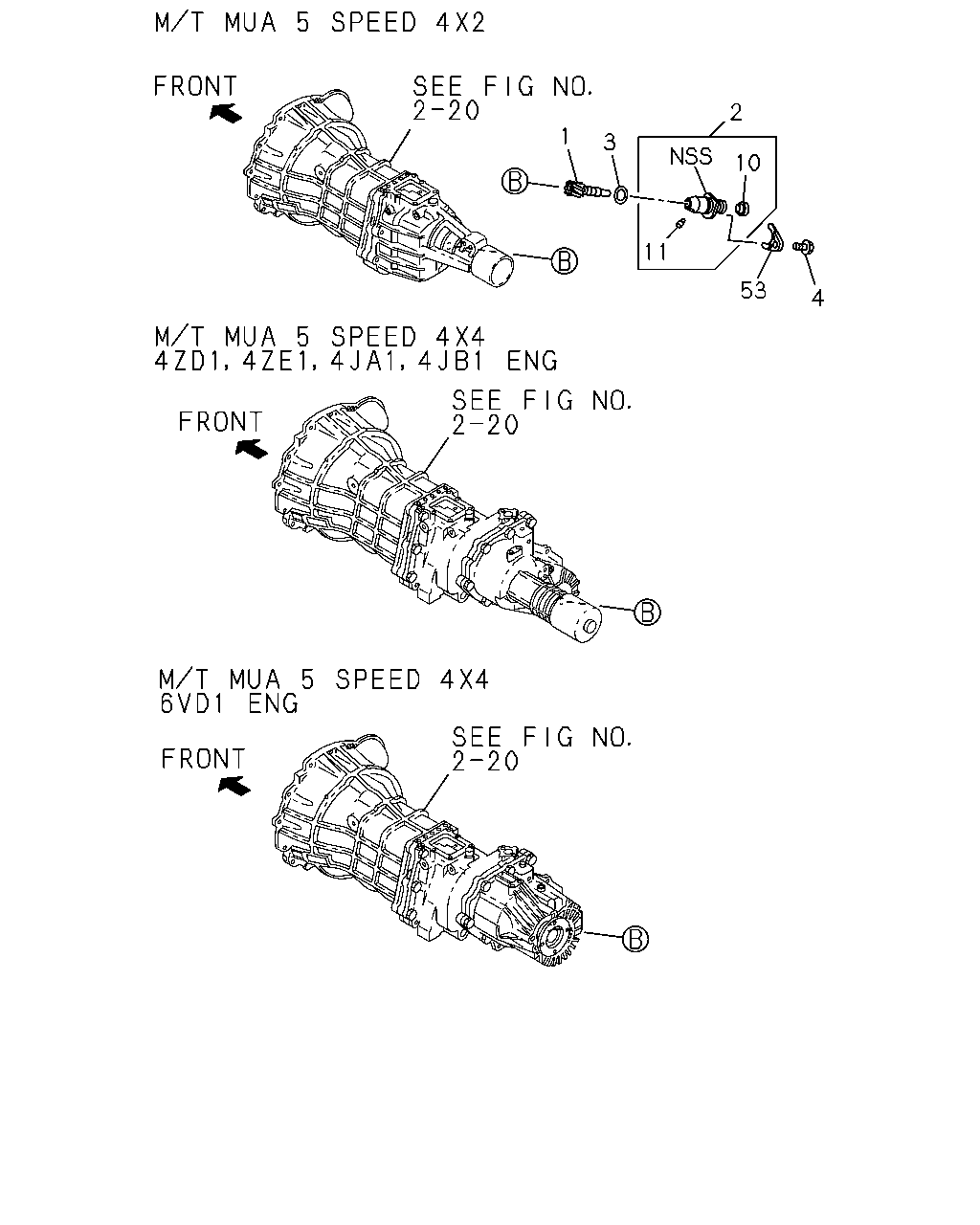

çizim 70091
2 1 3 10 53 4 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4JB1 ENG(RLF) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=18 		8-94473-304-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=18 		8-94473-304-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 LONG(TFS**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=16 		8-94473-308-1 01 1 9611-9711 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=17 		8-97012-085-1 01 1 9801- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9706- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9611-9702 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9703-9705 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=17 		8-97012-085-1 01 1 9706-9712 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SPACE CAB(TFB6CF) 4X2 CREW CAB(TFB6WF) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9702 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9703-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) 4ZE1 ENG(RLJ) CHINA CHONGQING EQUIPMENT(R5B) Z=20 		8-94473-302-1 01 1 9712- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9611- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9611- ●

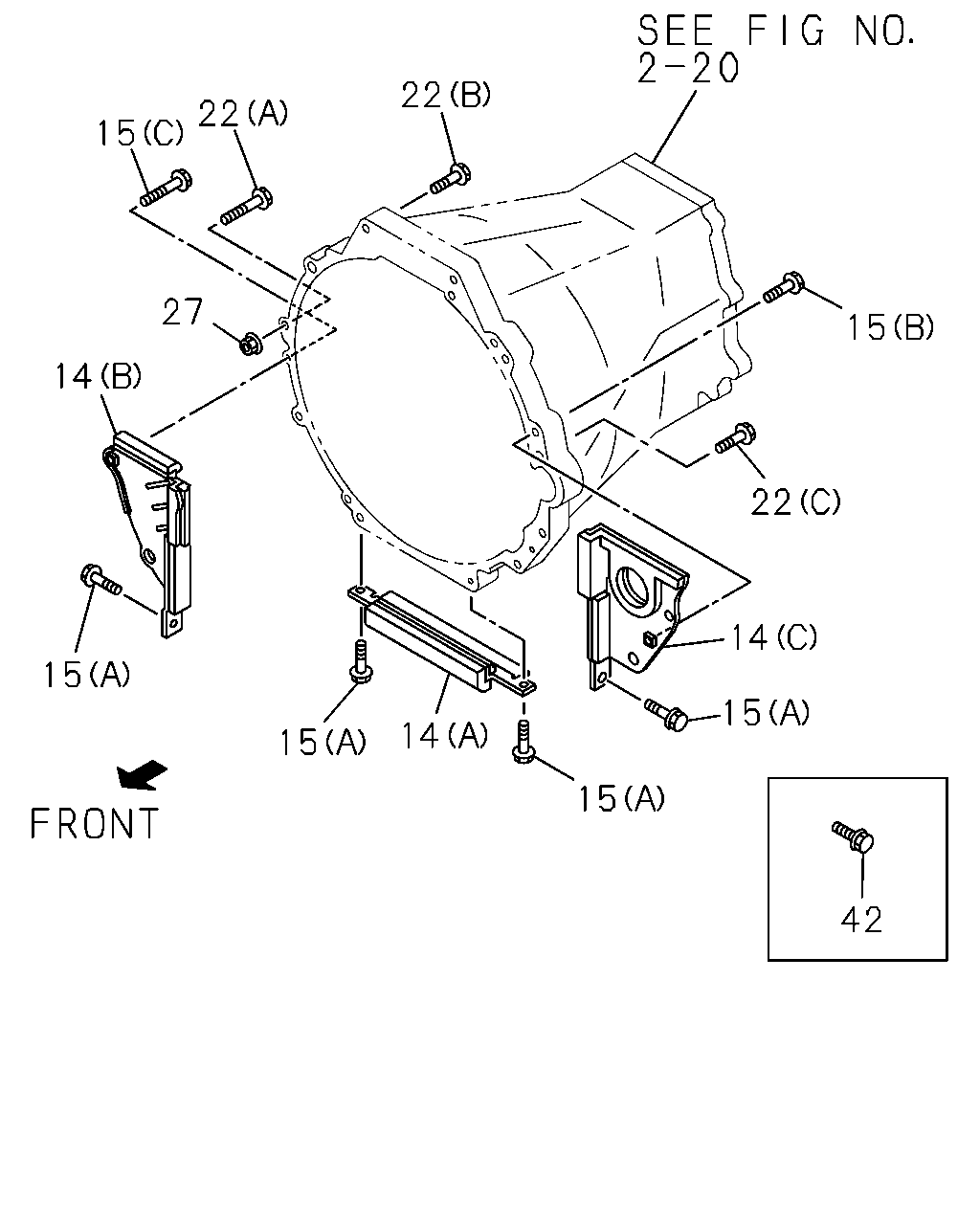

çizim 72189
22 22 15 27 15 14 22 14 15 15 14 15 15 42
BalonParca AdiParca NoAdetTipApplied Date A B
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) M10X60 FLANGE 		0-28081-060-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) M10X65 W/FLANGE 		8-97165-414-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) M10X60 FLANGE 		0-28081-060-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) 02.042 (A) M12X80 		0-28081-280-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9712- ●
27 00.685 NUT; CLU HSG TO TRANS
6VD1 ENG(RLV) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9712- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M10X72 FLANGE 		8-94475-057-1 02 1 9611-9705 ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.706 M10X70 FLANGE 		0-28081-070-0 02 1 9706- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
6VD1 ENG(RLV) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●

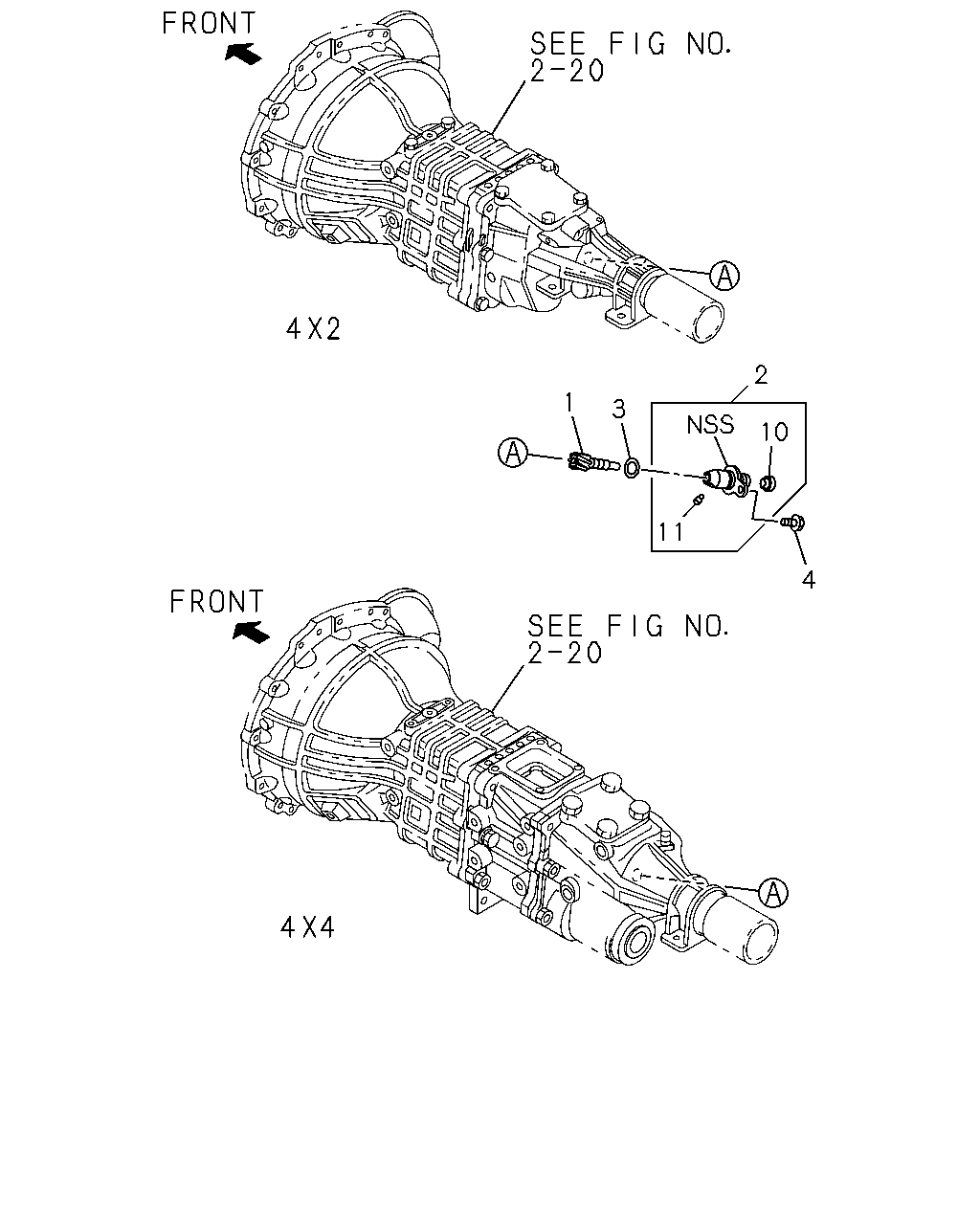

çizim 72235
2 1 3 10 4 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SHORT(TFB**C) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4JB1 ENG(RLF) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) CHINA CHONGQING EQUIPMENT(R5B) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=18 		8-94473-304-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. REAR AXLE LOW GEARED(6ST),ARGENTINA EQUIPMENT(7SZ) Z=18 		8-94473-304-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 LONG(TFS**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=16 		8-94473-308-1 01 1 9611-9711 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=16 		8-94473-308-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=17 		8-97012-085-1 01 1 9801- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9706- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9611-9702 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=18 		8-97012-086-1 01 1 9703-9705 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) CHINA CHONGQING EQUIPMENT(R5B) Z=17 		8-97012-085-1 01 1 9706-9712 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 SPACE CAB(TFB6CF) 4X2 CREW CAB(TFB6WF) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9702 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9703-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ-2 0(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(9PE) EXC. CHINA CHONGQING EQUIPMENT(R5B) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) 4ZE1 ENG(RLJ) CHINA CHONGQING EQUIPMENT(R5B) Z=20 		8-94473-302-1 01 1 9712- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
