◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#47974) — 72 parça

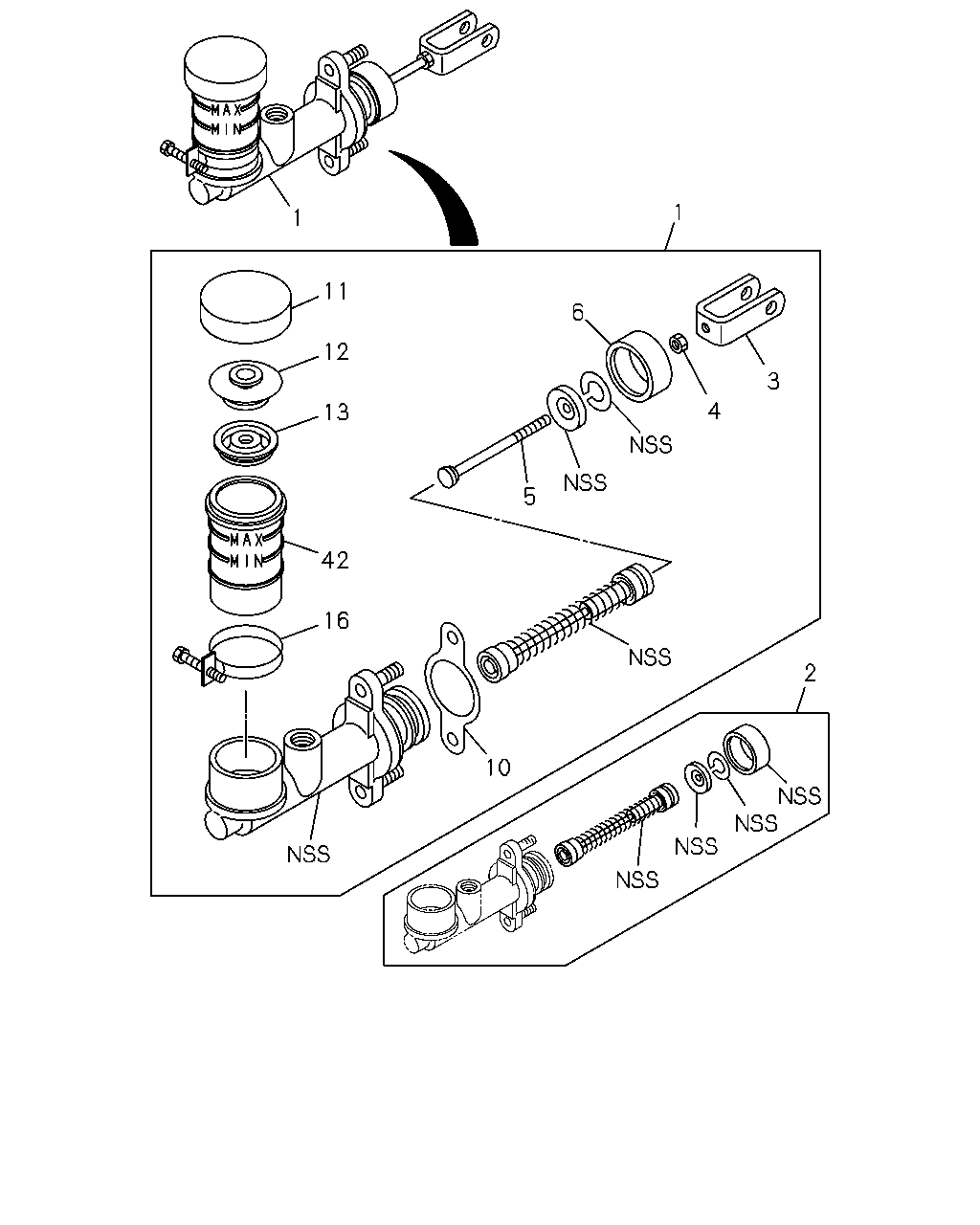

çizim 18912
1 1 11 6 12 3 4 13 5 42 16 2 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-445-0 01 1 9611-9708 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-018-0 01 1 9709-9802 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9803- ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97125-025-0 01 1 9712- ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-486-1 01 1 9611-9708 ● ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-659-0 01 1 9709-9802 ● ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611-9711 ● ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9712- ● ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611-9711 ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9712- ● ● ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-94412-197-2 01 1 9611-9708 ● ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97183-494-0 01 1 9709-9802 ● ● ● ● ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9611-9802 ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9803- ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611-9711 ● ● ● ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9712- ● ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611-9711 ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9712- ● ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611-9711 ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9712- ● ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9611-9711 ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9712- ● ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97148-906-0 01 1 9712- ●
çizim 69702
1 1 11 12 13 42 16 3 4 10 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-445-0 01 1 9611-9708 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-018-0 01 1 9709-9802 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9803- ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97125-025-0 01 1 9712- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611-9711 ● ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9712- ● ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611-9711 ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9712- ● ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9803- ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611-9711 ● ● ● ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9712- ● ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611-9711 ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9712- ● ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611-9711 ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9712- ● ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9611-9711 ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9712- ● ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97148-906-0 01 1 9712- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 9803- ● ● ● ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-036-0 01 1 9712- ●

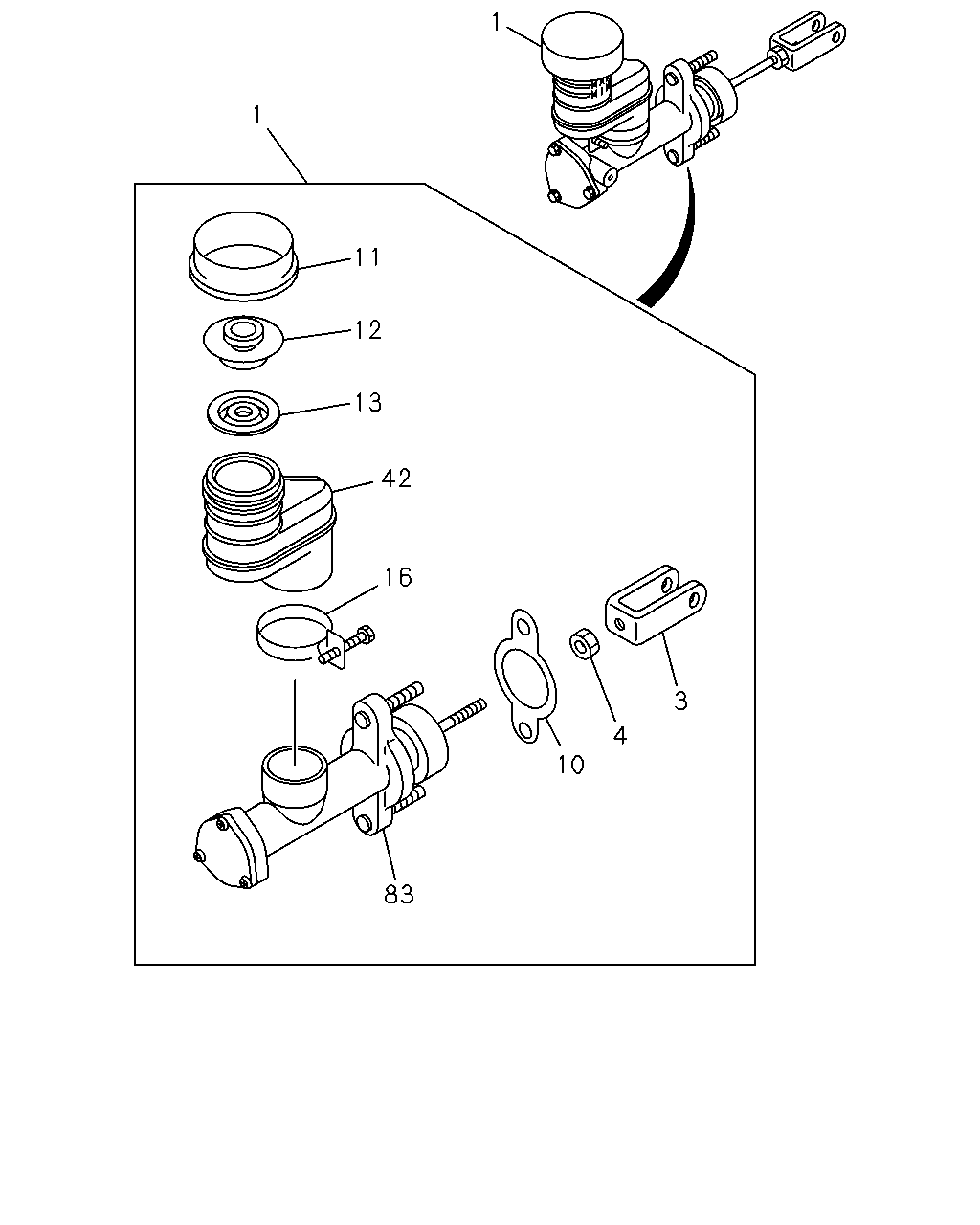

çizim 72236
1 1 11 12 13 42 16 3 4 10 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-445-0 01 1 9611-9708 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-018-0 01 1 9709-9802 ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9803- ● ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97125-025-0 01 1 9712- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611-9711 ● ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9712- ● ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611-9711 ● ● ● ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9712- ● ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ● ● ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9803- ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611-9711 ● ● ● ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9712- ● ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611-9711 ● ● ● ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9712- ● ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611-9711 ● ● ● ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9712- ● ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9611-9711 ● ● ● ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9712- ● ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ● ● ● ●
42 00.777 TANK; OIL,CLU 8-97148-906-0 01 1 9712- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 9803- ● ● ● ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-036-0 01 1 9712- ●
