◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#47973) — 44 parça

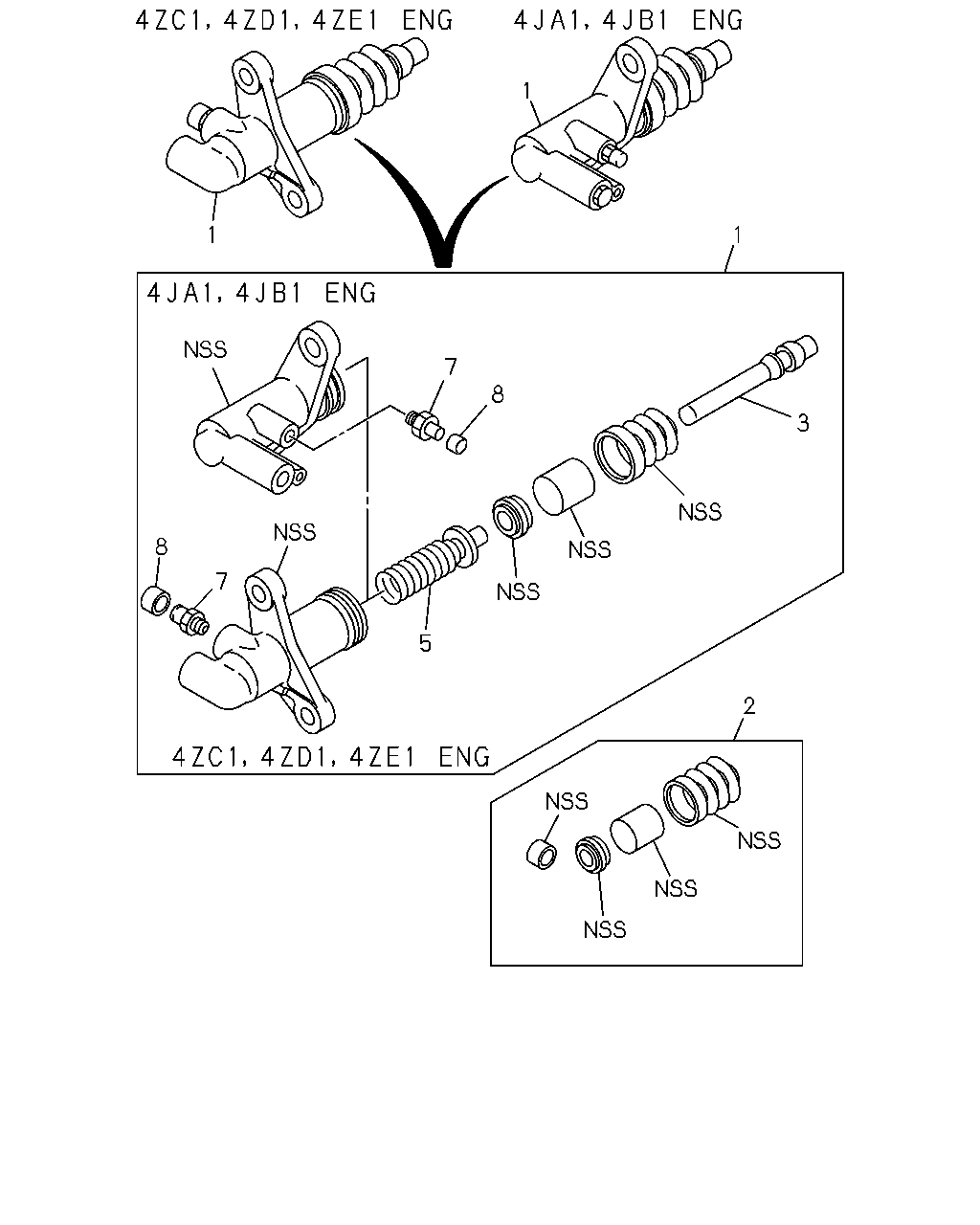

çizim 18854
1 1 1 7 8 3 8 7 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97039-706-0 01 1 9611- ● ●
1 00.780 CYLINDER; SLAVE,CLU 8-94389-194-1 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97039-704-0 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97039-704-0 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97040-866-2 01 1 9712- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
00.030 		5-87831-081-0 01 1 9611- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87830-813-2 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-388-0 01 1 9712- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94136-252-0 01 1 9611- ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97062-923-0 01 1 9712- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97016-025-0 01 1 9611- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97016-024-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 9712- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9611-9711 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9712- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9611-9711 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712- ● ● ● ● ● ●

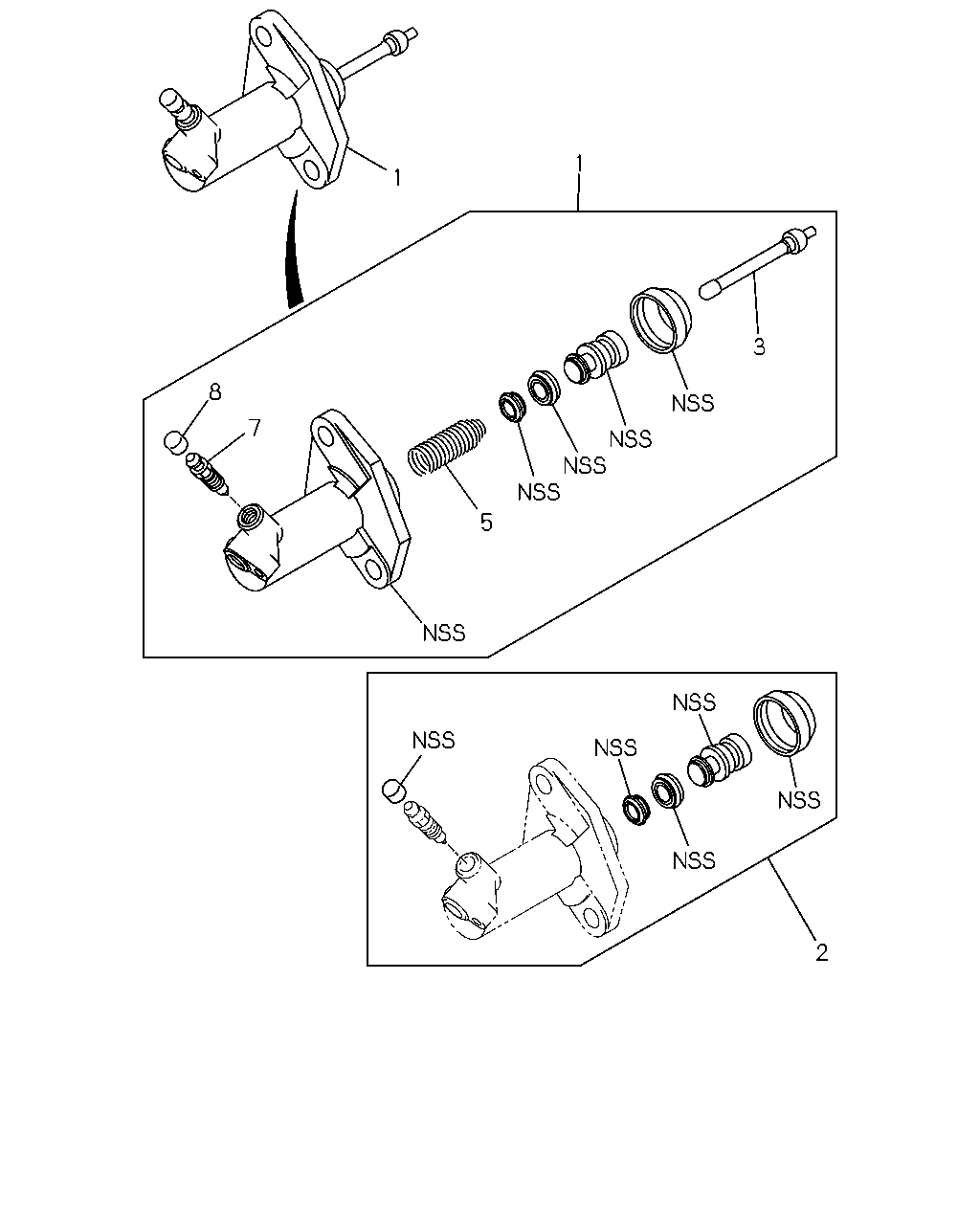

çizim 69631
1 1 3 8 7 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97039-706-0 01 1 9611- ● ●
1 00.780 CYLINDER; SLAVE,CLU 8-94389-194-1 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97039-704-0 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97039-704-0 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 9611- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97040-866-2 01 1 9712- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
00.030 		5-87831-081-0 01 1 9611- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87830-813-2 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9611- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-388-0 01 1 9712- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94136-252-0 01 1 9611- ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97062-923-0 01 1 9712- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97016-025-0 01 1 9611- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97016-024-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9611- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 9712- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9611-9711 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9712- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9611-9711 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
