2-03 — CLUTCH PEDAL AND CONTROL (#47971) — 24 parça

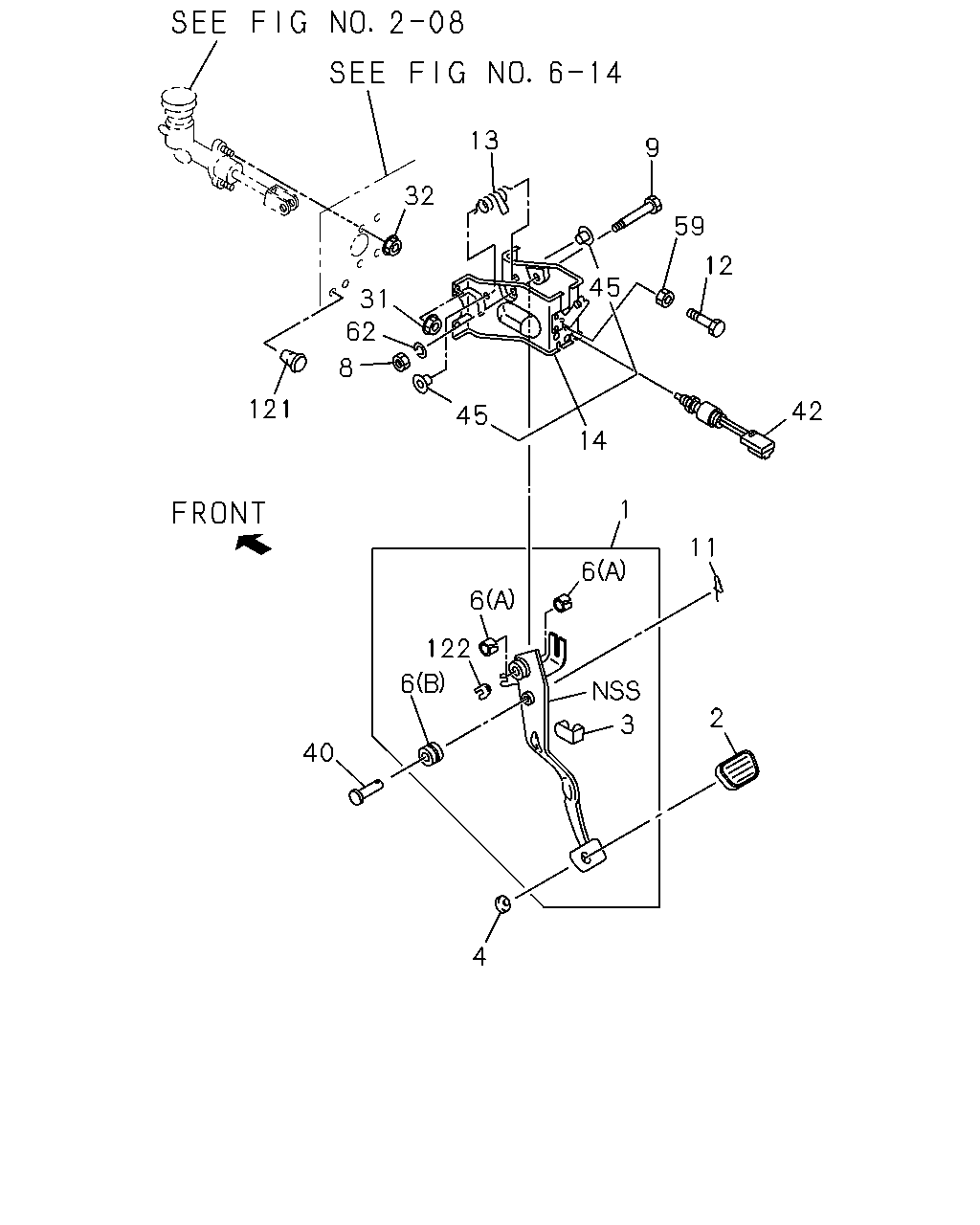

çizim 71917
13 31 62 8 32 59 12 45 121 42 45 14 1 11 6 6 122 6 3 2 40 4 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.830 PEDAL; CLU 8-97071-835-0 01 1 9611- ● ● ● ● ● ● ● ●
2 04.630 COVER; CLU PEDAL 8-94222-524-1 01 1 9611- ● ● ● ● ● ● ● ●
3 00.785 RUBBER; STOPPER,CLU PEDAL 8-94463-258-0 01 1 9611- ● ● ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-94103-675-0 01 1 9611- ● ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
00.833 (A) 		8-94244-439-0 02 1 9611- ● ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
00.833 (B) 		8-97035-885-0 01 1 9611- ● ● ● ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
09.011 M10 		9-09110-410-0 01 1 9611- ● ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL 8-94455-308-0 01 1 9611- ● ● ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.662 L=27.7 		1-09747-005-0 01 1 9611- ● ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.805 M10X35 		0-20801-035-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 00.805 M10X35 		0-20801-035-0 01 1 9712- ● ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
00.837 		8-97036-041-0 01 1 9611- ● ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-94315-200-3 01 1 9611- ● ● ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9611- ● ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ● ● ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER 8-94318-383-0 01 1 9611- ● ● ● ● ● ● ● ●
42 04.054 SWITCH; CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94310-272-0 01 1 9611- ● ● ● ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL 8-94175-433-0 02 1 9611- ● ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.011 M10 		9-09110-410-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 09.011 M10 		9-09110-410-0 01 1 9712- ● ● ● ● ● ● ● ●
62 00.833 WASHER; LK,PIN TO PEDAL
00.002 ID=10.2 		9-09150-510-0 01 1 9611- ● ● ● ● ● ● ● ●
121 00.855 GROMMET; CLU PIPE HOLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
121 00.855 GROMMET; CLU PIPE HOLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 02 1 9712- ● ● ● ● ● ● ● ●
122 00.831 BUSHING; ASSIST PEDAL,CLU 8-94175-434-0 01 1 9611- ● ● ● ● ● ● ● ●
