2-01 — CLUTCH (#47970) — 71 parça

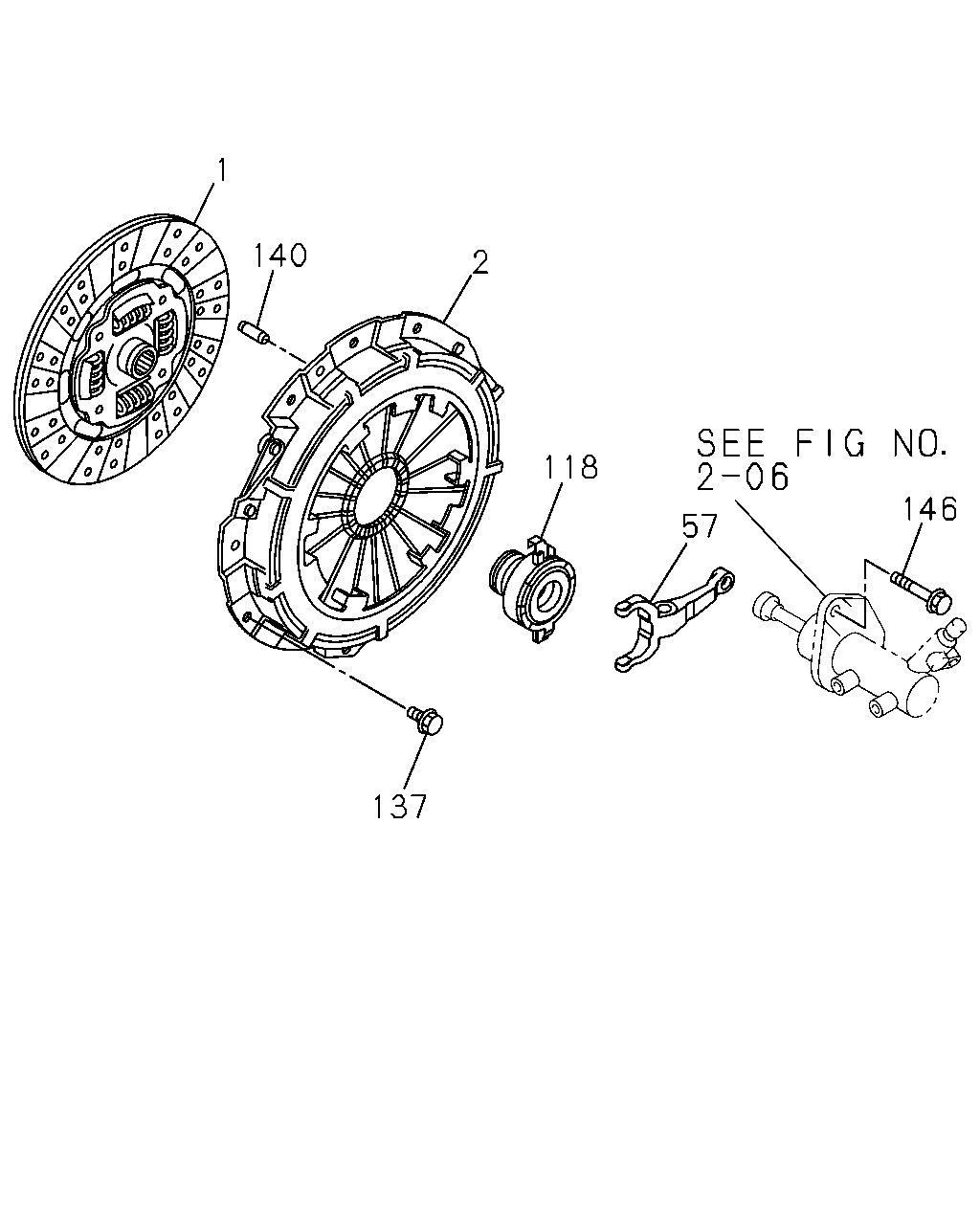

çizim 17575
1 140 2 146 57 137 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH 8-97106-979-0 01 1 9611- ● ●
1 00.886 DISC; CLUTCH 8-97036-062-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97036-063-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97138-135-0 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97040-268-0 01 1 9611- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9611- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94435-011-1 01 1 9611- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94454-010-1 01 1 9611-9611 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97166-853-0 01 1 9612-9708 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-391-0 01 1 9709- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94374-897-8 01 1 9712- ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94167-751-0 01 1 9611- ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9611- ● ● ● ●
57 00.795 FORK; SHIFT,CLU 8-94370-379-3 01 1 9712- ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9611- ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) NSK ID=35 OD=77 		8-94453-346-1 01 1 9611- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) JTEKT 		8-94379-499-0 01 1 9611- ● ●
118 00.799 BEARING; CLU RELEASE 8-94377-417-1 01 1 9712- ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9611- ● ● ● ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9712- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9611-9711 ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9712- ● ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9611- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.685 M12X90 FLANGE 		8-94475-060-1 01 1 9611-9703 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 00.685 M12X90 FLANGE 		8-94475-060-1 01 1 9611-9703 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28081-290-0 01 1 9704- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90 FLANGE 		0-28081-290-0 01 1 9704- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9611- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 9712-9712 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9801- ●

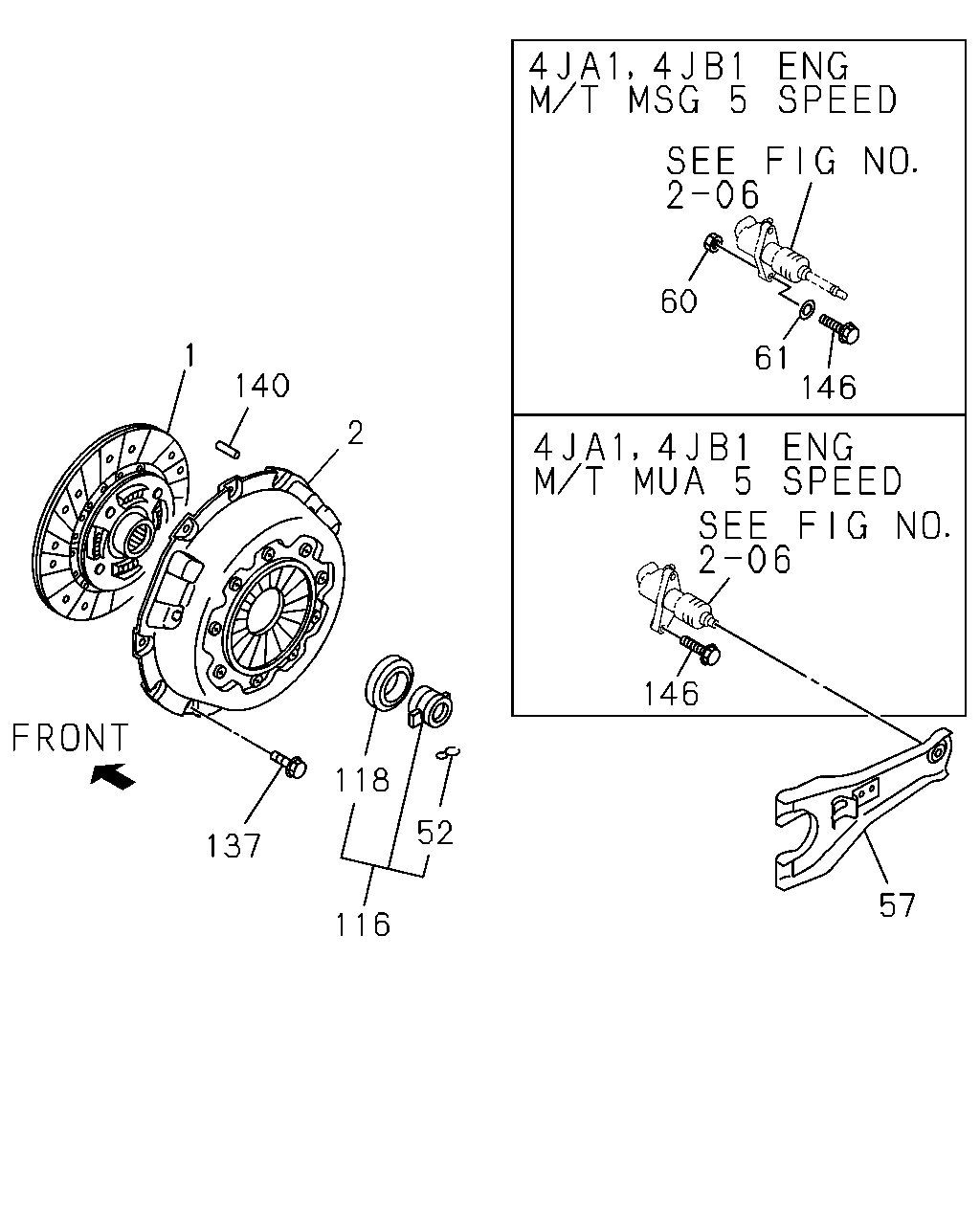

çizim 71145
60 1 61 146 140 2 146 52 137 57 116 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH 8-97106-979-0 01 1 9611- ● ●
1 00.886 DISC; CLUTCH 8-97036-062-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97036-063-0 01 1 9611- ●
1 00.886 DISC; CLUTCH 8-97138-135-0 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97040-268-0 01 1 9611- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9611- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94435-011-1 01 1 9611- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94454-010-1 01 1 9611-9611 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97166-853-0 01 1 9612-9708 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-391-0 01 1 9709- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94374-897-8 01 1 9712- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSG 5 SPEED(M75) 00.805 		9-31329-010-0 01 1 9611- ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 9611- ● ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94167-751-0 01 1 9611- ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9611- ● ● ● ●
57 00.795 FORK; SHIFT,CLU 8-94370-379-3 01 1 9712- ●
60 00.780 NUT; SLAVE CYL
05.816 M12 		9-99110-412-0 01 1 9611- ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) 05.816 M12 		9-99110-412-0 01 1 9611- ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
03.430 ID=12.5 		9-09160-512-0 01 1 9611- ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75) 03.430 ID=12.5 		9-09160-512-0 01 1 9611- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94438-300-0 01 1 9611- ● ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94328-238-0 01 1 9611- ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9611- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9611- ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) NSK ID=35 OD=77 		8-94453-346-1 01 1 9611- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) JTEKT 		8-94379-499-0 01 1 9611- ● ●
118 00.799 BEARING; CLU RELEASE 8-94377-417-1 01 1 9712- ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9611- ● ● ● ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9712- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9611-9711 ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9712- ● ● ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9611- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
00.685 M12X90 FLANGE 		8-94475-060-1 01 1 9611-9703 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 00.685 M12X90 FLANGE 		8-94475-060-1 01 1 9611-9703 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28081-290-0 01 1 9704- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90 FLANGE 		0-28081-290-0 01 1 9704- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9611- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 9712-9712 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9801- ●
