◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#47967) — 520 parça

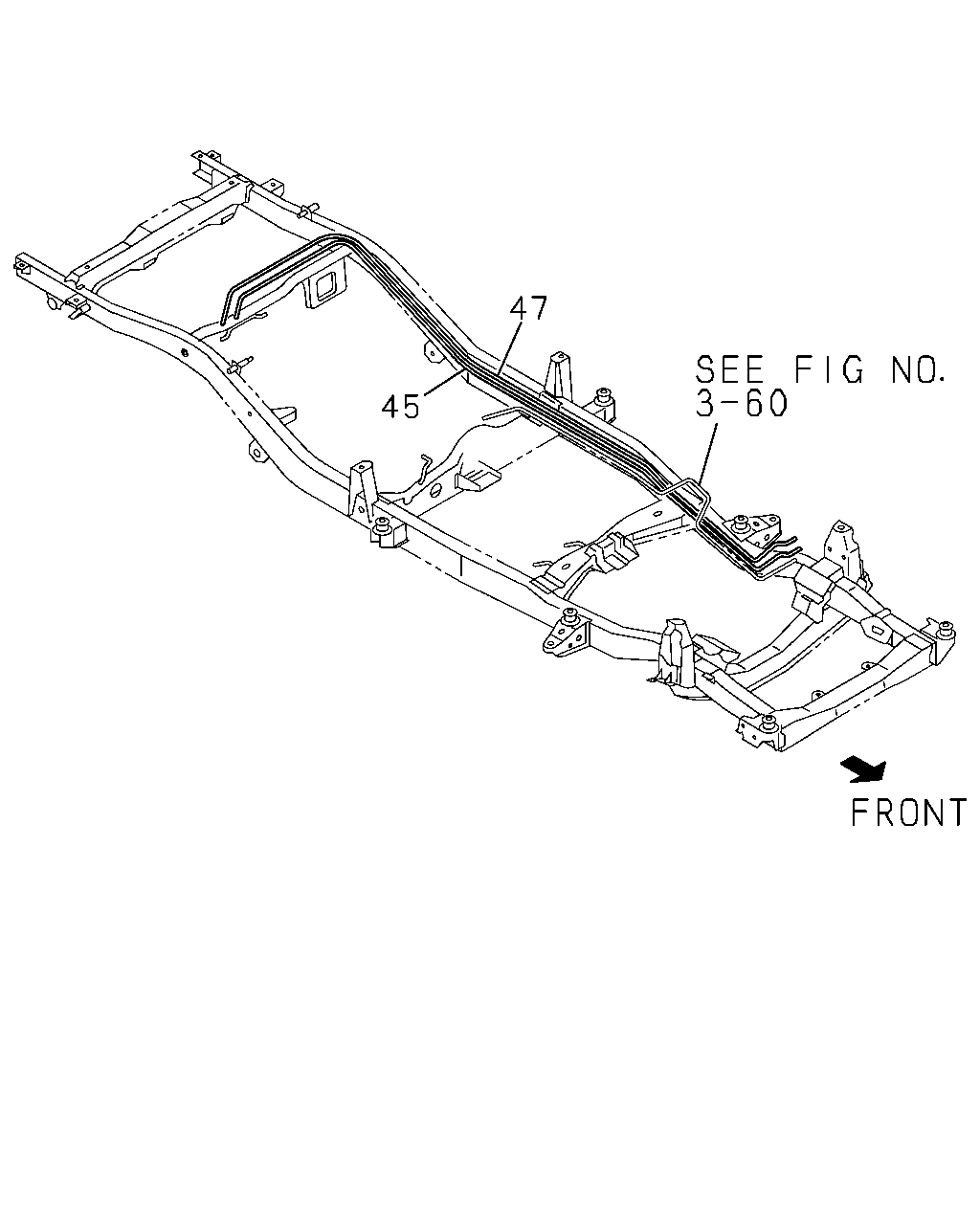

çizim 17041
47 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-1 01 1 9611-9711 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ● ●
45 03.163 PIPE; FUEL,DELIVERY 8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97177-399-0 01 1 9702-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97203-825-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) ELECTRIC FUEL INJECTION<6GG> 		8-97132-337-0 01 1 9702- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611-9612 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9701- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ● ●
47 03.163 PIPE; FUEL,RETURN 8-97179-634-1 01 1 9712- ●

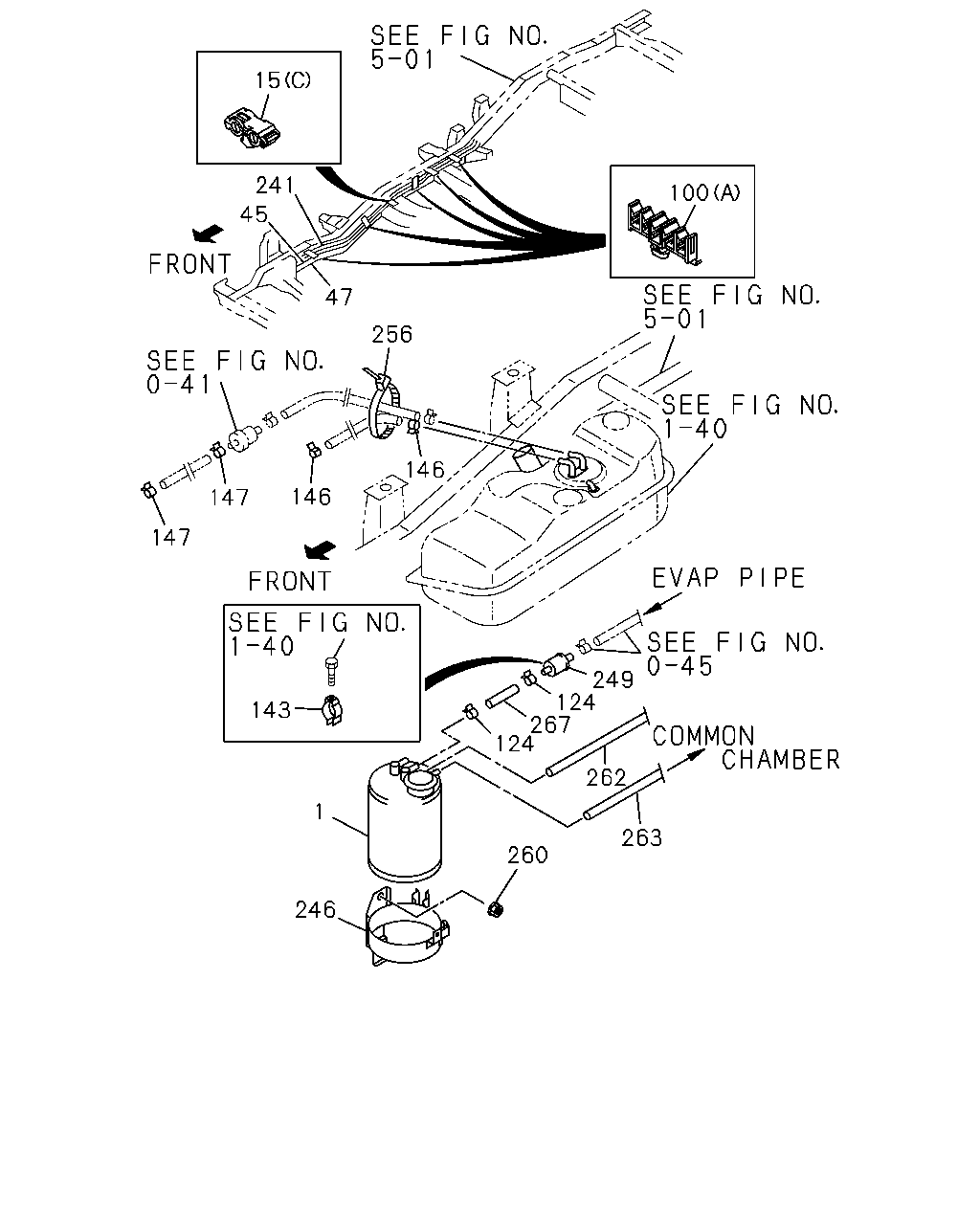

çizim 67228
15 241 45 100 47 256 147 146 146 147 249 124 267 124 143 262 1 263 260 246
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.130 CANISTER; FUEL
ELECTRIC FUEL INJECTION<6GG> 		8-17090-120-0 01 1 9611- ●
1 03.130 CANISTER; FUEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-17090-119-0 01 1 9611-9611 ●
1 03.130 CANISTER; FUEL
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9611-9611 ●
1 03.130 CANISTER; FUEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
CHILE EQUIPMENT(6KB) 		8-17087-023-0 01 1 9712- ●
15 03.162 CLIP; FUEL PIPE
SPACE CAB(TF**C*) (C) BLUE 		8-94455-380-1 01 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) BLACK 		8-94222-876-0 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
(C) BLUE 		8-94328-836-0 01 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (B) BLACK 		8-94222-876-0 05 1 9611-9711 ● ●
15 03.162 CLIP; FUEL PIPE
(B) BLACK 		8-94222-876-0 05 1 9712- ● ●
15 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) BLACK 		8-94222-876-0 07 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) 		8-94466-385-0 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-1 01 1 9611-9711 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ● ●
45 03.163 PIPE; FUEL,DELIVERY 8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97177-399-0 01 1 9702-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97203-825-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) ELECTRIC FUEL INJECTION<6GG> 		8-97132-337-0 01 1 9702- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611-9612 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9701- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ● ●
47 03.163 PIPE; FUEL,RETURN 8-97179-634-1 01 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 03 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 02 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) TURBOCHARGER<K51> (A) WHITE L=7.4 		8-94435-550-0 13 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) (A) WHITE L=7.4 		8-94435-550-0 12 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 09 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 04 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (B) L=8.5 		8-97014-423-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9703- ● ●
124 03.162 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> 01.219 ID=12 		8-94238-610-0 01 1 9611- ●
124 03.162 CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2) 01.097 ID=11 		8-94238-925-0 01 1 9611-9611 ●
124 03.162 CLIP; HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.097 ID=11 		8-94238-925-0 01 1 9611-9611 ●
124 03.162 CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2) 01.097 ID=11 		8-94238-925-0 01 1 9612- ●
124 03.162 CLIP; HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.097 ID=11 		8-94238-925-0 01 1 9612- ●
124 03.162 CLIP; HOSE
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 01.097 ID=11 		8-94238-925-0 01 1 9612- ●
124 03.162 CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 01 1 9611-9611 ●
124 03.162 CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11 		8-94238-570-0 01 1 9612-9702 ●
124 03.162 CLIP; HOSE
CHINA CHONGQING EQUIPMENT(R5B) 03.163 ID=11 		8-94238-570-0 01 1 9612-9702 ●
124 03.162 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> 03.163 ID=11 		8-94238-570-0 01 1 9703- ● ●
124 03.162 CLIP; HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 ID=11 		8-94238-570-0 01 1 9703- ●
124 03.162 CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2) 03.163 ID=11 		8-94238-570-0 01 1 9703- ●
124 03.162 CLIP; HOSE
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 03.163 ID=11 		8-94238-570-0 01 1 9703- ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9611-9711 ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9712- ● ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9611-9711 ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-97173-219-0 02 1 9712- ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ● ● ●
241 03.163 PIPE; EVAP
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 		8-97132-329-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-326-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97132-326-2 01 1 9701- ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-2 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9701-9803 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97175-670-0 01 1 9712- ●
246 03.130 BRACKET; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9611-9611 ●
246 03.130 BRACKET; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9612- ●
246 03.130 BRACKET; CANISTER
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-97089-472-0 01 1 9612- ●
246 03.130 BRACKET; CANISTER
CHILE EQUIPMENT(6KB) 		8-97090-002-2 01 1 9712- ●
249 03.120 VALVE; CONT,EVAP
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.162 		8-97076-391-0 01 1 9611-9711 ● ●
249 03.120 VALVE; CONT,EVAP
CHINA CHONGQING EQUIPMENT(R5B) 03.162 		8-97076-391-0 01 1 9611-9711 ● ●
256 03.162 CLIP; BAND,FUEL HOSE
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=140 		5-09707-031-0 01 1 9611-9709 ●
256 03.162 CLIP; BAND,FUEL HOSE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) L=140 		5-09707-031-0 01 1 9611-9709 ●
256 03.162 CLIP; BAND,FUEL HOSE
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=140 		5-09707-031-1 01 1 9710- ● ●
256 03.162 CLIP; BAND,FUEL HOSE
CREW CAB(TF**W*) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) L=140 		5-09707-031-1 01 1 9710- ●
260 03.130 NUT; CANISTER BRKT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9611-9611 ●
260 03.130 NUT; CANISTER BRKT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9612-9702 ●
260 03.130 NUT; CANISTER BRKT
CHINA CHONGQING EQUIPMENT(R5B) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9612-9702 ●
260 03.130 NUT; CANISTER BRKT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9703- ●
260 03.130 NUT; CANISTER BRKT
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9703- ●
262 03.163 HOSE; CANISTER PURGE
ELECTRIC FUEL INJECTION<6GG> 08.962 L=300 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ●
262 03.163 HOSE; CANISTER PURGE
SAUDI ARABIA EQUIPMENT(EU2) 		8-97089-098-0 01 1 9611-9611 ●
262 03.163 HOSE; CANISTER PURGE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97089-098-0 01 1 9611-9611 ●
262 03.163 HOSE; CANISTER PURGE
SAUDI ARABIA EQUIPMENT(EU2) 		8-97089-098-0 01 1 9612- ●
262 03.163 HOSE; CANISTER PURGE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97089-098-0 01 1 9612- ●
262 03.163 HOSE; CANISTER PURGE
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-97089-098-0 01 1 9612- ●
263 03.163 HOSE; CANISTER SIGNAL
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9712- ●
263 03.163 HOSE; CANISTER SIGNAL
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9712- ●
263 03.163 HOSE; CANISTER SIGNAL
CATALYSIS CONTROL<6MZ> EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9712- ●
263 03.163 HOSE; CANISTER SIGNAL
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9611-9611 ●
263 03.163 HOSE; CANISTER SIGNAL
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9612-9612 ●
263 03.163 HOSE; CANISTER SIGNAL
CHINA CHONGQING EQUIPMENT(R5B) 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9612-9612 ●
263 03.163 HOSE; CANISTER SIGNAL
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9701-9711 ●
263 03.163 HOSE; CANISTER SIGNAL
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.962 L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 9701-9711 ●
263 03.163 HOSE; CANISTER SIGNAL
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 CREW CAB(TFS6WF) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.962 L=200 SERVICED BY L=3000 		0-04740-300-0 01 1 9712- ●
267 03.145 HOSE; CONT VALVE TO CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=180 		8-94457-890-1 01 1 9611-9611 ●
267 03.145 HOSE; CONT VALVE TO CANISTER
SAUDI ARABIA EQUIPMENT(EU2) L=180 		8-94457-890-1 01 1 9612- ●
267 03.145 HOSE; CONT VALVE TO CANISTER
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> L=180 		8-94457-890-1 01 1 9612- ●
267 03.145 HOSE; CONT VALVE TO CANISTER
ELECTRIC FUEL INJECTION<6GG> L=180 		8-94457-890-1 01 1 9612- ●
267 03.145 HOSE; CONT VALVE TO CANISTER
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) L=180 		8-94457-890-1 01 1 9612- ●

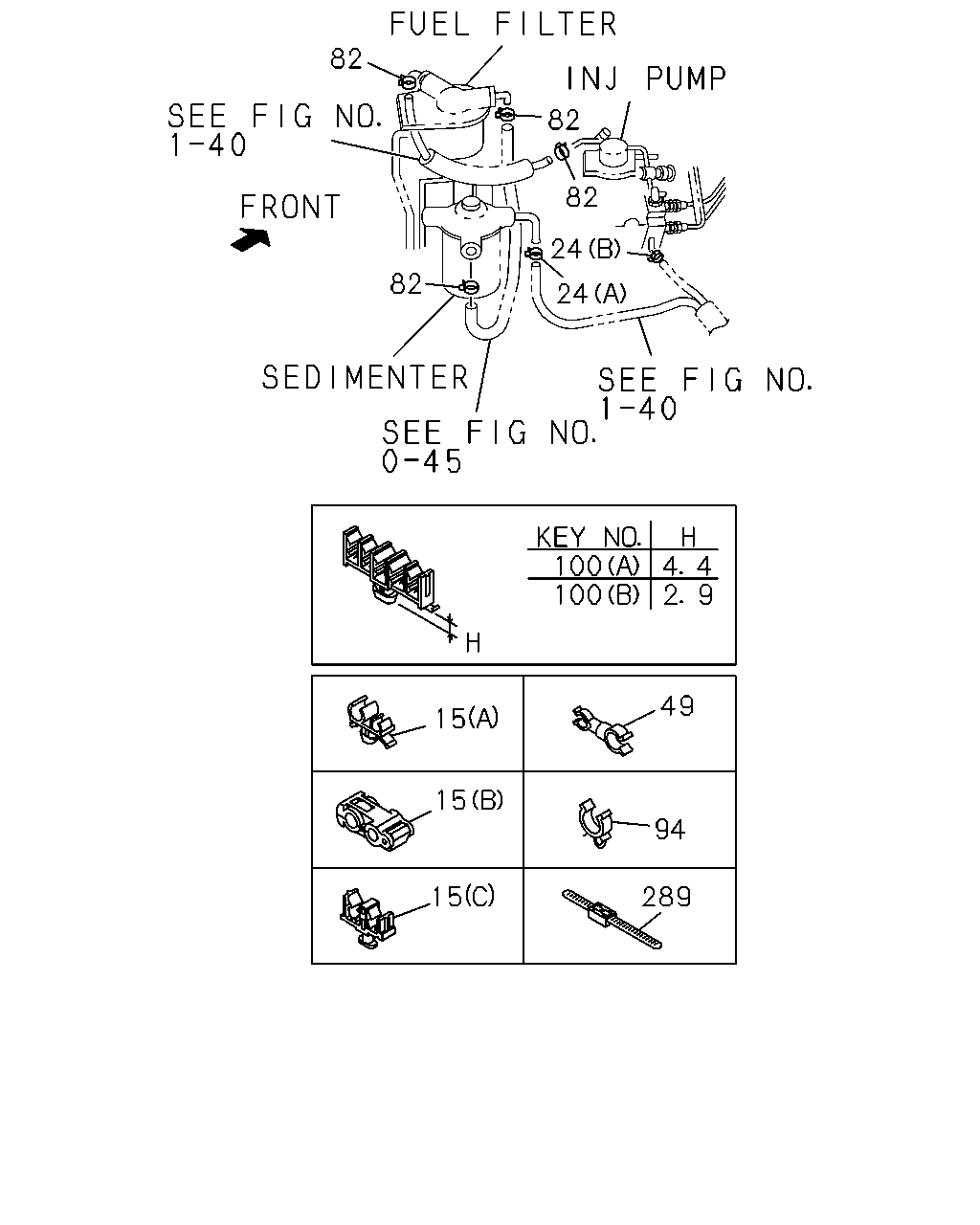

çizim 67254
82 82 82 24 82 24 100 100 49 15 15 94 15 289
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 03.162 CLIP; FUEL PIPE
SPACE CAB(TF**C*) (C) BLUE 		8-94455-380-1 01 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) BLACK 		8-94222-876-0 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
(C) BLUE 		8-94328-836-0 01 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (B) BLACK 		8-94222-876-0 05 1 9611-9711 ● ●
15 03.162 CLIP; FUEL PIPE
(B) BLACK 		8-94222-876-0 05 1 9712- ● ●
15 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) BLACK 		8-94222-876-0 07 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) 		8-94466-385-0 01 1 9611- ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
49 03.162 CLIP; PIPE TO FRAME
04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9611- ● ●
82 03.163 CLIP; FUEL HOSE
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
82 03.163 CLIP; FUEL HOSE
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
82 03.163 CLIP; FUEL HOSE
01.166 ID=14 		8-94238-572-0 02 1 9712- ● ●
82 03.163 CLIP; FUEL HOSE
EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=14 		8-94238-572-0 02 1 9712- ● ●
94 03.890 CLIP; HOSE,FILTER
POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 03 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 02 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) TURBOCHARGER<K51> (A) WHITE L=7.4 		8-94435-550-0 13 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) (A) WHITE L=7.4 		8-94435-550-0 12 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 09 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 04 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (B) L=8.5 		8-97014-423-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9703- ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9611-9711 ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9712- ● ● ● ● ● ●

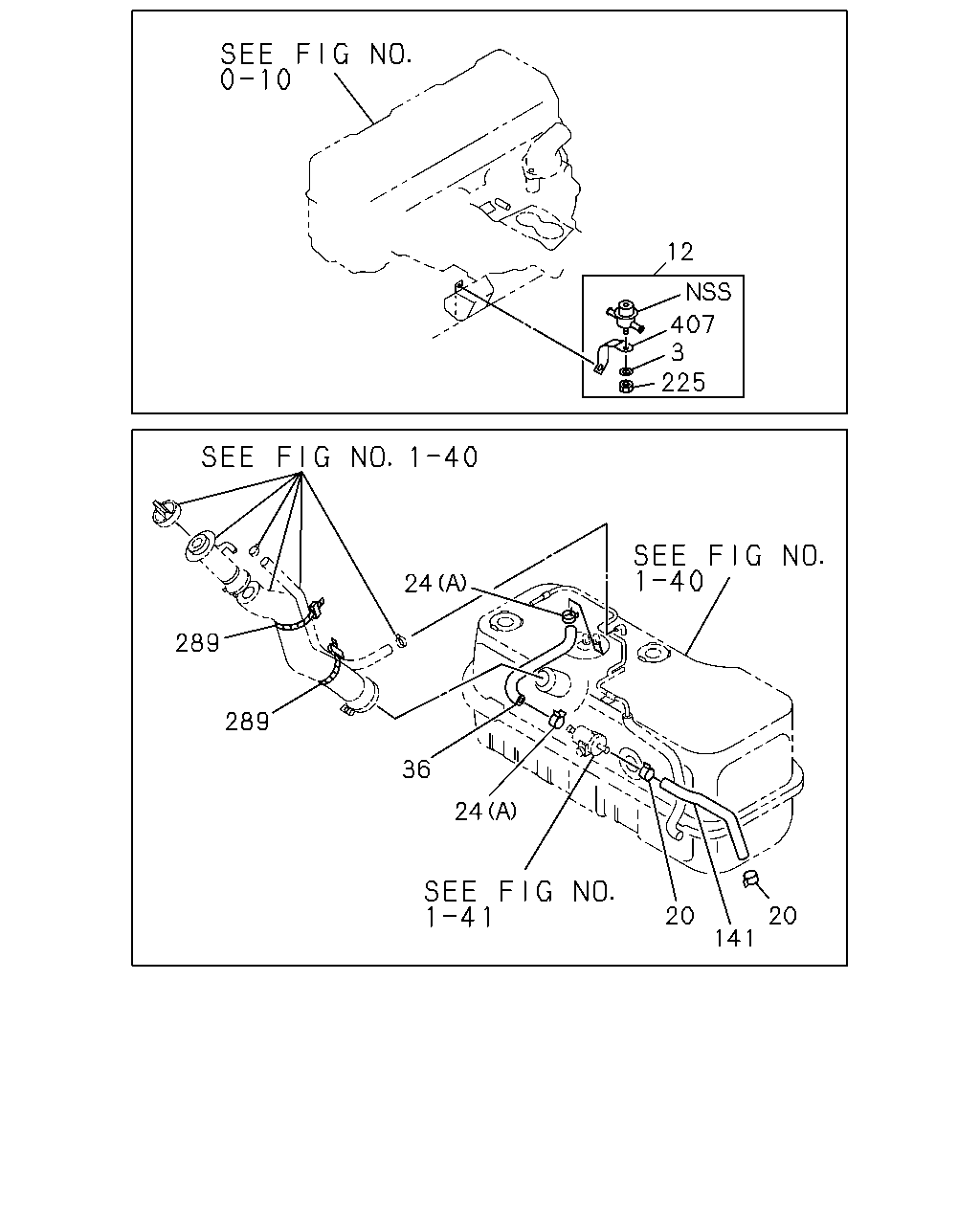

çizim 70199
12 407 3 225 24 289 289 36 24 20 141 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.162 WASHER; LK,BRKT
00.002 ID=8.2 		9-09150-608-0 01 1 9611- ● ● ●
12 03.163 DAMPER ASM; FUEL 8-97094-929-0 01 1 9611- ●
12 03.163 DAMPER ASM; FUEL 8-94407-633-0 01 1 9611- ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611-9711 ● ●
20 03.162 CLIP; HOSE,FUEL TANK
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> ID=12 		8-97148-892-0 02 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=380 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=300 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
ELECTRIC FUEL INJECTION<6GG> 03.901 L=300 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SHORT(TF***C) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000 		0-01258-300-0 01 1 9611-9711 ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SHORT(TF***C) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000 		0-01258-300-0 01 1 9712- ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SHORT(TF***C) ELECTRIC FUEL INJECTION<6GG> 03.901 L=150 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.901 L=240 SERVICED BY L=3000 		0-01458-300-0 01 1 9611-9711 ●
141 03.163 HOSE; FUEL FILTER TO PIPE
LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.901 L=240 SERVICED BY L=3000 		0-01458-300-0 01 1 9712- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SPACE CAB(TF**C*) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=240 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
225 03.162 NUT; FUEL DAMPER
00.002 M8 		9-09110-508-0 01 1 9611- ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9611-9711 ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9712- ● ● ● ● ● ●
407 03.162 BRACKET; FUEL DAMPER
03.163 		8-94407-411-0 01 1 9611- ●
407 03.162 BRACKET; FUEL DAMPER
03.163 		8-94407-343-0 01 1 9611- ● ●

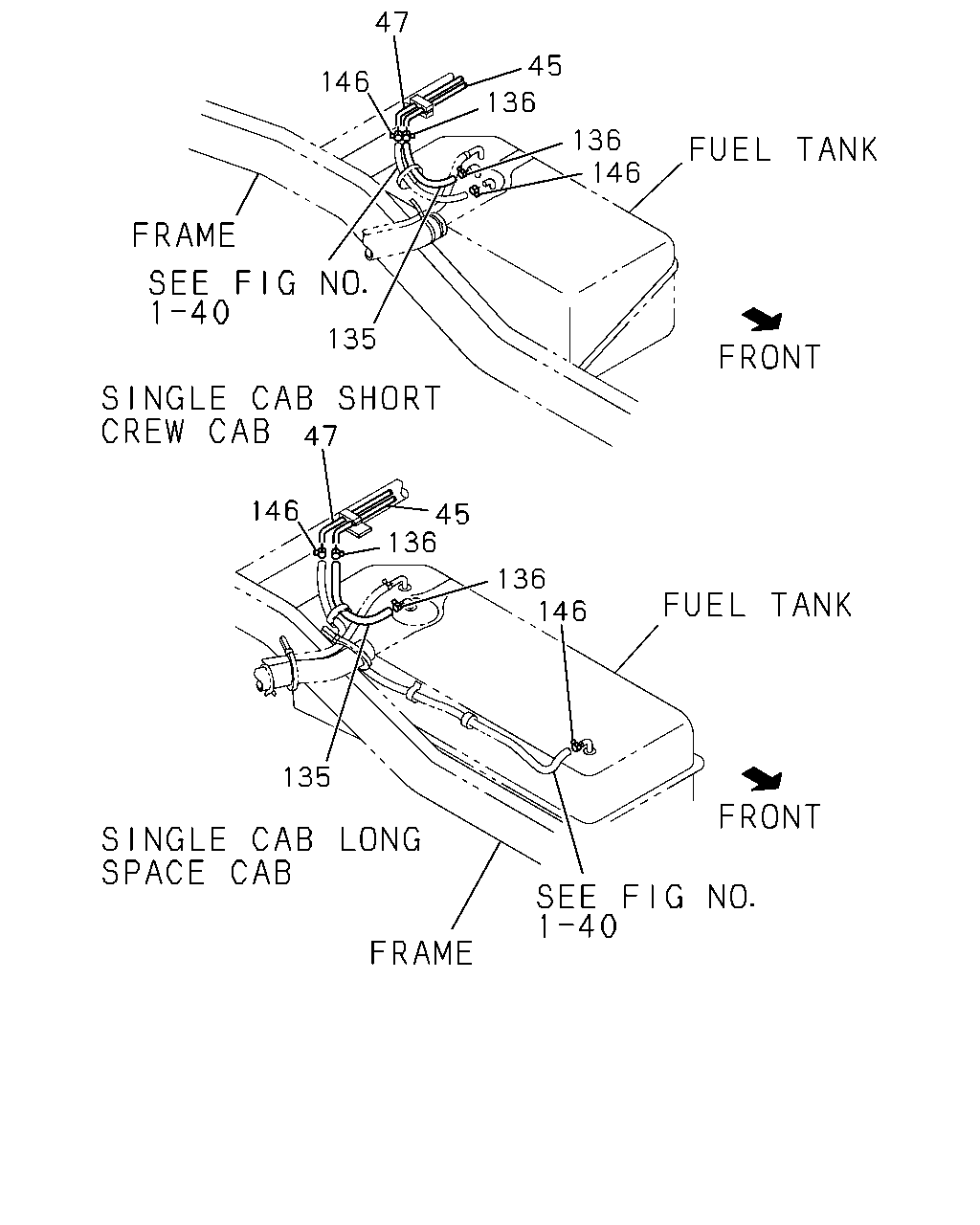

çizim 71079
47 45 136 146 136 146 135 47 146 45 136 136 146 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-1 01 1 9611-9711 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ● ●
45 03.163 PIPE; FUEL,DELIVERY 8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97177-399-0 01 1 9702-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97203-825-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) ELECTRIC FUEL INJECTION<6GG> 		8-97132-337-0 01 1 9702- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611-9612 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9701- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ● ●
47 03.163 PIPE; FUEL,RETURN 8-97179-634-1 01 1 9712- ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 08.962 L=560 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
136 03.162 CLIP; HOSE,FUEL TANK
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
136 03.162 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 9712- ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9611-9711 ● ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-97173-219-0 02 1 9712- ● ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●

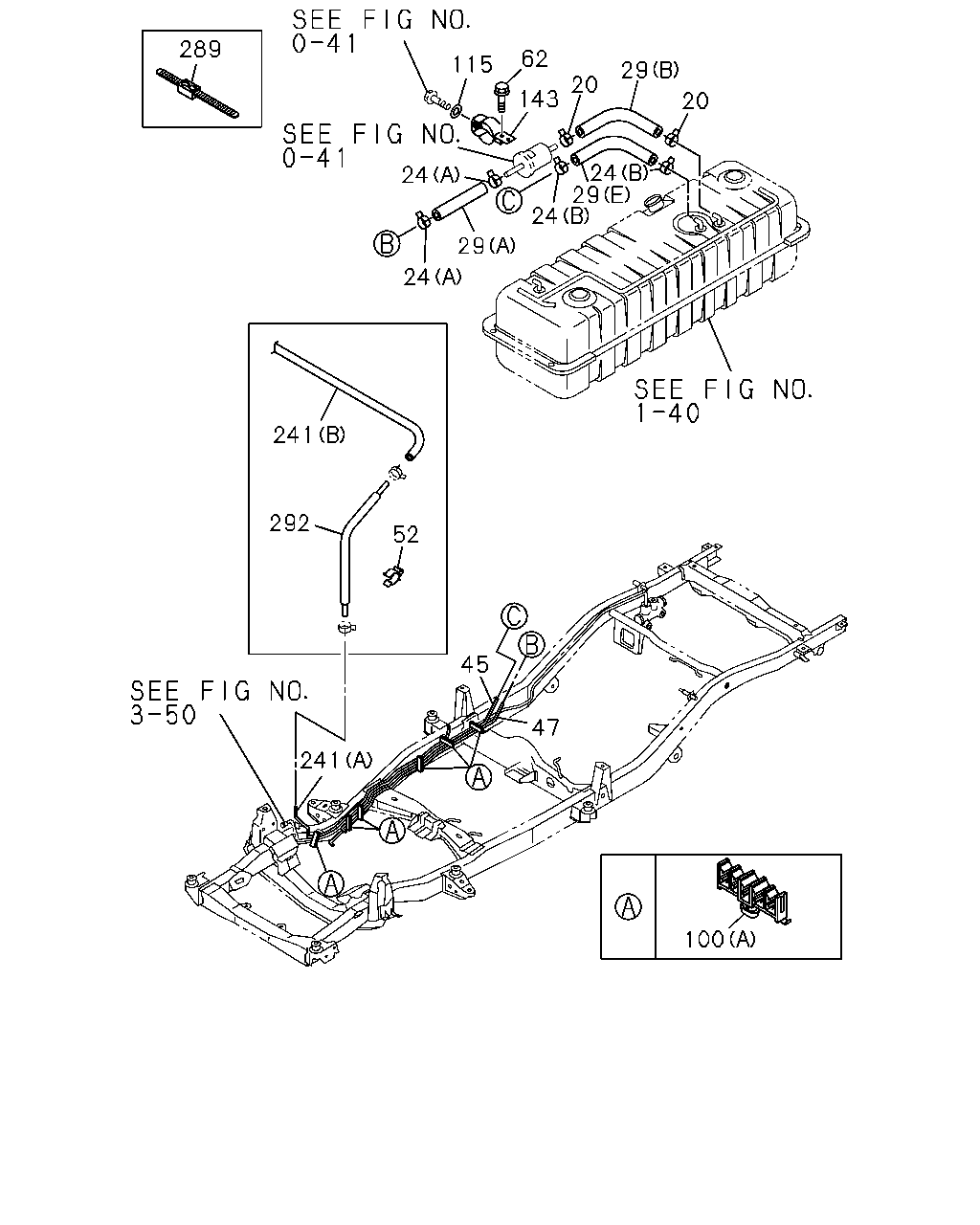

çizim 71080
289 62 115 29 20 20 143 24 29 24 29 24 24 241 292 52 45 47 241 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ● ● ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611-9711 ● ●
20 03.162 CLIP; HOSE,FUEL TANK
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> ID=12 		8-97148-892-0 02 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
29 03.163 HOSE; FUEL
(C) 		8-97175-635-1 01 1 9712- ●
29 03.163 HOSE; FUEL
(D) 		8-97175-636-1 01 1 9712- ●
29 03.163 HOSE; FUEL
(A) 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=300 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=500 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-1 01 1 9611-9711 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ● ●
45 03.163 PIPE; FUEL,DELIVERY 8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97177-399-0 01 1 9702-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) ELECTRIC FUEL INJECTION<6GG> 		8-97203-825-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) ELECTRIC FUEL INJECTION<6GG> 		8-97132-337-0 01 1 9702- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611-9612 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9701- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ● ●
47 03.163 PIPE; FUEL,RETURN 8-97179-634-1 01 1 9712- ●
52 03.145 CLIP; EVAP PIPE
CREW CAB(TF**W*) 06.672 ID=17 		8-94382-792-1 01 1 9712- ●
62 03.162 BOLT; CLIP FIX
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) (A) WHITE L=7.4 		8-94435-550-0 11 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) BLACK L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) WHITE L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 03 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) BLACK L=8.9 		8-94435-551-1 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) (A) WHITE L=7.4 		8-94435-550-0 02 1 9611-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) TURBOCHARGER<K51> (A) WHITE L=7.4 		8-94435-550-0 13 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) (A) WHITE L=7.4 		8-94435-550-0 11 1 9702-9702 ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) (A) WHITE L=7.4 		8-94435-550-0 12 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (A) WHITE L=7.4 		8-94435-550-0 09 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) BLACK L=8.9 		8-94435-551-1 04 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (B) L=8.5 		8-97014-423-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (A) WHITE L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9702-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
CREW CAB(TF**W*) (A) WHITE L=7.4 		8-94435-550-0 03 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (A) WHITE L=7.4 		8-94435-550-0 05 1 9703- ● ●
115 03.162 WASHER; PL,CLIP
02.334 ID=6.4 OD=22 		9-09164-806-0 01 1 9712- ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9611-9711 ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9712- ● ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9712- ●
241 03.163 PIPE; EVAP
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 		8-97132-329-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-326-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97132-326-2 01 1 9701- ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-2 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9701-9803 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97175-670-0 01 1 9712- ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9611-9711 ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9712- ● ● ● ● ● ●
292 03.163 HOSE; EVAP,FUEL PIPE
L=380 		8-97175-633-0 01 1 9712- ●

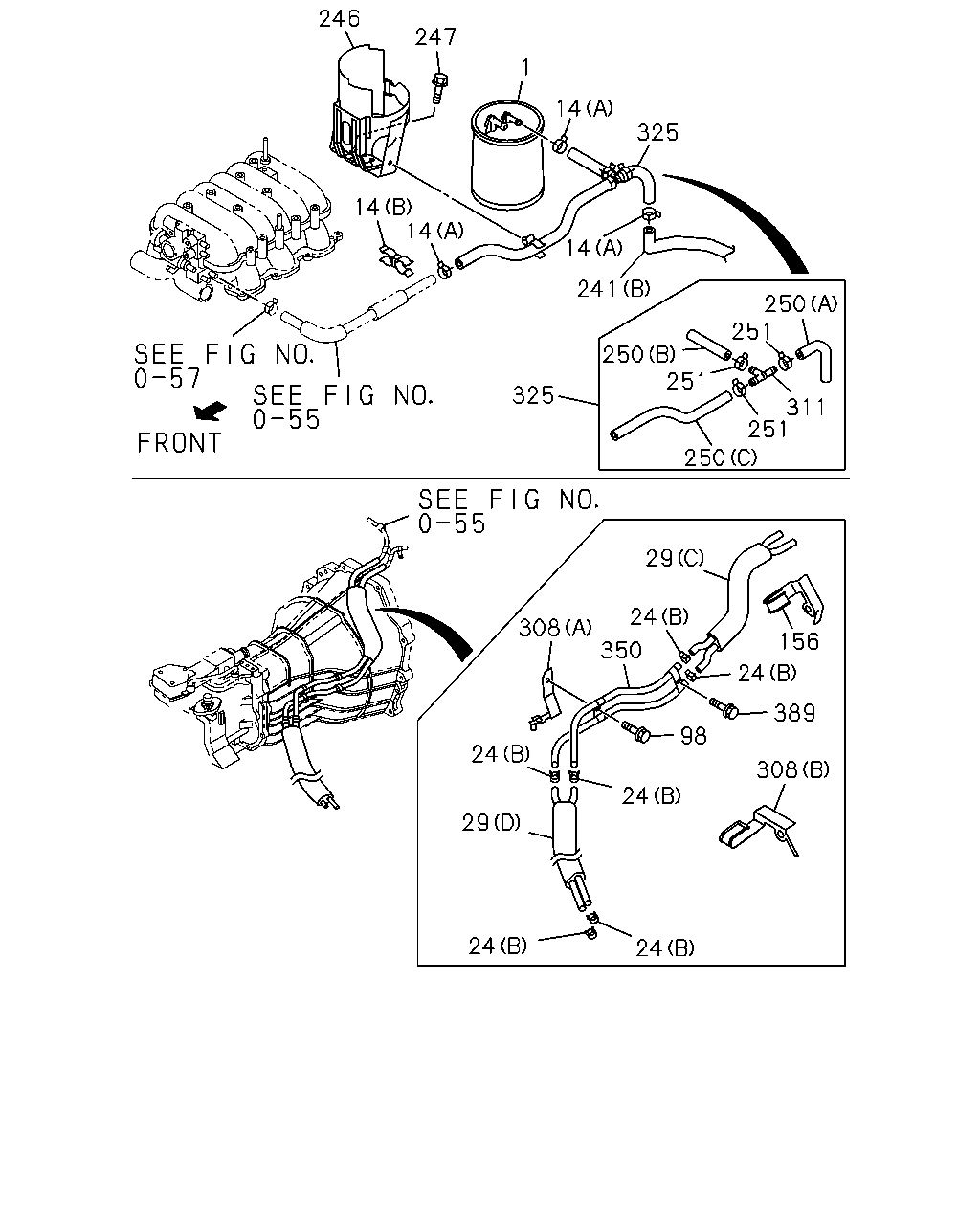

çizim 72188
246 247 1 14 325 14 14 14 241 250 251 250 251 325 311 251 250 29 24 308 350 156 24 389 98 24 308 24 29 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.130 CANISTER; FUEL
ELECTRIC FUEL INJECTION<6GG> 		8-17090-120-0 01 1 9611- ●
1 03.130 CANISTER; FUEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-17090-119-0 01 1 9611-9611 ●
1 03.130 CANISTER; FUEL
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9611-9611 ●
1 03.130 CANISTER; FUEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-17090-119-0 01 1 9612- ●
1 03.130 CANISTER; FUEL
CHILE EQUIPMENT(6KB) 		8-17087-023-0 01 1 9712- ●
14 03.162 CLIP; HOSE
CHILE EQUIPMENT(6KB) 03.163 (A) ID=11 		8-94238-570-0 01 1 9712- ●
14 03.162 CLIP; HOSE
CHILE EQUIPMENT(6KB) 03.163 (A) ID=11 		8-94238-570-0 02 1 9712- ●
14 03.162 CLIP; HOSE
CHILE EQUIPMENT(6KB) 01.219 (B) ID=12 		8-94238-610-0 01 1 9712- ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
SPACE CAB(TF**C*) ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
29 03.163 HOSE; FUEL
(C) 		8-97175-635-1 01 1 9712- ●
29 03.163 HOSE; FUEL
(D) 		8-97175-636-1 01 1 9712- ●
29 03.163 HOSE; FUEL
(A) 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=300 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=500 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
98 03.162 BOLT; BRKT,FUEL PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
156 03.162 BRACKET; FUEL HOSE 8-97179-620-0 01 1 9802- ●
241 03.163 PIPE; EVAP
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 		8-97132-329-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-327-1 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-326-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-1 01 1 9611-9612 ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) 		8-97132-326-2 01 1 9701- ● ●
241 03.163 PIPE; EVAP
4X4 SHORT(TFS**C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97132-326-2 01 1 9701- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9611-9612 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97132-328-1 01 1 9701-9803 ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ● ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) CHINA CHONGQING EQUIPMENT(R5B) 		8-97132-328-2 01 1 9804- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97175-670-0 01 1 9712- ●
246 03.130 BRACKET; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9611-9611 ●
246 03.130 BRACKET; CANISTER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 		8-97089-472-0 01 1 9612- ●
246 03.130 BRACKET; CANISTER
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 		8-97089-472-0 01 1 9612- ●
246 03.130 BRACKET; CANISTER
CHILE EQUIPMENT(6KB) 		8-97090-002-2 01 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
CHILE EQUIPMENT(6KB) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9712- ●
250 03.163 HOSE; RUBBER
CHILE EQUIPMENT(6KB) (A) L=60 		8-94389-595-0 01 1 9712- ●
250 03.163 HOSE; RUBBER
CHILE EQUIPMENT(6KB) 08.962 (B) L=140 SERVICED BY L=3000 		0-04750-300-0 01 1 9712- ●
250 03.163 HOSE; RUBBER
CHILE EQUIPMENT(6KB) 08.962 (C) L=240 SERVICED BY L=3000 		0-04750-300-0 01 1 9712- ●
251 03.162 CLIP; RUBBER HOSE
CHILE EQUIPMENT(6KB) 03.163 ID=10 		8-94381-273-0 03 1 9712- ●
308 03.162 BRACKET; FUEL PIPE
(A) 		8-97190-828-0 01 1 9712- ●
308 03.162 BRACKET; FUEL PIPE
(B) 		8-97179-620-0 01 1 9712-9801 ●
311 03.163 JOINT; HOSE
CHILE EQUIPMENT(6KB) 		8-97061-674-0 01 1 9712- ●
325 03.163 HOSE; EVAPO
CHILE EQUIPMENT(6KB) 		8-97177-029-0 01 1 9712- ●
350 03.163 PIPE; FUEL,DEL & RET 8-97190-827-1 01 1 9712- ●
389 03.162 BOLT; PIPE FIX T/M
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
