◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#47965) — 252 parça

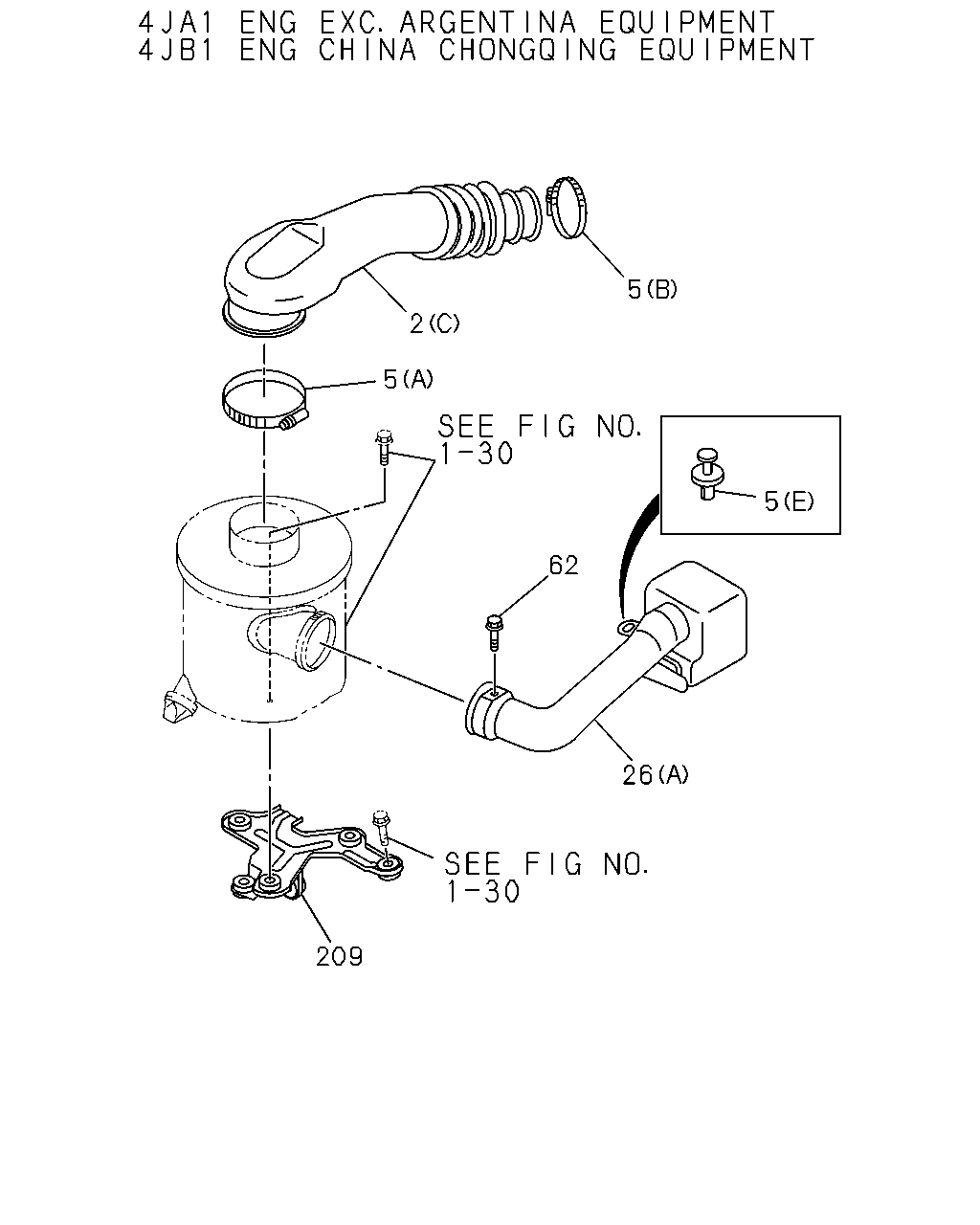

çizim 67918
5 2 5 5 62 26 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-187-2 01 1 9611- ● ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (A) 		8-97096-177-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (B) 		8-97096-178-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (E) 		8-97161-460-4 01 1 9712- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (A) 		8-97129-707-0 01 1 9611- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9611-9711 ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97131-727-0 01 1 9712- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 		8-94216-977-0 01 1 9611- ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9611-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 03 1 9611-9612 ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-842-0 01 1 9611- ● ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-94371-705-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97104-709-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9611- ● ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97128-956-1 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9712- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ● ●
62 03.417 BOLT; AIR INT DUCT
LONG(TF***F) TURBOCHARGER<K51> 01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9611-9711 ●
62 03.417 BOLT; AIR INT DUCT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9611- ● ● ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9611- ● ●

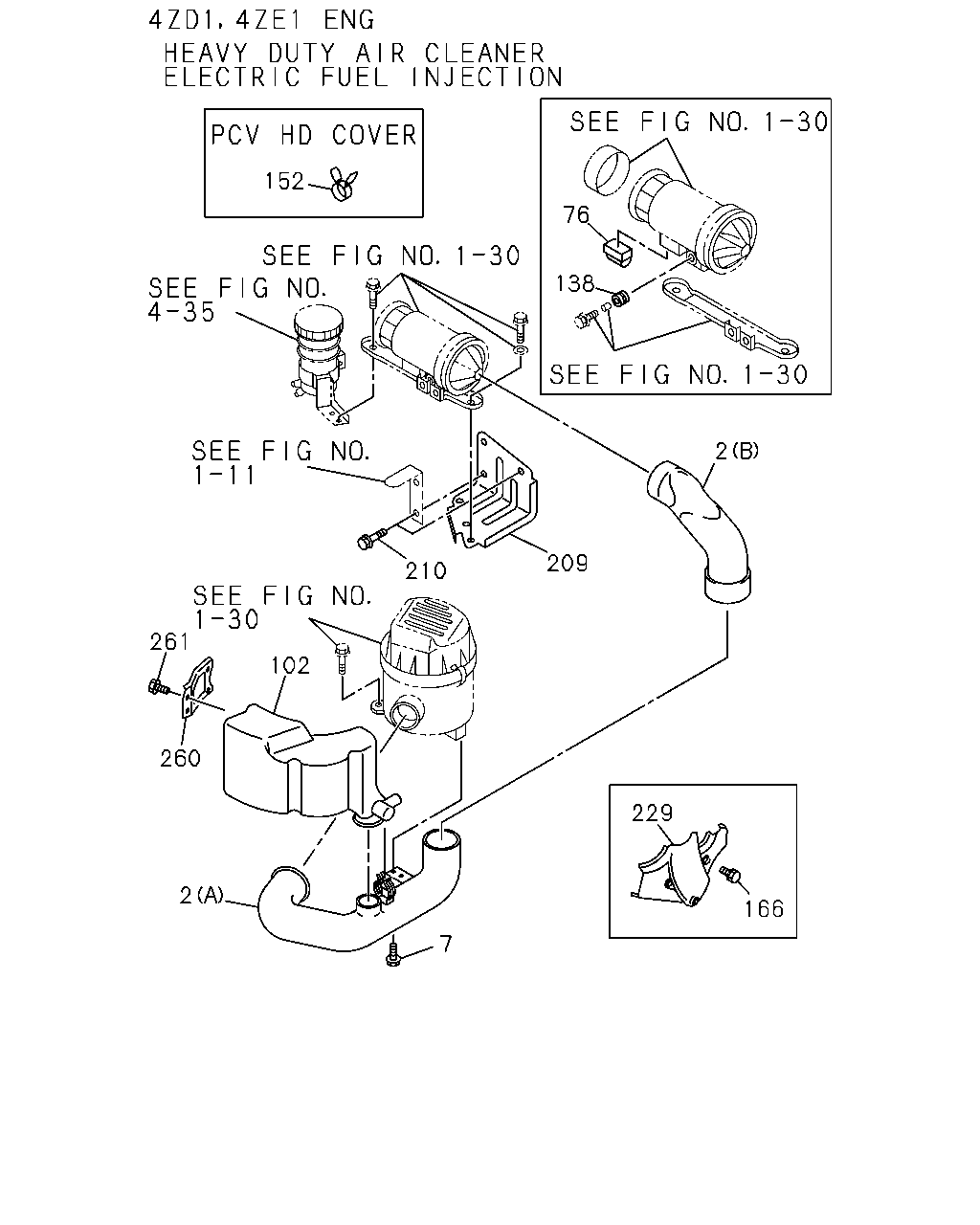

çizim 70145
152 76 138 2 209 210 261 102 260 229 2 166 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-187-2 01 1 9611- ● ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (A) 		8-97096-177-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (B) 		8-97096-178-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (E) 		8-97161-460-4 01 1 9712- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (A) 		8-97129-707-0 01 1 9611- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9611-9711 ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97131-727-0 01 1 9712- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9712- ●
7 03.417 BOLT; DUCT CLIP
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9611- ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-94326-671-0 01 1 9611- ● ●
102 03.402 RESONATOR; AIR INT
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97078-666-0 01 1 9611- ● ●
102 03.402 RESONATOR; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94321-396-2 01 1 9712- ●
138 03.403 GROMMET; PRE ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-94326-672-0 02 1 9611- ● ●
152 03.602 CLIP; HOSE,HD COVER
ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21 		8-94242-034-0 01 1 9611- ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHER 		8-94370-634-0 03 1 9611- ● ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9611- ● ● ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9611- ● ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 W/PL WASHER 		8-94408-386-1 03 1 9611- ● ● ●
229 03.417 PROTECTOR; HEAT
ELECTRIC FUEL INJECTION<6GG> 03.602 		8-94464-616-2 01 1 9611- ● ●
260 03.417 STAY; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97078-668-0 01 1 9611- ● ●
261 03.417 BOLT; DUCT STAY
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9611- ● ●

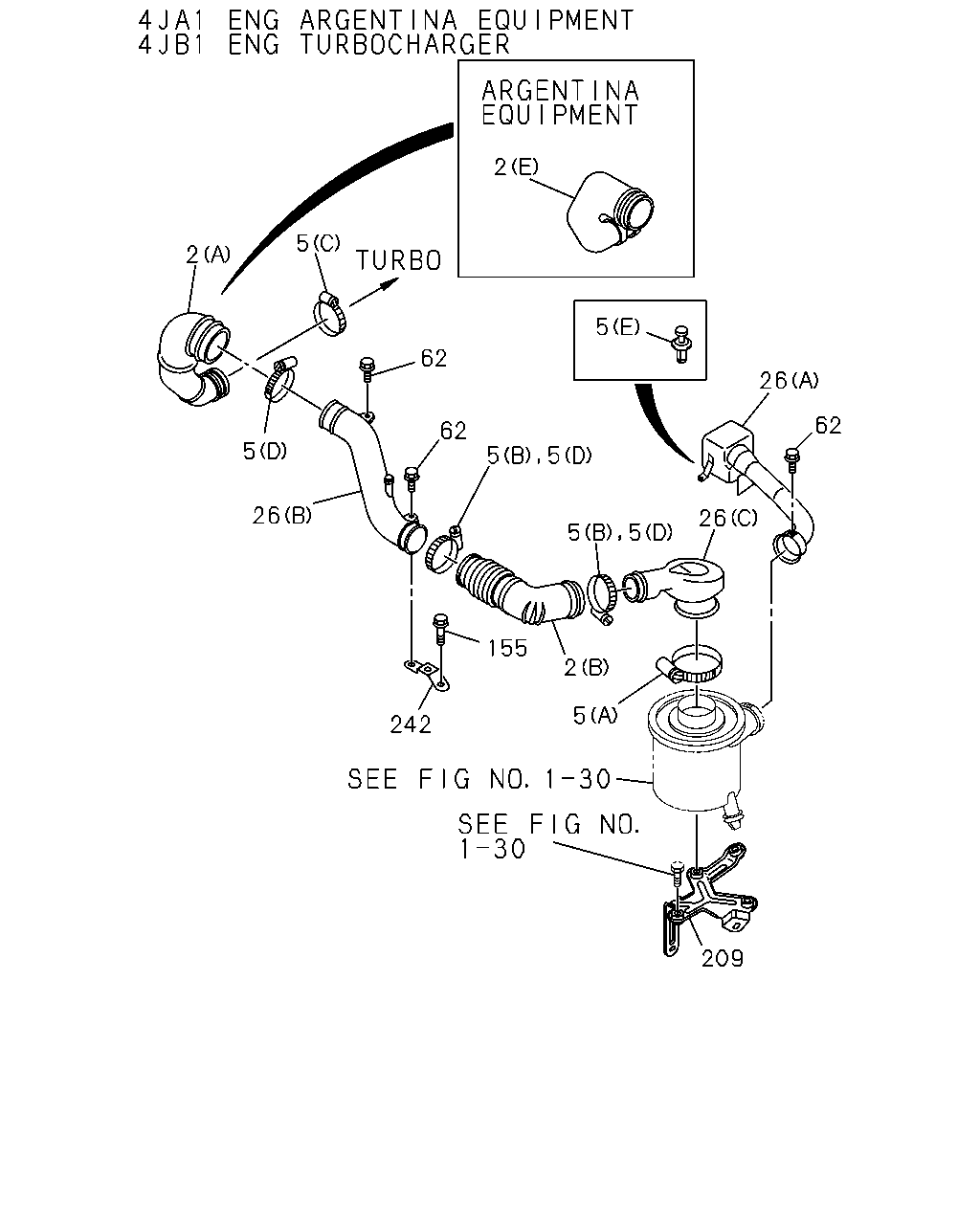

çizim 70346
2 5 2 5 62 26 62 62 5 5 5 26 26 5 5 155 2 5 242 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-187-2 01 1 9611- ● ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (A) 		8-97096-177-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (B) 		8-97096-178-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (E) 		8-97161-460-4 01 1 9712- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (A) 		8-97129-707-0 01 1 9611- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9611-9711 ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97131-727-0 01 1 9712- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 		8-94216-977-0 01 1 9611- ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9611-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 03 1 9611-9612 ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-842-0 01 1 9611- ● ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-94371-705-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97104-709-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9611- ● ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97128-956-1 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9712- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ● ●
62 03.417 BOLT; AIR INT DUCT
LONG(TF***F) TURBOCHARGER<K51> 01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9611-9711 ●
62 03.417 BOLT; AIR INT DUCT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
155 03.417 BOLT; BRKT
LONG(TF***F) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9611-9711 ●
155 03.417 BOLT; BRKT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9611- ● ● ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9611- ● ●
242 03.417 BRACKET; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9611-9711 ●
242 03.417 BRACKET; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 		8-94387-686-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9712- ●

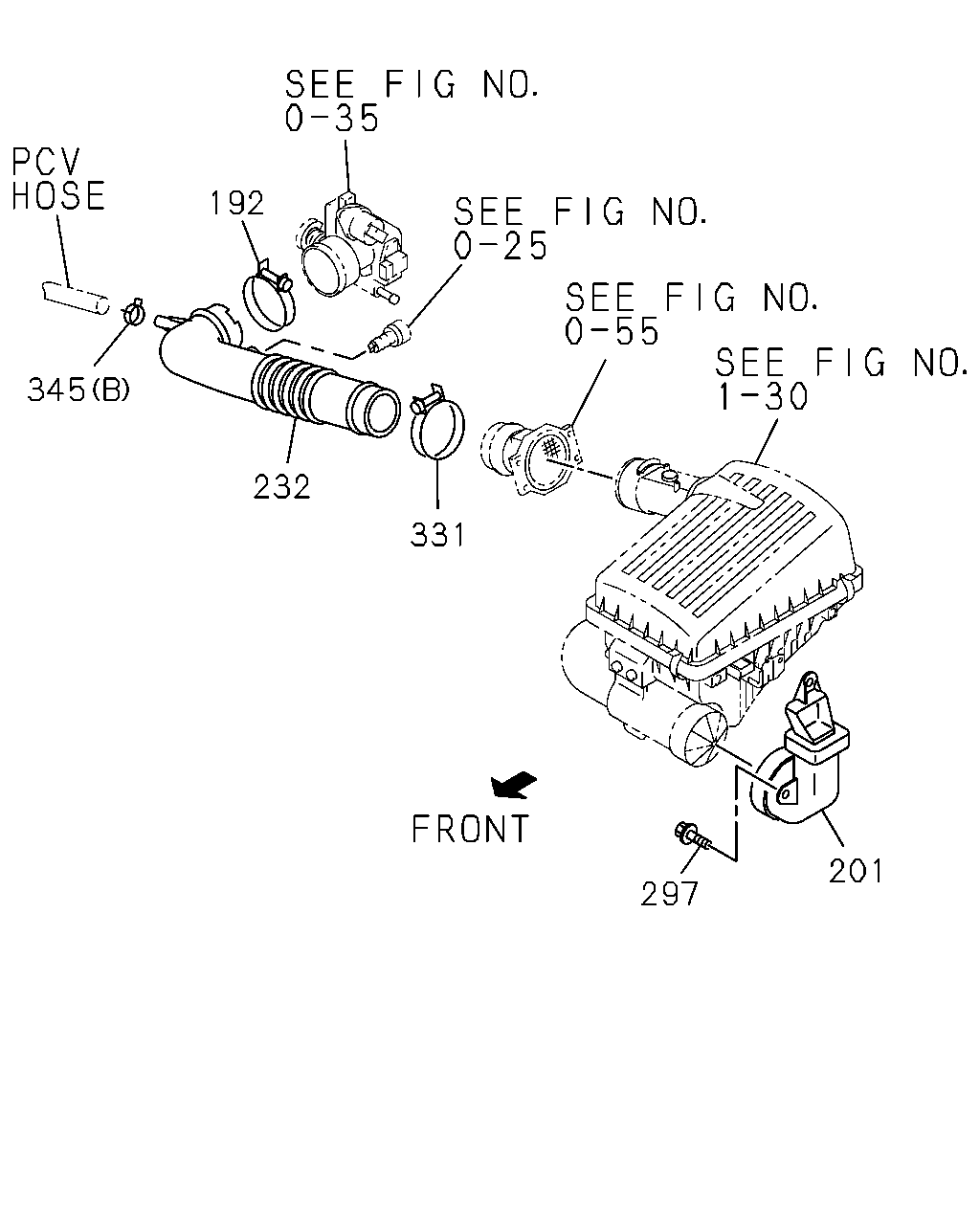

çizim 71104
192 345 232 331 201 297
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
192 03.407 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94455-047-2 01 1 9611-9711 ●
192 03.407 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94455-047-2 01 1 9712- ● ●
192 03.407 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9712- ●
201 03.407 DUCT; SUB ACL 8-97181-844-1 01 1 9712- ●
232 03.417 HOSE; CONN 8-97130-563-3 01 1 9712- ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9712- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9712- ●
345 03.417 CLIP; PCV HOSE
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
CATALYSIS CONTROL<6MZ> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9611-9711 ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●
345 03.417 CLIP; PCV HOSE
01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●

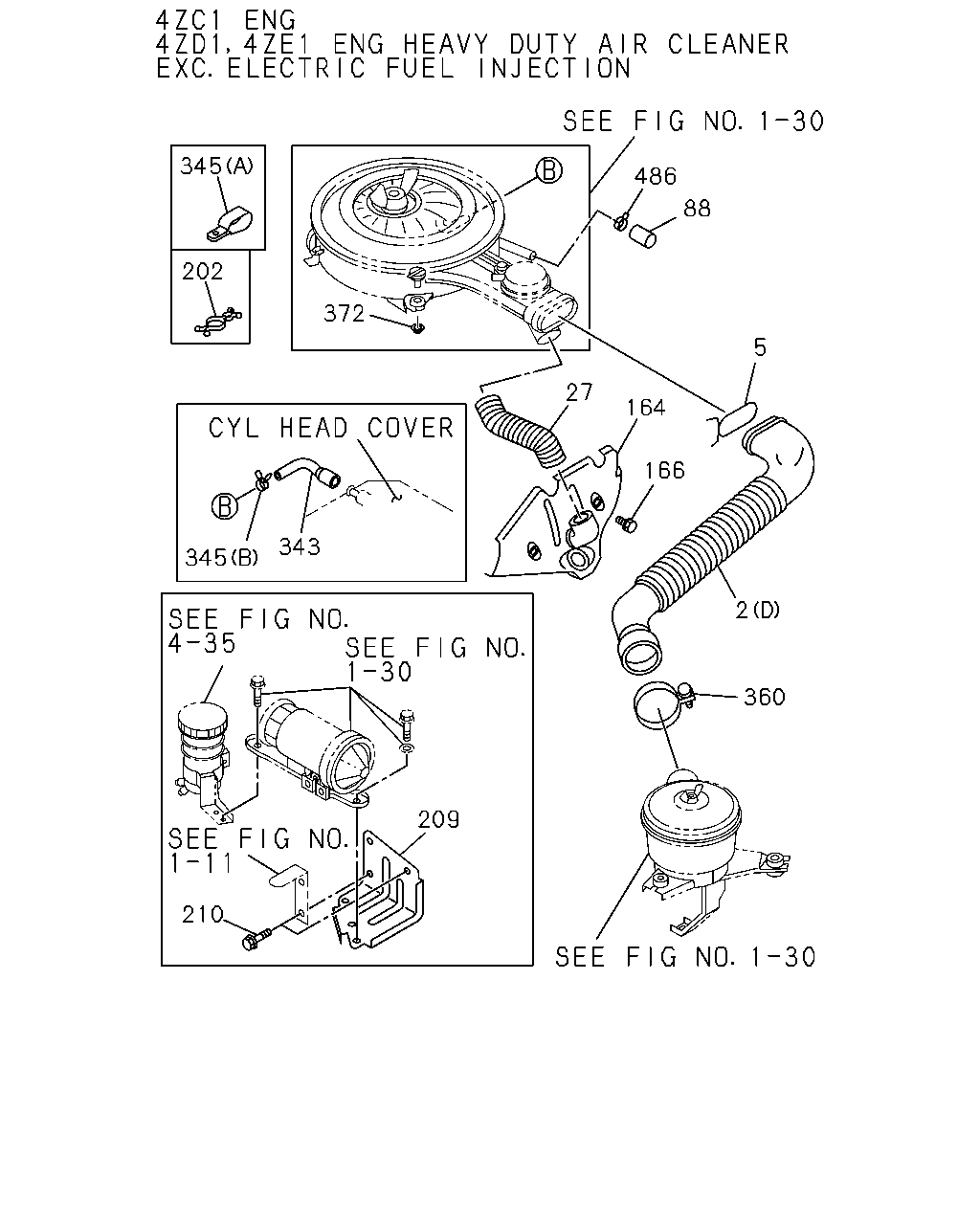

çizim 71147
345 486 88 202 372 5 27 164 166 343 345 2 360 209 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-187-2 01 1 9611- ● ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (A) 		8-97096-177-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> (B) 		8-97096-178-0 01 1 9611- ● ●
2 03.417 HOSE; ACL
03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9611-9711 ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
CHINA CHONGQING EQUIPMENT(R5B) 03.407 (C) 		8-94320-727-1 01 1 9712- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (E) 		8-97161-460-4 01 1 9712- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (A) 		8-97129-707-0 01 1 9611- ●
2 03.417 HOSE; ACL
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9611-9711 ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97131-727-0 01 1 9712- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 		8-94216-977-0 01 1 9611- ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9611-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 03 1 9611-9612 ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
27 03.417 HOSE; HOT AIR,ACL
EXC. ELECTRIC FUEL INJECTION<6GG> ID=41 L=215 		8-94324-193-1 01 1 9611- ● ● ●
88 03.407 CAP; RUBBER,AIR DUCT
COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4 		8-94217-809-0 01 1 9611- ●
88 03.407 CAP; RUBBER,AIR DUCT
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.672 ID=5.4 		8-94156-209-0 01 1 9701- ●
164 03.602 COVER; HEAT PROTECTOR
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97083-580-1 01 1 9611- ● ● ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHER 		8-94370-634-0 03 1 9611- ● ● ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUI PMENT(7LD) 09.276 ID=30 & 8 		8-94167-439-0 01 1 9611-9704 ● ● ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 09.276 ID=30 & 8 		8-94167-439-0 01 1 9705- ● ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9611- ● ● ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9611- ● ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 W/PL WASHER 		8-94408-386-1 03 1 9611- ● ● ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQU IPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94175-084-2 01 1 9611- ● ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94175-084-2 01 1 9611- ●
343 03.417 HOSE; ACL TO CYL HD COVER
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94342-562-0 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
CATALYSIS CONTROL<6MZ> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9611-9711 ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●
345 03.417 CLIP; PCV HOSE
01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 ID=58-79 		8-94126-771-0 01 1 9611- ● ● ●
372 03.415 NUT; THERMO SENSOR FIX
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94208-147-0 02 1 9611- ●
486 02.559 CLIP; CAP
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.163 ID=11 		8-94238-570-0 01 1 9701- ●

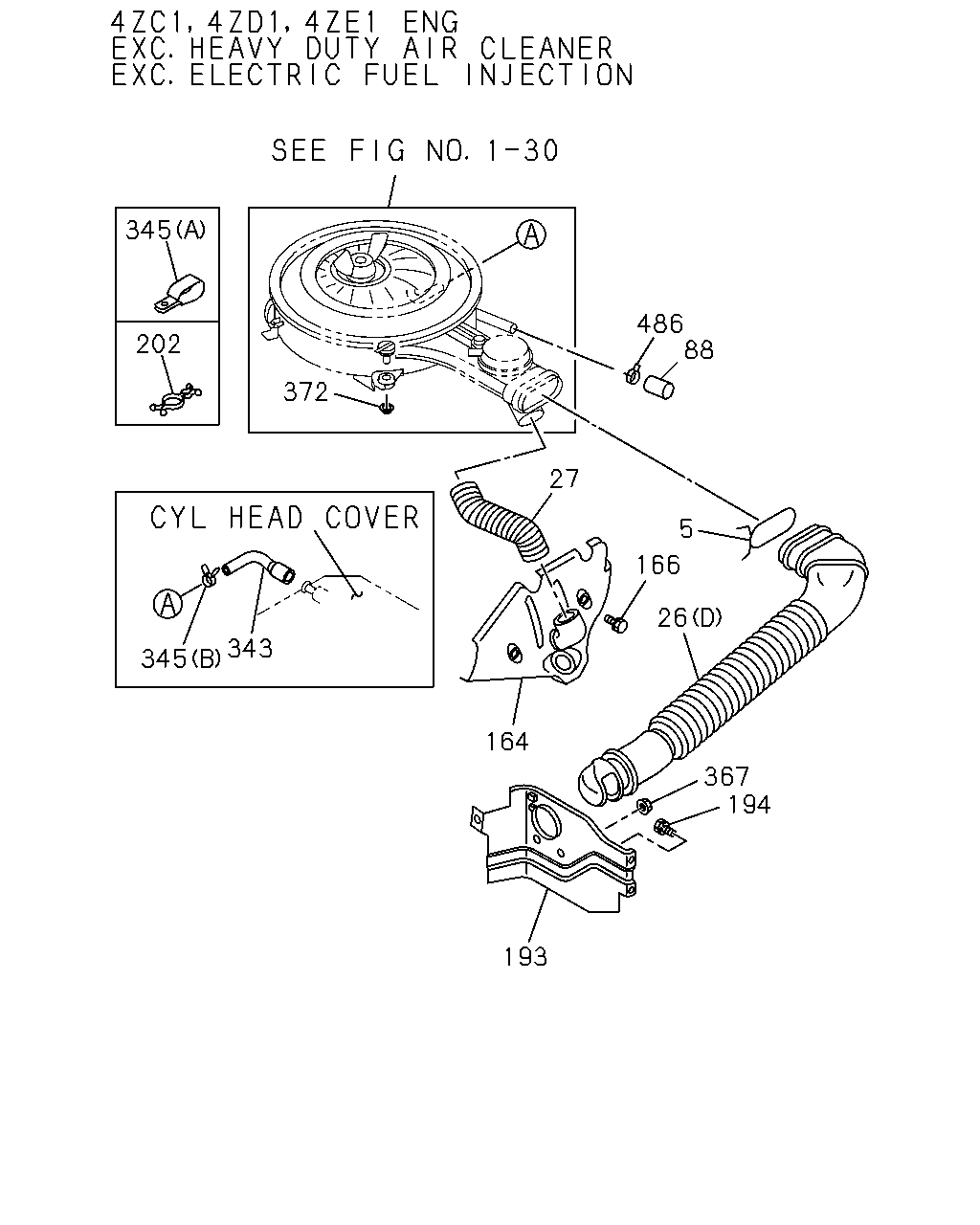

çizim 71263
345 486 88 202 372 27 5 166 26 343 345 164 367 194 193
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 		8-94216-977-0 01 1 9611- ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9611- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9611- ● ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9611-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 03 1 9611-9612 ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
LONG(TF***F) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9701-9711 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9712- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-842-0 01 1 9611- ● ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-94371-705-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97104-709-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9611- ● ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97128-956-1 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9712- ●
27 03.417 HOSE; HOT AIR,ACL
EXC. ELECTRIC FUEL INJECTION<6GG> ID=41 L=215 		8-94324-193-1 01 1 9611- ● ● ●
88 03.407 CAP; RUBBER,AIR DUCT
COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4 		8-94217-809-0 01 1 9611- ●
88 03.407 CAP; RUBBER,AIR DUCT
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.672 ID=5.4 		8-94156-209-0 01 1 9701- ●
164 03.602 COVER; HEAT PROTECTOR
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97083-580-1 01 1 9611- ● ● ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHER 		8-94370-634-0 03 1 9611- ● ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94435-046-3 01 1 9611- ● ● ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 W/PL WASHER 		8-94408-386-1 03 1 9611- ● ● ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUI PMENT(7LD) 09.276 ID=30 & 8 		8-94167-439-0 01 1 9611-9704 ● ● ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 09.276 ID=30 & 8 		8-94167-439-0 01 1 9705- ● ● ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQU IPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94175-084-2 01 1 9611- ● ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94175-084-2 01 1 9611- ●
343 03.417 HOSE; ACL TO CYL HD COVER
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94342-562-0 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
CATALYSIS CONTROL<6MZ> (A) ID=23 & 29 		8-94160-682-2 01 1 9611- ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9611-9711 ●
345 03.417 CLIP; PCV HOSE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●
345 03.417 CLIP; PCV HOSE
01.762 (B) ID=19 		8-94238-569-0 01 1 9712- ●
367 03.417 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
372 03.415 NUT; THERMO SENSOR FIX
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94208-147-0 02 1 9611- ●
486 02.559 CLIP; CAP
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.163 ID=11 		8-94238-570-0 01 1 9701- ●

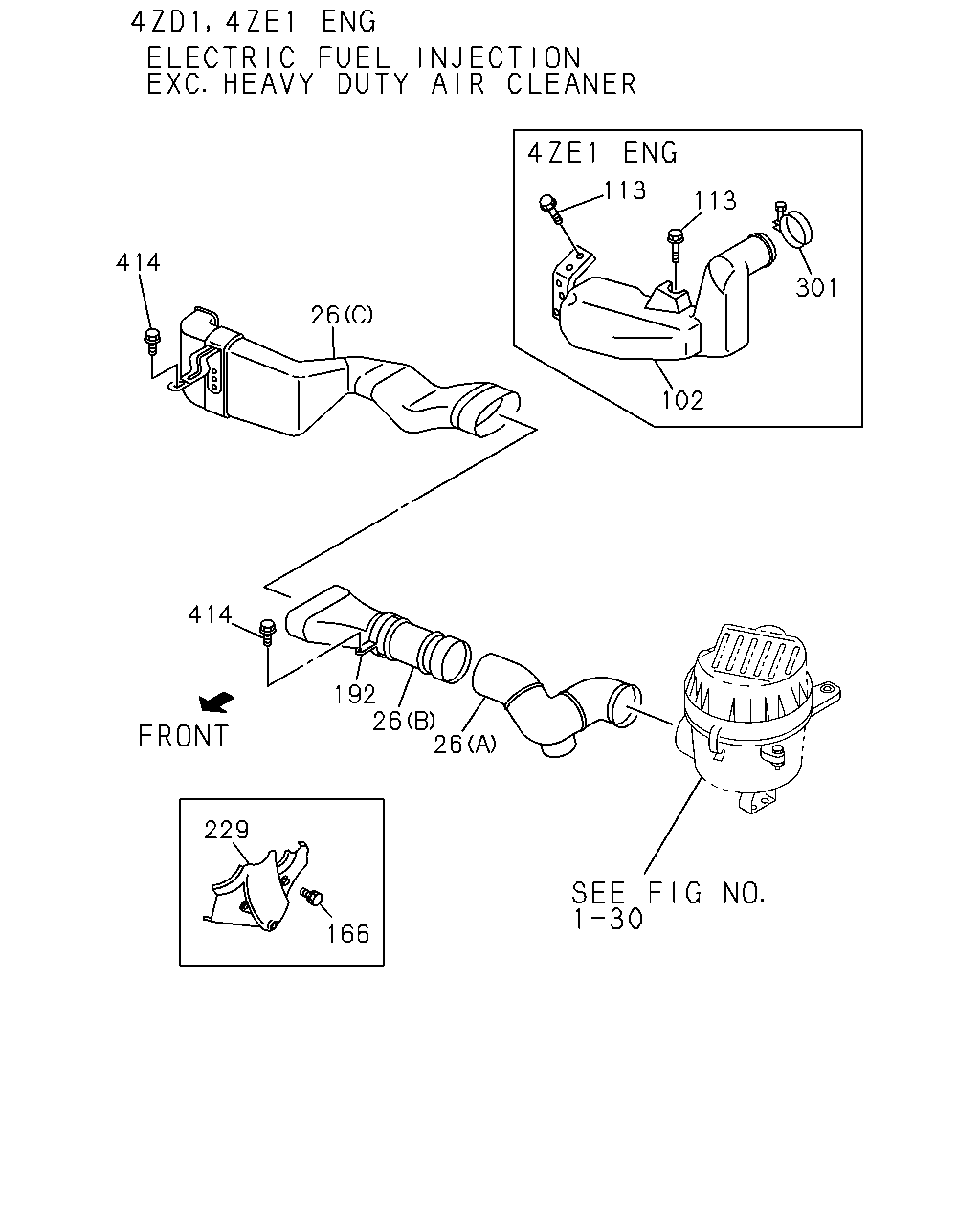

çizim 72231
113 113 414 301 26 102 414 192 26 26 229 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> (D) 		8-94321-842-0 01 1 9611- ● ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-94371-705-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-94451-139-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97104-709-0 01 1 9611- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9611- ● ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
LONG(TF***F) TURBOCHARGER<K51> (B) 		8-97128-956-1 01 1 9611-9711 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9712- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97078-666-0 01 1 9611- ● ●
102 03.402 RESONATOR; AIR INT
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94321-396-2 01 1 9712- ●
113 03.402 BOLT; RESONATOR
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712- ●
113 03.402 BOLT; RESONATOR
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46>, POWER STEERING<N40> 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9712- ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHER 		8-94370-634-0 03 1 9611- ● ● ●
192 03.407 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94455-047-2 01 1 9611-9711 ●
192 03.407 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94455-047-2 01 1 9712- ● ●
192 03.407 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9712- ●
229 03.417 PROTECTOR; HEAT
ELECTRIC FUEL INJECTION<6GG> 03.602 		8-94464-616-2 01 1 9611- ● ●
301 03.417 CLIP; HOSE,RESONATOR
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 01.166 ID=57 		1-09704-066-0 01 1 9611- ●
414 03.403 BOLT; CLIP
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9611-9711 ●
414 03.403 BOLT; CLIP
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
