1-01 — ACCELERATOR PEDAL AND CONTROL (#47961) — 94 parça

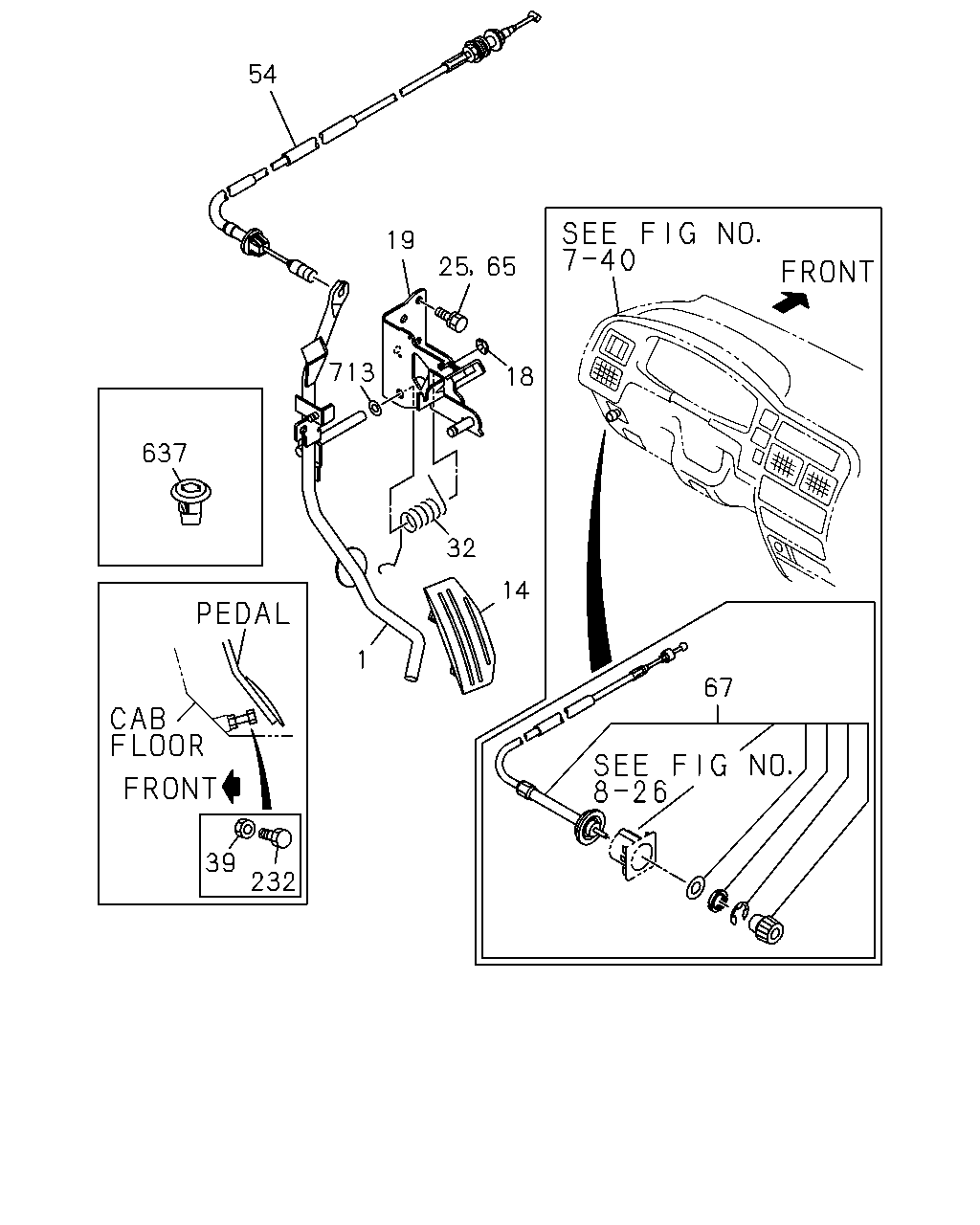

çizim 19118
54 19 25 65 713 18 637 32 14 1 67 39 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9611- ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9611- ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9611-9711 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712- ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9611-9711 ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9712-9801 ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9802- ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9611- ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97174-690-0 01 1 9712-9801 ●
25 03.452 BOLT; SHAFT SIDE
12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9611-9711 ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9611- ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9611-9711 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
54 03.430 CABLE; ENG CONT 8-94473-377-4 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9611- ●
54 03.430 CABLE; ENG CONT
ELECTRIC FUEL INJECTION<6GG> 		8-97106-983-2 01 1 9611- ●
54 03.430 CABLE; ENG CONT 8-97132-218-0 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
L=915 		8-97179-874-0 01 1 9712- ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ● ● ●
67 03.480 CABLE ASM; IDLE CONT 8-97112-106-2 01 1 9611- ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9611-9711 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9611-9711 ● ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9712- ● ● ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9712- ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9611- ● ● ● ● ●

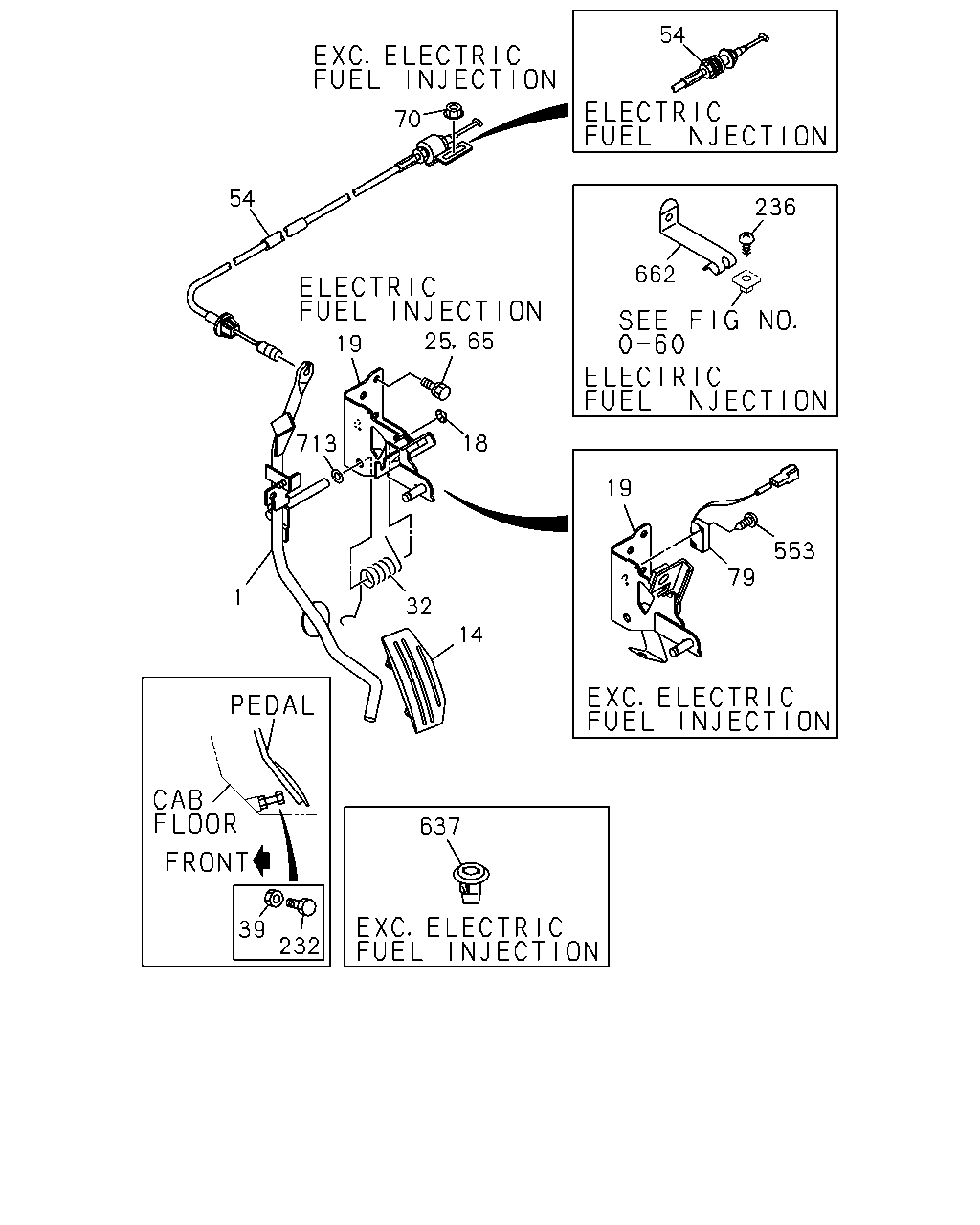

çizim 72373
54 54 236 662 25 65 18 713 19 553 32 637 39 232 70 19 1 14 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9611- ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9611- ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9611-9711 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712- ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9611-9711 ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9712-9801 ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9802- ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9611- ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97174-690-0 01 1 9712-9801 ●
25 03.452 BOLT; SHAFT SIDE
12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9611-9711 ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9611- ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9611-9711 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
54 03.430 CABLE; ENG CONT 8-94473-377-4 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9611- ●
54 03.430 CABLE; ENG CONT
ELECTRIC FUEL INJECTION<6GG> 		8-97106-983-2 01 1 9611- ●
54 03.430 CABLE; ENG CONT 8-97132-218-0 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
L=915 		8-97179-874-0 01 1 9712- ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ● ● ●
70 03.483 NUT; CONT CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9611- ● ●
79 03.451 SWITCH; ACCEL PEDAL 8-97069-328-1 01 1 9611- ●
79 03.451 SWITCH; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97069-328-1 01 1 9611- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9611-9711 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ● ● ●
236 03.452 SCREW; TAP,PEDAL TO BRKT
ELECTRIC FUEL INJECTION<6GG> 16.165 M6X16 TAPPING W/PL WASHER 		0-74300-616-0 01 1 9611- ●
553 03.451 SCREW; TAP,PEDAL TO SW
M3X16 TAPPING 		0-71280-316-0 02 1 9611- ●
553 03.451 SCREW; TAP,PEDAL TO SW
EXC. ELECTRIC FUEL INJECTION<6GG> M3X16 TAPPING 		0-71280-316-0 02 1 9611- ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9611-9711 ● ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9712- ● ● ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9712- ● ● ●
662 03.430 CLIP; ACCEL CONT CABLE
ELECTRIC FUEL INJECTION<6GG> ID=10.5 H=60 		8-94323-658-1 01 1 9611- ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97182-221-0 01 1 9712- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9611- ● ● ● ● ●

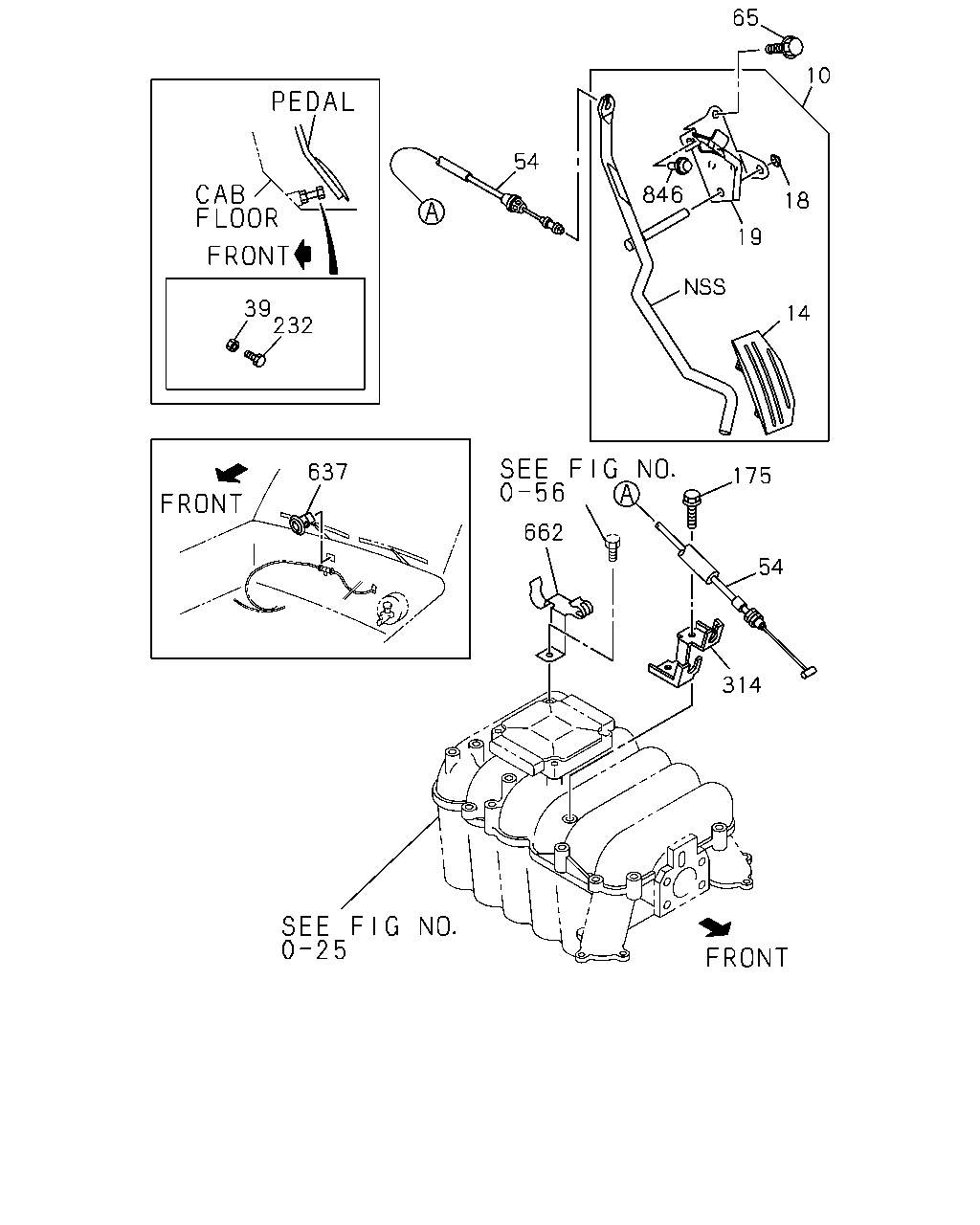

çizim 72411
65 54 846 18 19 39 232 637 175 662 54 314 10 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 03.451 PEDAL ASM; ACCEL 8-97181-388-0 01 1 9712- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9611-9711 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712- ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9611-9711 ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9712-9801 ● ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9802- ● ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9611- ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97117-119-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL
ELECTRIC FUEL INJECTION<6GG> 		8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9611- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97174-690-0 01 1 9712-9801 ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9611-9711 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
54 03.430 CABLE; ENG CONT 8-94473-377-4 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9611- ●
54 03.430 CABLE; ENG CONT
ELECTRIC FUEL INJECTION<6GG> 		8-97106-983-2 01 1 9611- ●
54 03.430 CABLE; ENG CONT 8-97132-218-0 01 1 9611- ● ●
54 03.430 CABLE; ENG CONT
L=915 		8-97179-874-0 01 1 9712- ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ● ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9611-9711 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9712- ● ● ● ● ● ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 9712- ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9611-9711 ● ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 16.346 		8-97801-635-1 01 1 9712- ● ● ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9712- ● ● ●
662 03.430 CLIP; ACCEL CONT CABLE
ELECTRIC FUEL INJECTION<6GG> ID=10.5 H=60 		8-94323-658-1 01 1 9611- ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97182-221-0 01 1 9712- ●
846 03.845 RUBBER; STOPPER 8-97174-688-0 01 1 9712-9801 ●
