◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45A - WATER SEDIMENTER; FUEL ▶
1-45A — WATER SEDIMENTER; FUEL (#4796) — 67 parça

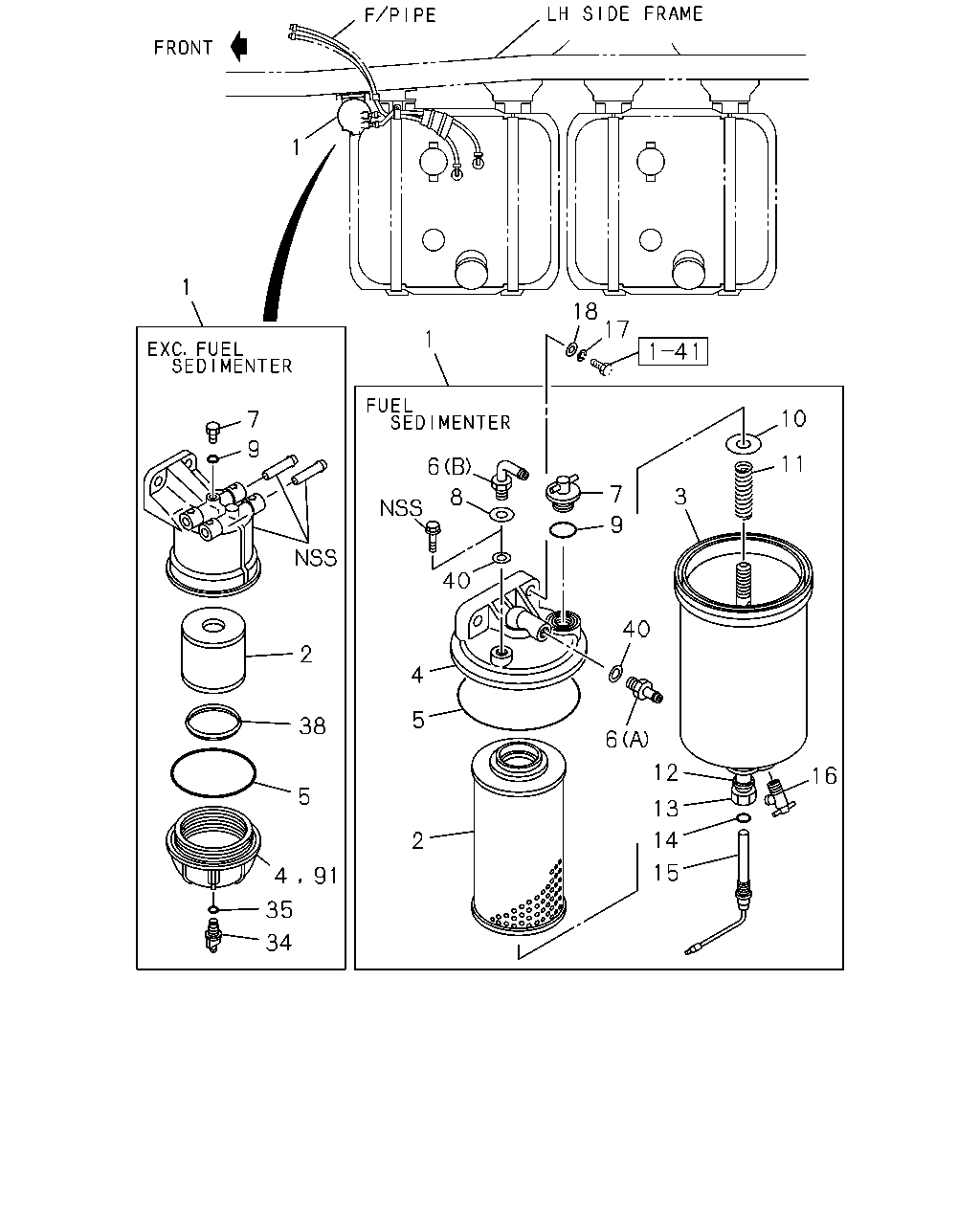

çizim 41988
1 1 18 17 1 10 7 9 11 6 7 3 8 9 40 40 2 4 5 38 6 12 16 5 13 14 2 15 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9601-9610 ●
1 SEDIMENTER; FUEL
FUEL SEDIMENTER<PS9> 		1-13200-468-1 01 1 0104- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9905-0006 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-0 01 1 0007-0103 ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-0 01 1 0104- ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER<PS9> 		1-13201-015-0 01 1 0104- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9611-9904 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9601-9610 ●
2 ELEMENT; FUEL FILTER
FUEL SEDIMENTER<PS9> 		1-13240-020-0 01 1 0104- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9905-0103 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0104- ● ● ●
2 ELEMENT; FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> 		1-13240-194-0 01 1 0104- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9611-9904 ● ●
3 BODY ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13211-116-0 01 1 0104- ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9601-9610 ●
4 COVER; UPR,SEDIMENTER ASM
FUEL SEDIMENTER<PS9> 		1-13212-055-0 01 1 0104- ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9611-9904 ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9601-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-9610 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9905-0103 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0104- ● ● ●
5 GASKET; UPR COVER,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13213-017-0 01 1 0104- ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9611-9904 ● ●
5 GASKET; UPR COVER,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-09630-072-0 01 1 0104- ●
6 CONNECTOR ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> (A) 		1-13229-003-0 01 1 0104- ●
6 CONNECTOR ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> (B) INLET 		1-13229-004-0 01 1 0104- ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9601-9610 ●
7 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13219-059-0 01 1 0104- ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9905-0103 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0104- ● ● ●
7 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> M8X10 		9-09862-068-0 01 1 0104- ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9611-9904 ● ●
8 STOPPER; CONN,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13229-001-0 01 1 0104- ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9601-9610 ●
9 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER<PS9> 		1-13219-060-0 01 1 0104- ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9905-0103 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0104- ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER<PS9> 		5-09623-024-1 01 1 0104- ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9611-9904 ● ●
10 SEAT; ELEMENT,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13249-020-0 01 1 0104- ●
11 SPRING; SET,SCREEN
FUEL SEDIMENTER<PS9> 		1-13249-019-0 01 1 0104- ●
12 GASKET; CENTER BOLT
FUEL SEDIMENTER<PS9> 		1-13219-057-0 01 1 0104- ●
13 BOLT; CENTER,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13231-058-0 01 1 0104- ●
14 GASKET; SENSOR TO CENTER BOLT
FUEL SEDIMENTER<PS9> 		9-09562-110-0 01 1 0104- ●
15 SENSOR ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13249-028-0 01 1 0104- ●
16 COCK ASM; DRAIN
FUEL SEDIMENTER<PS9> 		1-13219-058-0 01 1 0104- ●
17 WASHER; LK,FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> ID=14.2 		9-09150-514-0 02 1 0104- ●
18 WASHER; PL,FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> ID=15 		9-09160-514-0 02 1 0104- ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9601-9610 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9905-0103 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0104- ● ● ●
34 PLUG; DRAIN,FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> 		1-13219-314-0 01 1 0104- ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9611-9904 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9601-9610 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9905-0103 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0104- ● ● ●
35 GASKET; DRAIN PLUG
EXC. FUEL SEDIMENTER<PS9> 		8-94416-377-0 01 1 0104- ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9611-9904 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9601-9610 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9905-0103 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0104- ● ● ●
38 FLOAT; SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13219-313-0 01 1 0104- ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9611-9904 ● ●
40 GASKET; CONNECTOR TO COVER
FUEL SEDIMENTER<PS9> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0104- ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9905-0103 ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 0104- ● ● ●
91 COVER; LWR,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13212-176-2 01 1 0104- ●
