1 |

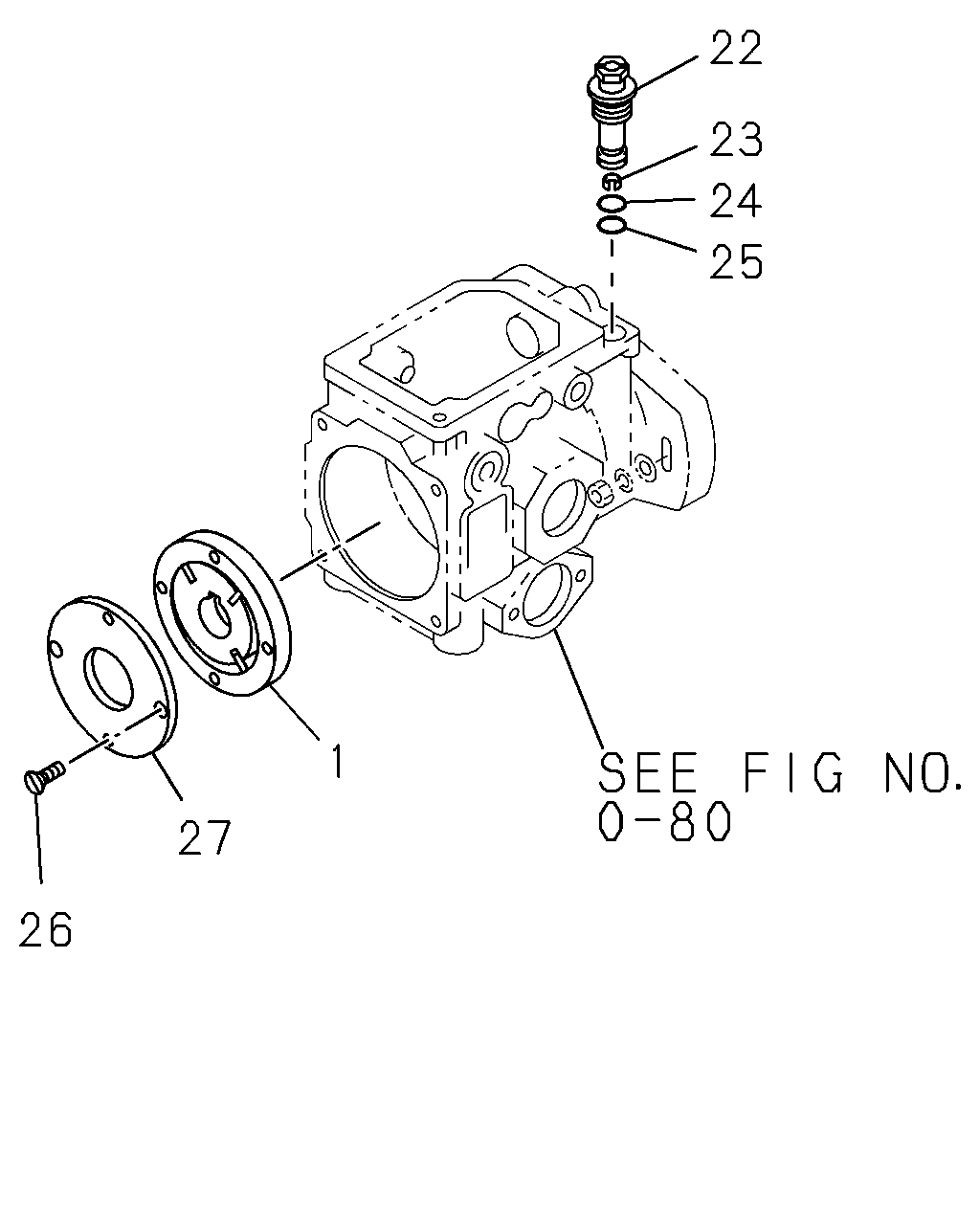

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-477-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 06
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679,
F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94174-819-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 07
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440
|
8-94454-253-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97132-678-2, 97132678,
E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680,
G = 8-97132-681-2, 97132681, H = 8-97133-438-1, 97133438,
I = 8-97133-439-1, 97133439, J = 8-97133-440-1, 97133440,
K = 8-97172-535-0, 97172535, L = 8-97172-536-0, 97172536,
M = 8-97182-352-0, 97182352, N = 8-97188-187-0, 97188187
|
8-94227-478-0 |
01 |
1 |
- |
