1 |

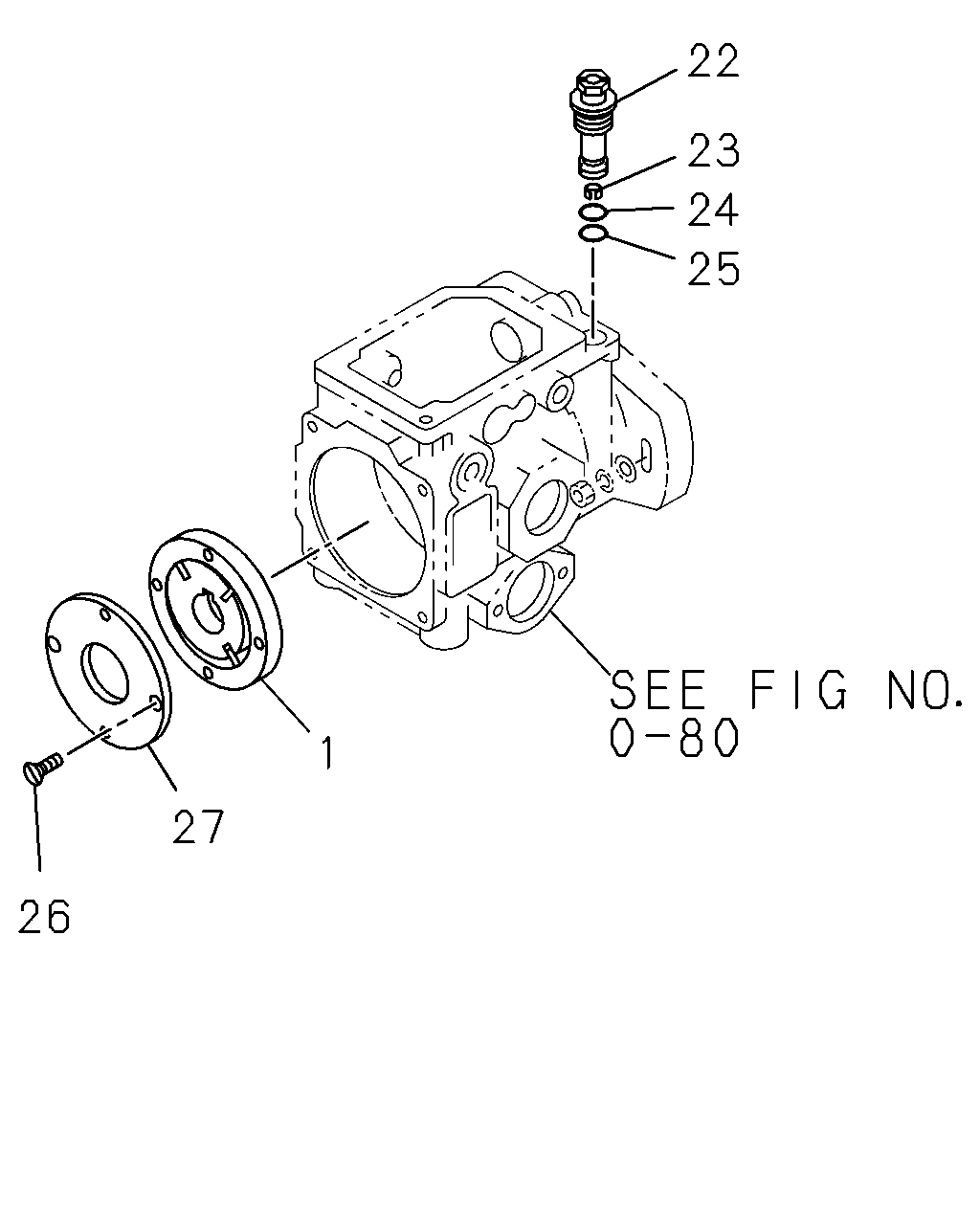

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-477-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 06
ASM PART: G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419
|
8-94174-819-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 07
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94454-253-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97147-965-0, 97147965, H = 8-97147-966-0, 97147966,
I = 8-97160-417-0, 97160417, J = 8-97160-419-0, 97160419,
K = 8-97182-351-0, 97182351, L = 8-97188-188-0, 97188188,
M = 8-97188-189-0, 97188189, N = 8-97188-190-0, 97188190,
O = 8-97188-191-0, 97188191, P = 8-97188-192-0, 97188192
|
8-94227-478-0 |
01 |
1 |
- |
