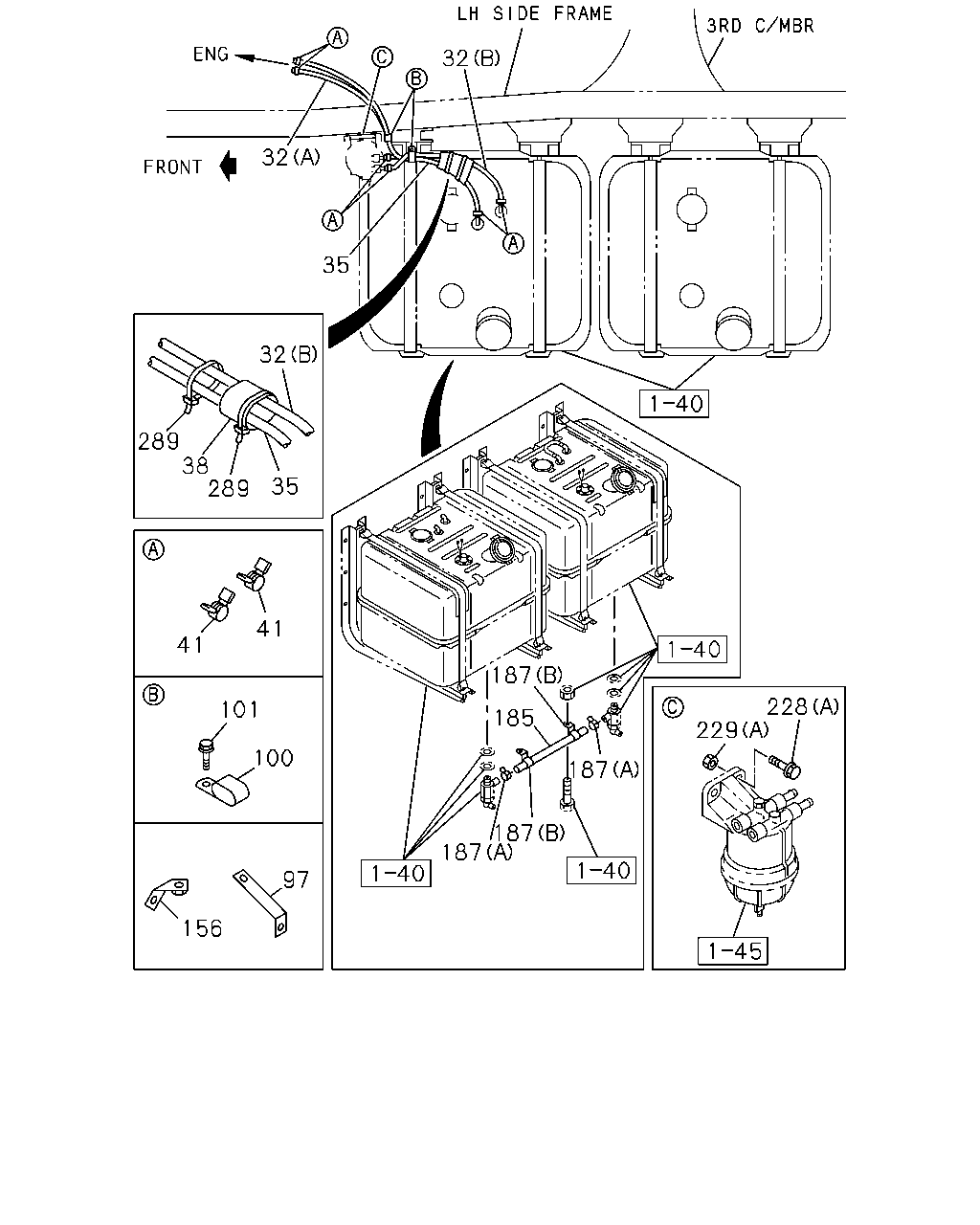

32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0104- |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9904 |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9904 |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A),(B)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9908-0103 |
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0104- |
● |
● |
| |
35 |
PIPE; FUEL TANK,RETURN
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9904 |
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
● |
● |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=1300
|
1-09360-677-1 |
01 |
1 |
9601-9610 |
● |
|
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=1300
|
1-09360-677-1 |
01 |
1 |
9905-9907 |
● |
● |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=1300
|
1-09360-677-1 |
01 |
1 |
9908- |
● |
● |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=1300
|
1-09360-677-1 |
01 |
1 |
9611-9904 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
ID=14
|
1-09704-102-0 |
06 |
1 |
9601-9610 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
ID=14
|
1-09704-102-0 |
06 |
1 |
9905- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
ID=14
|
1-09704-102-0 |
06 |
1 |
9611-9904 |
● |
|
| |
97 |
BRACKET; CLIP
ZF M/T<X9E>
|
1-47478-083-0 |
01 |
1 |
9905-9908 |
● |
● |
| |
100 |
CLIP; FUEL PIPE
ID=16X2 L=20
|
9-09535-536-0 |
02 |
1 |
9601-9608 |
● |
|
| |
100 |
CLIP; FUEL PIPE
ID=16X2 L=20
|
9-09535-536-0 |
02 |
1 |
9611-9904 |
● |
|
| |
100 |
CLIP; FUEL PIPE
ID=16X2 L=20
|
9-09535-536-0 |
03 |
1 |
9905-9907 |
● |
● |
| |
100 |
CLIP; FUEL PIPE
ID=16X2 L=20
|
9-09535-536-0 |
03 |
1 |
9611-9904 |
● |
|
| |
100 |
CLIP; FUEL PIPE
ID=16X2 L=20
|
9-09535-536-0 |
03 |
1 |
9908- |
● |
● |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
|
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9608 |
● |
|
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9611-9904 |
● |
|
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9905- |
● |
● |
| |
156 |
BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N)
|
1-47477-330-0 |
01 |
1 |
9601-9610 |
● |
|
| |
156 |
BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N)
|
1-47477-330-0 |
01 |
1 |
9611-9805 |
● |
|
| |
156 |
BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N)
L=80 H=20
|
1-82699-304-0 |
01 |
1 |
9806-9904 |
● |
|
| |
156 |
BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
|
1-47478-306-0 |
01 |
1 |
9905- |
● |
● |
| |
185 |
PIPE; FUEL TANK TO TANK
L=840
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
9601-9610 |
● |
|
| |
185 |
PIPE; FUEL TANK TO TANK
L=840
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
9905- |
● |
● |
| |
185 |
PIPE; FUEL TANK TO TANK
L=840
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
9611-9904 |
● |
|
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(A)
ID=17.1
|
8-94122-679-0 |
02 |
1 |
9601-9610 |
● |
|
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(B)
ID=19 H=25 L=25
|
9-09917-035-0 |
02 |
1 |
9601-9610 |
● |
|
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(A)
ID=17.1
|
8-94122-679-0 |
02 |
1 |
9905- |
● |
● |
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(A)
ID=17.1
|
8-94122-679-0 |
02 |
1 |
9611-9904 |
● |
|
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(B)
ID=19 H=25 L=25
|
9-09917-035-0 |
02 |
1 |
9905- |
● |
● |
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
(B)
ID=19 H=25 L=25
|
9-09917-035-0 |
02 |
1 |
9611-9904 |
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X30 FLANGE
|
0-28081-030-0 |
02 |
1 |
9601-9606 |
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
|
0-28681-035-0 |
02 |
1 |
9607-9610 |
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
9905-0103 |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0104- |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
9611-9904 |
● |
|
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10
|
9-09110-510-0 |
02 |
1 |
9601-9606 |
● |
|
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9607-9904 |
● |
|
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9908-0103 |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0104- |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
(A)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9611-9904 |
● |
|
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
02 |
1 |
9601-9610 |
● |
|
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
02 |
1 |
9905-0103 |
● |
● |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
02 |
1 |
0104- |
● |
● |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-0 |
02 |
1 |
9611-9904 |
● |
|
