Sayfa 0-70 - Isuzu EPC

0-70 — CARBURETOR (#47947) — 304 parça

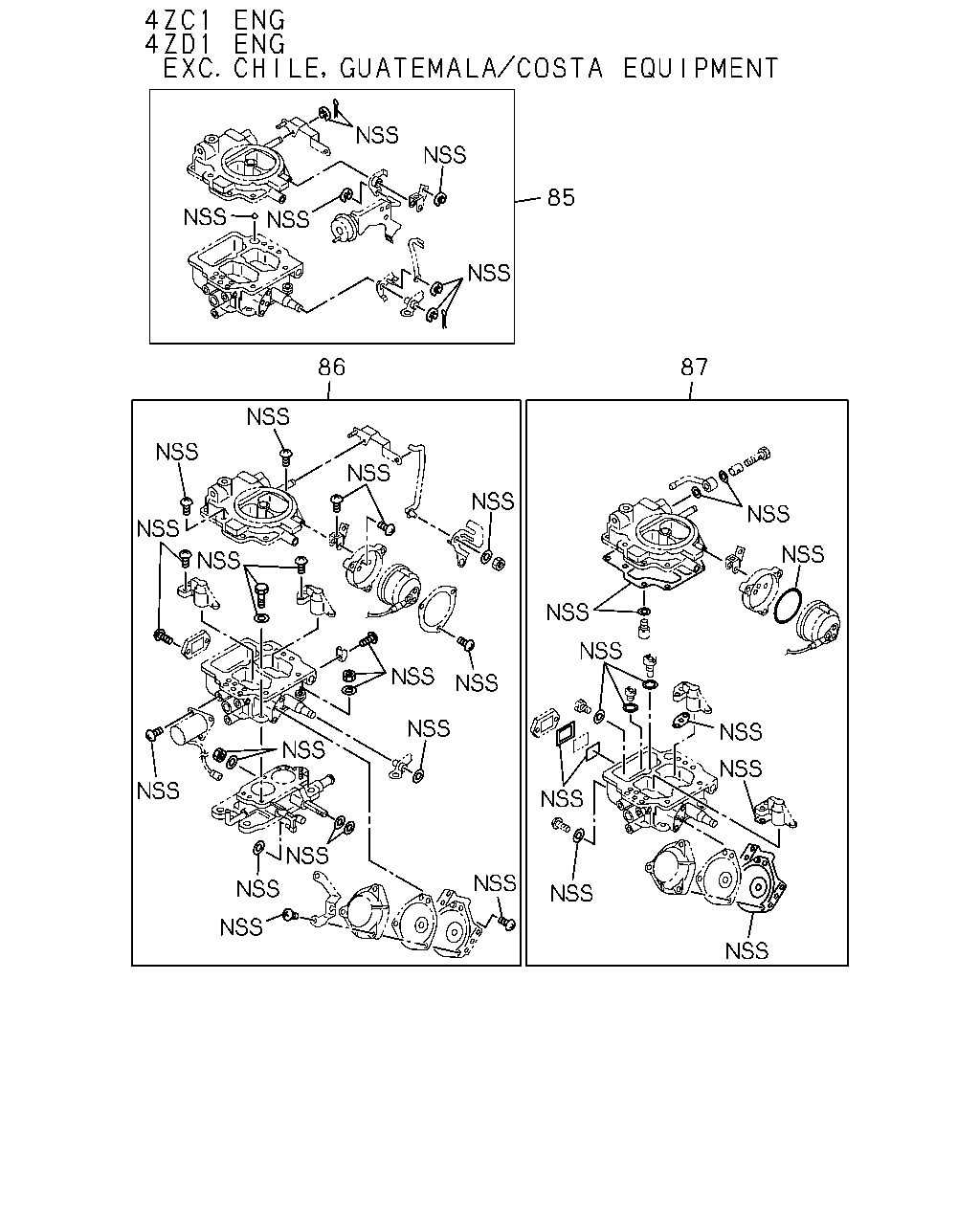

86 86 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
86	03.724 SCREW SET; CARB (A) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-636-0	01	1	-
86	03.724 SCREW SET; CARB 03.842 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-342-0	01	1	-
86	03.724 SCREW SET; CARB (B) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94447-230-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-343-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94447-229-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97103-517-0	01	1	-

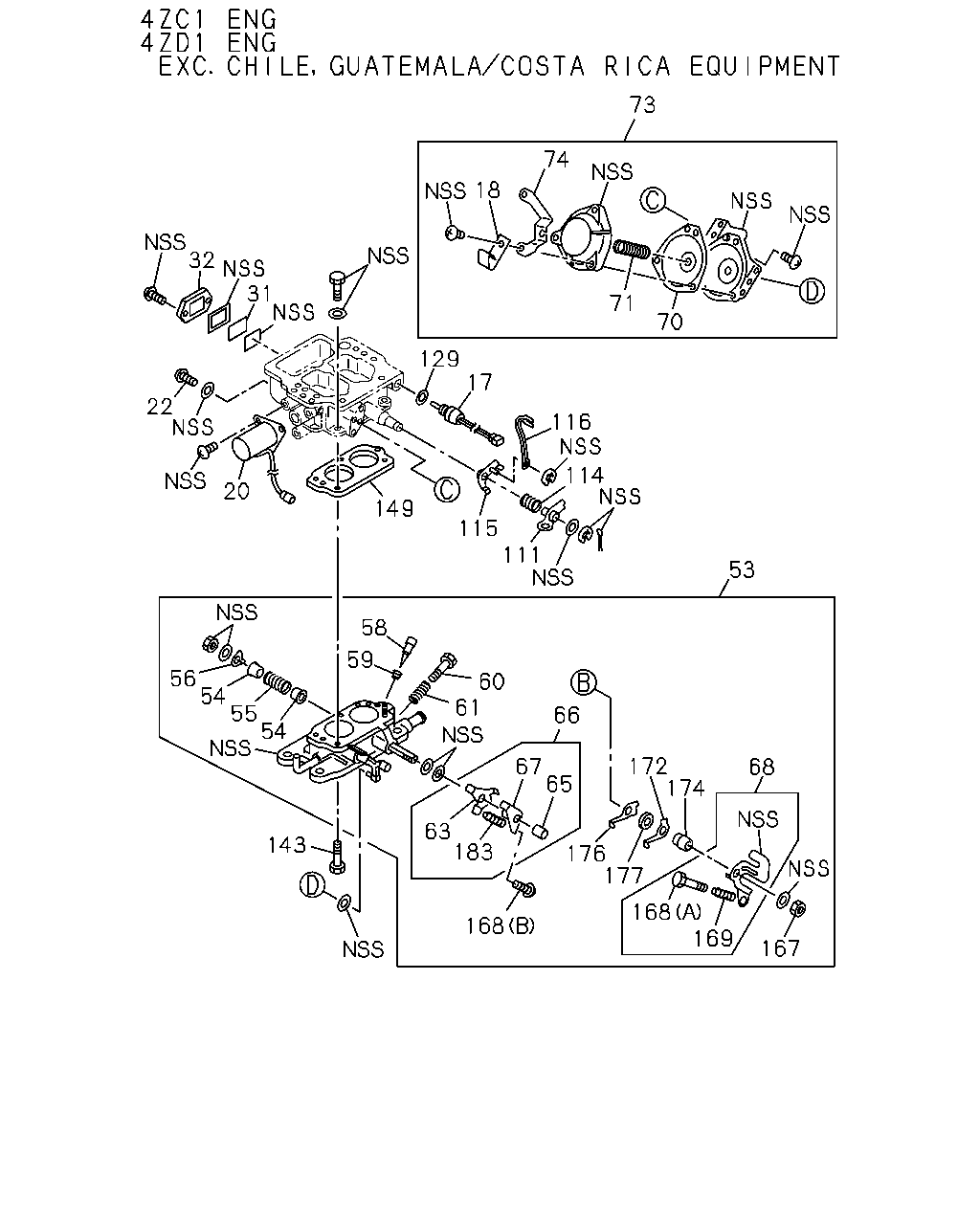

73 74 32 31 71 70 129 17 22 116 114 20 149 115 111 53 58 59 56 54 55 54 60 61 66 172 174 67 65 68 63 183 143 176 177 168 169 168 167 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94312-025-0	01	1	-
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282	8-94440-976-0	01	1	-
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97048-995-0	01	1	-
18	03.763 HOLDER; THROTTLE WIRE,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94463-560-0	01	1	-
18	03.763 HOLDER; THROTTLE WIRE,CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918	8-97105-119-0	01	1	-
20	03.792 ENRICHER COMPL; COASTING,CARB ASM PART: A = 8-94453-918-2, 94453918	8-94312-026-0	01	1	-
20	03.792 ENRICHER COMPL; COASTING,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97028-651-0	01	1	-
22	03.775 PLUG; MAIN PASSAGE,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94221-789-0	01	1	-
31	03.737 GLASS; FUEL LEVEL GAUGE,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-291-0	01	1	-
32	03.737 COVER; FUEL LEVEL GLASS,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-682-1	01	1	-
32	03.737 COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-292-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94178-629-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: C = 8-97069-282-1, 97069282	8-94467-477-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: A = 8-94453-918-2, 94453918	8-97105-036-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97129-715-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: D = 8-97101-000-1, 97101000	8-97161-005-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: E = 8-97149-829-0, 97149829	8-97161-014-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: F = 8-97149-830-0, 97149830	8-97161-016-0	01	1	-
54	03.763 BUSHING; THROTTLE,SHAFT CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-308-0	02	1	-
55	03.763 SPRING; THROTTLE,RETURN,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-307-0	01	1	-
56	03.762 ARM; THROTTLE RETURN SPR,CARB 03.763 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94248-611-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-97102-586-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829	8-97102-587-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, F = 8-97149-830-0, 97149830	8-97102-588-0	01	1	-
59	03.823 SPRING; IDLE ADJ,SCREW,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-481-0	01	1	-
59	03.823 SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	9-81155-174-0	01	1	-
60	03.761 SCREW; THROTTLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-631-0	01	1	-
60	03.761 SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-183-0	01	1	-
61	03.761 SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-632-0	01	1	-
61	03.761 SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94206-012-0	01	1	-
63	03.762 ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94140-381-0	01	1	-
63	03.762 ARM; THROTTLE SHAFT,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-679-0	01	1	-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.761 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-311-0	01	1	-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.747 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94248-439-0	02	1	-
66	03.762 LEVER ASM; THROTTLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-380-0	01	1	-
66	03.762 LEVER ASM; THROTTLE,CARB 03.766 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-089-0	01	1	-
67	03.766 ARM ASM; FAST IDLE CAM ADJ,CARB 03.767 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94248-612-0	01	1	-
67	03.766 ARM ASM; FAST IDLE CAM ADJ,CARB 03.763 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94252-516-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-357-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: A = 8-94453-918-2, 94453918	8-94402-087-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97161-007-0	01	1	-
70	03.758 DIAPHRAGM ASM; CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-294-0	01	1	-
70	03.758 DIAPHRAGM ASM; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94402-185-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94118-661-0	01	1	-
71	03.758 SPRING; DIAPH,CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-181-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94402-186-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94467-479-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: B = 8-94455-754-2, 94455754	8-94447-228-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94458-340-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94467-478-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: D = 8-97101-000-1, 97101000	8-97167-472-0	01	1	-
74	03.755 CLAMP; SOLENOID HARNESS,CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-182-0	01	1	-
111	03.766 CAM; FAST IDLE,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94248-609-0	01	1	-
114	03.766 SPRING; FAST IDLE CAM,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-297-0	01	1	-
115	03.767 ARM; START,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-298-0	01	1	-
116	03.766 ROD; CONN,CARB 03.768 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-335-0	01	1	-
129	03.724 GASKET; SOLENOID VLV ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94178-132-0	03	1	-
143	03.724 SCREW; FLANGE,CARB 03.790 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-100-0	01	1	-
149	03.726 INSULATOR ASM; CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94140-385-0	01	1	-
167	03.762 NUT; THROTTLE SHAFT,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	9-81155-605-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB (A) ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94133-200-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-720-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB (B) ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-184-0	01	1	-
169	03.763 SPRING; FAST IDLE ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97160-078-0	01	1	-
172	03.762 ARM ASM; PRIMARY TO SECONDARY,CA 03.767 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94248-613-0	01	1	-
174	03.762 COLLAR; THROTTLE SHAFT "B",CARB 03.842 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-316-0	01	1	-
176	03.762 ARM; PUMP CONNECTOR,CARB 03.842 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-315-0	01	1	-
177	03.762 COLLAR; ROLLING,CARB 03.767 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-314-0	01	1	-
177	03.762 COLLAR; ROLLING,CARB 03.768 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94252-515-0	01	1	-
183	03.761 SPRING; SELECT SCREW,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94206-012-0	01	1	-

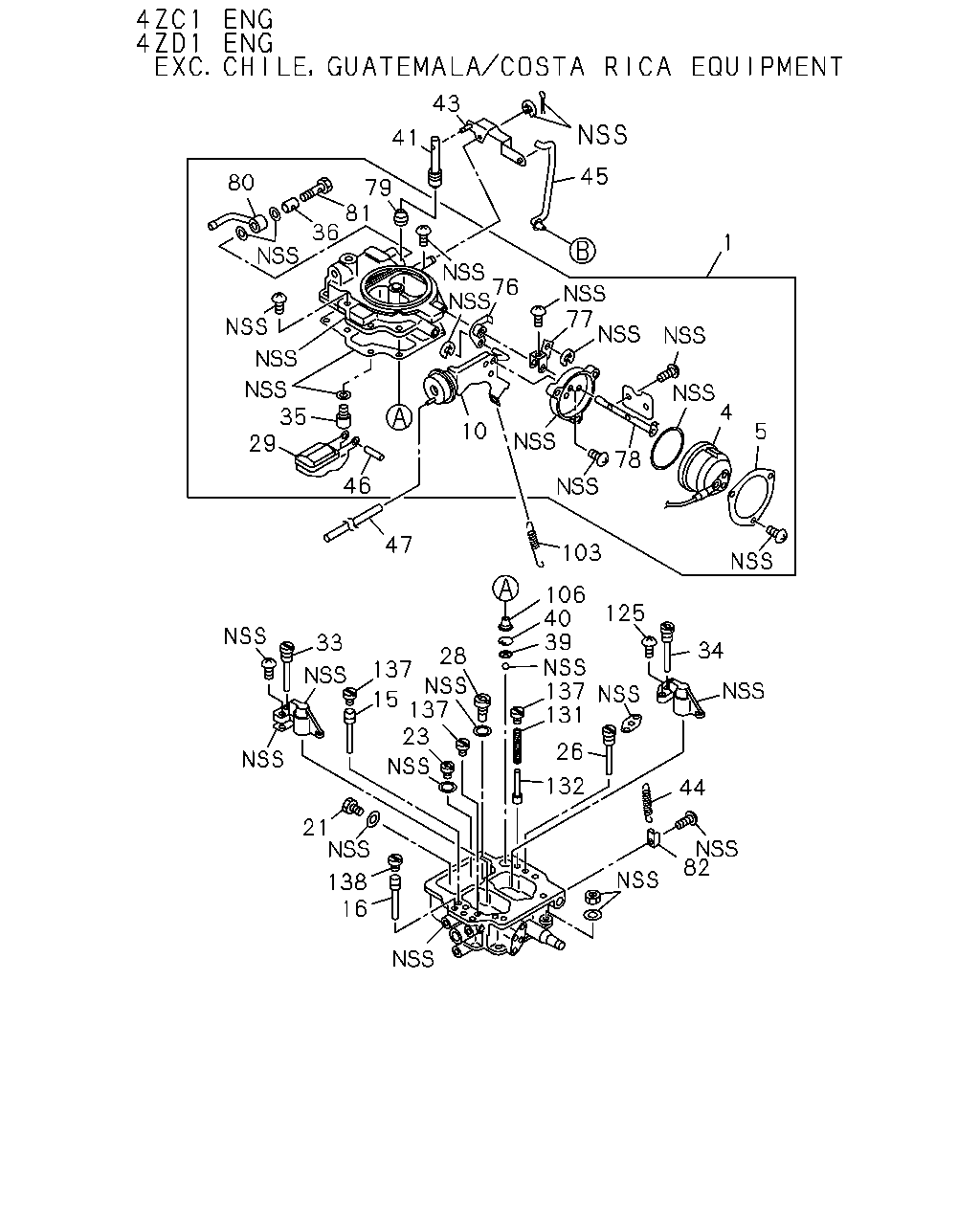

43 41 45 80 79 81 36 1 76 77 35 29 4 10 5 78 46 47 103 106 40 39 137 131 125 33 34 28 137 15 137 23 26 132 44 21 138 16 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.730 AIR HORN COMPL; CARB ASM PART: E = 8-97149-829-0, 97149829	8-94312-027-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: A = 8-94453-918-2, 94453918	8-94312-028-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: B = 8-94455-754-2, 94455754	8-97102-556-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: C = 8-97069-282-1, 97069282	8-97102-558-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: F = 8-97149-830-0, 97149830	8-97105-115-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: D = 8-97101-000-1, 97101000	8-97167-474-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: G = 8-97171-296-0, 97171296	8-97178-353-0	01	1	-
4	03.750 HOUSING COMPL; COIL,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829	8-94312-030-0	01	1	-
4	03.750 HOUSING COMPL; COIL,CARB ASM PART: F = 8-97149-830-0, 97149830	8-97105-116-0	01	1	-
5	03.750 PLATE; BIMETAL CASE SET,CARB 03.747 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-326-0	01	1	-
10	03.750 PISTON; CHOKE,CARB 03.752 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-094-0	01	1	-
15	03.798 JET ASM; STEP,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94313-266-0	01	1	-
15	03.798 JET ASM; STEP,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94313-286-0	01	1	-
16	03.792 JET; COASTING,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918	8-94240-303-0	01	1	-
16	03.792 JET; COASTING,CARB ASM PART: G = 8-97171-296-0, 97171296	8-94467-482-0	01	1	-
16	03.792 JET; COASTING,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97161-004-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94210-958-1	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94213-507-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94215-747-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: C = 8-97069-282-1, 97069282	8-97075-563-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97131-503-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94215-387-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94215-709-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94218-098-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: G = 8-97171-296-0, 97171296	8-94467-480-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: C = 8-97069-282-1, 97069282	8-97075-562-0	01	1	-
26	03.798 JET ASM; SLOW,CARB 03.792 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94152-716-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (A) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94237-506-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (B) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-386-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (A) ASM PART: C = 8-97069-282-1, 97069282	8-97075-566-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (B) ASM PART: C = 8-97069-282-1, 97069282	8-97075-567-0	01	1	-
28	03.758 JET ASM; POWER,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94213-509-0	01	1	-
28	03.758 JET ASM; POWER,CARB 03.792 ASM PART: D = 8-97101-000-1, 97101000	8-94218-099-0	01	1	-
29	03.745 FLOAT; CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-329-0	01	1	-
29	03.745 FLOAT; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-362-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-282-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB 03.790 ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-385-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB 03.790 ASM PART: C = 8-97069-282-1, 97069282	8-97075-565-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97102-589-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-655-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-282-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB 03.790 ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-384-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB 03.798 ASM PART: C = 8-97069-282-1, 97069282	8-97075-564-0	01	1	-
35	03.814 SEAT COMPL; FLOAT VLV,CARB 03.745 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-327-0	01	1	-
36	03.740 STRAINER ASM; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-492-0	01	1	-
36	03.740 STRAINER ASM; CARB 03.750 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-331-0	01	1	-
39	03.841 STRAINER; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	9-81111-614-0	01	1	-
40	03.838 CLIP; PUMP STRAINER,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	9-81135-061-0	01	1	-
41	03.858 PLUNGER; ACCEL CMPR,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-727-0	01	1	-
43	03.842 ARM; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-340-0	01	1	-
43	03.842 ARM; PUMP,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-214-0	01	1	-
44	03.763 SPRING; SUB RETURN,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-301-0	01	1	-
44	03.763 SPRING; SUB RETURN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94426-149-1	01	1	-
44	03.763 SPRING; SUB RETURN,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-216-0	01	1	-
45	03.838 ROD; PUMP CONNECTOR,CARB 03.843 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-728-0	01	1	-
45	03.838 ROD; PUMP CONNECTOR,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-215-0	01	1	-
46	03.747 PIN; FLOAT,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-328-0	01	1	-
47	03.765 HOSE; RUBBER,CARB 03.726 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-101-0	01	1	-
76	03.752 LEVER; CHOKE BREAKER ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94140-383-0	01	1	-
77	03.752 ARM ASM; CHOKE BREAKER ADJ,CARB 03.755 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-321-0	01	1	-
78	03.752 ARM; CHOKE SHAFT,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-093-0	01	1	-
79	03.838 BELLOWS; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-323-0	01	1	-
80	03.755 CONNECTOR; FUEL RETURN,CARB 03.750 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829	8-94402-097-0	01	1	-
80	03.755 CONNECTOR; FUEL RETURN,CARB ASM PART: F = 8-97149-830-0, 97149830	8-94402-098-0	01	1	-
81	03.740 BOLT; UNION,FUEL RETURN,CARB 03.741 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-330-0	01	1	-
81	03.740 BOLT; UNION,FUEL RETURN,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	9-81115-072-0	01	1	-
82	03.763 HOLDER; SUB RETURN,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-300-0	01	1	-
103	03.763 SPRING; PRIMARY TO SECONDARY,CAR 03.753 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-336-0	01	1	-
106	03.841 SPRING; PUMP RETURN,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97102-567-0	01	1	-
125	03.729 SCREW; MIXTURE BYPASS,CARB 03.841 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-290-0	04	1	-
131	03.798 SPRING; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-656-0	01	1	-
131	03.798 SPRING; PUMP,CARB 03.792 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-710-0	01	1	-
132	03.825 SEAT ASM; CHECK VLV,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-657-0	01	1	-
137	03.775 PLUG; SLOW PASSAGE,CARB 03.792 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-711-0	01	1	-
137	03.775 PLUG; SLOW PASSAGE,CARB 03.825 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94311-881-0	03	1	-
138	03.792 JET; 1ST COASTING AIR BLEED,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918	8-94240-304-0	01	1	-
138	03.792 JET; 1ST COASTING AIR BLEED,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94471-260-0	01	1	-

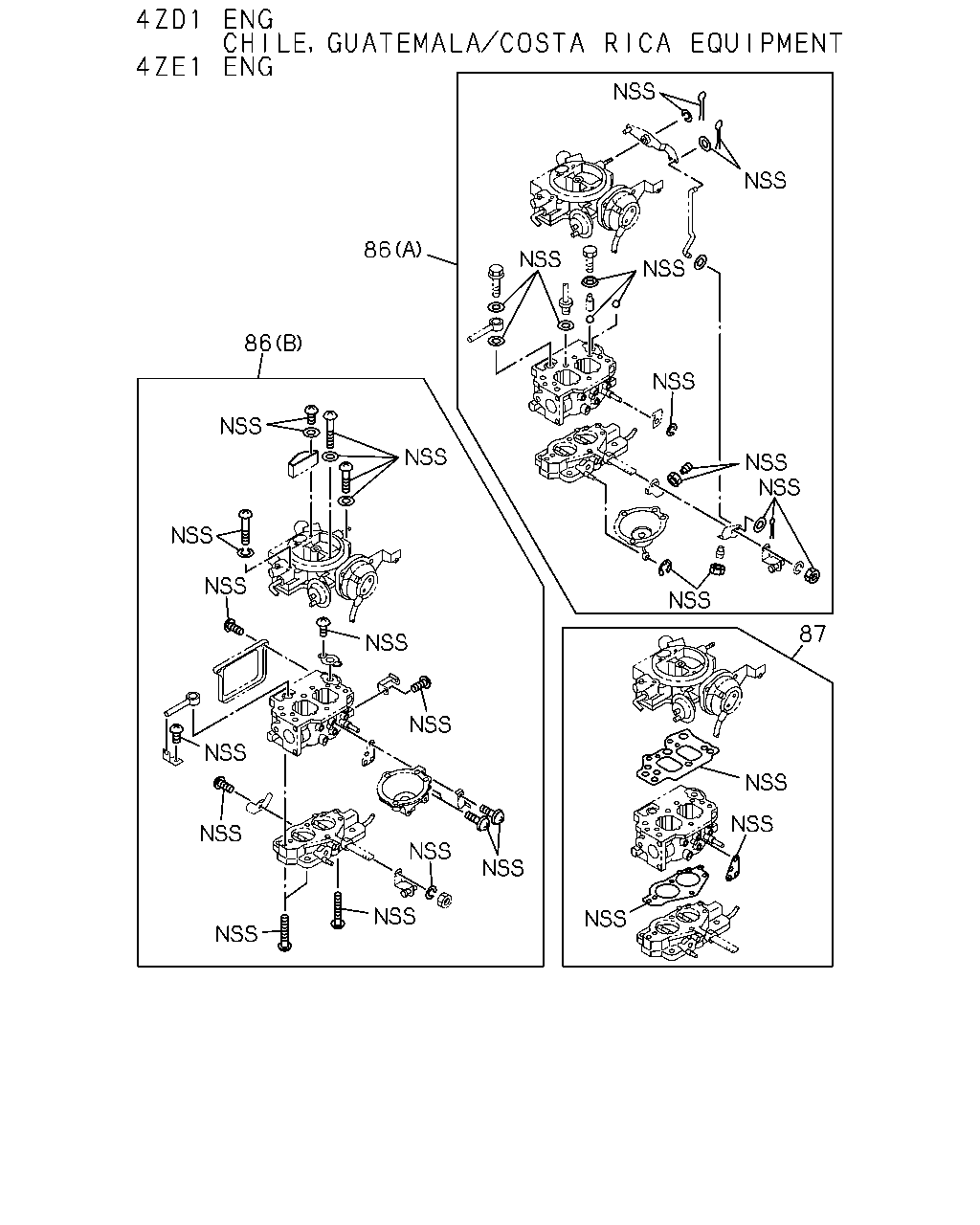

85 86 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	03.724 CLIP SET; CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97103-516-0	01	1	-
86	03.724 SCREW SET; CARB (A) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-636-0	01	1	-
86	03.724 SCREW SET; CARB 03.842 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-342-0	01	1	-
86	03.724 SCREW SET; CARB (B) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94447-230-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-343-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94447-229-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97103-517-0	01	1	-

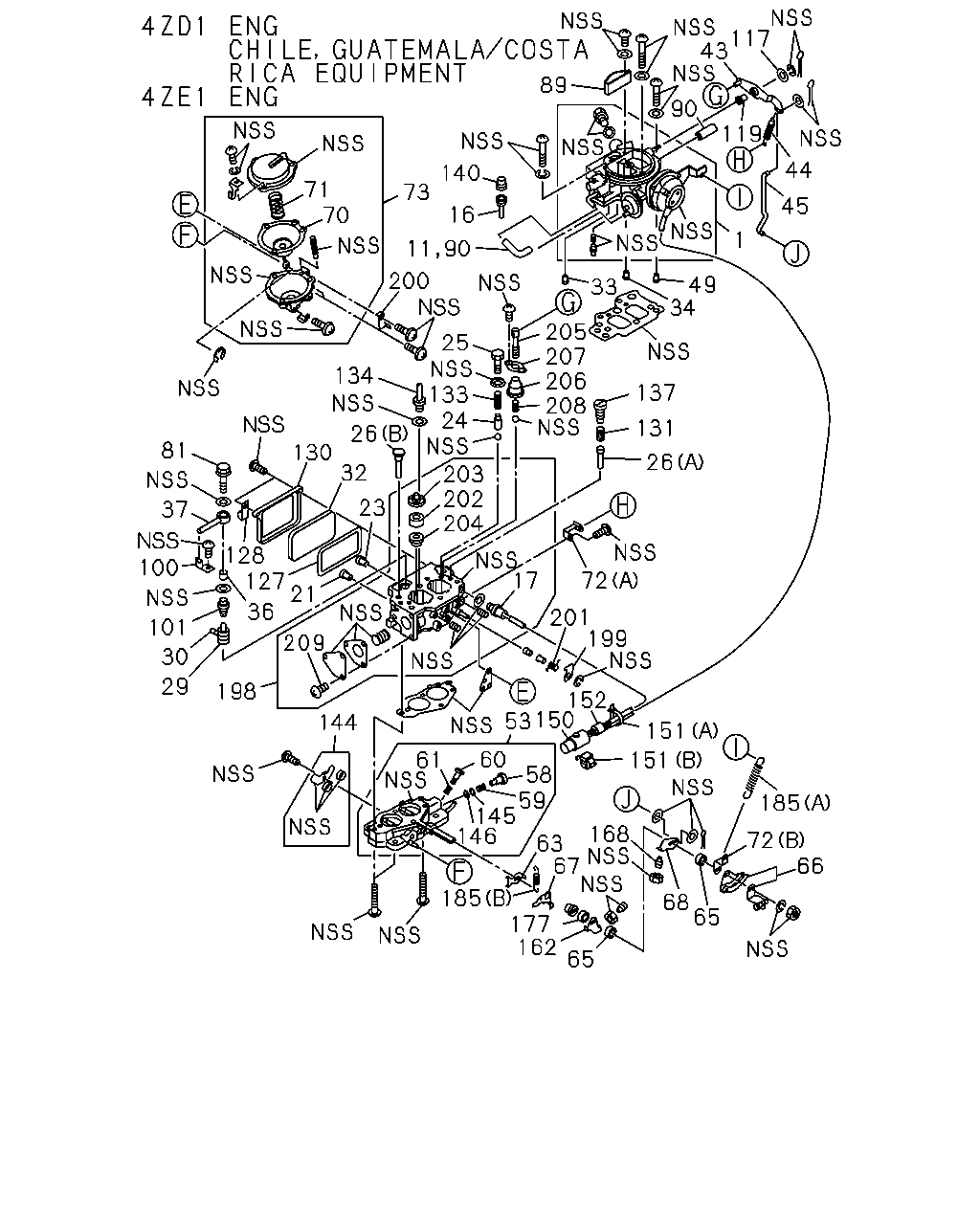

117 43 89 90 119 44 140 73 71 70 45 16 1 11 90 200 33 49 34 205 207 206 208 25 134 133 24 26 203 202 204 17 137 130 32 131 81 37 100 101 30 29 26 23 72 128 127 21 36 209 201 199 152 198 144 151 151 60 61 185 58 59 145 146 168 63 67 72 66 185 177 162 65 68 65 53 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.730 AIR HORN COMPL; CARB ASM PART: E = 8-97149-829-0, 97149829	8-94312-027-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: A = 8-94453-918-2, 94453918	8-94312-028-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: B = 8-94455-754-2, 94455754	8-97102-556-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: C = 8-97069-282-1, 97069282	8-97102-558-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: F = 8-97149-830-0, 97149830	8-97105-115-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: D = 8-97101-000-1, 97101000	8-97167-474-0	01	1	-
1	03.730 AIR HORN COMPL; CARB ASM PART: G = 8-97171-296-0, 97171296	8-97178-353-0	01	1	-
11	03.775 HOSE; VAC,CARB 03.730 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-372-0	01	1	-
16	03.792 JET; COASTING,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918	8-94240-303-0	01	1	-
16	03.792 JET; COASTING,CARB ASM PART: G = 8-97171-296-0, 97171296	8-94467-482-0	01	1	-
16	03.792 JET; COASTING,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97161-004-0	01	1	-
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94312-025-0	01	1	-
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282	8-94440-976-0	01	1	-
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97048-995-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94210-958-1	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94213-507-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94215-747-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: C = 8-97069-282-1, 97069282	8-97075-563-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97131-503-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94215-387-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94215-709-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94218-098-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: G = 8-97171-296-0, 97171296	8-94467-480-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: C = 8-97069-282-1, 97069282	8-97075-562-0	01	1	-
24	03.825 WEIGHT; PUMP,CARB 03.798 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94248-489-0	01	1	-
25	03.825 PLUG; OUTLET VLV,CARB 03.775 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-716-0	01	1	-
26	03.798 JET ASM; SLOW,CARB 03.792 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94152-716-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (A) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94237-506-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (B) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-386-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (A) ASM PART: C = 8-97069-282-1, 97069282	8-97075-566-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (B) ASM PART: C = 8-97069-282-1, 97069282	8-97075-567-0	01	1	-
29	03.745 FLOAT; CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-329-0	01	1	-
29	03.745 FLOAT; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-362-0	01	1	-
30	03.747 COLLAR; FLOAT PIN,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-713-0	01	1	-
32	03.737 COVER; FUEL LEVEL GLASS,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-682-1	01	1	-
32	03.737 COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-292-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-282-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB 03.790 ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-385-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB 03.790 ASM PART: C = 8-97069-282-1, 97069282	8-97075-565-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97102-589-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-655-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94240-282-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB 03.790 ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-384-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB 03.798 ASM PART: C = 8-97069-282-1, 97069282	8-97075-564-0	01	1	-
36	03.740 STRAINER ASM; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-492-0	01	1	-
36	03.740 STRAINER ASM; CARB 03.750 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-331-0	01	1	-
37	03.740 UNION; FUEL,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94250-233-0	01	1	-
43	03.842 ARM; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-340-0	01	1	-
43	03.842 ARM; PUMP,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-214-0	01	1	-
44	03.763 SPRING; SUB RETURN,CARB 03.762 ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-301-0	01	1	-
44	03.763 SPRING; SUB RETURN,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94426-149-1	01	1	-
44	03.763 SPRING; SUB RETURN,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-216-0	01	1	-
45	03.838 ROD; PUMP CONNECTOR,CARB 03.843 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-728-0	01	1	-
45	03.838 ROD; PUMP CONNECTOR,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94434-215-0	01	1	-
49	03.792 JET; AIR BLEED,2ND,CARB 03.790 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-387-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94178-629-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: C = 8-97069-282-1, 97069282	8-94467-477-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: A = 8-94453-918-2, 94453918	8-97105-036-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97129-715-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: D = 8-97101-000-1, 97101000	8-97161-005-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: E = 8-97149-829-0, 97149829	8-97161-014-0	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: F = 8-97149-830-0, 97149830	8-97161-016-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-97102-586-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829	8-97102-587-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, F = 8-97149-830-0, 97149830	8-97102-588-0	01	1	-
59	03.823 SPRING; IDLE ADJ,SCREW,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-481-0	01	1	-
59	03.823 SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	9-81155-174-0	01	1	-
60	03.761 SCREW; THROTTLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-631-0	01	1	-
60	03.761 SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-183-0	01	1	-
61	03.761 SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94178-632-0	01	1	-
61	03.761 SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94206-012-0	01	1	-
63	03.762 ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94140-381-0	01	1	-
63	03.762 ARM; THROTTLE SHAFT,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-679-0	01	1	-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.761 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-311-0	01	1	-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.747 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94248-439-0	02	1	-
66	03.762 LEVER ASM; THROTTLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-380-0	01	1	-
66	03.762 LEVER ASM; THROTTLE,CARB 03.766 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-089-0	01	1	-
67	03.766 ARM ASM; FAST IDLE CAM ADJ,CARB 03.767 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94248-612-0	01	1	-
67	03.766 ARM ASM; FAST IDLE CAM ADJ,CARB 03.763 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94252-516-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-357-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: A = 8-94453-918-2, 94453918	8-94402-087-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB ASM PART: D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-97161-007-0	01	1	-
70	03.758 DIAPHRAGM ASM; CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-294-0	01	1	-
70	03.758 DIAPHRAGM ASM; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94402-185-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: D = 8-97101-000-1, 97101000	8-94118-661-0	01	1	-
71	03.758 SPRING; DIAPH,CARB 03.729 ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-181-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94402-186-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94467-479-0	01	1	-
72	03.755 HANGER; SPRING,CARB 03.729, (A) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-381-0	01	1	-
72	03.755 HANGER; SPRING,CARB 03.724, (B) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-382-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: B = 8-94455-754-2, 94455754	8-94447-228-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: A = 8-94453-918-2, 94453918, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94458-340-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94467-478-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: D = 8-97101-000-1, 97101000	8-97167-472-0	01	1	-
81	03.740 BOLT; UNION,FUEL RETURN,CARB 03.741 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-330-0	01	1	-
81	03.740 BOLT; UNION,FUEL RETURN,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	9-81115-072-0	01	1	-
89	03.724 COVER; VENT,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94407-976-0	01	1	-
90	03.734 CAP; RUBBER,CHAMBER ASM PART: B = 8-94455-754-2, 94455754	8-94250-236-0	03	1	-
100	03.740 PLATE; STOPPING,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-374-0	01	1	-
101	03.814 VALVE; NEEDLE,CARB 03.858 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-363-0	01	1	-
117	03.767 WASHER; ARM PUMP,CARB 03.768 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-361-0	01	1	-
119	03.767 COLLAR; ARM,PUMP ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-360-0	01	1	-
127	03.738 SEAL; RUBBER,GLASS,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	9-81113-913-0	01	1	-
128	03.737 HOLDER; LEAD WIRE,CARB 03.755 ASM PART: B = 8-94455-754-2, 94455754	8-94122-499-0	01	1	-
130	03.737 COVER; FLOAT,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94360-703-0	01	1	-
131	03.798 SPRING; PUMP,CARB ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94118-656-0	01	1	-
131	03.798 SPRING; PUMP,CARB 03.792 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-710-0	01	1	-
133	03.825 SPRING; INJECTOR,CARB 03.798 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94248-488-0	01	1	-
134	03.858 VALVE; POWER,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-388-0	01	1	-
137	03.775 PLUG; SLOW PASSAGE,CARB 03.792 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-711-0	01	1	-
137	03.775 PLUG; SLOW PASSAGE,CARB 03.825 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94311-881-0	03	1	-
140	03.792 JET; COASTING AIR BLEED,CARB ASM PART: G = 8-97171-296-0, 97171296	8-94467-483-0	01	1	-
144	03.858 COVER SET; DUST,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-364-0	01	1	-
145	03.823 WASHER; IDLE,ADJ SCREW ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-480-0	01	1	-
146	03.823 SEAL; IDLE,ADJ SCREW ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94237-479-0	01	1	-
150	03.755 CONNECTOR; CABLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282	8-94401-378-0	01	1	-
150	03.755 CONNECTOR; CABLE,CARB 4P MALE GRAY ASM PART: G = 8-97171-296-0, 97171296	8-94447-519-0	01	1	-
151	03.758 CLAMP; CABLE CONNECTOR,CARB 02.559, (B) ASM PART: G = 8-97171-296-0, 97171296	8-94315-436-1	01	1	-
151	03.758 CLAMP; CABLE CONNECTOR,CARB 03.842, (A) ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94407-977-0	01	1	-
152	03.755 STOPPER; CONNECTOR,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282	8-94401-379-0	01	1	-
162	03.762 LEVER ASM; DOWN SHIFT,CARB 03.766 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94248-447-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB (A) ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94133-200-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94215-720-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB (B) ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94402-184-0	01	1	-
177	03.762 COLLAR; ROLLING,CARB 03.767 ASM PART: A = 8-94453-918-2, 94453918, D = 8-97101-000-1, 97101000, E = 8-97149-829-0, 97149829, F = 8-97149-830-0, 97149830	8-94240-314-0	01	1	-
177	03.762 COLLAR; ROLLING,CARB 03.768 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94252-515-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA (A) ASM PART: C = 8-97069-282-1, 97069282	8-94362-877-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA (B) ASM PART: C = 8-97069-282-1, 97069282	8-94362-878-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA 03.841, (A) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-355-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA (B) ASM PART: B = 8-94455-754-2, 94455754, G = 8-97171-296-0, 97171296	8-94401-383-0	01	1	-
198	03.734 CHAMBER ASM; FLOAT,CARB ASM PART: B = 8-94455-754-2, 94455754	8-94360-677-0	01	1	-
198	03.734 CHAMBER ASM; FLOAT,CARB ASM PART: C = 8-97069-282-1, 97069282	8-94362-876-0	01	1	-
198	03.734 CHAMBER ASM; FLOAT,CARB ASM PART: G = 8-97171-296-0, 97171296	8-97048-994-0	01	1	-
199	03.766 CAM; IDLE,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-373-0	01	1	-
200	03.766 STOPPER; CAM,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-366-0	01	1	-
201	03.766 SPRING; CAM,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-358-0	01	1	-
202	03.724 DEVICE; BOOST CONT ASM PART: G = 8-97171-296-0, 97171296	8-94467-473-0	01	1	-
203	03.724 CAP; BOOST CONT DEVICE ASM PART: G = 8-97171-296-0, 97171296	8-94467-474-0	01	1	-
204	03.724 GASKET; BOOST CONT DEVICE ASM PART: G = 8-97171-296-0, 97171296	8-94467-475-0	01	1	-
205	03.858 PISTON; CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94440-975-0	01	1	-
206	03.838 COVER; PUMP,CARB 03.842 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-365-0	01	1	-
207	03.724 PLATE; CYL,CARB 03.841 ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94401-367-0	01	1	-
208	03.841 SPRING; PISTON,CARB ASM PART: B = 8-94455-754-2, 94455754, C = 8-97069-282-1, 97069282, G = 8-97171-296-0, 97171296	8-94252-518-0	01	1	-
209	03.724 SCREW; BOOST CONT DEVICE ASM PART: G = 8-97171-296-0, 97171296	8-94467-476-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
