Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#47946) — 180 parça

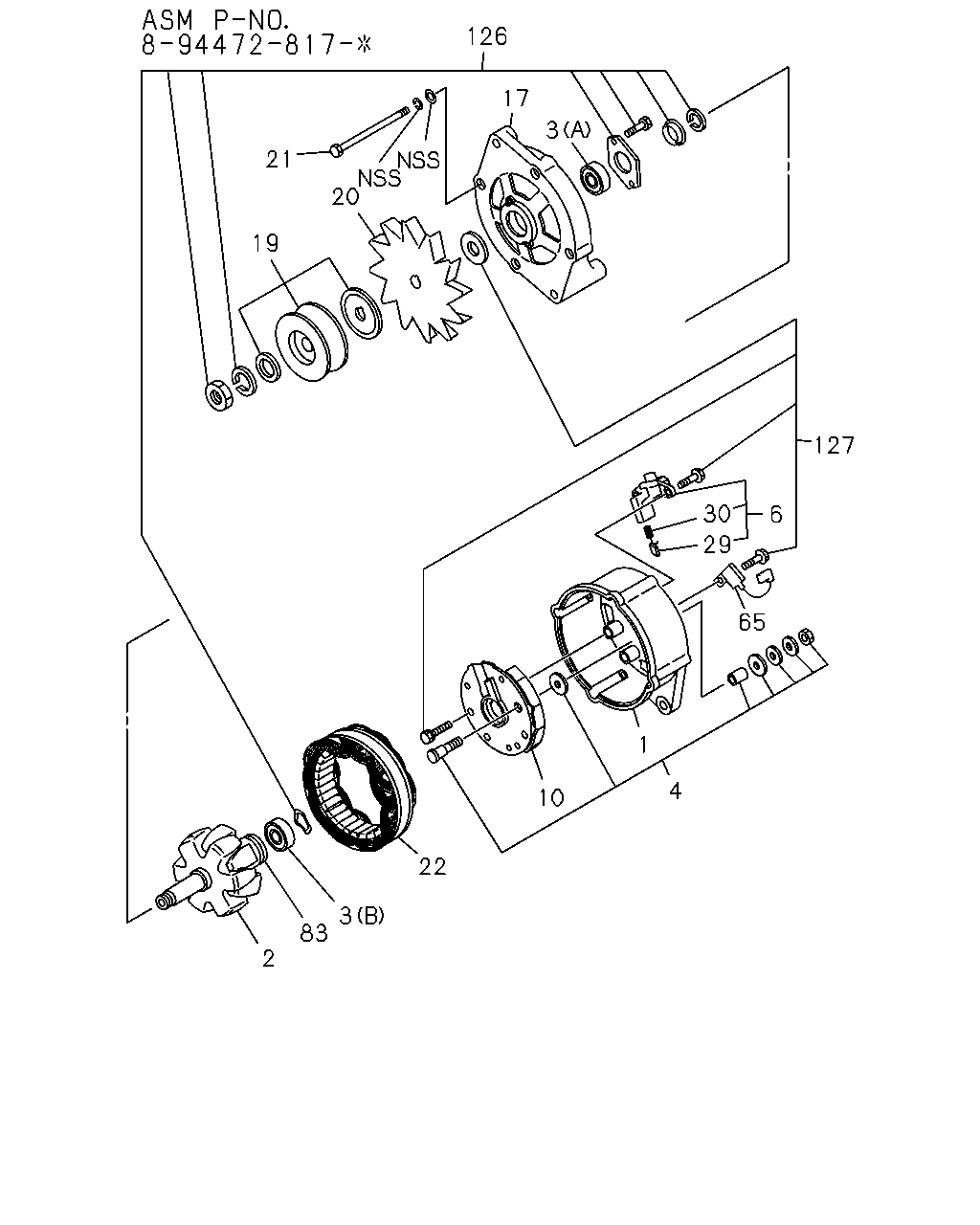

126 17 3 21 20 19 127 30 29 6 65 1 4 10 22 3 83 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97137-009-0, 97137009, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97137-004-0, 97137004, E = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-602-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
20	02.274 FAN; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-597-0	04	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-707-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: D = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-605-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-598-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-701-0	01	1	-
126	02.279 RETAINER KIT; ROTOR,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-600-0	01	1	-
127	02.277 BOLT SET; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97161-598-0	01	1	-

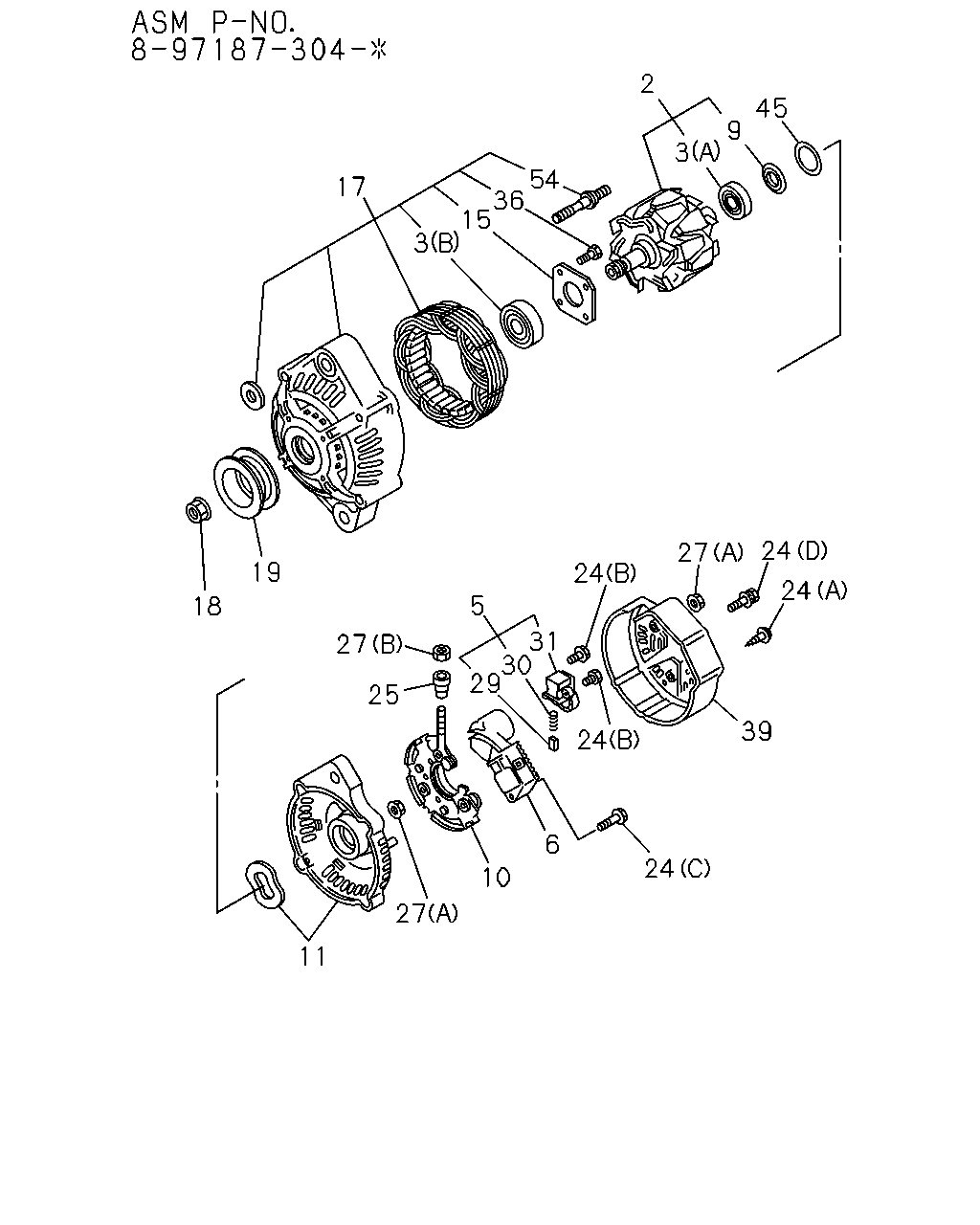

2 45 9 3 54 36 15 3 17 27 19 24 24 5 18 31 30 29 27 25 24 39 6 27 24 10 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97137-009-0, 97137009, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97137-004-0, 97137004, E = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: D = 8-97187-304-0, 97187304	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: D = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: D = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: D = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: D = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: D = 8-97187-304-0, 97187304	8-94135-760-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: D = 8-97187-304-0, 97187304	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: D = 8-97187-304-0, 97187304	8-94206-186-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: D = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-605-0	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97040-495-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: D = 8-97187-304-0, 97187304	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-366-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97142-570-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: D = 8-97187-304-0, 97187304	8-94123-048-0	04	1	-

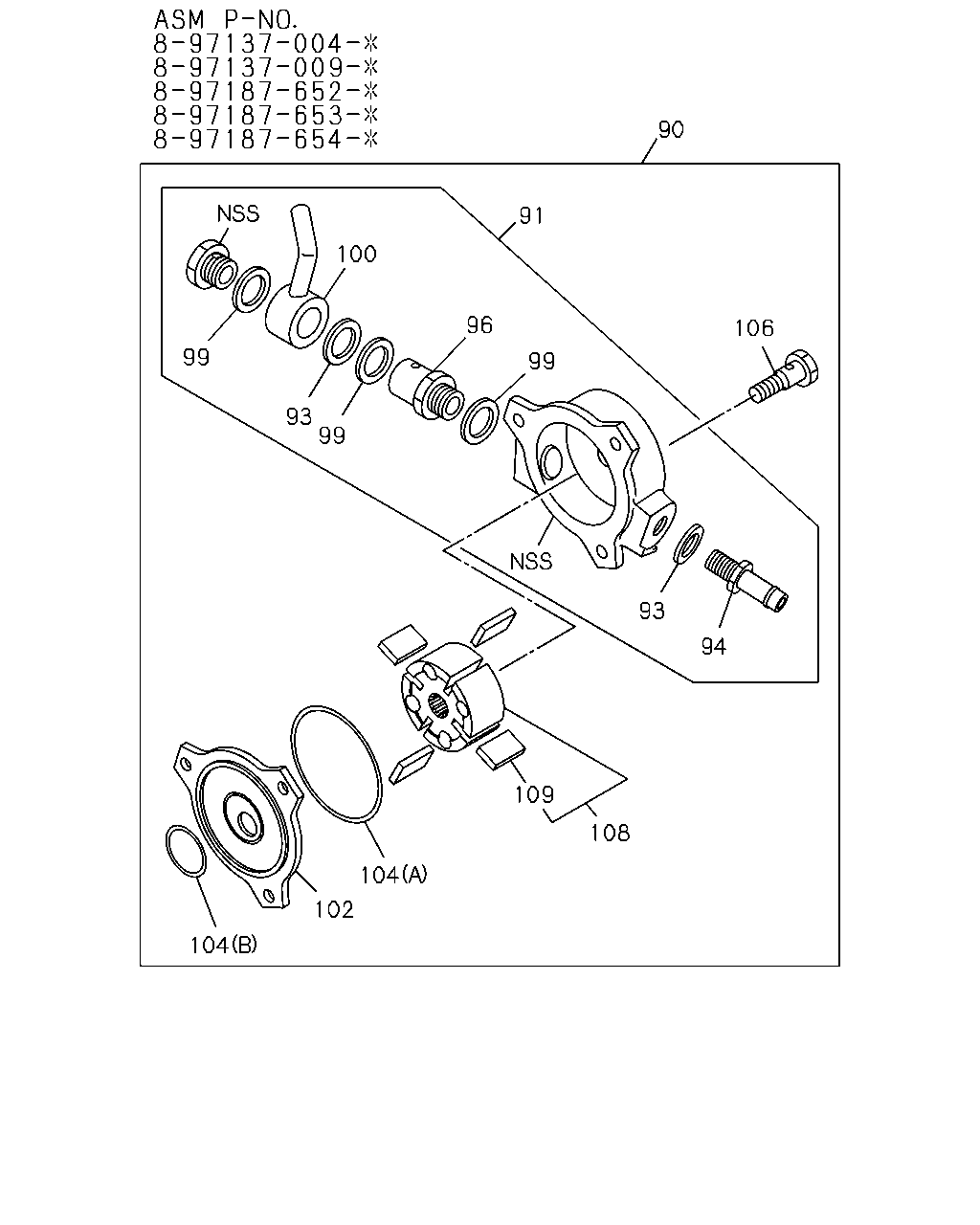

90 91 100 96 106 99 99 93 99 93 94 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, G = 8-97187-654-0, 97187654	8-97137-332-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94424-381-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, G = 8-97187-654-0, 97187654	8-94335-641-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-985-0	04	1	-

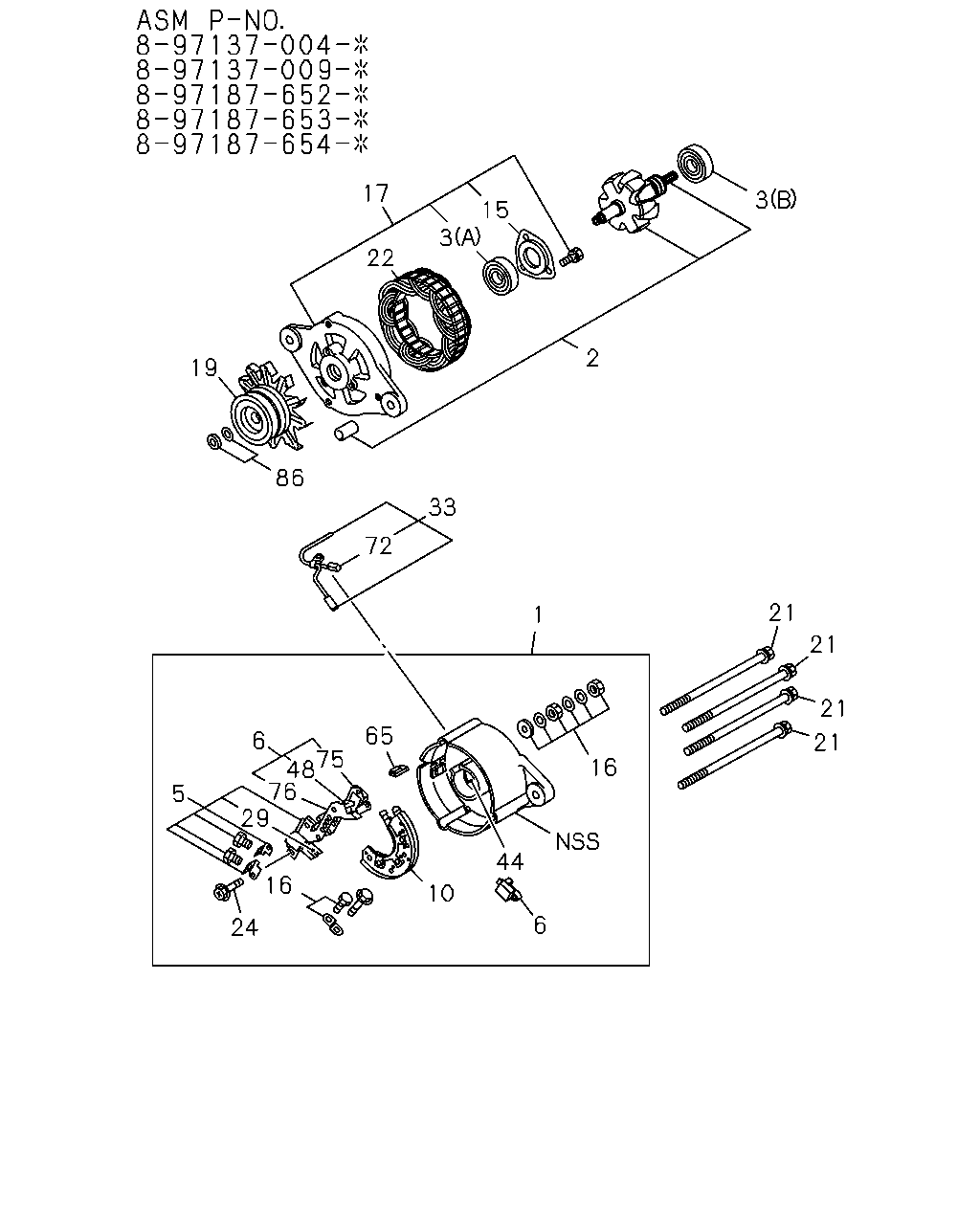

17 3 15 3 22 2 19 86 33 72 21 1 21 21 21 65 6 75 48 76 29 16 5 44 16 10 6 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-594-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97137-009-0, 97137009, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97137-004-0, 97137004, E = 8-97187-652-0, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94472-817-4, 94472817	8-97130-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94472-817-4, 94472817	8-97130-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-596-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-595-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97188-870-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: D = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-591-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-603-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-597-0	04	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-707-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97203-864-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: D = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: D = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-604-0	01	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: C = 8-97137-009-0, 97137009, G = 8-97187-654-0, 97187654	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-97137-004-0, 97137004, E = 8-97187-652-0, 97187652	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: C = 8-97137-009-0, 97137009, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94472-817-4, 94472817	8-97130-598-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: C = 8-97137-009-0, 97137009, F = 8-97187-653-0, 97187653	8-94310-267-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009, E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-94156-591-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-97137-004-0, 97137004, C = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN 02.274 ASM PART: E = 8-97187-652-0, 97187652, F = 8-97187-653-0, 97187653, G = 8-97187-654-0, 97187654	8-97203-880-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
