◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#47943) — 306 parça

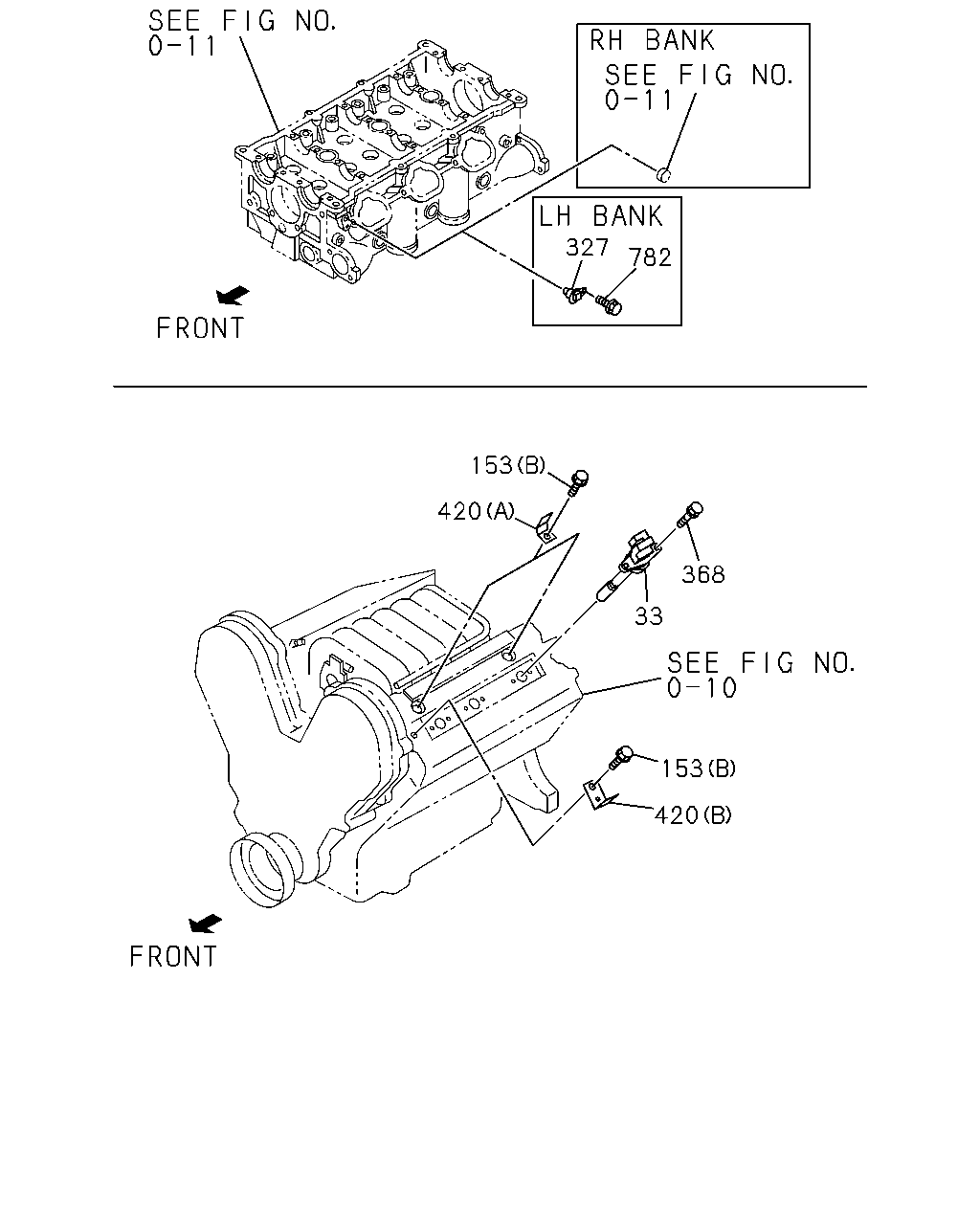

çizim 17270
327 782 153 420 368 33 153 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 02.170 COIL ASM; IGN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-513-0 01 1 9611-9706 ● ●
33 02.170 COIL ASM; IGN
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94416-513-0 01 1 9611-9706 ●
33 02.170 COIL ASM; IGN
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-513-0 01 1 9707- ● ●
33 02.170 COIL ASM; IGN
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94416-513-0 01 1 9707- ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94371-838-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
ELECTRIC FUEL INJECTION<6GG> 		8-94338-923-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-94136-766-0 01 1 9612- ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9712- ●
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9712- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9712- ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER M5X20 W/LK WASHER 		8-94428-007-0 12 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●

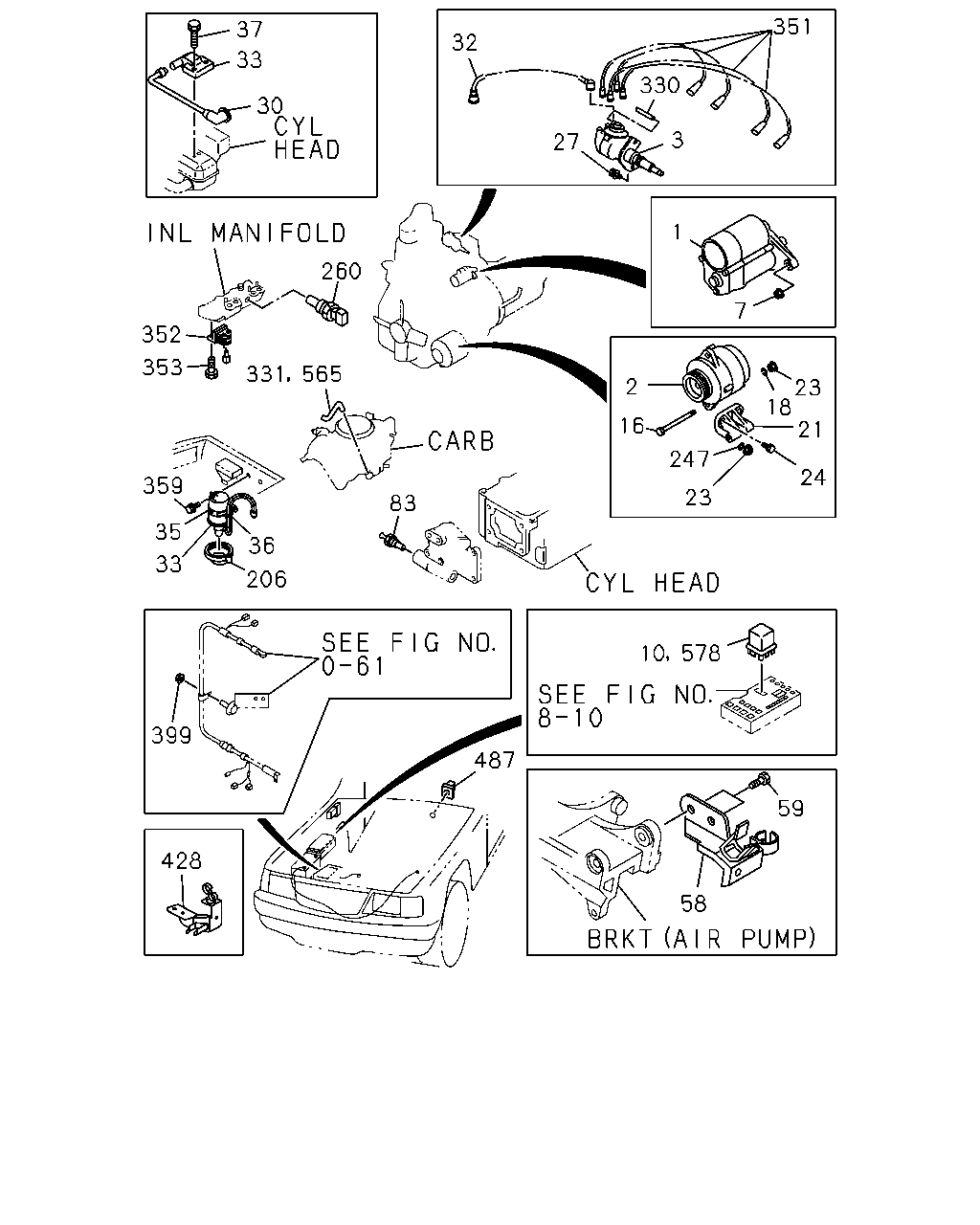

çizim 18483
351 37 33 32 330 30 3 27 260 352 353 565 331 2 23 18 21 16 359 247 24 23 83 35 33 36 206 10 578 487 59 428 58 1 7 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9611- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97137-004-0 01 1 9611-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97137-004-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ARGENTINA EQUIPMENT(7SZ) 12V 50A 		8-97187-653-0 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9611-9611 ● ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) 		8-94476-142-1 01 1 9611-9611 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9612-9703 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) 		8-94476-142-1 01 1 9612-9703 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. HIGHLAND ZONE PACKAGE<7EG> 		8-94476-142-1 01 1 9612-9703 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9703- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) 		8-94476-142-1 01 1 9703- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. HIGHLAND ZONE PACKAGE<7EG> 		8-94476-142-1 01 1 9703- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94341-340-0 01 1 9611- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. ELECTRIC FUEL INJECTION<6GG> 		8-97040-454-0 01 1 9611- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-748-0 01 1 9612- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611-9711 ● ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611-9711 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9712- ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) 		0-28680-830-0 01 1 9712- ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9611-9703 ● ● ● ● ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9611-9612 ● ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9701-9703 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611-9611 ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ● ●
24 02.277 BOLT; GEN BRKT
HIGHLAND ZONE PACKAGE<7EG> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.417 M10X100 		0-10806-000-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
27 02.363 BOLT; DISTR
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9611-9701 ● ● ●
27 02.363 BOLT; DISTR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9612- ● ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94329-908-0 01 1 9611-9710 ● ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94329-908-0 01 1 9711- ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94329-908-0 01 1 9711- ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 02.240 		8-94136-794-0 01 1 9611-9611 ●
32 02.525 CABLE; DISTR TO IGN COIL
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 02.240 		8-94136-794-0 01 1 9612- ●
32 02.525 CABLE; DISTR TO IGN COIL
CATALYSIS CONTROL<6MZ> 02.240 		8-94136-794-0 01 1 9612- ●
32 02.525 CABLE; DISTR TO IGN COIL
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 02.240 		8-94136-794-0 01 1 9612- ●
32 02.525 CABLE; DISTR TO IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-94449-496-1 01 1 9611- ●
33 02.170 COIL ASM; IGN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-513-0 01 1 9611-9706 ● ●
33 02.170 COIL ASM; IGN
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94416-513-0 01 1 9611-9706 ●
33 02.170 COIL ASM; IGN
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-513-0 01 1 9707- ● ●
33 02.170 COIL ASM; IGN
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94416-513-0 01 1 9707- ●
33 02.170 COIL ASM; IGN
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94371-838-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
ELECTRIC FUEL INJECTION<6GG> 		8-94338-923-0 01 1 9611- ●
33 02.170 COIL ASM; IGN
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-94136-766-0 01 1 9612- ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9712- ●
35 02.183 BRACKET; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94109-761-0 01 1 9611-9706 ● ●
35 02.183 BRACKET; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94109-761-0 01 1 9611-9706 ●
35 02.183 BRACKET; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94109-761-0 01 1 9707- ● ●
35 02.183 BRACKET; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94109-761-0 01 1 9707- ●
36 02.239 WIRE; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-512-0 01 1 9611-9706 ● ●
36 02.239 WIRE; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94416-512-0 01 1 9611-9706 ●
36 02.239 WIRE; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94416-512-0 01 1 9707- ● ●
36 02.239 WIRE; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94416-512-0 01 1 9707- ●
37 02.559 BOLT; IGN COIL
ELECTRIC FUEL INJECTION<6GG> M6X28 		0-28080-628-0 02 1 9611- ●
37 02.559 BOLT; IGN COIL
CATALYSIS CONTROL<6MZ> M6X28 		0-28080-628-0 02 1 9611- ●
37 02.559 BOLT; IGN COIL
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> M6X28 		0-28080-628-0 02 1 9611- ●
37 02.559 BOLT; IGN COIL
EXC. HIGHLAND ZONE PACKAGE<7EG> M6X35 W/LK WASHER 		0-50040-635-0 02 1 9612- ●
58 02.343 BRACKET; CLIP
POWER STEERING<N40> 		8-94386-240-0 01 1 9611- ● ● ●
59 02.343 BOLT; BRKT,HARNESS CLIP
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9611 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9612-9711 ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9612-9711 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
206 02.183 CAP; IGN COIL
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94235-010-0 01 1 9611-9704 ● ●
206 02.183 CAP; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94235-010-0 01 1 9611-9704 ●
206 02.183 CAP; IGN COIL
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94235-010-0 01 1 9705- ● ●
206 02.183 CAP; IGN COIL
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94235-010-0 01 1 9705- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9611-9611 ● ● ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9612- ● ●
247 02.277 WASHER; PL,BRKT,GEN
HIGHLAND ZONE PACKAGE<7EG> 00.206 ID=8.4 		9-09164-508-0 01 1 9612- ●
260 01.150 SENSOR; WATER TEMP
ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9611- ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9712- ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9611-9611 ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9611-9611 ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9611-9611 ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9702 ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
ECUADOR EQUIPMENT(S6E) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9702 ●
330 03.726 HOSE; CARBURETOR TO DISTR
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9702 ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9702 ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9703- ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9703- ●
330 03.726 HOSE; CARBURETOR TO DISTR
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9611-9611 ●
331 03.726 HOSE; CARB TO 3 WAY
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9612 ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9612 ●
331 03.726 HOSE; CARB TO 3 WAY
CHINA CHONGQING EQUIPMENT(R5B) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9612-9612 ●
331 03.726 HOSE; CARB TO 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9701-9711 ●
331 03.726 HOSE; CARB TO 3 WAY
CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. HIGHLAND ZONE PACKAGE<7EG> 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9701-9711 ●
331 03.726 HOSE; CARB TO 3 WAY 8-94372-343-1 01 1 9611-9611 ●
331 03.726 HOSE; CARB TO 3 WAY
HIGHLAND ZONE PACKAGE<7EG> 		8-94372-343-1 01 1 9612-9711 ●
351 02.239 CABLE KIT; HIGH TENSION 8-94433-364-1 01 1 9611- ● ● ●
352 02.188 SWITCH ASM; POWER,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 		8-97094-755-0 01 1 9611- ●
353 02.195 BOLT; POWER SW,IGN COIL
ELECTRIC FUEL INJECTION<6GG> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9611- ●
359 02.393 SCREW; COIL TO BODY
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94457-204-0 02 1 9611-9612 ● ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94457-204-0 02 1 9701-9704 ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2) 		8-94457-204-0 02 1 9701-9704 ●
359 02.393 SCREW; COIL TO BODY
EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94457-204-0 02 1 9705- ● ●
359 02.393 SCREW; COIL TO BODY
EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 		8-94457-204-0 02 1 9705- ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ●
428 02.559 CLIP; HARNESS
ELECTRIC FUEL INJECTION<6GG> 		8-97115-188-0 01 1 9611- ●
487 02.343 NUT
ELECTRIC FUEL INJECTION<6GG> 09.190 D=9.7X9.7 L=8 		8-94222-314-0 01 1 9611- ●
565 03.672 HOSE; RUBBER
08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ●
565 03.672 HOSE; RUBBER
EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9611- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 01 1 9611-9711 ● ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. ELECTRIC FUEL INJECTION<6GG> 12V 		8-97063-441-1 01 1 9712- ●

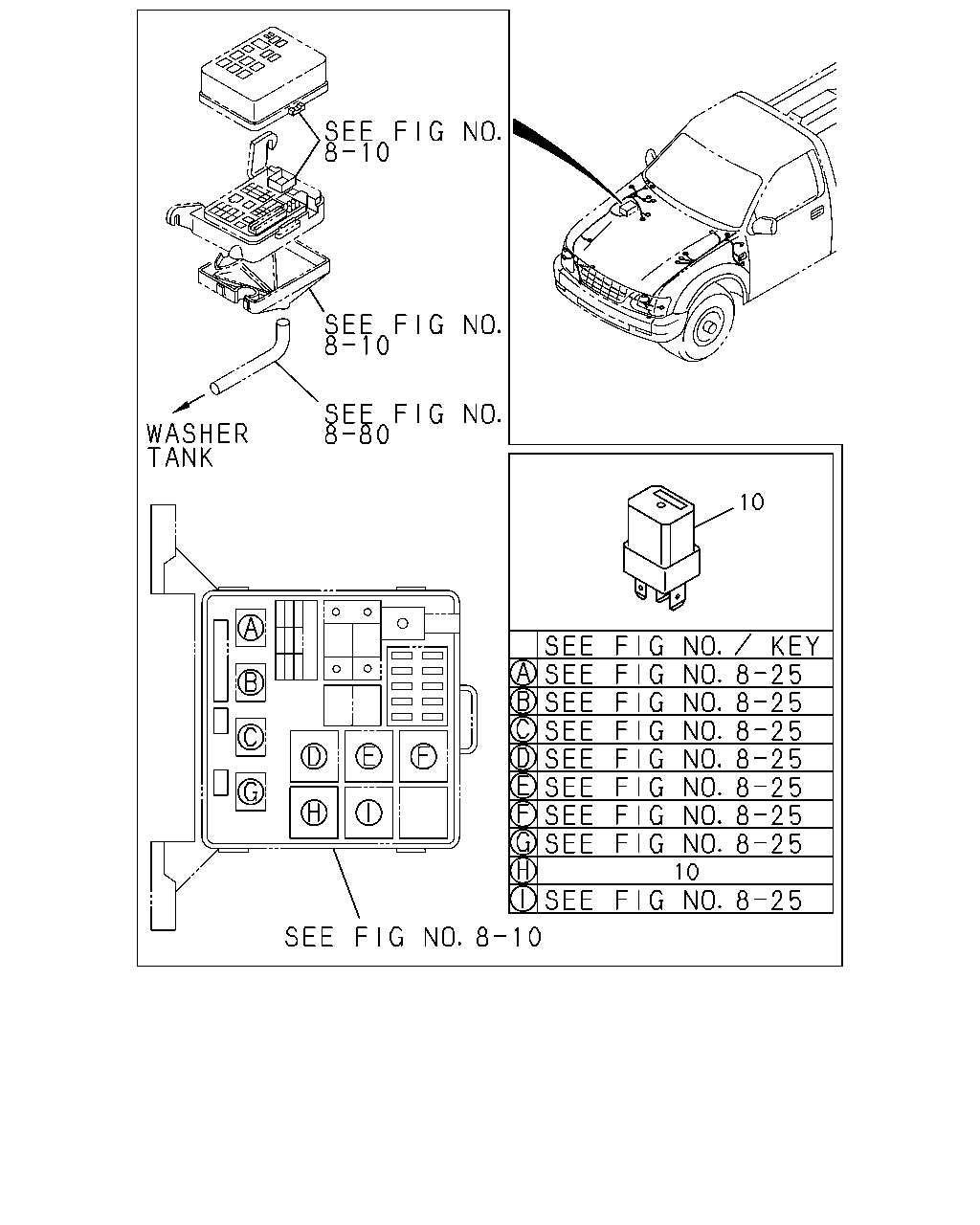

çizim 18701
10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9712- ●
çizim 18784
108 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
108 01.150 SWITCH; THERMO
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94158-361-0 01 1 9611- ●
124 01.150 SENSOR; OXYGEN
ELECTRIC FUEL INJECTION<6GG> 		8-97062-292-0 01 1 9611- ●
124 01.150 SENSOR; OXYGEN
CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9712- ●

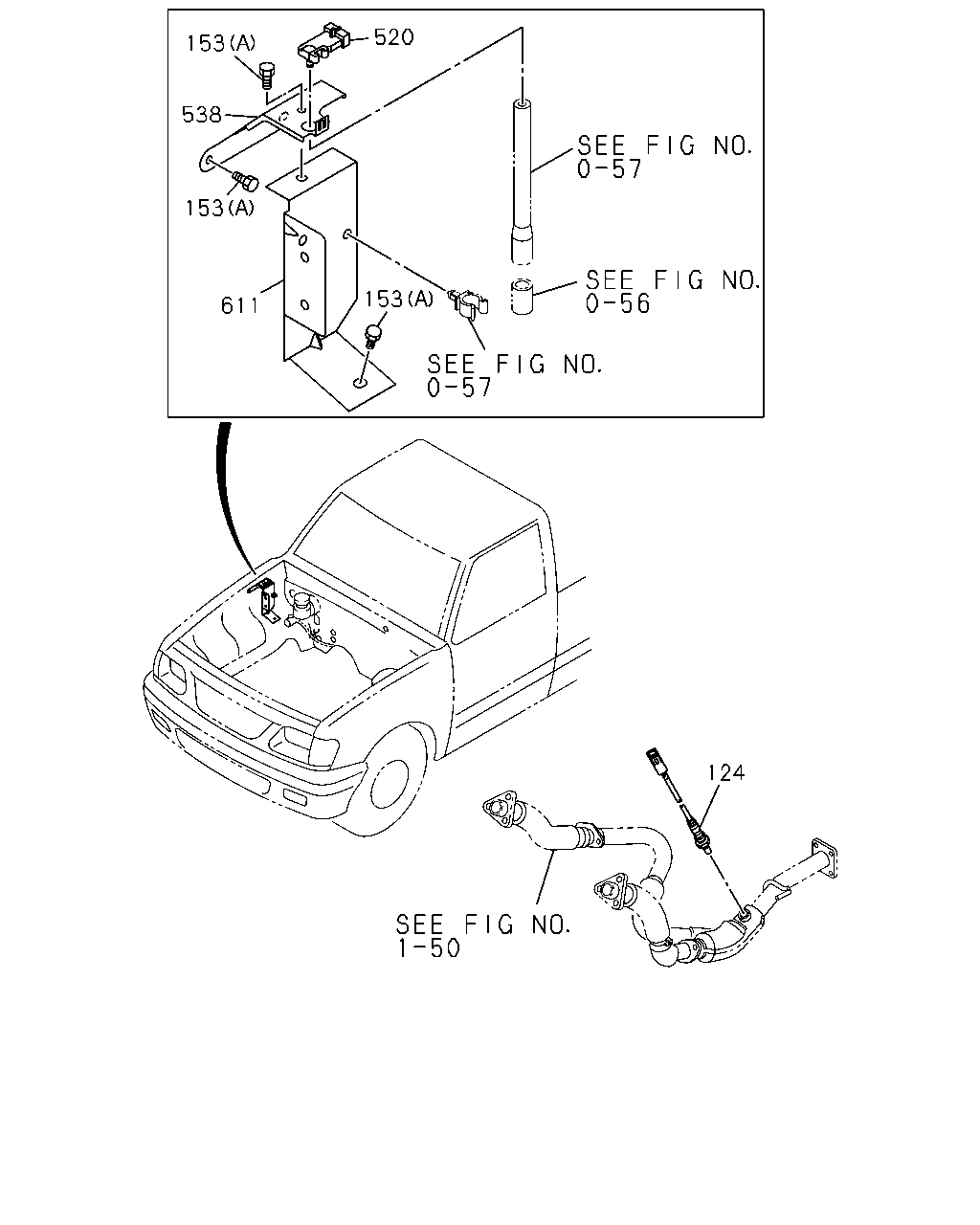

çizim 69741
520 153 538 153 153 611 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
124 01.150 SENSOR; OXYGEN
ELECTRIC FUEL INJECTION<6GG> 		8-97062-292-0 01 1 9611- ●
124 01.150 SENSOR; OXYGEN
CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9712- ●
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9712- ●
520 01.800 SENSOR; PRESSURE 8-16258-659-0 01 1 9712- ●
538 03.670 BRACKET; PRESSURE SENSOR 8-97180-218-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
03.671 		8-94475-021-2 01 1 9712- ●

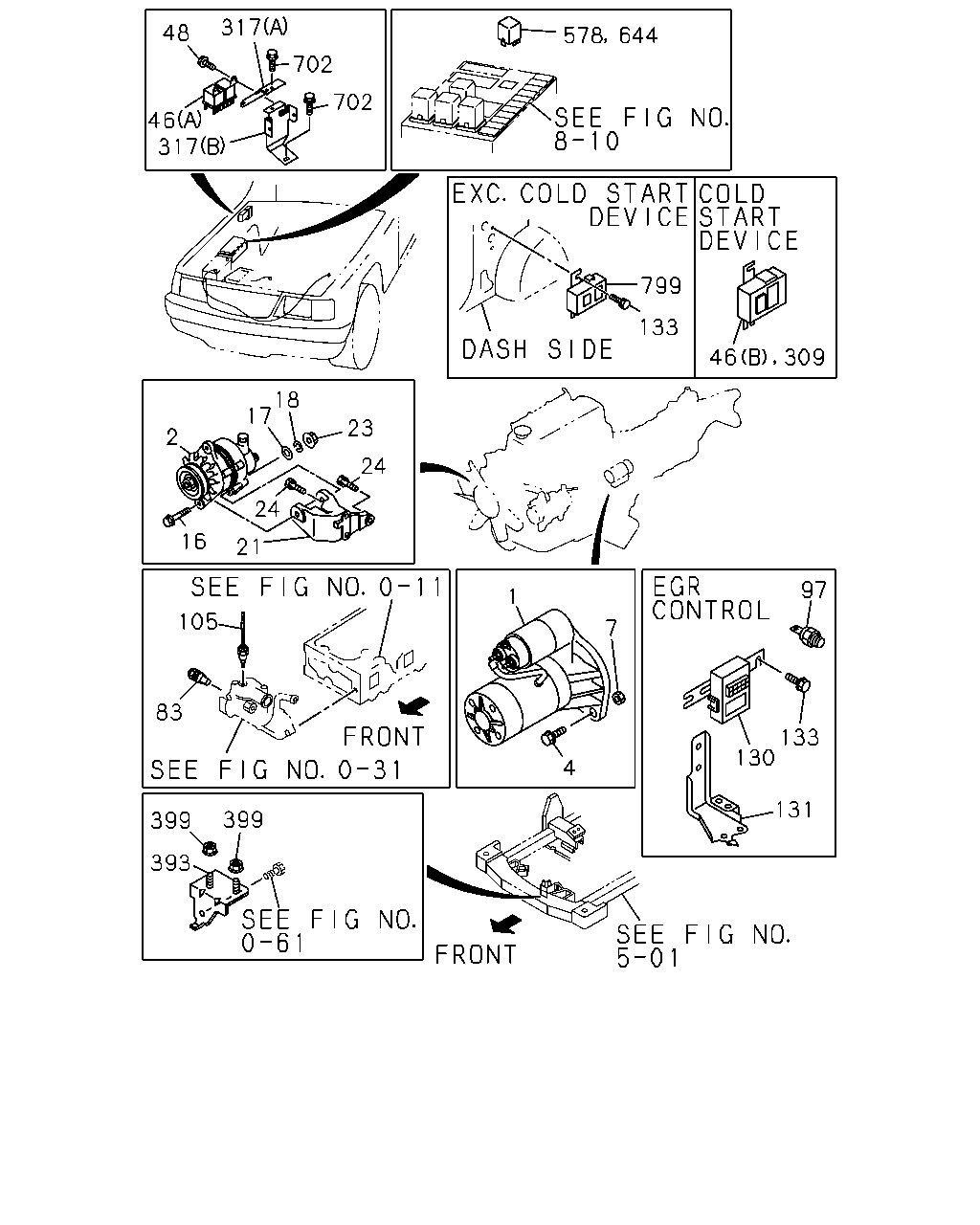

çizim 71039
317 48 578 644 46 317 133 46 18 17 23 2 24 24 16 97 83 133 130 131 399 393 702 702 799 309 21 105 4 7 1 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9611- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97137-004-0 01 1 9611-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97137-004-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ARGENTINA EQUIPMENT(7SZ) 12V 50A 		8-97187-653-0 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9611-9711 ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9712- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611-9711 ● ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611-9711 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) 		0-28680-830-0 01 1 9712- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9611-9612 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9611-9703 ● ● ● ● ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9611-9612 ● ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9701-9703 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701-9703 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9704- ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611-9611 ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ● ●
24 02.277 BOLT; GEN BRKT
HIGHLAND ZONE PACKAGE<7EG> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.417 M10X100 		0-10806-000-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
46 02.510 RELAY; GLOW PLUG 8-94459-495-0 01 1 9611-9711 ● ●
46 02.510 RELAY; GLOW PLUG
(A) 		8-94459-495-0 01 1 9712- ●
46 02.510 RELAY; GLOW PLUG
LONG(TF***F) (A) 		8-94459-495-0 01 1 9712- ●
46 02.510 RELAY; GLOW PLUG
COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
46 02.510 RELAY; GLOW PLUG
LONG(TF***F) COLD START DEVICE<7LY> (B) 		8-97068-785-0 01 1 9611-9711 ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ●
48 02.183 BOLT; GLOW PLUG RELAY
LONG(TF***F) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9611 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9612-9711 ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9612-9711 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
97 01.150 SWITCH; THERMO,EGR CONT
ARGENTINA EQUIPMENT(7SZ) 		8-94368-591-0 01 1 9712- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 9611-9709 ●
105 01.150 SWITCH; THERMO,QOS
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94457-511-0 01 1 9611-9709 ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 9710- ● ●
105 01.150 SWITCH; THERMO,QOS
CHINA CHONGQING EQUIPMENT(R5B) 		8-94121-152-1 01 1 9611-9710 ●
130 02.510 CONTROLLER; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97188-109-1 01 1 9712- ●
130 02.510 CONTROLLER; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97188-110-1 01 1 9712- ●
131 03.670 BRACKET; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97143-001-0 01 1 9712- ●
131 03.670 BRACKET; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97106-698-0 01 1 9712- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 M6X16 		8-97012-496-0 02 1 9611- ● ●
133 02.500 BOLT; EGR CONTROLLER
ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9712- ●
309 02.510 TIMER; AFTER GLOW,QOS
COLD START DEVICE<7LY> 		8-97068-785-0 01 1 9712- ●
309 02.510 TIMER; AFTER GLOW,QOS
LONG(TF***F) COLD START DEVICE<7LY> 		8-97068-785-0 01 1 9712- ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9611- ●
317 02.510 BRACKET; GLOW PLUG RELAY
LONG(TF***F) (A) 		8-94479-552-2 01 1 9611- ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9611-9711 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9712- ●
317 02.510 BRACKET; GLOW PLUG RELAY
LONG(TF***F) (B) 		8-97074-308-1 01 1 9712- ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9611- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-0 01 1 9611-9711 ● ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. ELECTRIC FUEL INJECTION<6GG> 12V 		8-97063-441-1 01 1 9712- ●
644 02.510 RELAY; COLD START DEVICE
EXC. COLD START DEVICE<7LY> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ●
644 02.510 RELAY; COLD START DEVICE
LONG(TF***F) EXC. COLD START DEVICE<7LY> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9611- ●
702 02.500 BOLT; RELAY
LONG(TF***F) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9611- ●
799 02.510 CONTROLLER; EGR/QOS
EXC. COLD START DEVICE<7LY> 		8-97068-786-0 01 1 9611- ●
799 02.510 CONTROLLER; EGR/QOS
LONG(TF***F) EXC. COLD START DEVICE<7LY> 		8-97068-786-0 01 1 9611- ●

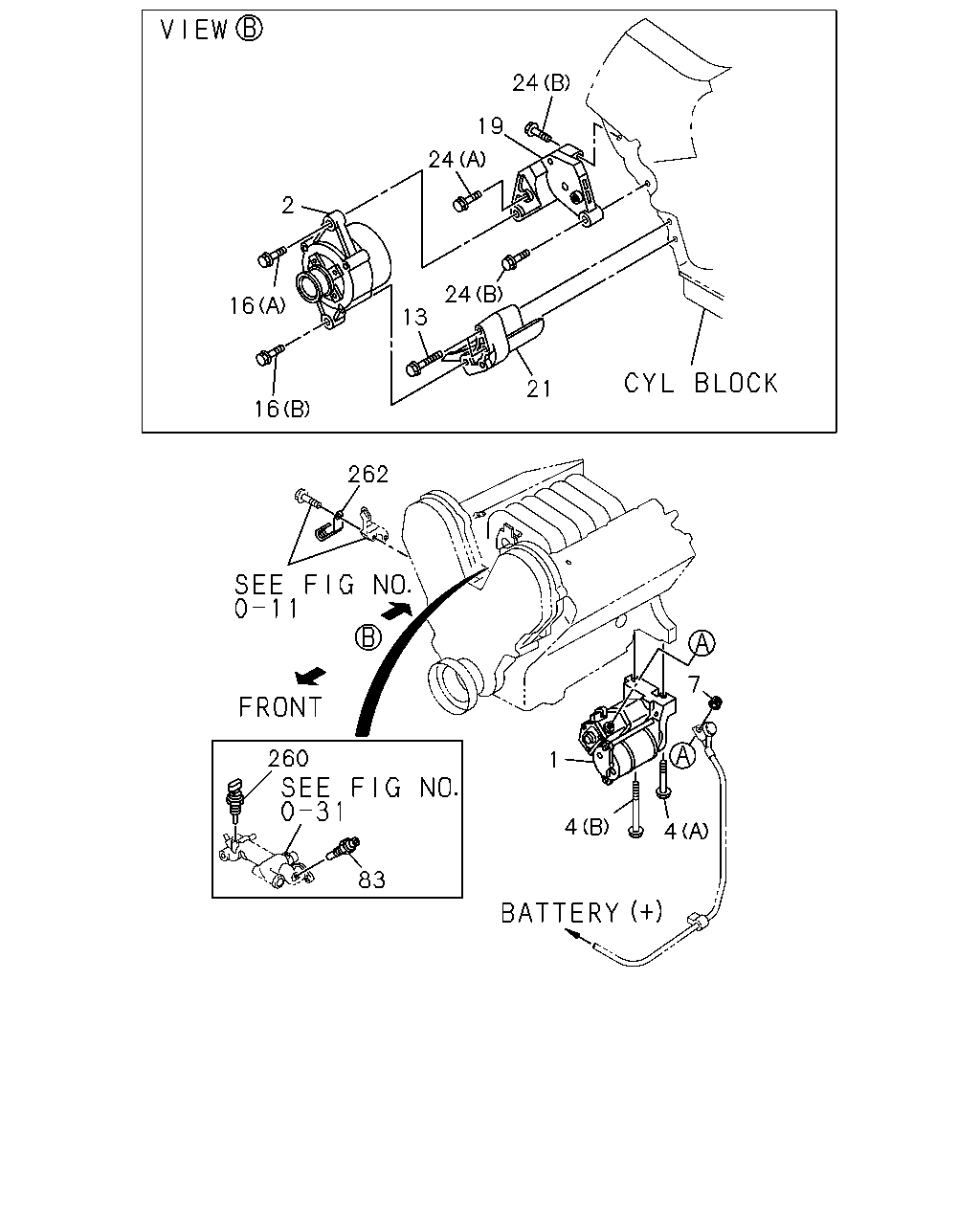

çizim 71904
24 19 24 2 24 16 13 21 16 262 7 260 1 4 4 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9611- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9611- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9611- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97137-004-0 01 1 9611-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97137-004-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ) 12V 40A 		8-97187-652-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ARGENTINA EQUIPMENT(7SZ) 12V 50A 		8-97187-653-0 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97137-009-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9611-9711 ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9712- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9611-9711 ● ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ● ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9611-9711 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ●
13 02.100 BOLT; BRKT
09.171 M8X90 FLANGE 		0-28080-890-0 02 1 9712- ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9611- ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
16 02.277 BOLT; GEN
(A) 		0-28081-090-0 01 1 9712- ●
16 02.277 BOLT; GEN
04.686 (B) 		0-28680-830-0 01 1 9712- ●
19 02.277 BRACKET; GEN 8-97160-604-1 01 1 9712- ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9611- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
21 02.277 BRACKET; GEN 8-97160-605-1 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9611-9611 ● ● ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ● ●
24 02.277 BOLT; GEN BRKT
HIGHLAND ZONE PACKAGE<7EG> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
EXC. HIGHLAND ZONE PACKAGE<7EG> 03.417 M10X100 		0-10806-000-0 01 1 9612- ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9611-9611 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9612-9711 ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9612-9711 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ● ●
83 01.150 THERMOMETER UNIT
HIGHLAND ZONE PACKAGE<7EG> DENSO 		8-94247-437-1 01 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
260 01.150 SENSOR; WATER TEMP
ELECTRIC FUEL INJECTION<6GG> 03.682 		8-94205-866-0 01 1 9611- ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9712- ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
