Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#47942) — 341 parça

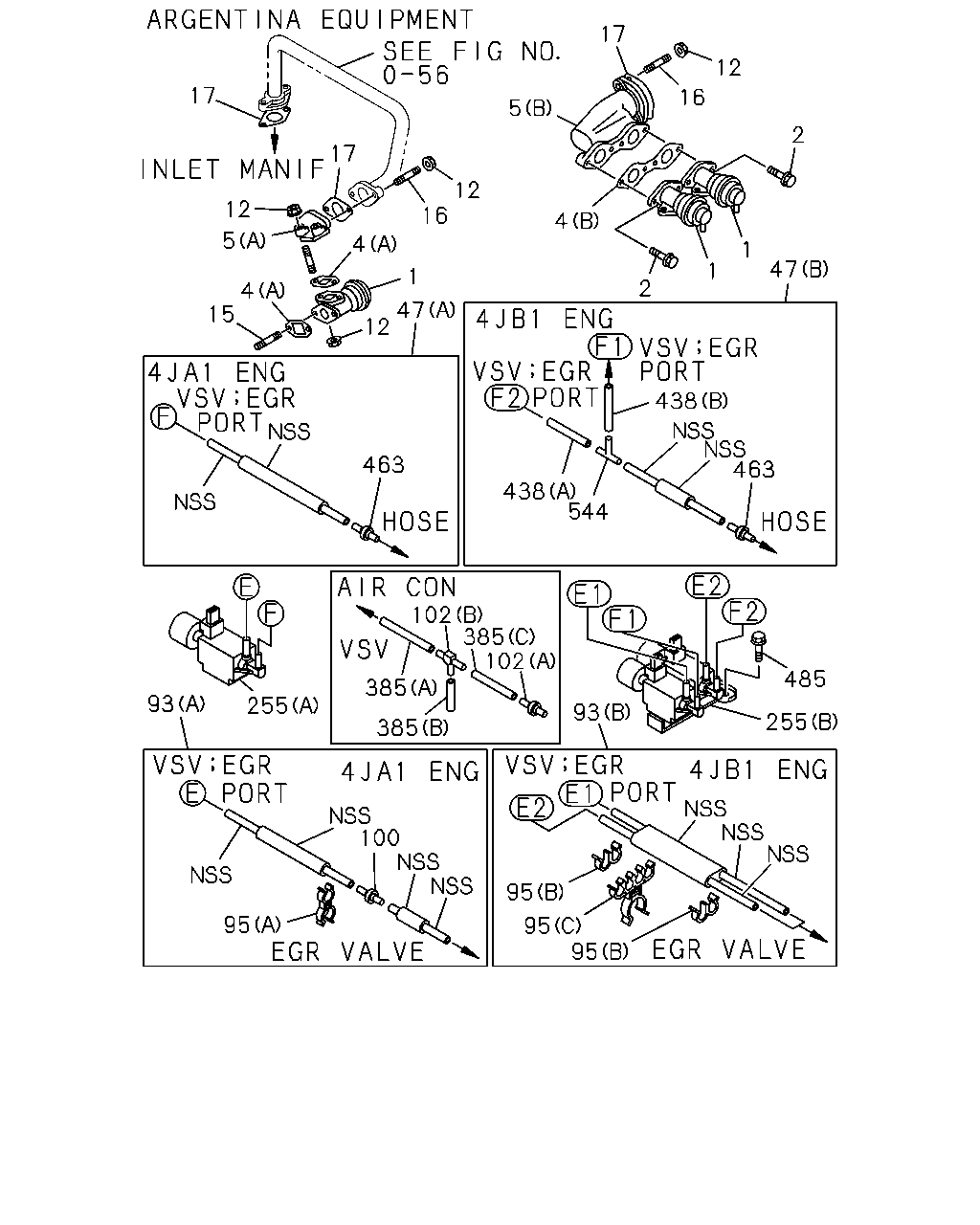

17 12 16 17 5 2 17 12 16 12 5 4 4 1 47 12 1 47 1 2 4 15 438 463 463 438 544 102 385 102 485 385 93 255 93 255 385 100 95 95 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94122-478-0	01	1	9611-	●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9611-9611	●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9612-	●
1	03.670 VALVE; EGR CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94248-646-0	01	1	9612-		●
1	03.670 VALVE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97132-802-2	01	1	9712-			●
1	03.670 VALVE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97132-802-2	02	1	9712-			●
2	03.670 BOLT; EGR VLV EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9611-9611	●
2	03.670 BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-			●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-9611	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9612-	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94324-191-0	01	1	9612-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-					●
5	03.670 ADAPTER ASM CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.671	8-94155-915-0	01	1	9611-	●
5	03.670 ADAPTER ASM SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 03.671	8-94150-147-0	01	1	9611-9611	●
5	03.670 ADAPTER ASM SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 03.671	8-94150-147-0	01	1	9612-	●
5	03.670 ADAPTER ASM CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG> 03.671	8-94150-147-0	01	1	9612-		●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (A)	8-97136-007-0	01	1	9712-			●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (B)	8-97117-260-0	01	1	9712-			●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (B)	8-97117-259-0	01	1	9712-				●
12	03.671 NUT; EGR VLV ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	04	1	9712-			●	●
15	03.670 STUD; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-			●	●
16	03.275 STUD; EGR VLV ARGENTINA EQUIPMENT(7SZ) 03.613 M8X45 L=57	8-94105-162-1	04	1	9712-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97061-325-0	01	1	9612-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ)	8-94340-670-0	02	1	9712-			●	●
47	03.675 HOSE; VAC,VSV ARGENTINA EQUIPMENT(7SZ) (A)	8-97188-139-0	01	1	9712-			●
47	03.675 HOSE; VAC,VSV ARGENTINA EQUIPMENT(7SZ) (B)	8-97188-118-0	01	1	9712-				●
93	03.675 HOSE ASM ARGENTINA EQUIPMENT(7SZ) (A)	8-97164-874-0	01	1	9712-			●
93	03.675 HOSE ASM ARGENTINA EQUIPMENT(7SZ) (B)	8-97109-017-0	01	1	9712-				●
95	03.680 CLIP; HOSE ARGENTINA EQUIPMENT(7SZ) 03.162 (A) ID=13.2 & 7.5	8-94315-426-0	01	1	9712-			●
95	03.680 CLIP; HOSE ARGENTINA EQUIPMENT(7SZ) 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	9712-				●
95	03.680 CLIP; HOSE ARGENTINA EQUIPMENT(7SZ) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9712-				●
100	03.680 JOINT; HOSE ARGENTINA EQUIPMENT(7SZ) 2WAY	8-97165-694-0	01	1	9712-			●
102	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) (B) 3WAY	8-94208-695-0	01	1	9712-			●	●
102	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) (A) 2WAY	8-94313-805-0	01	1	9712-			●	●
255	03.675 VALVE; VAC SW,EGR CONT ARGENTINA EQUIPMENT(7SZ) 03.670 (A)	8-97043-750-0	01	1	9712-			●
255	03.675 VALVE; VAC SW,EGR CONT ARGENTINA EQUIPMENT(7SZ) 03.670 (B)	8-94340-699-0	01	1	9712-				●
385	03.675 HOSE; CONNECTOR TO VAC SW & PRES AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) (A)	0-04930-300-0	01	1	9712-			●	●
385	03.675 HOSE; CONNECTOR TO VAC SW & PRES AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) (B)	0-04930-300-0	01	1	9712-			●	●
385	03.675 HOSE; CONNECTOR TO VAC SW & PRES AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) (C)	0-04930-300-0	01	1	9712-			●	●
438	03.675 HOSE; RUBBER,VSV,EGR ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=70 SERVICED BY L=3000	0-04840-300-0	01	1	9712-				●
438	03.675 HOSE; RUBBER,VSV,EGR ARGENTINA EQUIPMENT(7SZ) (B) L=50 SERVICED BY L=3000	0-04841-300-0	01	1	9712-				●
463	03.680 JOINT; RUBBER HOSE ARGENTINA EQUIPMENT(7SZ) 2WAY	8-97165-694-0	01	1	9712-			●	●
485	03.671 BOLT; VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9612	●
485	03.671 BOLT; VSV CATALYSIS CONTROL<6MZ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9612	●
485	03.671 BOLT; VSV ARGENTINA EQUIPMENT(7SZ) 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9803-			●
485	03.671 BOLT; VSV ARGENTINA EQUIPMENT(7SZ) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-				●
544	03.680 JOINT; 3 WAY ARGENTINA EQUIPMENT(7SZ) 3WAY	8-94208-695-0	01	1	9712-				●

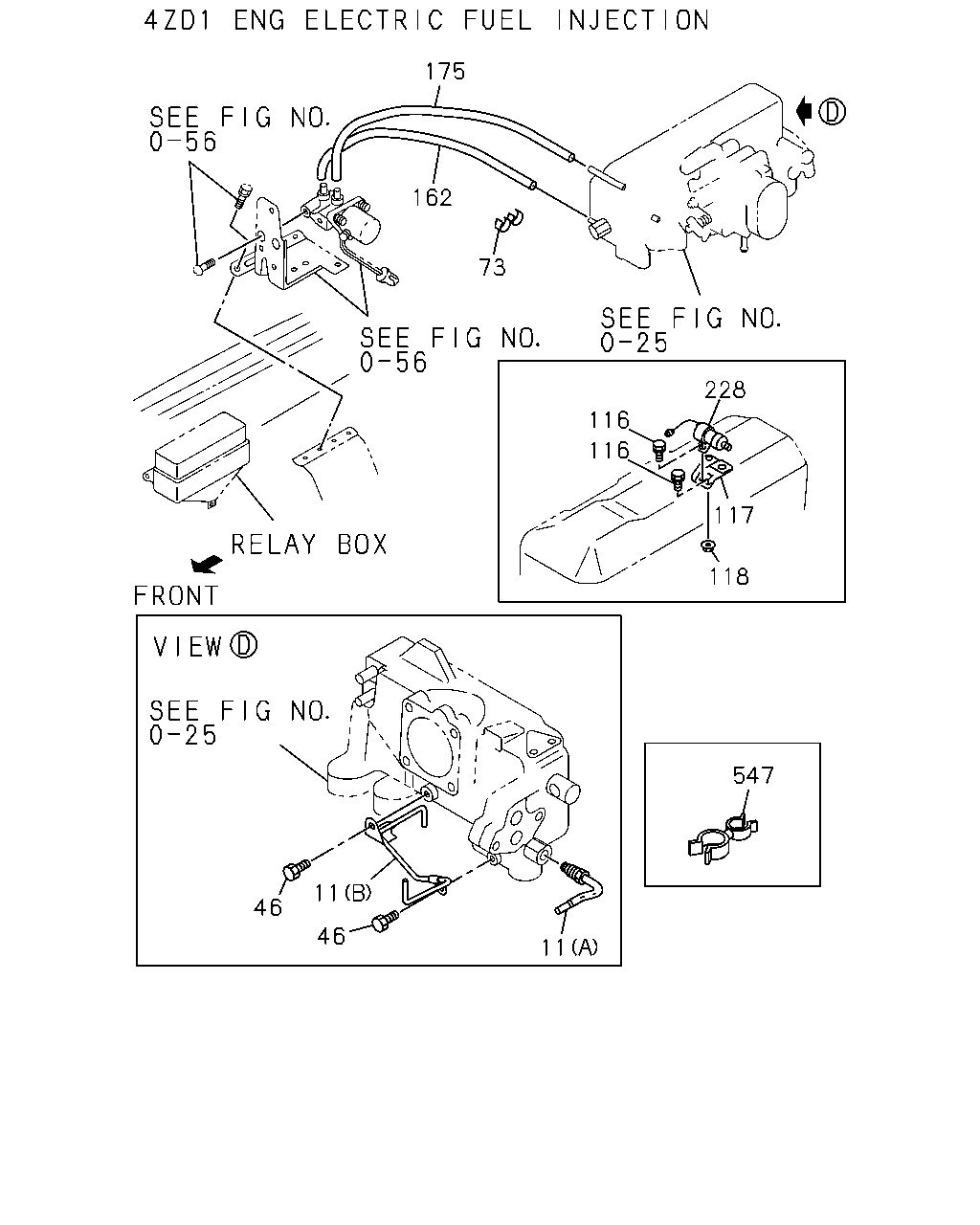

175 162 73 228 116 116 117 118 547 11 46 46 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	F
11	03.675 PIPE ASM; BPT SIGNAL CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.670	8-94153-177-0	01	1	9611-	●
11	03.675 PIPE ASM; BPT SIGNAL COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> (A)	8-94478-215-1	01	1	9611-9702	●
11	03.675 PIPE ASM; BPT SIGNAL COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> (B)	8-97062-072-1	01	1	9611-9702	●
46	03.680 BOLT; VAC PIPE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9611-9702	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> ID=11.8X2	8-94126-078-0	01	1	9611-	●
116	03.444 BOLT; BRKT,FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M8X14 W/LK WASHERT	8-94208-228-0	02	1	9611-	●	●	●
117	03.444 BRACKET; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94367-869-1	01	1	9611-	●	●	●
118	03.425 NUT; SOLENOID VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-	●	●	●
162	03.675 HOSE; FAST IDLE TO COMMON CHAMBE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	9611-	●
175	03.675 HOSE; RUBBER,FAST IDLE TO PIPE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	9611-	●
228	03.440 VALVE; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	5-81910-005-0	01	1	9611-	●	●	●
547	03.675 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 04.104 ID=12 & 16.5	8-94400-865-0	01	1	9611-	●

88 638 86 98 89 87 82 86 86 82 89 89 485 166 166 615 71 166 85 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

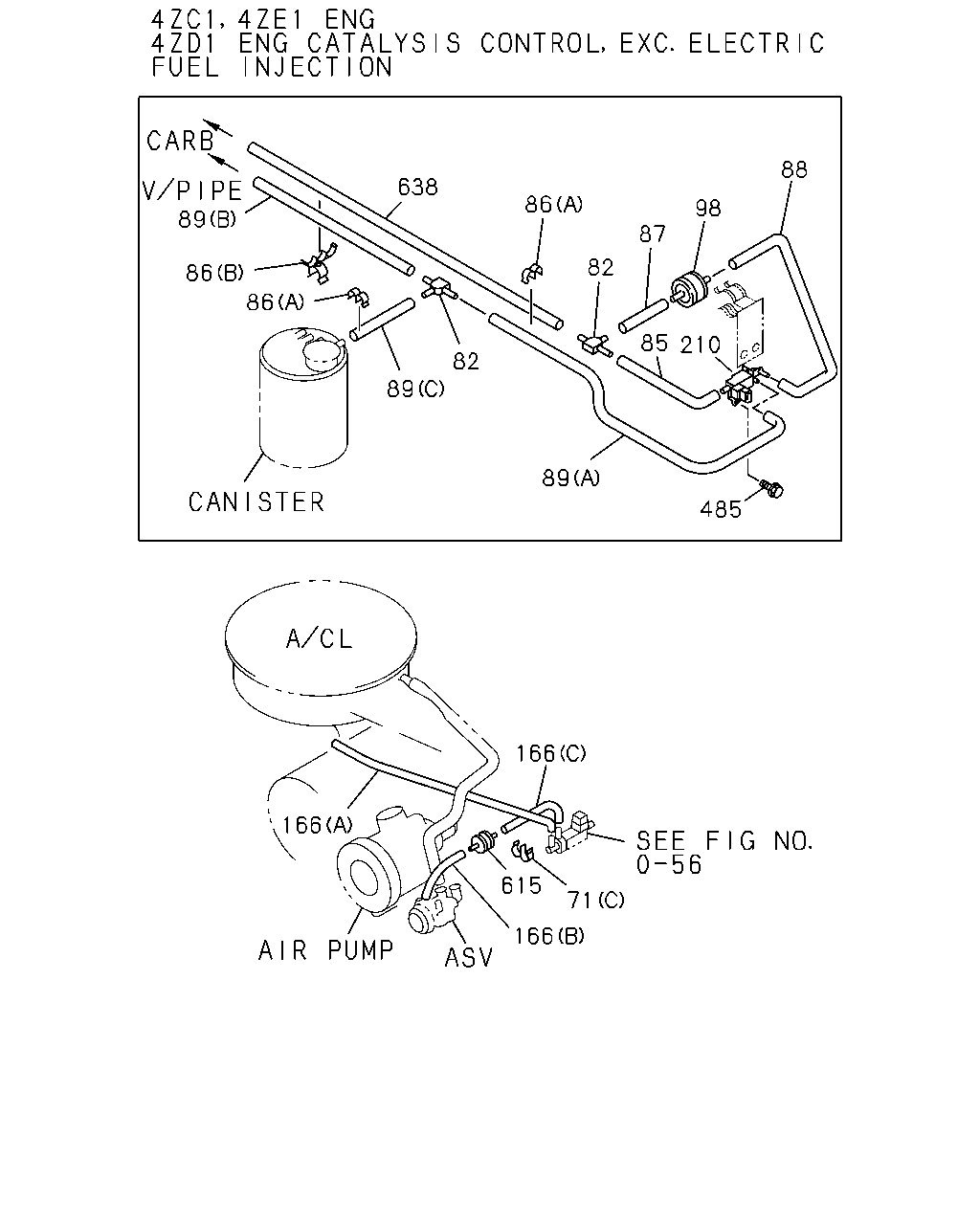

71	03.680 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-		●
71	03.680 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 (E) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHINA CHONGQING EQUIPMENT(R5B) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9611-9708			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9709-9711			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9712-9801			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9802-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9712-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9712-			●	●
82	03.680 JOINT; 3 WAY CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 3WAY	8-94165-537-0	02	1	9611-9612	●
82	03.680 JOINT; 3 WAY CATALYSIS CONTROL<6MZ> 3WAY	8-94165-537-0	02	1	9611-9612	●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	9712-					●
85	03.675 HOSE; JOINT TO VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
85	03.675 HOSE; JOINT TO VSV CATALYSIS CONTROL<6MZ> 08.962 L=80 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
86	03.675 CLIP CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9611-9612	●
86	03.675 CLIP CATALYSIS CONTROL<6MZ> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9611-9612	●
86	03.675 CLIP CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 (B) ID=6.8X3 & 12.8	8-94208-735-0	01	1	9611-9612	●
86	03.675 CLIP CATALYSIS CONTROL<6MZ> 03.680 (B) ID=6.8X3 & 12.8	8-94208-735-0	01	1	9611-9612	●
87	03.675 HOSE; JOINT TO VLV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=100 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
87	03.675 HOSE; JOINT TO VLV CATALYSIS CONTROL<6MZ> 08.962 L=100 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
88	03.675 HOSE; VLV TO VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
88	03.675 HOSE; VLV TO VSV CATALYSIS CONTROL<6MZ> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CATALYSIS CONTROL<6MZ> 08.962 (A) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (B) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CATALYSIS CONTROL<6MZ> 08.962 (B) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (C) L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9611-9612	●
89	03.675 HOSE; CARB TO VSV CATALYSIS CONTROL<6MZ> 08.962 (C) L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9611-9612	●
98	03.670 VALVE; DELAY CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94429-763-0	01	1	9611-9612	●
98	03.670 VALVE; DELAY CATALYSIS CONTROL<6MZ>	8-94429-763-0	01	1	9611-9612	●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=470 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (A) L=470 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=470 SERVICED BY L=3000	0-04740-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (A) L=470 SERVICED BY L=3000	0-04740-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.962 (A) L=470 SERVICED BY L=3000	0-04740-300-0	01	1	9612-		●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (C) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (C) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (C) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (C) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.962 (C) L=220 SERVICED BY L=3000	0-04740-300-0	01	1	9612-		●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9611-9611	●
166	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CATALYSIS CONTROL<6MZ> 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9612-	●
166	03.675 HOSE; RUBBER CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9612-		●
210	03.670 VALVE; VAC SWITCHING,IGN CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94459-952-0	01	1	9611-9612	●
210	03.670 VALVE; VAC SWITCHING,IGN CATALYSIS CONTROL<6MZ>	8-94459-952-0	01	1	9611-9612	●
485	03.671 BOLT; VSV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9612	●
485	03.671 BOLT; VSV CATALYSIS CONTROL<6MZ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9612	●
485	03.671 BOLT; VSV ARGENTINA EQUIPMENT(7SZ) 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9803-			●
485	03.671 BOLT; VSV ARGENTINA EQUIPMENT(7SZ) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-				●
615	03.670 VALVE; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> DARK BLUE	8-94412-768-0	01	1	9611-9611	●
615	03.670 VALVE; RUBBER HOSE CATALYSIS CONTROL<6MZ> DARK BLUE	8-94412-768-0	01	1	9611-9611	●
615	03.670 VALVE; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> DARK BLUE	8-94412-768-0	01	1	9612-	●
615	03.670 VALVE; RUBBER HOSE CATALYSIS CONTROL<6MZ> DARK BLUE	8-94412-768-0	01	1	9612-	●
615	03.670 VALVE; RUBBER HOSE CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) DARK BLUE	8-94412-768-0	01	1	9612-		●
638	03.675 HOSE; CARB TO JOINT CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
638	03.675 HOSE; CARB TO JOINT CATALYSIS CONTROL<6MZ> 08.962 L=250 SERVICED BY L=3000	0-04740-300-0	01	1	9611-9612	●
638	03.675 HOSE; CARB TO JOINT EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=150 SERVICED BY L=3000	0-04742-300-0	01	1	9712-	●
638	03.675 HOSE; CARB TO JOINT EXC. HIGHLAND ZONE PACKAGE<7EG> 08.962 L=150 SERVICED BY L=3000	0-04742-300-0	01	1	9712-		●
638	03.675 HOSE; CARB TO JOINT HIGHLAND ZONE PACKAGE<7EG> 03.726	8-94372-343-1	01	1	9712-		●

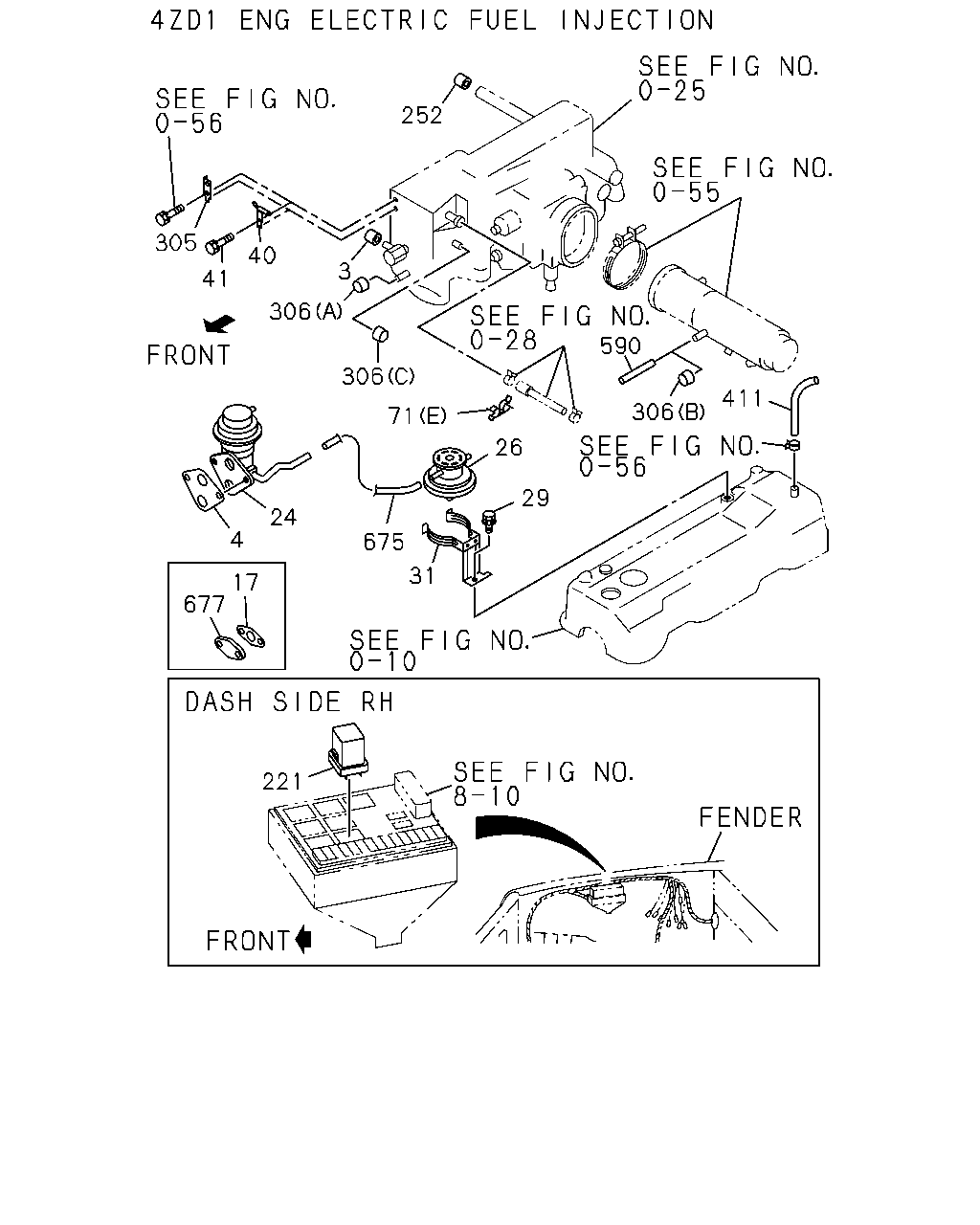

252 305 40 3 41 306 590 306 411 306 71 26 29 24 4 675 31 17 677 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.680 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.762 ID=6	8-94203-788-1	01	1	9611-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-9611	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9612-	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94324-191-0	01	1	9612-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97061-325-0	01	1	9612-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ)	8-94340-670-0	02	1	9712-			●	●
24	03.670 VALVE; THERMAL VAC,EGR COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 03.681	8-94213-554-0	01	1	9611-9702	●
26	03.670 TRANSDUCER; BACK PRESSURE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94414-615-0	01	1	9611-	●
26	03.670 TRANSDUCER; BACK PRESSURE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-94213-572-0	01	1	9611-9702	●
29	03.444 BOLT; BPT BRKT CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> M8X14 W/LK WASHERT	8-94208-228-0	01	1	9611-	●
29	03.444 BOLT; BPT BRKT COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9702	●
31	03.680 BRACKET; BPT COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-94457-982-0	01	1	9611-9702	●
40	03.675 PIPE; FAST IDLE SULENOID ELECTRIC FUEL INJECTION<6GG>	8-94317-723-2	01	1	9611-	●
41	03.675 BOLT; FISD PIPE ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-	●
71	03.680 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-		●
71	03.680 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 (E) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHINA CHONGQING EQUIPMENT(R5B) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9611-9708			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9709-9711			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9712-9801			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9802-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9712-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9712-			●	●
221	03.670 RELAY; MAIN ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A	8-97060-926-1	01	1	9611-	●	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9712-					●
252	03.670 CAP; RUBBER,EGR VLV ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9611-	●
305	03.675 BRACKET; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG>	8-97084-971-2	01	1	9611-	●
306	03.672 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 (A) ID=4	8-94217-809-0	01	1	9611-	●
306	03.672 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.407 (B) ID=12	8-94173-731-0	01	1	9611-	●
306	03.672 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.762 (C) ID=6	8-94203-788-1	01	1	9611-	●
411	03.417 HOSE; RUBBER,CYL HD COVER ELECTRIC FUEL INJECTION<6GG>	8-94344-593-0	01	1	9611-	●
590	03.675 HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 03.417 L=320 SERVICED BY L=3000	0-04710-300-0	01	1	9701-	●
675	03.675 HOSE; EPT TO EGR VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
675	03.675 HOSE; EPT TO EGR VLV COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9702	●
677	03.680 PLATE; DUCT ELECTRIC FUEL INJECTION<6GG>	8-97113-595-0	01	1	9611-	●

164 165 164 45 7 548 20 548 5 143 548 13 9 58 549 208 25 29 193 17 169 26 28 675 145 4 1 145 11 145 2 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94122-478-0	01	1	9611-	●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9611-9611	●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9612-	●
1	03.670 VALVE; EGR CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94248-646-0	01	1	9612-		●
1	03.670 VALVE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97132-802-2	01	1	9712-			●
1	03.670 VALVE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97132-802-2	02	1	9712-			●
2	03.670 BOLT; EGR VLV EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9611-9611	●
2	03.670 BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-			●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-9611	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9612-	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94324-191-0	01	1	9612-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-					●
5	03.670 ADAPTER ASM CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.671	8-94155-915-0	01	1	9611-	●
5	03.670 ADAPTER ASM SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 03.671	8-94150-147-0	01	1	9611-9611	●
5	03.670 ADAPTER ASM SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 03.671	8-94150-147-0	01	1	9612-	●
5	03.670 ADAPTER ASM CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG> 03.671	8-94150-147-0	01	1	9612-		●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (A)	8-97136-007-0	01	1	9712-			●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (B)	8-97117-260-0	01	1	9712-			●
5	03.670 ADAPTER ASM ARGENTINA EQUIPMENT(7SZ) (B)	8-97117-259-0	01	1	9712-				●
7	03.670 GASKET; ADAPTER EXC. ELECTRIC FUEL INJECTION<6GG>	8-94324-192-0	01	1	9611-9611	●
7	03.670 GASKET; ADAPTER SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94324-192-0	01	1	9612-	●
7	03.670 GASKET; ADAPTER CATALYSIS CONTROL<6MZ>	8-94324-192-0	01	1	9612-	●
7	03.670 GASKET; ADAPTER EXC. HIGHLAND ZONE PACKAGE<7EG>	8-94324-192-0	01	1	9612-		●
9	03.670 NUT; EGR ADAPTER EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-9611	●
9	03.670 NUT; EGR ADAPTER SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE	5-09440-005-0	02	1	9612-	●
9	03.670 NUT; EGR ADAPTER CATALYSIS CONTROL<6MZ> 00.854 M8 FLANGE	5-09440-005-0	02	1	9612-	●
9	03.670 NUT; EGR ADAPTER EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 M8 FLANGE	5-09440-005-0	02	1	9612-		●
11	03.675 PIPE ASM; BPT SIGNAL CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.670	8-94153-177-0	01	1	9611-	●
11	03.675 PIPE ASM; BPT SIGNAL COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> (A)	8-94478-215-1	01	1	9611-9702	●
11	03.675 PIPE ASM; BPT SIGNAL COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> (B)	8-97062-072-1	01	1	9611-9702	●
13	03.675 ORIFICE; ADAPTER CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94217-311-0	01	1	9611-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9611-9611	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9612-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97061-325-0	01	1	9612-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ)	8-94340-670-0	02	1	9712-			●	●
20	01.780 CAP; RUBBER ID=4	8-94217-809-0	01	1	9611-9611		●				●
20	01.780 CAP; RUBBER COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> ID=4	8-94217-809-0	01	1	9611-9611	●
20	01.780 CAP; RUBBER EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=4	8-94217-809-0	01	1	9611-9611	●
20	01.780 CAP; RUBBER ID=4	8-94217-809-0	01	1	9612-						●
20	01.780 CAP; RUBBER COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> ID=4	8-94217-809-0	01	1	9612-	●
20	01.780 CAP; RUBBER EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=4	8-94217-809-0	01	1	9612-	●
20	01.780 CAP; RUBBER HIGHLAND ZONE PACKAGE<7EG> ID=4	8-94217-809-0	01	1	9612-		●
20	01.780 CAP; RUBBER COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> 03.672 ID=5.4	8-94156-209-0	01	1	9611-	●
25	03.670 VALVE; THERMAL VAC EXC. ELECTRIC FUEL INJECTION<6GG> 03.681	8-94213-554-0	01	1	9611-9611	●
25	03.670 VALVE; THERMAL VAC SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.681	8-94213-554-0	01	1	9612-	●
25	03.670 VALVE; THERMAL VAC CATALYSIS CONTROL<6MZ> 03.681	8-94213-554-0	01	1	9612-	●
25	03.670 VALVE; THERMAL VAC EXC. HIGHLAND ZONE PACKAGE<7EG> 03.681	8-94213-554-0	01	1	9612-		●
26	03.670 TRANSDUCER; BACK PRESSURE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94414-615-0	01	1	9611-	●
26	03.670 TRANSDUCER; BACK PRESSURE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-94213-572-0	01	1	9611-9702	●
28	03.680 BRACKET; TRANSDUCER CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94174-510-1	01	1	9611-	●
29	03.444 BOLT; BPT BRKT CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> M8X14 W/LK WASHERT	8-94208-228-0	01	1	9611-	●
29	03.444 BOLT; BPT BRKT COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9702	●
45	09.173 STUD; ADAPTER,EGR EXC. ELECTRIC FUEL INJECTION<6GG> M8X22 L=34	9-04110-822-0	02	1	9611-9611	●
45	09.173 STUD; ADAPTER,EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> M8X22 L=34	9-04110-822-0	02	1	9612-	●
45	09.173 STUD; ADAPTER,EGR CATALYSIS CONTROL<6MZ> M8X22 L=34	9-04110-822-0	02	1	9612-	●
45	09.173 STUD; ADAPTER,EGR EXC. HIGHLAND ZONE PACKAGE<7EG> M8X22 L=34	9-04110-822-0	02	1	9612-		●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●
58	03.417 BOLT; PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●
143	03.675 CLIP; RUBBER HOSE COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97039-184-0	01	1	9611-	●
145	03.670 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.671 (B) ID=6.8 & 6.8	8-94208-733-0	01	1	9611-	●
145	03.670 CLIP; RUBBER HOSE EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9611-9611	●
145	03.670 CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9612-	●
145	03.670 CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9612-	●
145	03.670 CLIP; RUBBER HOSE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9612-		●
145	03.670 CLIP; RUBBER HOSE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.680 (C) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9612-		●
164	03.675 HOSE; RUBBER CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9611-	●
165	03.680 JOINT; HOSE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 3WAY	8-94165-537-0	01	1	9611-	●
169	03.675 HOSE; RUBBER,CARB TO BPT CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=240 SERVICED BY L=3000	0-04744-300-0	01	1	9611-	●
193	03.675 HOSE; TVV TO EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9611-9611	●
193	03.675 HOSE; TVV TO EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9612-9709	●
193	03.675 HOSE; TVV TO EGR VLV CHINA CHONGQING EQUIPMENT(R5B) 08.962 L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9612-9709		●
193	03.675 HOSE; TVV TO EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9710-	●
193	03.675 HOSE; TVV TO EGR VLV CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG> 08.962 L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9710-		●
208	03.680 JOINT; 3 WAY,VCV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 3WAY	8-94165-537-0	01	1	9611-	●
548	03.675 HOSE; RUBBER,VENT VLV COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=110 SERVICED BY L=3000	0-04750-300-0	01	1	9611-	●
548	03.675 HOSE; RUBBER,VENT VLV COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> (B)	8-97038-817-0	01	1	9611-	●
548	03.675 HOSE; RUBBER,VENT VLV COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> (C)	8-97038-818-0	01	1	9611-	●
548	03.675 HOSE; RUBBER,VENT VLV COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (D) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
549	03.675 JOINT; RUBBER HOSE COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97043-531-0	01	1	9611-	●
675	03.675 HOSE; EPT TO EGR VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
675	03.675 HOSE; EPT TO EGR VLV COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9702	●

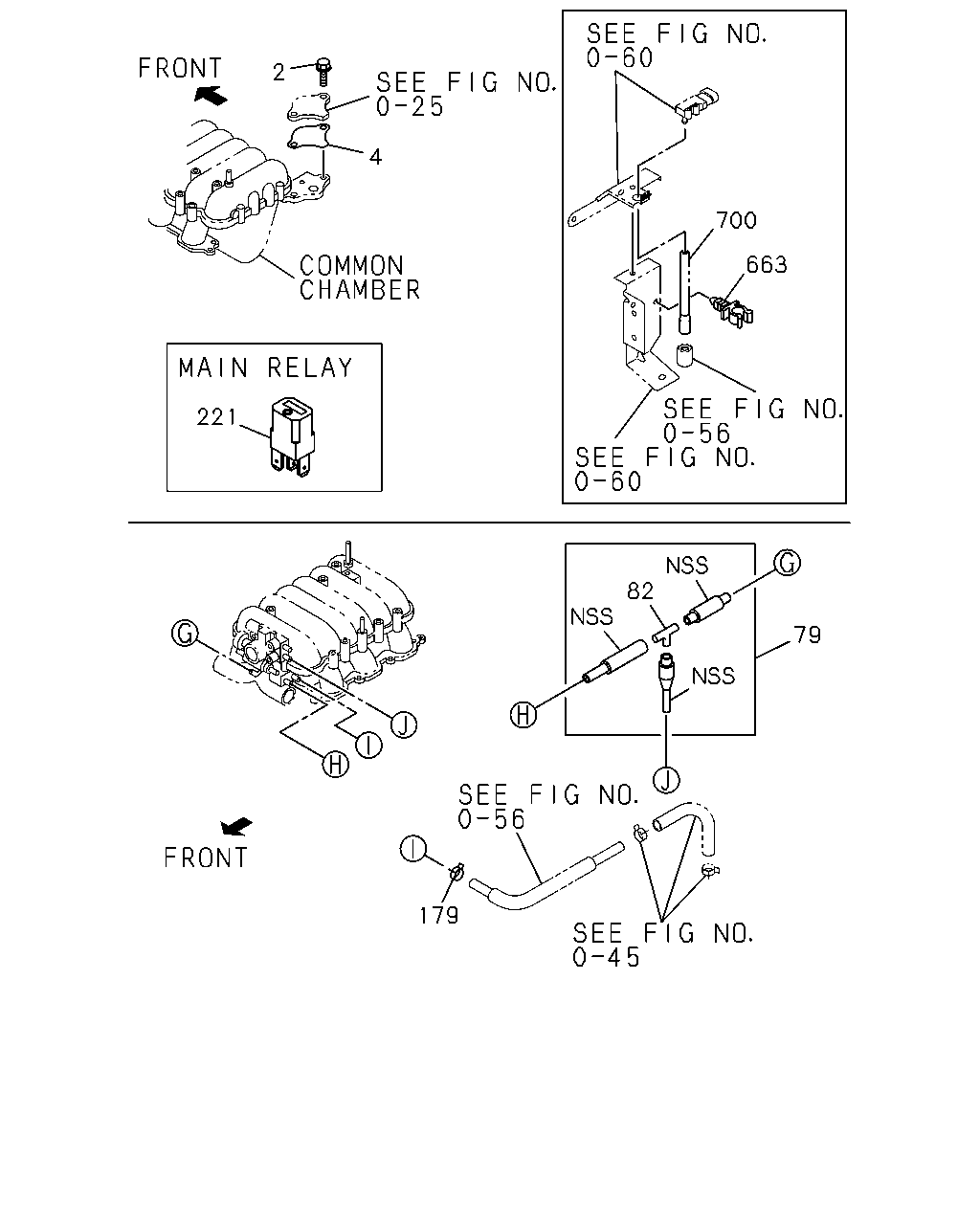

663 221 82 179 2 4 700 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.670 BOLT; EGR VLV EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9611-9611	●
2	03.670 BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9612-	●
2	03.670 BOLT; EGR VLV ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-			●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9611-9611	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-191-0	01	1	9612-	●					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG>	8-94324-191-0	01	1	9612-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9712-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-1	01	1	9712-					●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI	8-97136-220-0	01	1	9712-					●
82	03.680 JOINT; 3 WAY CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 3WAY	8-94165-537-0	02	1	9611-9612	●
82	03.680 JOINT; 3 WAY CATALYSIS CONTROL<6MZ> 3WAY	8-94165-537-0	02	1	9611-9612	●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	9712-					●
179	03.675 CLIP; PIPE CLAMP 03.163 ID=11	8-94238-570-0	01	1	9712-					●
221	03.670 RELAY; MAIN ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A	8-97060-926-1	01	1	9611-	●	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9712-					●
663	03.417 CLIP; HOSE 03.003	8-97022-315-0	01	1	9712-					●
700	03.675 HOSE; SENSOR TO FILTER L=130	8-97144-592-0	01	1	9712-					●

198 183 134 71 71 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
71	03.680 CLIP; RUBBER HOSE CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-	●
71	03.680 CLIP; RUBBER HOSE CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 03.162 (C) ID=6.8X2	8-94126-636-0	02	1	9612-		●
71	03.680 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 (E) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHINA CHONGQING EQUIPMENT(R5B) 09.663 (A) ID=15	1-09709-003-0	02	1	9611-				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9611-9708			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9709-9711			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9712-9801			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.2 & 10	5-09707-056-0	03	1	9802-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9712-			●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711			●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9611-9711				●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=8	8-94154-795-0	01	1	9712-			●	●
134	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9611-9711			●
134	03.671 BOLT; VSV LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9611-9711				●
134	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9712-			●	●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.680 L=300 SERVICED BY L=3000	0-04733-300-0	01	1	9611-9711			●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.680 L=300 SERVICED BY L=3000	0-04733-300-0	01	1	9611-9711				●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ARGENTINA EQUIPMENT(7SZ) 03.680 L=300 SERVICED BY L=3000	0-04733-300-0	01	1	9712-			●	●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.962 L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9611-9711			●
198	03.675 HOSE; VAC,VSV LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.962 L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9611-9711				●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.962 L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9712-			●	●

226 228 213 133 116 116 262 177 157 205 117 118 265 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	F
116	03.444 BOLT; BRKT,FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M8X14 W/LK WASHERT	8-94208-228-0	02	1	9611-	●	●	●
117	03.444 BRACKET; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94367-869-1	01	1	9611-	●	●	●
118	03.425 NUT; SOLENOID VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-	●	●	●
133	03.417 BOLT; VAC SWITCH EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9611-9612		●
133	03.417 BOLT; VAC SWITCH EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9701-9711		●
133	03.417 BOLT; VAC SWITCH EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
157	03.130 FILTER; GAS EXC. ELECTRIC FUEL INJECTION<6GG>	8-94236-909-0	01	1	9611-	●
177	03.675 HOSE; RUBBER,GAS FILTER EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=40 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
205	03.675 HOSE; VSV TO 3 WAY CONN EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=230 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
205	03.675 HOSE; VSV TO 3 WAY CONN 08.962 L=170 SERVICED BY L=3000	0-04742-300-0	01	1	9611-9611		●
205	03.675 HOSE; VSV TO 3 WAY CONN HIGHLAND ZONE PACKAGE<7EG> 08.962 L=170 SERVICED BY L=3000	0-04742-300-0	01	1	9612-		●
213	03.675 PIPE; ABV SIGNAL EXC. ELECTRIC FUEL INJECTION<6GG> 10.230	8-94344-984-1	01	1	9611-9611	●
213	03.675 PIPE; ABV SIGNAL SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 10.230	8-94344-984-1	01	1	9612-	●
213	03.675 PIPE; ABV SIGNAL CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 10.230	8-94344-984-1	01	1	9612-	●
219	03.670 RELAY; FUEL EVAP HTR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A	8-97060-926-1	01	1	9611-	●
219	03.670 RELAY; FUEL EVAP HTR CATALYSIS CONTROL<6MZ> 08.852 12V 20A	8-97060-926-1	01	1	9611-	●
226	03.670 SWITCH; VAC,EMISSION CONT EXC. ELECTRIC FUEL INJECTION<6GG>	8-97022-879-0	01	1	9611-9612		●
226	03.670 SWITCH; VAC,EMISSION CONT EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>	8-97022-879-0	01	1	9701-		●
228	03.440 VALVE; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	5-81910-005-0	01	1	9611-	●	●	●
262	03.675 BRACKET; VAC SWITCH CONNECTOR EXC. ELECTRIC FUEL INJECTION<6GG>	8-94372-006-0	01	1	9611-9612		●
262	03.675 BRACKET; VAC SWITCH CONNECTOR EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>	8-94372-006-0	01	1	9701-		●
265	03.671 BOLT; ENG SPD SENSOR EXC. ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711	●	●	●
265	03.671 BOLT; ENG SPD SENSOR EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
