Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#47941) — 186 parça

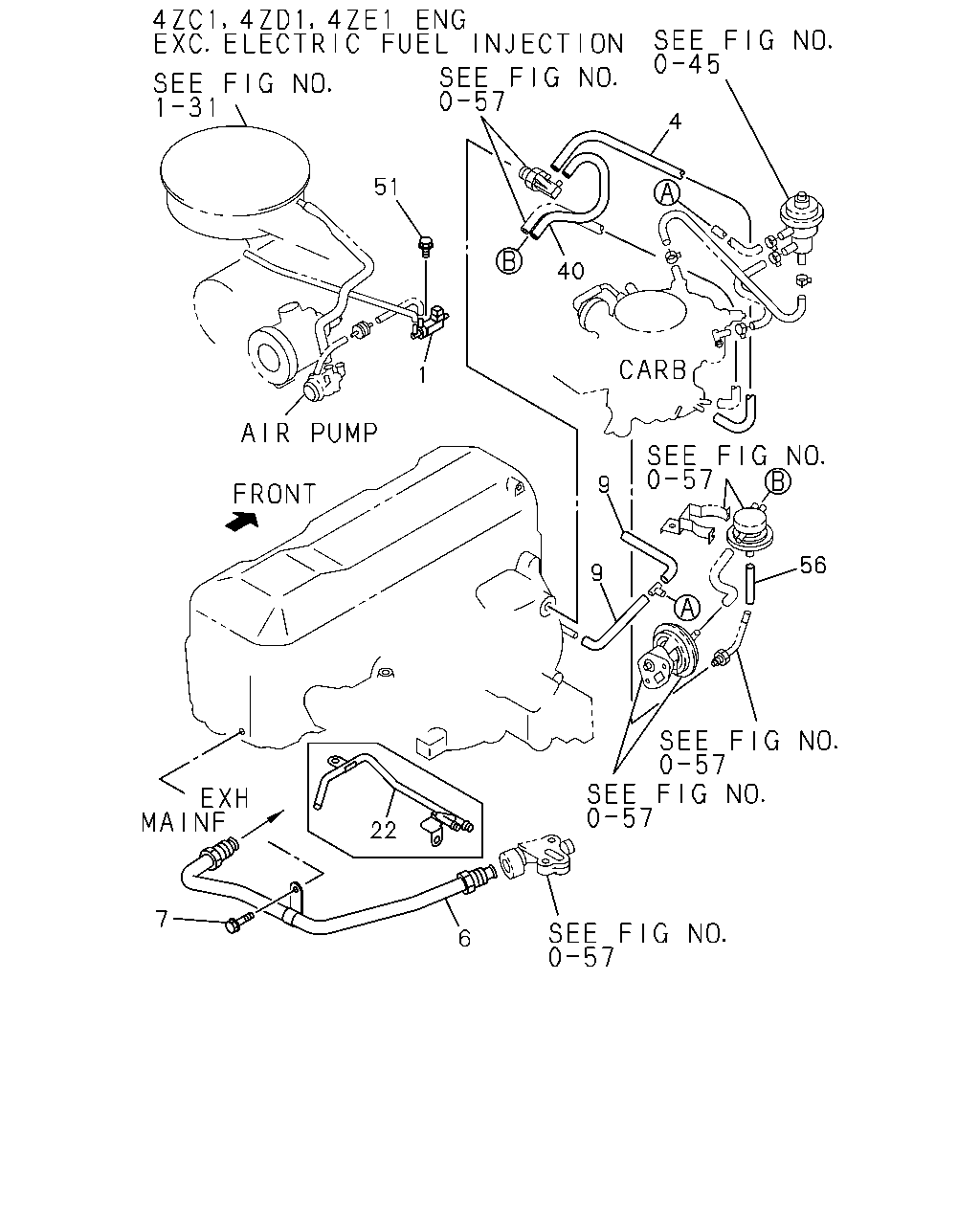

4 51 40 1 9 56 9 22 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; VAC SW,EGR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94459-951-0	01	1	9611-	●
1	03.670 VALVE; VAC SW,EGR CATALYSIS CONTROL<6MZ>	8-94459-951-0	01	1	9611-	●
1	03.670 VALVE; VAC SW,EGR CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94459-951-0	01	1	9611-		●
4	03.675 HOSE; CARB TO TVV CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=280 SERVICED BY L=3000	0-04741-300-0	01	1	9611-	●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9611-9611	●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9612-9709	●
4	03.675 HOSE; CARB TO TVV CHINA CHONGQING EQUIPMENT(R5B) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9612-9709		●
4	03.675 HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9710-	●
4	03.675 HOSE; CARB TO TVV CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG>, HIGHLAND ZONE PACKAGE<7EG> 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9710-		●
6	03.675 PIPE; EGR CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9611-	●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-97048-790-1	01	1	9611-9702	●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97135-380-0	01	1	9612-		●
6	03.675 PIPE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9712-			●	●
7	03.670 BOLT; BRKT,EGR PIPE EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611	●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-9711	●
7	03.670 BOLT; BRKT,EGR PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-9711	●
7	03.670 BOLT; BRKT,EGR PIPE ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	9712-			●	●
9	03.675 HOSE; RUBBER,MCV,VAC CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=80 SERVICED BY L=3000	0-04740-300-0	02	1	9611-	●
9	03.675 HOSE; RUBBER,MCV,VAC SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
9	03.675 HOSE; RUBBER,MCV,VAC EXC. HIGHLAND ZONE PACKAGE<7EG> 08.962 L=400 SERVICED BY L=3000	0-04740-300-0	01	1	9612-9707		●
9	03.675 HOSE; RUBBER,MCV,VAC EXC. HIGHLAND ZONE PACKAGE<7EG> 08.962 L=250 SERVICED BY L=3000	0-04740-300-0	01	1	9708-		●
22	03.675 PIPE; VAC,AIR SWITCHING VLV EXC. HIGHLAND ZONE PACKAGE<7EG> 03.140	8-94159-231-1	01	1	9612-		●
40	03.675 HOSE; TVV TO BPT CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=100 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
51	03.671 BOLT; VAC SW CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-	●
51	03.671 BOLT; VAC SW CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-	●
51	03.671 BOLT; VAC SW CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-		●
56	03.675 HOSE; BPT TO SIGNAL PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 L=70	8-94155-948-0	01	1	9611-	●
56	03.675 HOSE; BPT TO SIGNAL PIPE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> L=400	8-94215-580-0	01	1	9611-9702	●

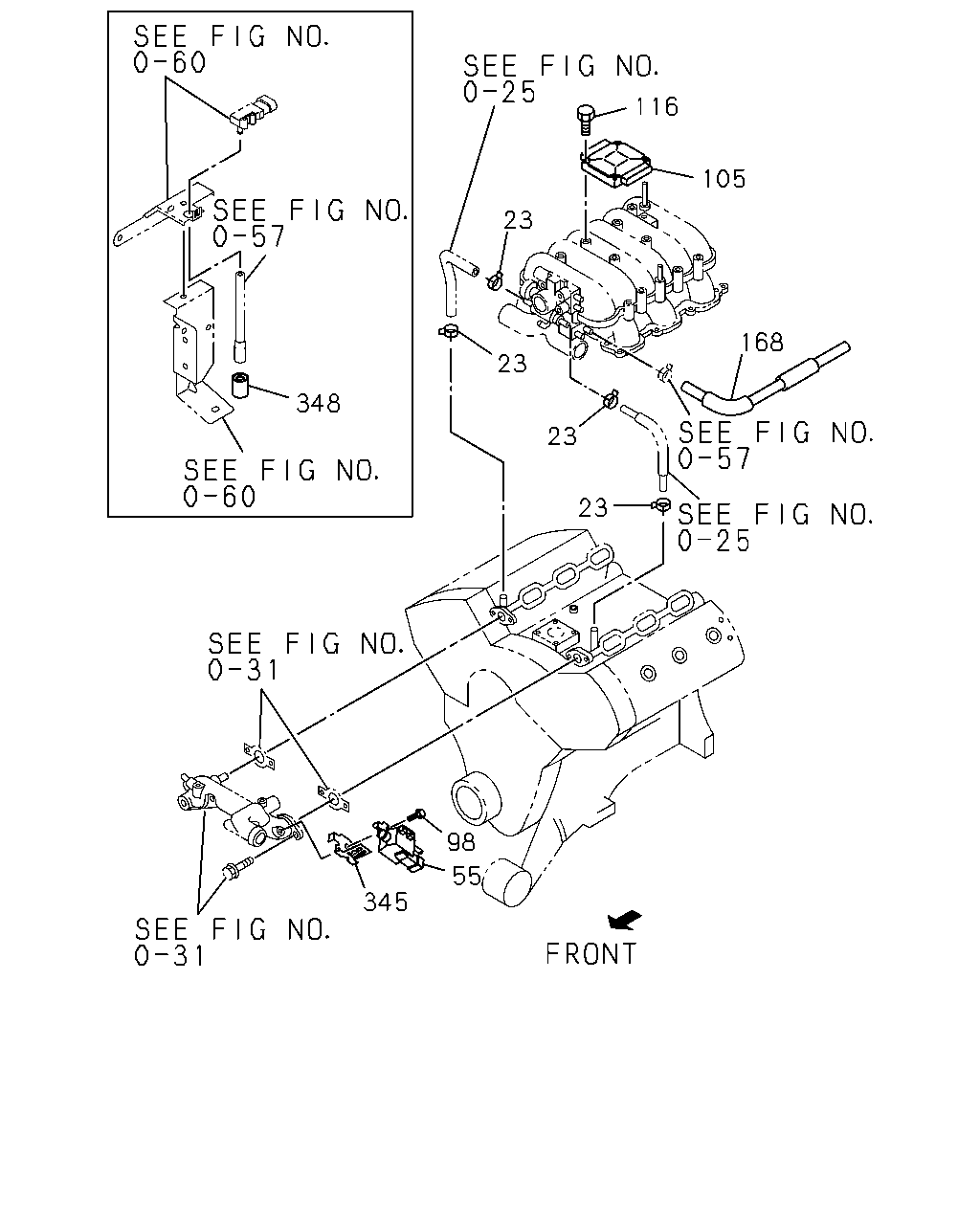

116 23 23 168 348 23 98 55 345 23 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-			●
55	03.670 SOLENOID; VAC CONT	8-01997-201-0	01	1	9712-			●
98	03.671 BOLT; SOLENOID 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-			●
105	03.415 CONTROLLER; MODULE,ENGINE ELECTRIC FUEL INJECTION<6GG>	8-97112-744-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-152-2	01	1	9712-			●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	02	1	9611-	●	●		●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9611-9612	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9701-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9712-			●
168	03.675 HOSE; RUBBER L=680	8-97145-369-3	01	1	9712-			●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	9712-			●
348	03.675 FILTER; SENSOR 06.061	8-97101-779-0	01	1	9712-			●

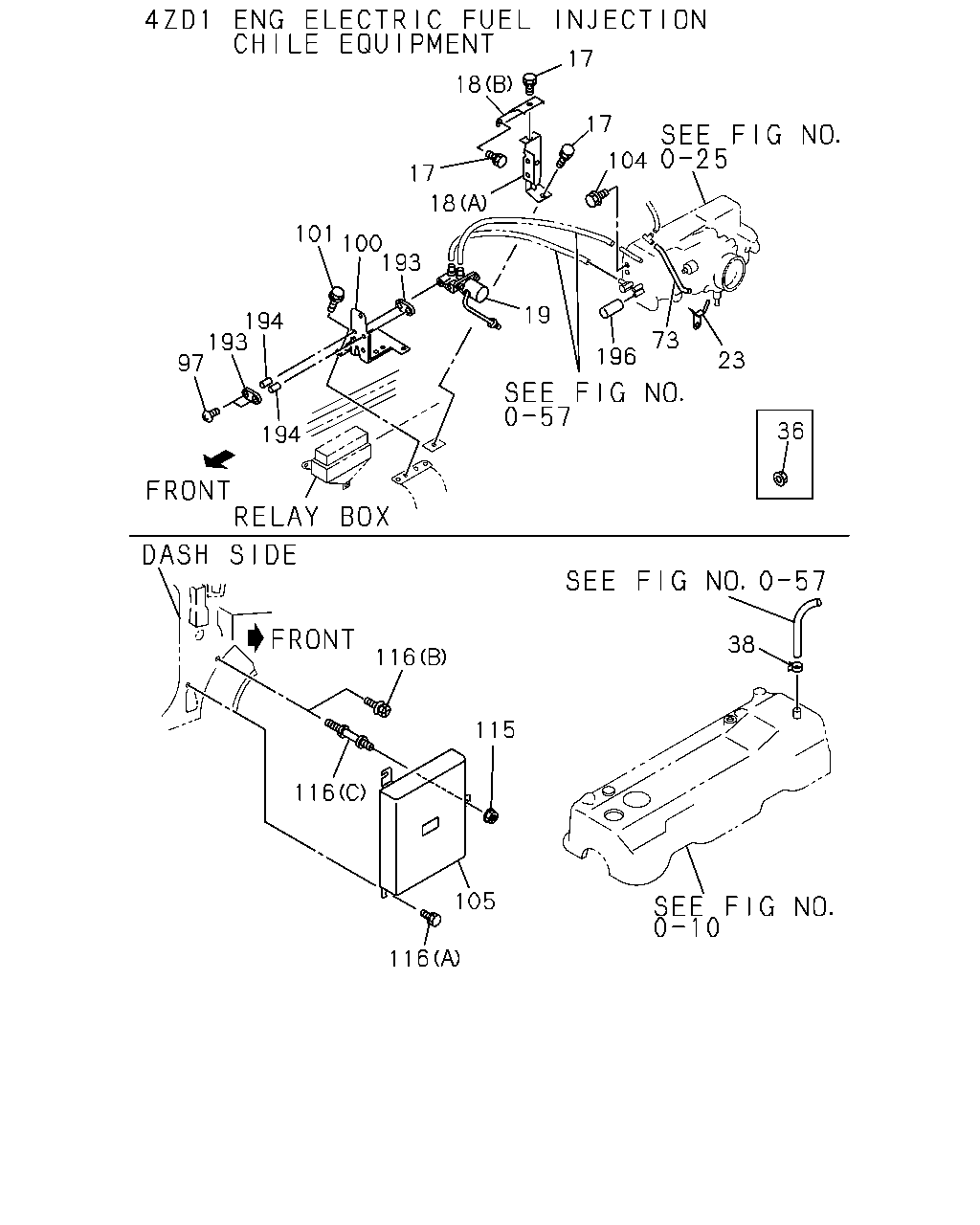

17 18 17 104 17 18 101 100 193 19 194 193 97 73 196 23 36 194 38 116 115 116 105 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	04	1	9611-9711	●
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9712-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> (A)	8-94475-021-2	01	1	9611-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 02.510 (B)	8-94479-552-2	01	1	9611-	●
19	03.670 SOLENOID; FAST IDLE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-94146-909-2	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-					●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-		●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-			●	●
38	03.417 CLIP; VAC HOSE ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21	8-94242-034-0	01	1	9611-	●
73	03.417 HOSE; RUBBER,THROTTLE BODY TO CA ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
97	03.680 SCREW; SOLENOID AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 08.131 M6X25	1-09980-544-0	02	1	9611-	●
100	03.675 BRACKET; VLV ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9611-	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
104	03.675 BOLT; CLIP,HOSE ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE ELECTRIC FUEL INJECTION<6GG>	8-97112-744-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-152-2	01	1	9712-					●
115	03.415 NUT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE	0-91150-106-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	02	1	9611-	●	●				●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9611-9612	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9701-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9712-					●
193	03.675 RUBBER; DISTANCE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-97101-444-0	02	1	9611-	●
194	03.680 COLLAR AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-94338-875-0	02	1	9611-	●
196	03.417 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9611-	●

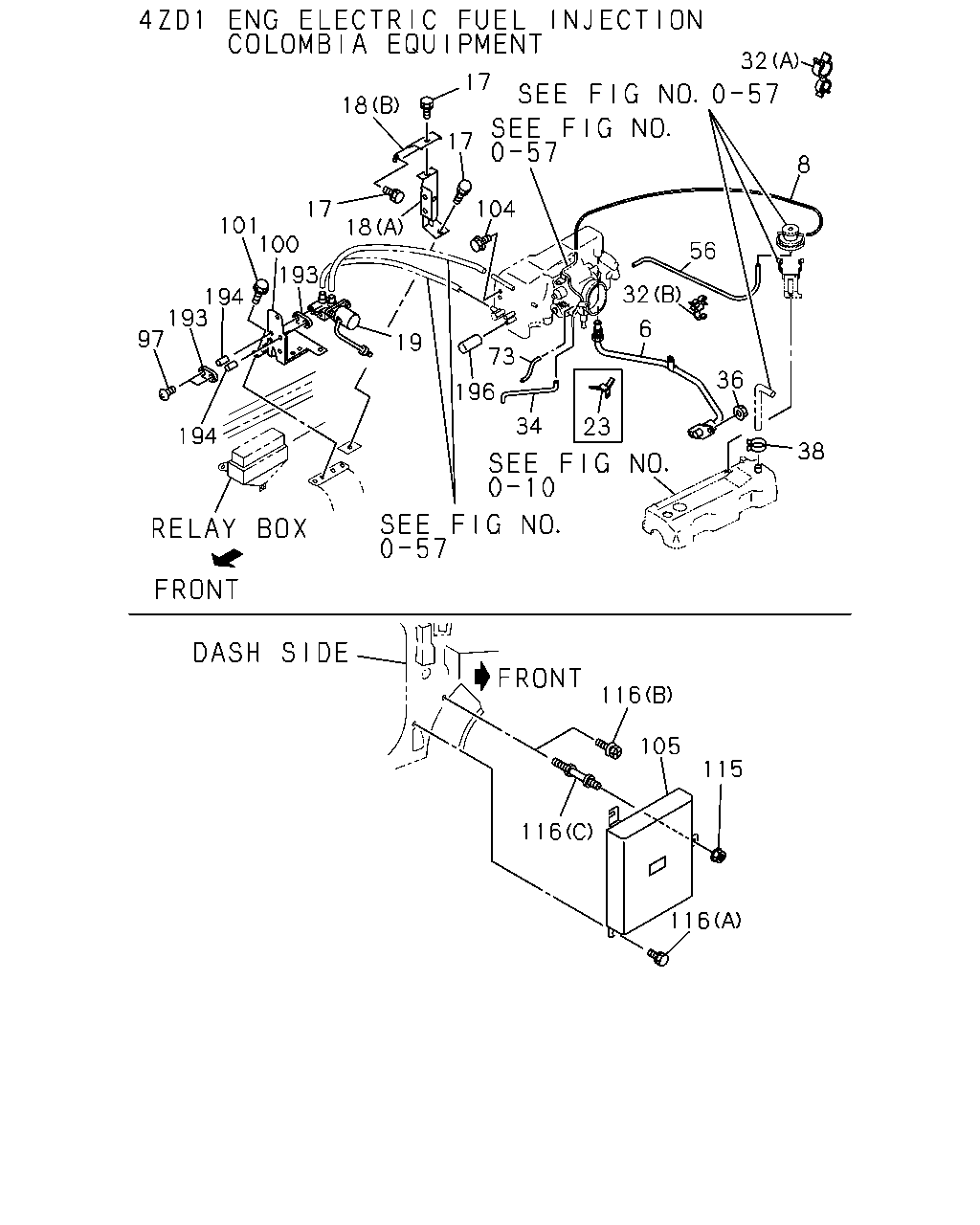

32 18 17 8 18 104 193 56 19 32 6 194 193 97 36 196 34 23 194 38 116 105 115 116 116 17 101 100 73 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.675 PIPE; EGR CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9611-	●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-97048-790-1	01	1	9611-9702	●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97135-380-0	01	1	9612-		●
6	03.675 PIPE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9712-			●	●
8	03.675 HOSE; RUBBER,BPT TO SIGNAL PIPE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9611-9702	●
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 00.206 M6X14 W/LK WASHER	0-50040-614-0	04	1	9611-9711	●
17	03.671 BOLT; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9712-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> (A)	8-94475-021-2	01	1	9611-	●
18	03.671 BRACKET; DROPPING RESISTOR ELECTRIC FUEL INJECTION<6GG> 02.510 (B)	8-94479-552-2	01	1	9611-	●
19	03.670 SOLENOID; FAST IDLE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-94146-909-2	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE ELECTRIC FUEL INJECTION<6GG> ID=10.5	8-94471-080-0	01	1	9611-	●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-					●
32	03.680 CLIP; EGR HOSE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 03.440 (A) ID=7.7 & 11.1	8-94408-387-0	01	1	9611-9702	●
32	03.680 CLIP; EGR HOSE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 03.675 (B) ID=7.7	8-94443-785-0	01	1	9611-9702	●
34	03.675 HOSE; T/V TO TVV COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 08.962 L=170 SERVICED BY L=3000	0-04742-300-0	01	1	9611-9702	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-		●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-			●	●
38	03.417 CLIP; VAC HOSE ELECTRIC FUEL INJECTION<6GG> 06.672 ID=21	8-94242-034-0	01	1	9611-	●
56	03.675 HOSE; BPT TO SIGNAL PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 L=70	8-94155-948-0	01	1	9611-	●
56	03.675 HOSE; BPT TO SIGNAL PIPE COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> L=400	8-94215-580-0	01	1	9611-9702	●
73	03.417 HOSE; RUBBER,THROTTLE BODY TO CA ELECTRIC FUEL INJECTION<6GG> 08.962 L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9611-	●
97	03.680 SCREW; SOLENOID AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> 08.131 M6X25	1-09980-544-0	02	1	9611-	●
100	03.675 BRACKET; VLV ELECTRIC FUEL INJECTION<6GG>	8-97104-740-1	01	1	9611-	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9611-9711	●
101	03.680 BOLT; VSV BRKT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
104	03.675 BOLT; CLIP,HOSE ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE ELECTRIC FUEL INJECTION<6GG>	8-97112-744-0	01	1	9611-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-152-2	01	1	9712-					●
115	03.415 NUT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE	0-91150-106-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	02	1	9611-	●	●				●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9611-9612	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9701-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9712-					●
193	03.675 RUBBER; DISTANCE AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-97101-444-0	02	1	9611-	●
194	03.680 COLLAR AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-94338-875-0	02	1	9611-	●
196	03.417 CAP; RUBBER ELECTRIC FUEL INJECTION<6GG> 01.780 ID=4	8-94217-809-0	01	1	9611-	●

25 6 36 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.675 PIPE; EGR CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9611-	●
6	03.675 PIPE; EGR COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG>	8-97048-790-1	01	1	9611-9702	●
6	03.675 PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR CATALYSIS CONTROL<6MZ>	8-94482-305-0	01	1	9611-	●
6	03.675 PIPE; EGR EXC. HIGHLAND ZONE PACKAGE<7EG>	8-97135-380-0	01	1	9612-		●
6	03.675 PIPE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9712-			●	●
7	03.670 BOLT; BRKT,EGR PIPE EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611	●
7	03.670 BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-9711	●
7	03.670 BOLT; BRKT,EGR PIPE CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-9711	●
7	03.670 BOLT; BRKT,EGR PIPE ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	9712-			●	●
25	03.670 SWITCH; VAC,FUEL CONT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94144-597-1	01	1	9611-			●	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-		●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-			●	●

12 142 143 141 135 128 36 140 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94145-956-0	01	1	9611-9612	●
12	03.670 VALVE; MIXTURE CONT COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9611-9612	●
12	03.670 VALVE; MIXTURE CONT SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94145-956-0	01	1	9701-	●
12	03.670 VALVE; MIXTURE CONT CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9701-	●
12	03.670 VALVE; MIXTURE CONT CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94145-956-0	01	1	9701-		●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-0	02	1	9611-9611	●
36	03.680 NUT; EGR PIPE ELECTRIC FUEL INJECTION<6GG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE CHINA EQUIPMENT(YT2) 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-	●
36	03.680 NUT; EGR PIPE EXC. HIGHLAND ZONE PACKAGE<7EG> 03.613 M8 FLANGE	8-97061-401-1	02	1	9612-		●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-			●	●
116	03.415 BOLT; ENG CONT MODULE EXC. ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	02	1	9611-	●	●				●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9611-9612	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> 03.342 (B) M6X16	8-97012-496-0	01	1	9611-	●
116	03.415 BOLT; ENG CONT MODULE ELECTRIC FUEL INJECTION<6GG> (C)	8-97165-458-0	01	1	9701-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9712-					●
128	03.672 BRACKET; VAC SW EXC. ELECTRIC FUEL INJECTION<6GG> 03.671	8-94209-610-0	01	1	9611-9612		●
128	03.672 BRACKET; VAC SW EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG> 03.671	8-94209-610-0	01	1	9701-		●
135	03.670 SENSOR; ENG SPD	8-97026-162-0	01	1	9611-9704						●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97026-162-0	01	1	9611-9704	●
135	03.670 SENSOR; ENG SPD	8-97026-162-0	01	1	9705-						●
135	03.670 SENSOR; ENG SPD EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATE MALA/COSTA RICA EQUIPMENT(7LD)	8-97026-162-0	01	1	9705-	●
135	03.670 SENSOR; ENG SPD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-779-0	01	1	9612-	●
135	03.670 SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9612-	●
135	03.670 SENSOR; ENG SPD CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94337-779-0	01	1	9612-		●
135	03.670 SENSOR; ENG SPD SAUDI ARABIA EQUIPMENT(EU2)	8-94362-506-0	01	1	9611-	●
135	03.670 SENSOR; ENG SPD EXC. ELECTRIC FUEL INJECTION<6GG>	8-94337-634-1	01	1	9611-9611		●
135	03.670 SENSOR; ENG SPD EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2)	8-94337-634-1	01	1	9612-9612		●
135	03.670 SENSOR; ENG SPD EXC. CHINA CHONGQING EQUIPMENT(R5B), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>	8-94337-634-1	01	1	9701-		●
140	03.680 CLIP; HOSE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94371-989-0	01	1	9708-9709		●
140	03.680 CLIP; HOSE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 CREW CAB(TFS6WF) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94371-989-0	01	1	9710-		●
141	03.670 BRACKET; MCV CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94381-281-0	01	1	9611-9612	●
141	03.670 BRACKET; MCV CATALYSIS CONTROL<6MZ>	8-94381-281-0	01	1	9611-9612	●
141	03.670 BRACKET; MCV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94318-451-3	01	1	9611-9611	●
141	03.670 BRACKET; MCV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94318-451-3	01	1	9612-9612	●
141	03.670 BRACKET; MCV CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94318-451-3	01	1	9612-9612		●
141	03.670 BRACKET; MCV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94318-451-3	01	1	9701-	●
141	03.670 BRACKET; MCV CATALYSIS CONTROL<6MZ>	8-94318-451-3	01	1	9701-	●
141	03.670 BRACKET; MCV CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2)	8-94318-451-3	01	1	9701-		●
142	03.417 BOLT; MCV BRKT SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9612-	●
142	03.417 BOLT; MCV BRKT CATALYSIS CONTROL<6MZ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9612-	●
142	03.417 BOLT; MCV BRKT CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9612-		●
143	03.675 HOSE; RUBBER,MCV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.676	8-94337-137-0	01	1	9611-9611	●
143	03.675 HOSE; RUBBER,MCV COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.676	8-94337-137-0	01	1	9611-9611	●
143	03.675 HOSE; RUBBER,MCV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.676	8-94337-137-0	01	1	9612-	●
143	03.675 HOSE; RUBBER,MCV CATALYSIS CONTROL<6MZ> 03.676	8-94337-137-0	01	1	9612-	●
143	03.675 HOSE; RUBBER,MCV CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) 03.676	8-94337-137-0	01	1	9612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
