◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-55 - ECGI SYSTEM OR COMMON RAIL ▶
0-55 — ECGI SYSTEM OR COMMON RAIL (#47940) — 111 parça

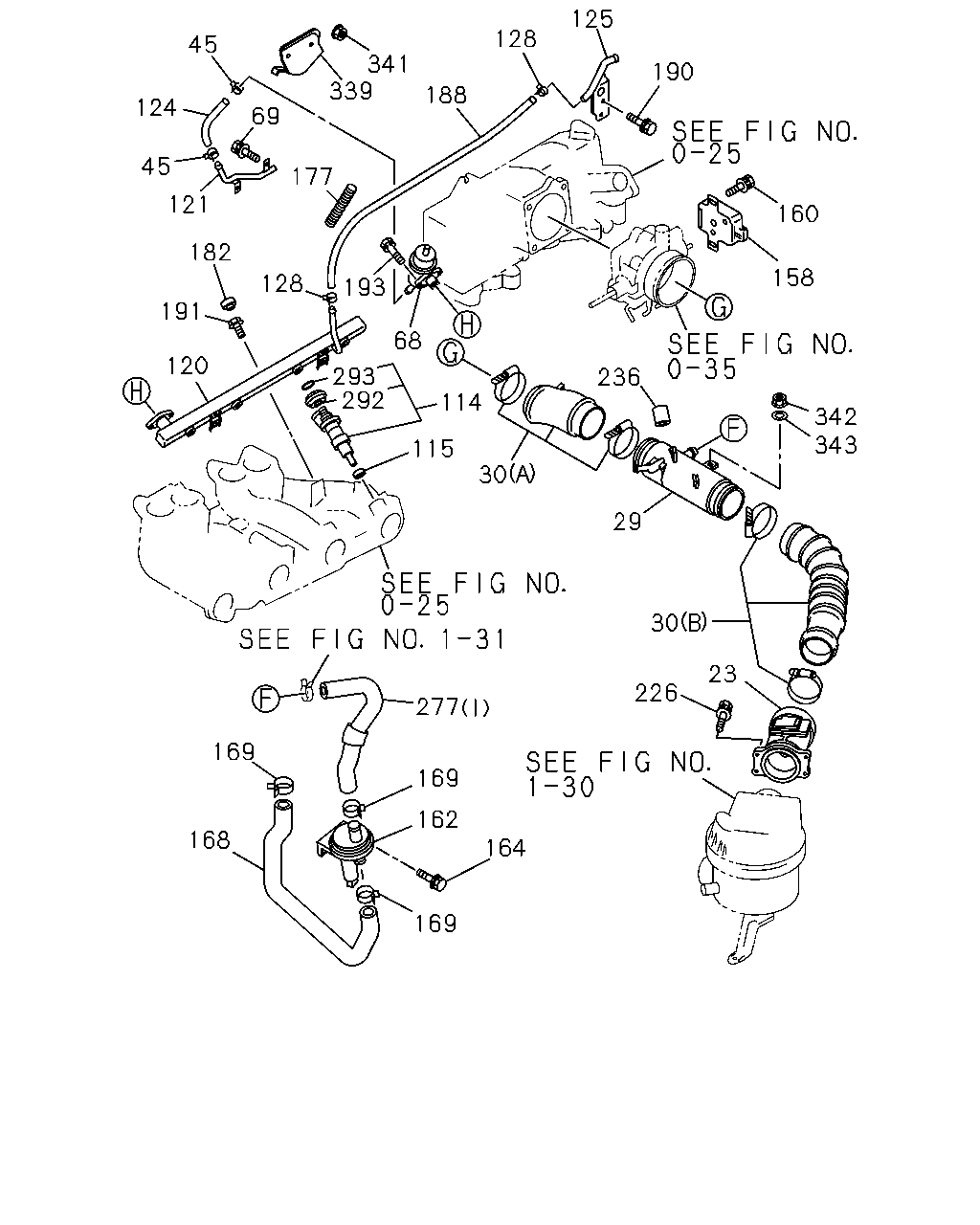

çizim 17296
125 128 45 341 339 190 188 124 69 45 177 121 160 182 158 128 193 191 68 120 293 292 236 114 342 343 115 30 29 30 23 226 169 169 162 168 164 169 277
BalonParca AdiParca NoAdetTipApplied Date A B C
23 03.335 SENSOR; AIR FLOW
ELECTRIC FUEL INJECTION<6GG> 		8-97016-626-0 01 1 9611- ●
23 03.335 SENSOR; AIR FLOW 8-97177-118-0 01 1 9712- ●
29 03.407 DUCT; AIR,TB TO AIR FLOW METER
ELECTRIC FUEL INJECTION<6GG> 		8-97117-360-0 01 1 9611- ●
30 03.407 HOSE; CONN,AIR DUCT TO T/V
ELECTRIC FUEL INJECTION<6GG> (A) 		8-97078-921-2 01 1 9611- ●
30 03.407 HOSE; CONN,AIR DUCT TO T/V
ELECTRIC FUEL INJECTION<6GG> (B) 		8-97037-800-3 01 1 9611- ●
45 03.145 CLIP; RUBBER HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611- ●
68 03.330 REGULATOR; PRESSURE
ELECTRIC FUEL INJECTION<6GG> 		8-97070-620-0 01 1 9611- ●
69 03.330 BOLT; PIPE,FUEL RETURN
ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611- ●
114 03.300 INJECTOR; FUEL
ELECTRIC FUEL INJECTION<6GG> 		8-97079-532-0 04 1 9611- ●
115 03.300 RING; FUEL INJ
ELECTRIC FUEL INJECTION<6GG> 03.302 OD=13.8 		5-15315-005-0 04 1 9611- ●
120 03.330 PIPE; FUEL,INJ
ELECTRIC FUEL INJECTION<6GG> 		8-97070-558-1 01 1 9611- ●
121 03.330 PIPE; FUEL,RETURN
ELECTRIC FUEL INJECTION<6GG> 		8-97049-982-2 01 1 9611- ●
124 03.901 HOSE; FUEL,PRESSURE REG TO PIPE
ELECTRIC FUEL INJECTION<6GG> 03.163 L=80 SERVICED BY L=3000 		0-01256-300-0 01 1 9611- ●
125 03.330 PIPE ASM; FUEL INL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-577-0 01 1 9611- ●
128 03.901 CLIP; FUEL DAMPER HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611- ●
158 03.320 SWITCH; THROTTLE BODY
ELECTRIC FUEL INJECTION<6GG> 		8-97038-799-0 01 1 9611- ●
160 03.320 SCREW; THROTTLE BODY SWITCH
ELECTRIC FUEL INJECTION<6GG> M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 9611- ●
162 03.314 REGULATOR ASM; AIR
ELECTRIC FUEL INJECTION<6GG> 		8-94314-411-1 01 1 9611- ●
164 03.314 BOLT; REG TO BRKT
ELECTRIC FUEL INJECTION<6GG> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9611- ●
168 03.145 HOSE; AIR REG TO COMMON CHAMBER
ELECTRIC FUEL INJECTION<6GG> 		8-97062-090-0 01 1 9611- ●
169 03.145 CLIP; HOSE,AIR REG
ELECTRIC FUEL INJECTION<6GG> 01.762 ID=19 		8-94238-569-0 02 1 9611- ●
169 03.145 CLIP; HOSE,AIR REG
ELECTRIC FUEL INJECTION<6GG> 01.097 ID=18 		8-94238-924-0 01 1 9611- ●
177 03.306 INSULATOR; FUEL INJECTOR
ELECTRIC FUEL INJECTION<6GG> 		8-94384-352-0 01 1 9611- ●
182 03.332 INSULATOR; FUEL RAIL
ELECTRIC FUEL INJECTION<6GG> 		8-94362-522-0 02 1 9611- ●
188 03.901 HOSE; FUEL
ELECTRIC FUEL INJECTION<6GG> L=140 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ●
188 03.901 HOSE; FUEL
L=170 SERVICED BY L=3000 		0-01458-300-0 01 1 9712- ●
190 03.330 BOLT; FUEL PIPE
ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9611- ●
191 03.330 BOLT; FUEL PIPE
ELECTRIC FUEL INJECTION<6GG> 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9611- ●
191 03.330 BOLT; FUEL PIPE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
193 03.330 BOLT; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 14.865 M5X12 		8-94386-089-0 02 1 9611-9711 ●
193 03.330 BOLT; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 14.865 M5X12 W/LK&PL WASHER 		8-94386-089-0 02 1 9712- ●
193 03.330 BOLT; PRESSURE REG
14.865 M5X12 W/LK&PL WASHER 		8-94386-089-0 02 1 9712- ●
226 03.330 BOLT; AIR FLOW METER
ELECTRIC FUEL INJECTION<6GG> 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9611- ●
236 03.145 CAP; RUBBER
ELECTRIC FUEL INJECTION<6GG> 03.672 ID=5.4 		8-94156-209-0 01 1 9611- ● ●
236 03.145 CAP; RUBBER
01.780 ID=4 L=16 		8-94217-809-0 01 1 9712- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94329-402-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94329-403-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (C) 		8-94329-404-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (D) L=30 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (E) L=280 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (F) L=340 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (G) L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (H) L=160 SERVICED BY L=3000 		0-04744-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (I) 		8-97078-932-1 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (J) L=180 SERVICED BY L=3000 		0-04745-300-0 01 1 9611- ●
292 03.304 INSULATOR; FUEL INJECTOR
ELECTRIC FUEL INJECTION<6GG> 		8-97078-989-0 04 1 9611- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-97079-011-0 04 1 9611- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-97181-339-0 06 1 9712- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-97181-340-0 06 1 9712- ●
339 03.330 PROTECTOR; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 		8-97049-984-2 01 1 9611- ●
339 03.330 PROTECTOR; PRESSURE REG 8-97148-718-2 01 1 9712- ●
341 03.330 NUT; PROTECTOR
ELECTRIC FUEL INJECTION<6GG> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ●
342 03.403 NUT; AIR DUCT
ELECTRIC FUEL INJECTION<6GG> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9611- ●
343 03.403 WASHER; PL,AIR DUCT
ELECTRIC FUEL INJECTION<6GG> 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9611- ●

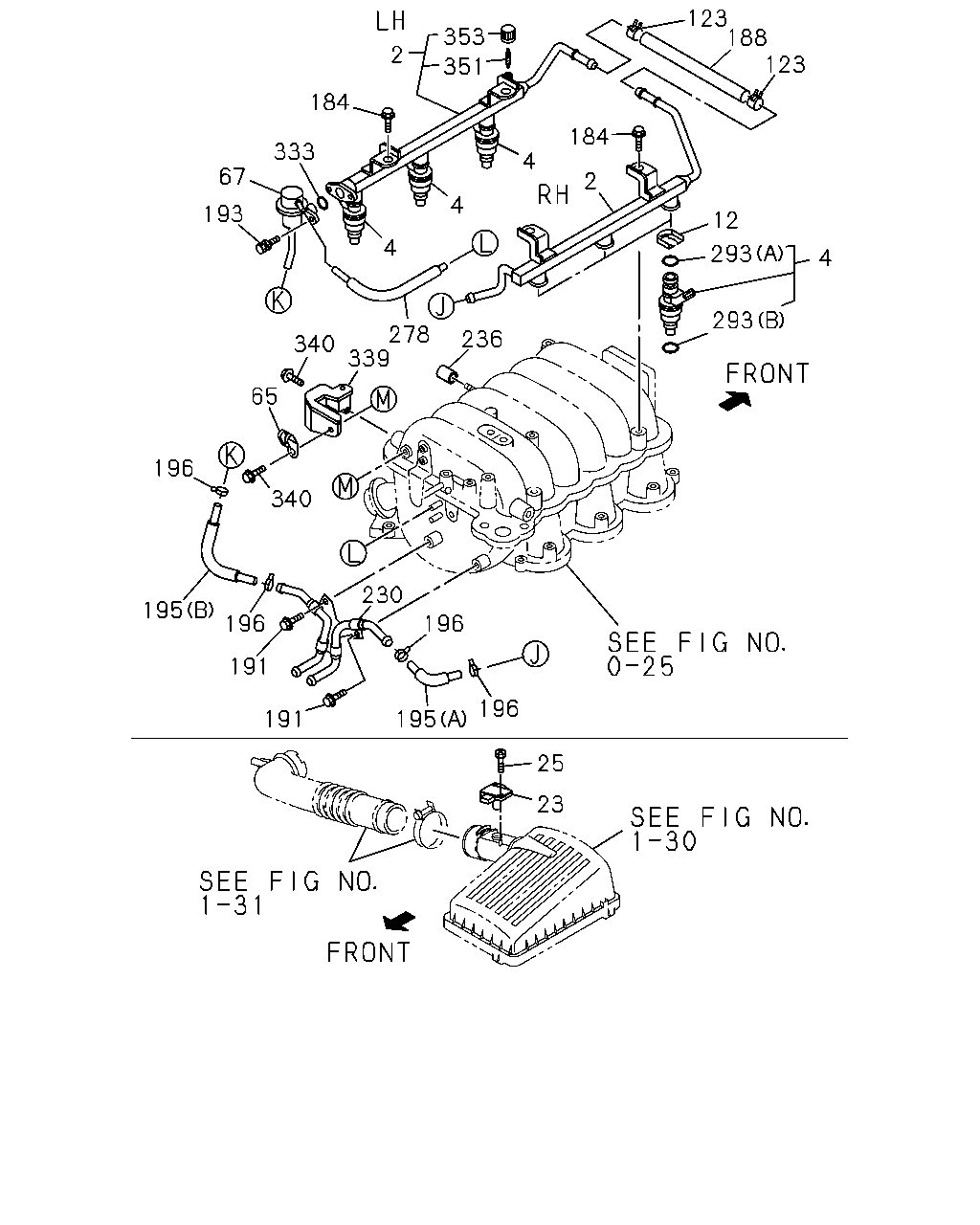

çizim 19212
123 188 123 353 351 2 184 184 333 4 67 2 4 193 12 293 4 4 293 278 340 339 236 65 196 340 230 195 196 196 191 196 195 191 25 23
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97182-757-0 01 1 9712- ●
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97182-756-0 01 1 9712- ●
4 03.332 INJECTOR ASM 8-97180-042-0 06 1 9712- ●
12 03.332 CLIP; INJECTOR 8-97182-384-1 06 1 9712- ●
23 03.335 SENSOR; AIR FLOW
ELECTRIC FUEL INJECTION<6GG> 		8-97016-626-0 01 1 9611- ●
23 03.335 SENSOR; AIR FLOW 8-97177-118-0 01 1 9712- ●
25 03.330 SCREW; AIR FLOW METER TO AIR CLE
06.500 M4X12 W/LK WASHER 		9-03910-412-0 02 1 9712- ●
65 03.330 CLIP; HOSE
02.559 ID=12 		5-09700-331-0 01 1 9712- ●
67 03.330 REGULATOR; PRESSURE 8-97179-585-0 01 1 9712- ●
123 03.901 CLIP; FUEL HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9712- ●
184 03.330 BOLT; FUEL RAIL
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
188 03.901 HOSE; FUEL
ELECTRIC FUEL INJECTION<6GG> L=140 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ●
188 03.901 HOSE; FUEL
L=170 SERVICED BY L=3000 		0-01458-300-0 01 1 9712- ●
191 03.330 BOLT; FUEL PIPE
ELECTRIC FUEL INJECTION<6GG> 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9611- ●
191 03.330 BOLT; FUEL PIPE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
193 03.330 BOLT; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 14.865 M5X12 		8-94386-089-0 02 1 9611-9711 ●
193 03.330 BOLT; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 14.865 M5X12 W/LK&PL WASHER 		8-94386-089-0 02 1 9712- ●
193 03.330 BOLT; PRESSURE REG
14.865 M5X12 W/LK&PL WASHER 		8-94386-089-0 02 1 9712- ●
195 03.145 HOSE; RUBBER,FUEL
(A) 		8-97116-433-0 01 1 9712- ●
195 03.145 HOSE; RUBBER,FUEL
(B) L=130 W/PROTECTOR 		8-97136-350-0 01 1 9712- ●
196 03.145 CLIP; RUBBER HOSE,FUEL
00.034 ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9712- ●
230 03.330 PIPE; FUEL 8-97136-254-2 01 1 9712- ●
236 03.145 CAP; RUBBER
ELECTRIC FUEL INJECTION<6GG> 03.672 ID=5.4 		8-94156-209-0 01 1 9611- ● ●
236 03.145 CAP; RUBBER
01.780 ID=4 L=16 		8-94217-809-0 01 1 9712- ●
278 03.330 HOSE; PRESSURE REG
L=200 		8-97166-646-1 01 1 9712- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-97079-011-0 04 1 9611- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-97181-339-0 06 1 9712- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-97181-340-0 06 1 9712- ●
333 03.304 GASKET; FUEL RETURN 8-97179-766-0 01 1 9712- ●
339 03.330 PROTECTOR; PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 		8-97049-984-2 01 1 9611- ●
339 03.330 PROTECTOR; PRESSURE REG 8-97148-718-2 01 1 9712- ●
340 03.330 BOLT; PROTECTOR
08.900 M8X16 		9-05820-816-0 02 1 9712- ●
351 03.335 VALVE; PRESSURE RELIEF
CHARGING VALVE 		8-97119-714-0 01 1 9712- ●
353 03.145 CAP; PRESSURE VLV
03.330 		8-97119-713-0 01 1 9712- ●

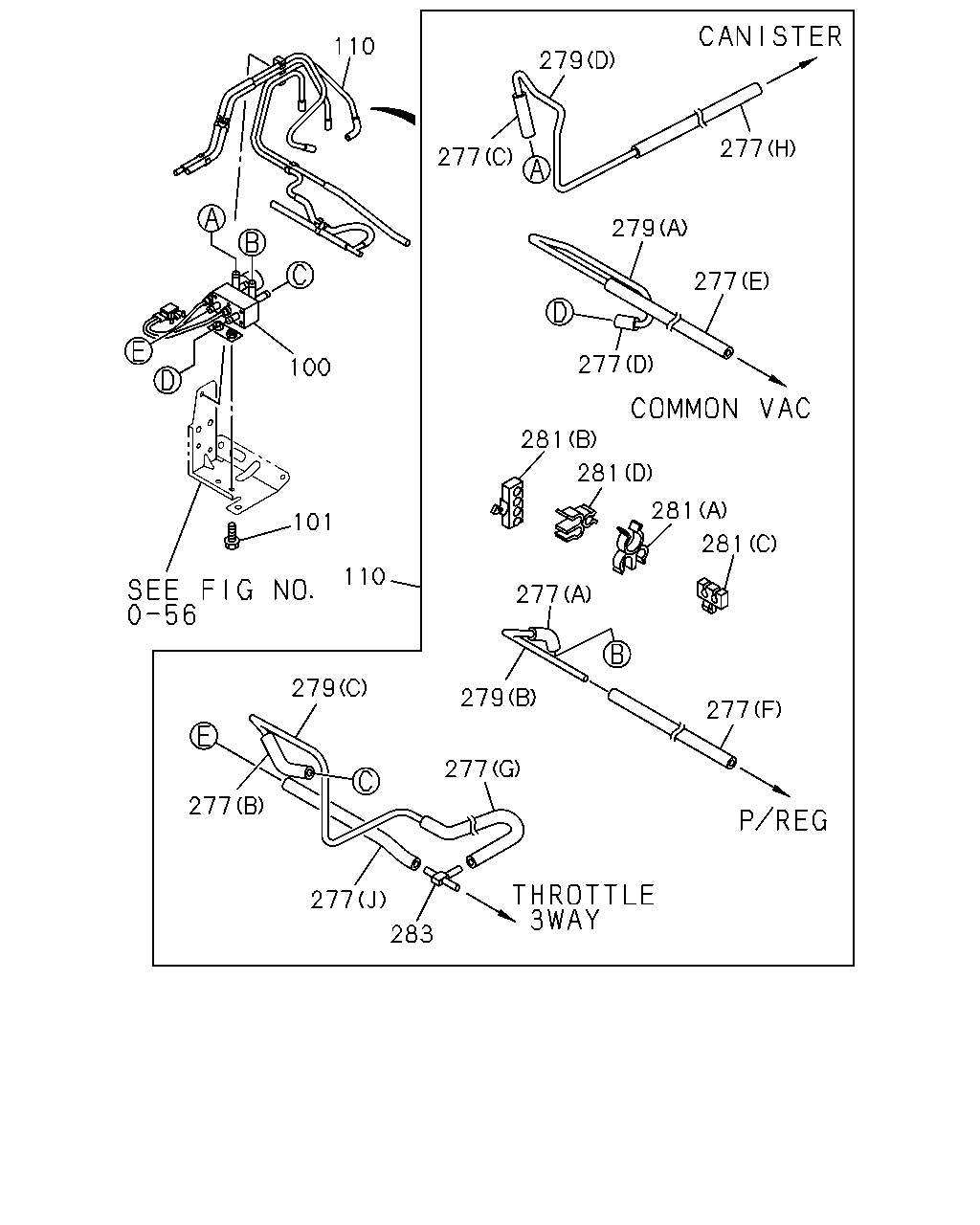

çizim 71140
110 277 277 279 277 100 281 281 281 281 101 110 277 279 279 277 277 277 277 283 279 277
BalonParca AdiParca NoAdetTipApplied Date A B C
100 03.335 VALVE; VAC SW,PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 		8-94475-018-1 01 1 9611- ●
101 03.330 BOLT; VSV
ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9611-9711 ●
101 03.330 BOLT; VSV
ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
110 03.145 HOSE; RUBBER,PRESSURE REG
ELECTRIC FUEL INJECTION<6GG> 		8-97027-300-5 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94329-402-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94329-403-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (C) 		8-94329-404-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (D) L=30 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (E) L=280 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (F) L=340 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (G) L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (H) L=160 SERVICED BY L=3000 		0-04744-300-0 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> (I) 		8-97078-932-1 01 1 9611- ●
277 03.145 HOSE; RUBBER
ELECTRIC FUEL INJECTION<6GG> 08.962 (J) L=180 SERVICED BY L=3000 		0-04745-300-0 01 1 9611- ●
279 03.145 TUBE; NYLON
ELECTRIC FUEL INJECTION<6GG> (A) 		8-94329-398-0 01 1 9611- ●
279 03.145 TUBE; NYLON
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94329-399-0 01 1 9611- ●
279 03.145 TUBE; NYLON
ELECTRIC FUEL INJECTION<6GG> (C) 		8-94329-400-0 01 1 9611- ●
279 03.145 TUBE; NYLON
ELECTRIC FUEL INJECTION<6GG> (D) 		8-94329-401-0 01 1 9611- ●
281 03.330 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> 03.162 (A) 		8-94411-648-0 02 1 9611- ●
281 03.330 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> 03.302 (B) 		8-94329-396-0 01 1 9611- ●
281 03.330 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> 03.162 (C) 		8-94329-397-0 01 1 9611- ●
281 03.330 CLIP; HOSE
ELECTRIC FUEL INJECTION<6GG> (D) 		8-94380-884-0 01 1 9611- ●
283 03.145 JOINT; 3 WAY,HOSE
ELECTRIC FUEL INJECTION<6GG> 03.680 3WAY 		8-94165-537-0 01 1 9611- ●
