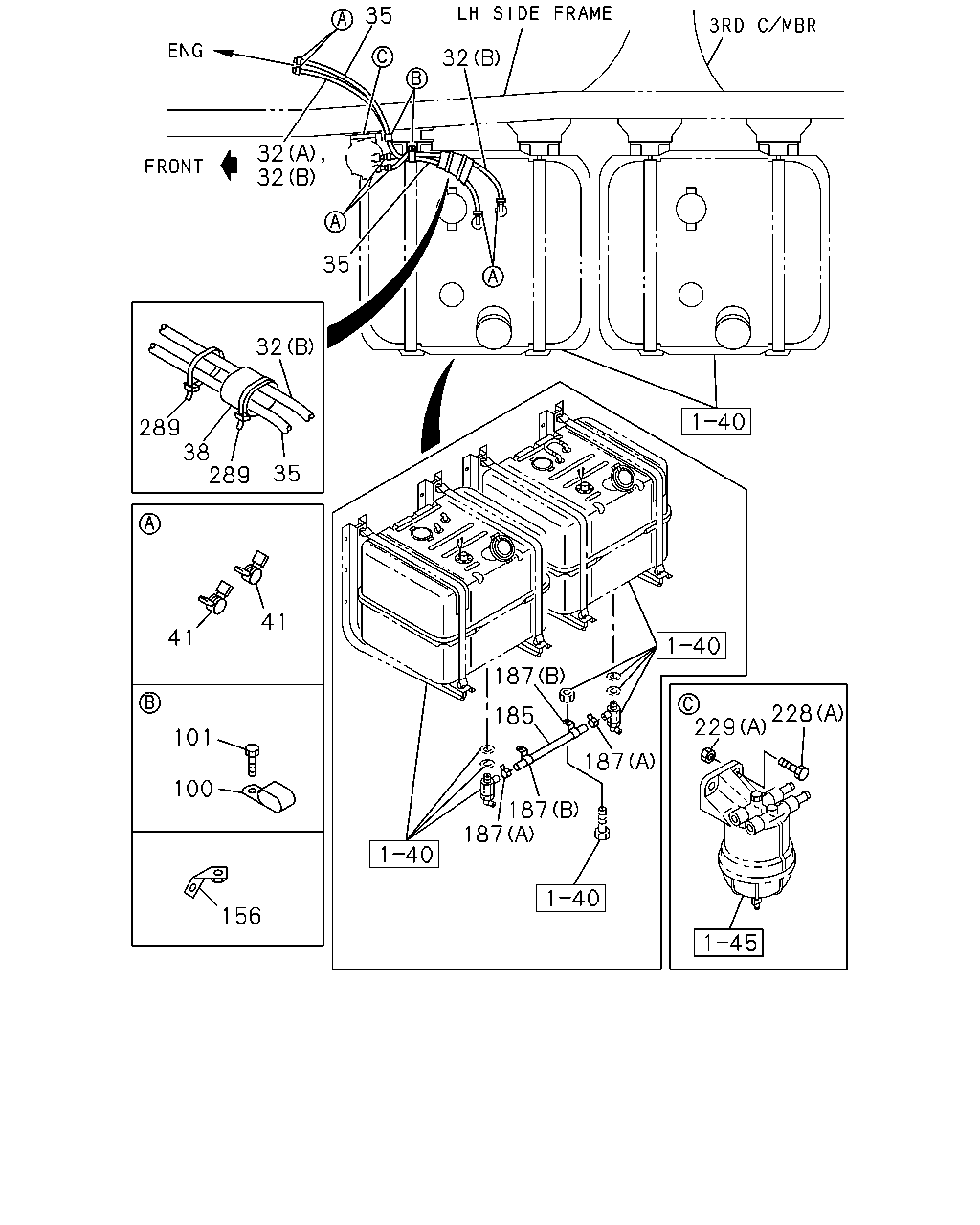

1-41A — FUEL PIPING; CHASSIS (#4794) — 149 parça

101 101 101 101 100 97 100 100 100 102 144 102 102 97 97 229 227 228 229 38 41 289 228 101 100 32 156 32 95 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0104-	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=760 SERVICED BY L=3000	0-01260-300-0	02	1	9601-9606		●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	02	1	9607-9904	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-0103	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-0103	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0104-		●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0104-	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9610		●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9908-	●		●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9611-9904	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9601-9610		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=1300	1-09360-677-1	02	1	9905-9907	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 400L<SDH> L=1300	1-09360-677-1	01	1	9905-9907	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9908-	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9611-9904	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9601-9610		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●		●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9611-9904	●	●
95	BUSHING; PIPE,FUEL TANK FUEL TANK 400L<SDH> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9907	●		●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=95	1-82699-085-0	01	1	9905-9907	●		●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> ZF M/T<X9E> (B) L=115	1-47475-305-0	01	1	9905-9907	●		●	●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	9905-9908	●		●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-47478-442-0	01	1	9909-	●		●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9601-9608		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9611-9904	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	02	1	9905-9907	●		●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9908-	●		●	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9905-9907	●		●	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9608		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9908-	●		●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	04	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907	●		●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9905-9907	●		●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	9905-9907	●		●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-	●		●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-	●		●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A>,ZF M/T<X9E> FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	9905-9907	●		●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9601-9610		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9611-9805	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=80 H=20	1-82699-304-0	01	1	9806-9904	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	01	1	9905-	●		●	●
227	BRACKET; FUEL SEDIMENTER FUEL SEDIMENTER<PS9>	1-22518-181-0	01	1	0104-	●
227	BRACKET; FUEL SEDIMENTER FUEL TANK 400L<SDH>	1-22518-163-0	01	1	9905-9907	●		●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9606		●
228	BOLT; BRKT,SEDIMENTER (A)	0-28681-035-0	02	1	9607-9610		●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-0103	●		●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	0104-		●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> (A) M10X35 FLANGE	0-28681-035-0	02	1	0104-	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9611-9904	●	●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> (B) M14X45	0-20801-445-0	02	1	0104-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10	9-09110-510-0	02	1	9601-9606		●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9607-9904		●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9908-0103	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	0104-		●	●	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> (A) M10 FLANGE	0-91150-210-0	02	1	0104-	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9611-9904	●	●
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> (B) M14	9-99110-414-0	02	1	0104-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9601-9610		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-0103	●		●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	0104-		●	●	●
289	CLIP; BAND,HOSE FUEL SEDIMENTER<PS9> L=250	5-09707-030-1	02	1	0104-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-0	02	1	9611-9904	●	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	9905-9907	●		●	●

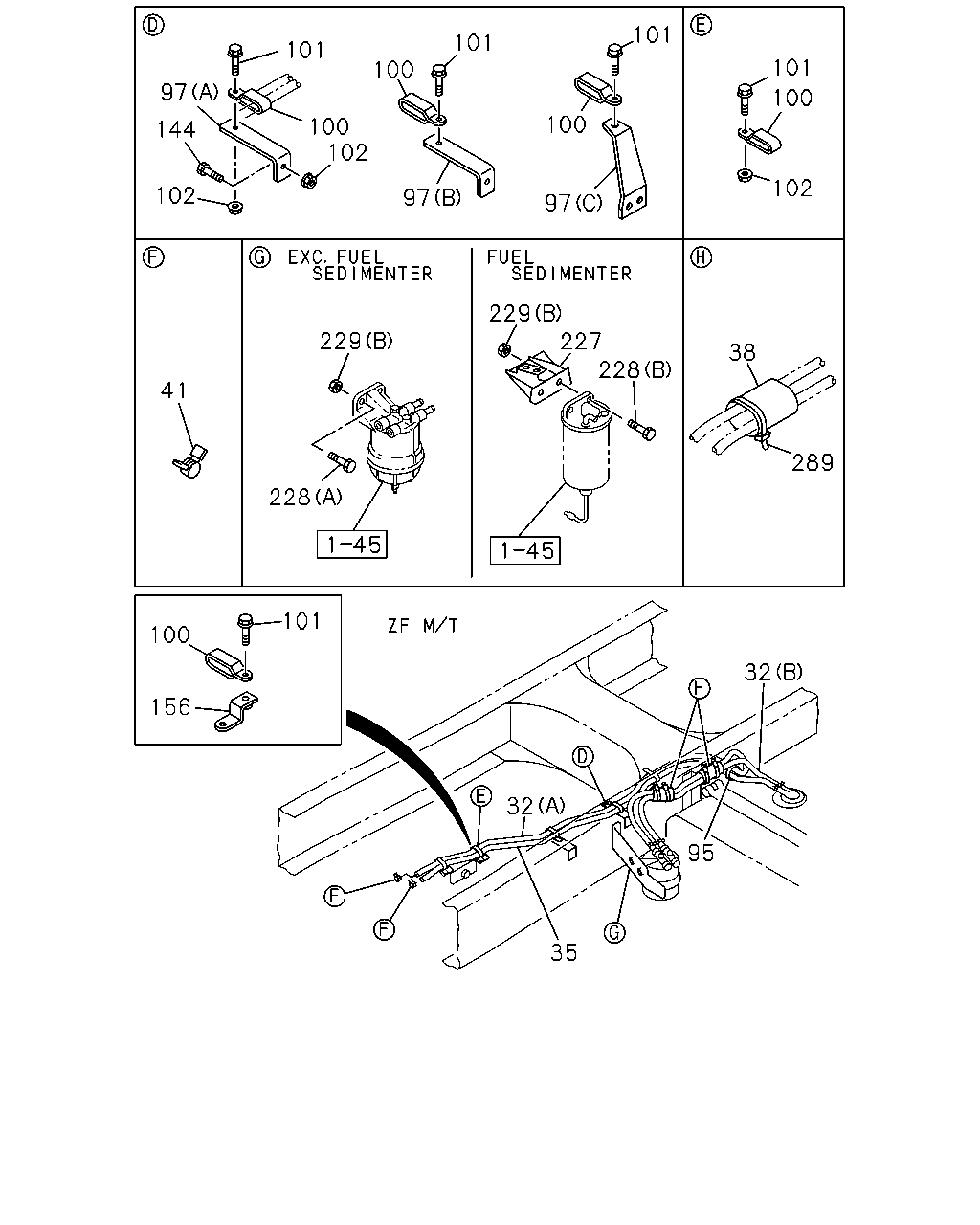

35 32 32 32 35 32 289 38 289 35 41 41 187 229 228 185 101 187 100 187 187 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0104-	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=760 SERVICED BY L=3000	0-01260-300-0	02	1	9601-9606		●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	02	1	9607-9904	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-0103	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-0103	●		●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0104-		●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0104-	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9610		●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907	●		●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9908-	●		●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9611-9904	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9601-9610		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=1300	1-09360-677-1	02	1	9905-9907	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 400L<SDH> L=1300	1-09360-677-1	01	1	9905-9907	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9908-	●		●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9611-9904	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9601-9610		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●		●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9611-9904	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9601-9608		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9611-9904	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	02	1	9905-9907	●		●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9908-	●		●	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9905-9907	●		●	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9608		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9908-	●		●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	04	1	9905-9907	●		●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907	●		●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9601-9610		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N)	1-47477-330-0	01	1	9611-9805	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=80 H=20	1-82699-304-0	01	1	9806-9904	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)	1-47478-306-0	01	1	9905-	●		●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9601-9610		●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-	●		●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9611-9904	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9601-9610		●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9601-9610		●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9905-	●		●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9611-9904	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-	●		●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9611-9904	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9606		●
228	BOLT; BRKT,SEDIMENTER (A)	0-28681-035-0	02	1	9607-9610		●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-0103	●		●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	0104-		●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> (A) M10X35 FLANGE	0-28681-035-0	02	1	0104-	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9611-9904	●	●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> (B) M14X45	0-20801-445-0	02	1	0104-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10	9-09110-510-0	02	1	9601-9606		●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9607-9904		●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9908-0103	●		●	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	0104-		●	●	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> (A) M10 FLANGE	0-91150-210-0	02	1	0104-	●
229	NUT; BRKT,FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	9611-9904	●	●
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> (B) M14	9-99110-414-0	02	1	0104-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9601-9610		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-0103	●		●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	0104-		●	●	●
289	CLIP; BAND,HOSE FUEL SEDIMENTER<PS9> L=250	5-09707-030-1	02	1	0104-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-0	02	1	9611-9904	●	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	9905-9907	●		●	●
