0-52 — OIL AND VACUUM PIPING; ENGINE (#47939) — 138 parça

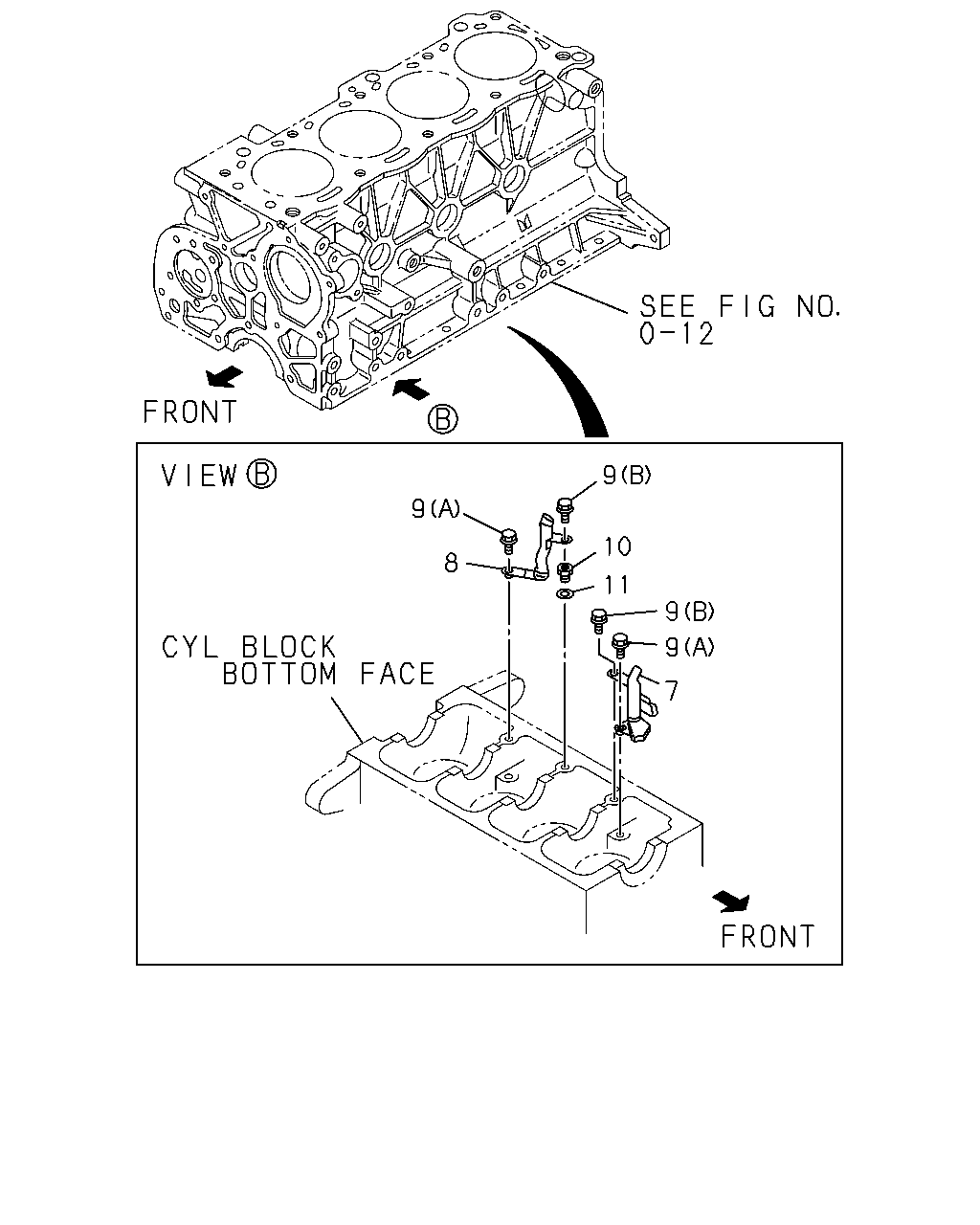

9 9 10 11 8 9 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
7	01.656 PIPE; OIL PASSAGE,FRT	8-94475-324-2	01	1	9611-	●
8	01.656 PIPE; OIL PASSAGE,CTR	8-94475-325-2	01	1	9611-	●
9	01.656 BOLT; OIL PASSAGE (A)	8-94479-695-1	02	1	9611-	●
9	01.656 BOLT; OIL PASSAGE (B)	8-94479-696-1	02	1	9611-	●
10	01.656 PLUG; OIL PASSAGE PIPE	8-94474-942-0	01	1	9611-	●
11	01.657 GASKET; PLUG,OIL PIPE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9611-	●

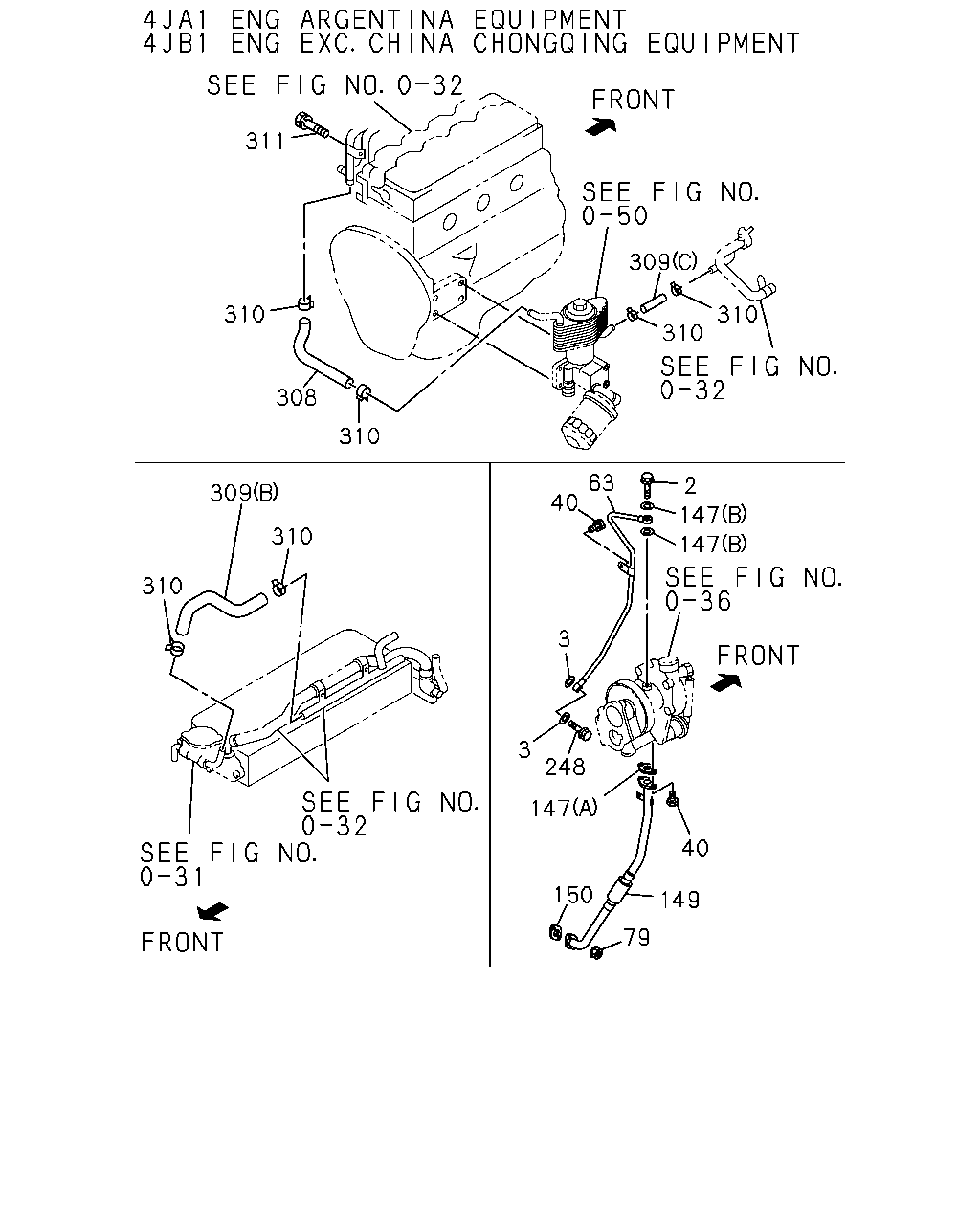

311 310 310 308 310 310 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
308	01.540 HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9611-9711	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) L=220	8-97119-575-0	01	1	9611-9711		●
308	01.540 HOSE; OIL COOLER FEED EXC. ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9712-	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9712-		●
308	01.540 HOSE; OIL COOLER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9611-9711		●
308	01.540 HOSE; OIL COOLER FEED ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9712-	●
308	01.540 HOSE; OIL COOLER FEED ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9611-9711	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94442-162-1	01	1	9611-9711		●
309	01.540 HOSE; OIL COOLER RETURN EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9611-9711		●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9701-9711		●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 08.846 ID=22	8-94382-401-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9712-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9611-	●	●

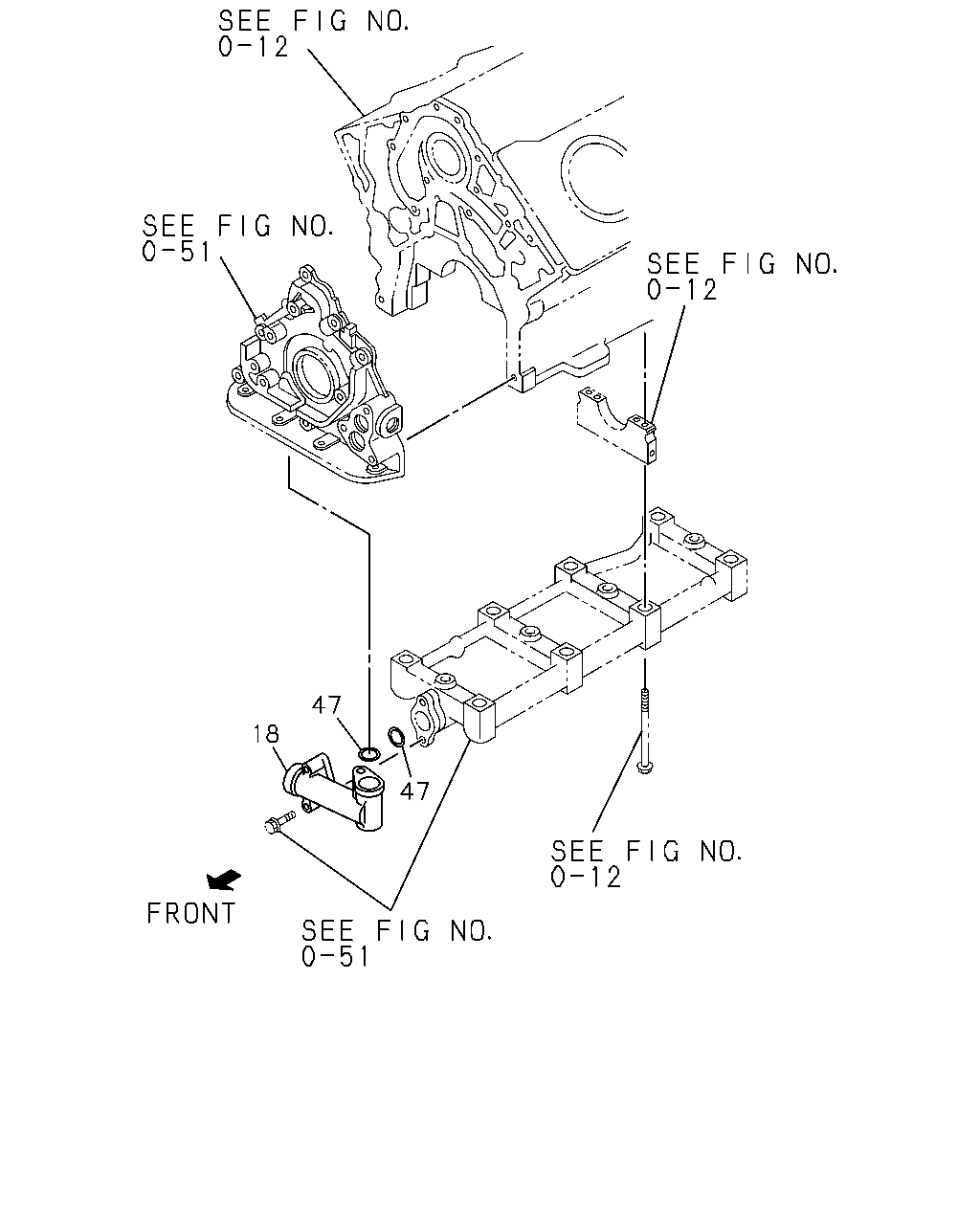

47 18 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
18	01.519 PIPE; OIL,OIL PUMP	8-94381-146-3	01	1	9712-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9611-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9611-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9712-			●

311 309 310 310 310 308 310 63 40 2 147 147 309 310 310 3 3 248 147 40 150 149 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
2	01.531 BOLT; EYE,OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M10X27 FLANGE	8-94443-535-0	01	1	9611-9711		●
2	01.531 BOLT; EYE,OIL PIPE ARGENTINA EQUIPMENT(7SZ) M10X27 FLANGE	8-94443-535-0	01	1	9712-	●
2	01.531 BOLT; EYE,OIL PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M10X27 FLANGE	8-94443-535-0	01	1	9712-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9611-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-		●
40	01.531 BOLT; OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9711		●
40	01.531 BOLT; OIL PIPE ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●
40	01.531 BOLT; OIL PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-		●
40	01.531 BOLT; OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9611-9711		●
40	01.531 BOLT; OIL PIPE ARGENTINA EQUIPMENT(7SZ) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9712-	●
40	01.531 BOLT; OIL PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9712-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97161-201-0	01	1	9611-9711		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED ARGENTINA EQUIPMENT(7SZ)	8-97161-201-0	01	1	9712-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97161-201-0	01	1	9712-		●
79	01.531 NUT; OIL DRAIN PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-9711		●
79	01.531 NUT; OIL DRAIN PIPE ARGENTINA EQUIPMENT(7SZ) 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
79	01.531 NUT; OIL DRAIN PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.358 (A)	8-94362-672-0	01	1	9611-9711		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) 03.358 (A)	8-94362-672-0	01	1	9712-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.358 (A)	8-94362-672-0	01	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9611-9711		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97162-108-0	01	1	9611-9711		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ)	8-97162-108-0	01	1	9712-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97162-108-0	01	1	9712-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97045-326-0	01	1	9611-9711		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ)	8-97045-326-0	01	1	9712-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97045-326-0	01	1	9712-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. CHINA CHONGQING EQUIPMENT(R5B) M14X25	8-94315-336-1	01	1	9611-9711		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED ARGENTINA EQUIPMENT(7SZ) M14X25	8-94315-336-1	01	1	9712-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M14X25	8-94315-336-1	01	1	9712-		●
308	01.540 HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9611-9711	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) L=220	8-97119-575-0	01	1	9611-9711		●
308	01.540 HOSE; OIL COOLER FEED EXC. ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9712-	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9712-		●
308	01.540 HOSE; OIL COOLER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9611-9711		●
308	01.540 HOSE; OIL COOLER FEED ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9712-	●
308	01.540 HOSE; OIL COOLER FEED ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9611-9711	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94442-162-1	01	1	9611-9711		●
309	01.540 HOSE; OIL COOLER RETURN EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9611-9711		●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9701-9711		●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9712-	●
309	01.540 HOSE; OIL COOLER RETURN ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 08.846 ID=22	8-94382-401-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9712-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9611-	●	●

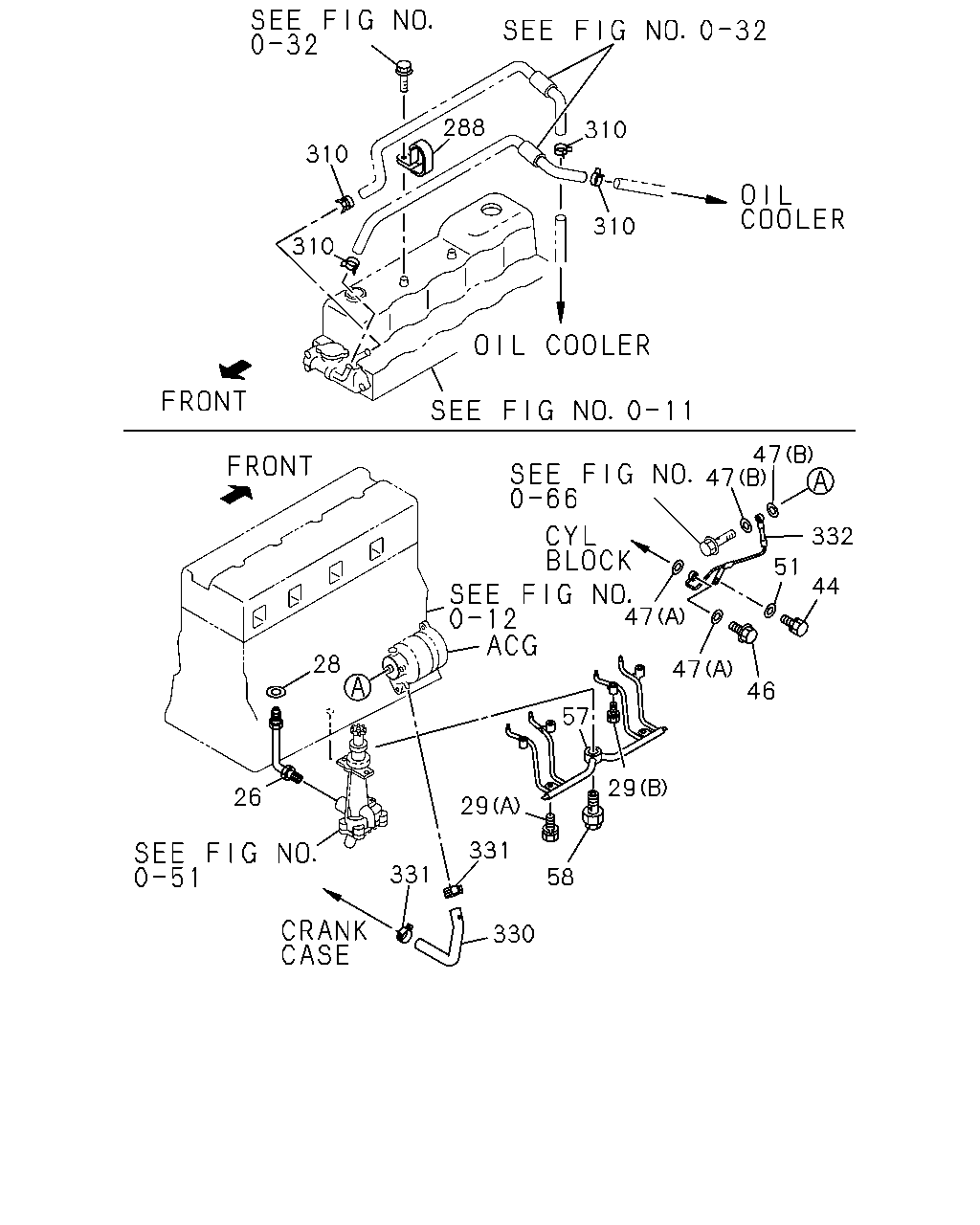

288 310 310 310 310 47 47 332 51 44 47 28 47 46 57 29 26 29 331 331 58 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9611-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9611-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9611-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9611-	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9611-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9611-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9611-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9712-			●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9611-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-0	01	1	9611-	●
57	01.519 PIPE; OIL,OIL JET EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94469-709-1	01	1	9611-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9611-	●	●
288	01.540 CLIP; HOSE,OIL COOLER 08.846	5-83574-006-0	01	1	9611-9711	●
288	01.540 CLIP; HOSE,OIL COOLER CHINA CHONGQING EQUIPMENT(R5B) 08.846	5-83574-006-0	01	1	9611-9711		●
288	01.540 CLIP; HOSE,OIL COOLER EXC. ARGENTINA EQUIPMENT(7SZ) 08.846	5-83574-006-0	01	1	9712-	●
288	01.540 CLIP; HOSE,OIL COOLER CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 08.846	5-83574-006-0	01	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	08	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9611-9711		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 08.846 ID=22	8-94382-401-0	02	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.846 ID=22	8-94382-401-0	02	1	9712-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9611-	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9611-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9611-	●	●
