0-50 — OIL COOLER AND OIL FILTER (#47937) — 155 parça

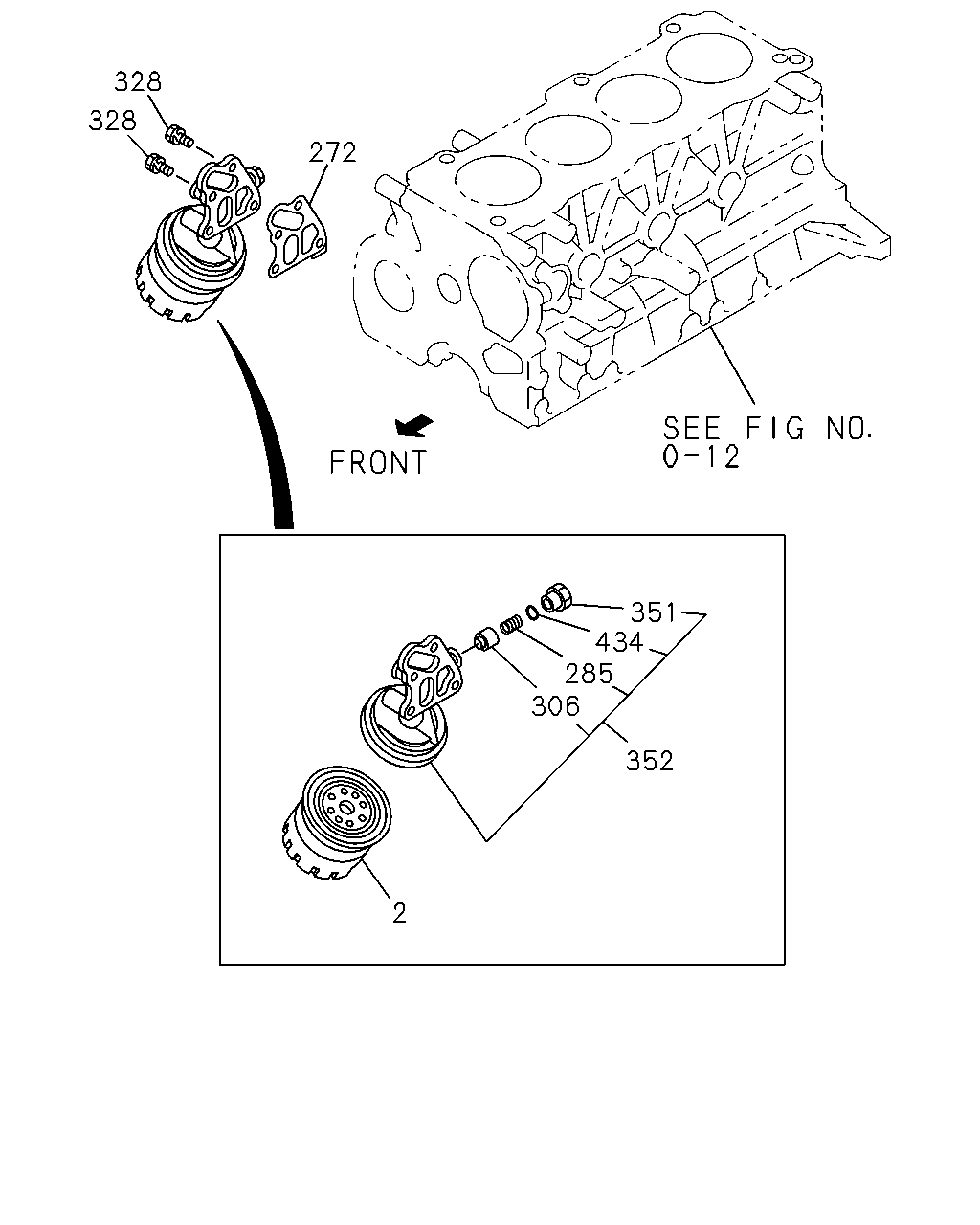

çizim 18484
328 328 272 351 434 285 306 352 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611-9711 ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9712- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9611- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●
285 01.837 SPRING; OIL FILTER 8-94114-512-0 01 1 9611- ● ● ●
306 01.837 VALVE; OIL FILTER 8-94235-567-1 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
M8X70 W/LK WASHER 		0-50040-870-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 9712- ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 9712- ●
351 01.837 PLUG; OIL FILTER 8-94244-655-0 01 1 9611- ● ● ●
352 01.840 ADAPTER; OIL FILTER 8-94476-127-0 01 1 9611- ● ●
352 01.840 ADAPTER; OIL FILTER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94476-127-0 01 1 9611- ●
352 01.840 ADAPTER; OIL FILTER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97021-073-0 01 1 9611- ●
352 01.840 ADAPTER; OIL FILTER 8-97149-343-2 01 1 9712- ●
434 01.844 GASKET; PLUG,OIL FILTER
01.837 		8-94244-656-0 01 1 9611- ● ● ●

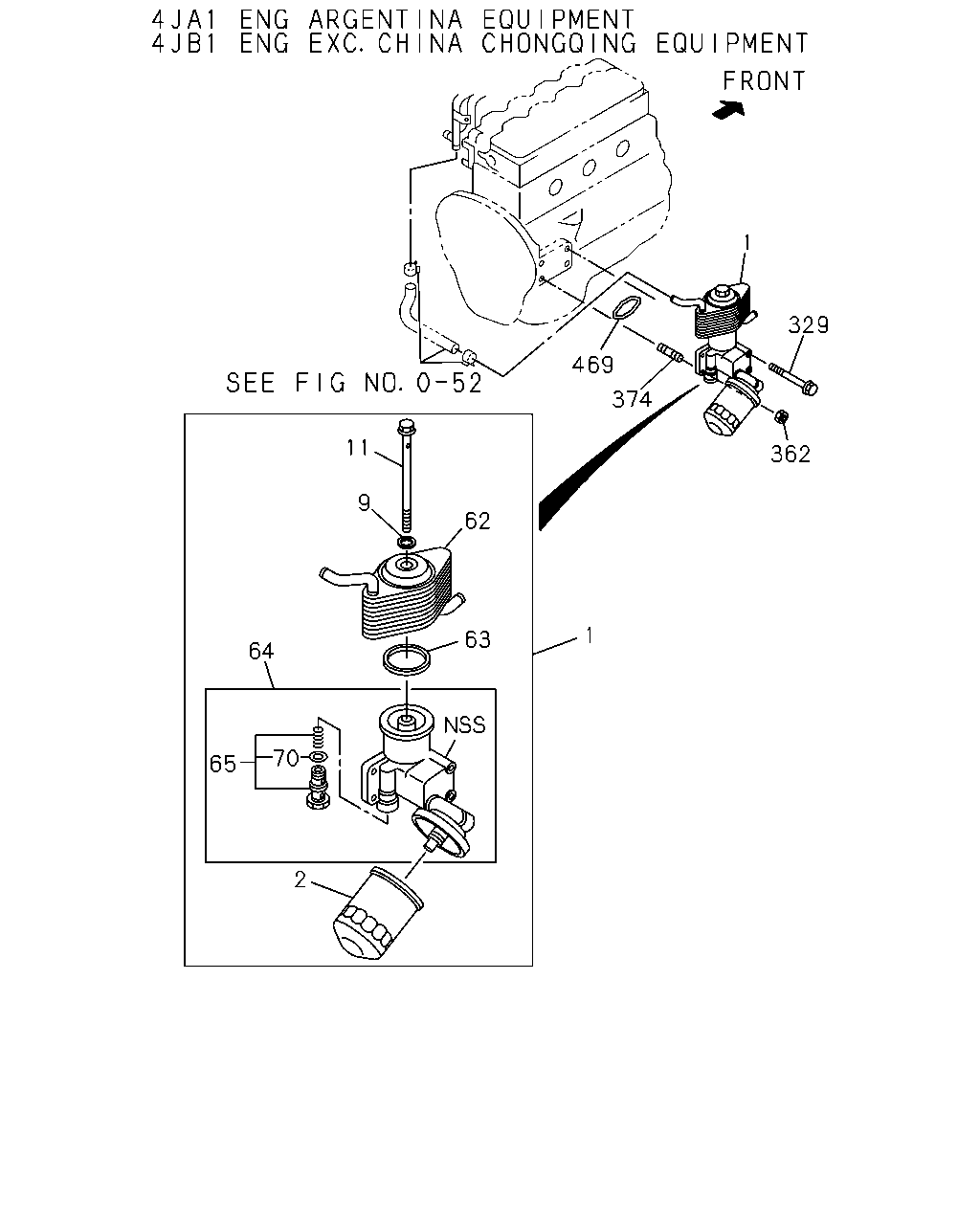

çizim 67258
329 469 374 362 9 62 63 64 65 2 1 1 11 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.540 FILTER & COOLER ASM; OIL 8-97117-255-1 01 1 9611-9711 ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97117-255-1 01 1 9712- ●
1 01.540 FILTER & COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97160-376-1 01 1 9611- ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-037-1 01 1 9701-9711 ●
1 01.540 FILTER & COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) 		8-97169-037-1 01 1 9712- ●
1 01.540 FILTER & COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-037-1 01 1 9712- ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611-9711 ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9712- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97047-000-0 01 1 9611-9711 ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) 		8-97047-000-0 01 1 9712- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97047-000-0 01 1 9712- ●
11 01.840 BOLT; CENTER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-966-0 01 1 9611-9711 ●
11 01.840 BOLT; CENTER
ARGENTINA EQUIPMENT(7SZ) 		8-97117-966-0 01 1 9712- ●
11 01.840 BOLT; CENTER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-966-0 01 1 9712- ●
62 01.540 COOLER ASM; OIL 8-97117-254-1 01 1 9611-9711 ●
62 01.540 COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-254-1 01 1 9611-9711 ●
62 01.540 COOLER ASM; OIL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97117-254-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-254-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-043-1 01 1 9701-9711 ●
62 01.540 COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) 		8-97169-043-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-043-1 01 1 9712- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9611- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97135-351-0 01 1 9611-9711 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97135-351-0 01 1 9712- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-052-1 01 1 9611- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-713-0 01 1 9611-9711 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97161-713-0 01 1 9712- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-713-0 01 1 9712- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9611- ●
65 01.540 VALVE; OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94450-772-0 01 1 9611- ●
65 01.540 VALVE; OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 01.837 		8-94167-882-0 01 1 9611- ●
70 01.844 GASKET; PLUG,OIL FILTER
(A) ID=13.6 		8-94167-884-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (A) ID=13.6 		8-94167-884-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (A) ID=13.6 		8-94167-884-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (A) ID=13.6 		8-94167-884-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
(B) ID=8.8 		8-94167-885-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (B) ID=8.8 		8-94167-885-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (B) ID=8.8 		8-94167-885-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (B) ID=8.8 		8-94167-885-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
(C) ID=6.8 		8-94167-886-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (C) ID=6.8 		8-94167-886-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (C) ID=6.8 		8-94167-886-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (C) ID=6.8 		8-94167-886-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		9-09921-193-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
ARGENTINA EQUIPMENT(7SZ) 		9-09921-193-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		9-09921-193-0 01 1 9712- ●
329 01.840 BOLT; OIL FILTER
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9712- ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 9611- ● ●
çizim 71020
1 30 329 374 469 1 362 2 64 62 63 70 70 70 69 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.540 FILTER & COOLER ASM; OIL 8-97117-255-1 01 1 9611-9711 ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97117-255-1 01 1 9712- ●
1 01.540 FILTER & COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97160-376-1 01 1 9611- ●
1 01.540 FILTER & COOLER ASM; OIL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-037-1 01 1 9701-9711 ●
1 01.540 FILTER & COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) 		8-97169-037-1 01 1 9712- ●
1 01.540 FILTER & COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-037-1 01 1 9712- ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611-9711 ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9712- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ● ●
30 01.540 PIPE ASM; OIL COOLER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY> 		8-94475-204-1 01 1 9611-9711 ●
30 01.540 PIPE ASM; OIL COOLER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY>,ARGENTINA EQUIPMENT(7SZ) 		8-94475-204-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL 8-97117-254-1 01 1 9611-9711 ●
62 01.540 COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-254-1 01 1 9611-9711 ●
62 01.540 COOLER ASM; OIL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97117-254-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
CHINA CHONGQING EQUIPMENT(R5B) 		8-97117-254-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-043-1 01 1 9701-9711 ●
62 01.540 COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) 		8-97169-043-1 01 1 9712- ●
62 01.540 COOLER ASM; OIL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97169-043-1 01 1 9712- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9611- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97135-351-0 01 1 9611-9711 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97135-351-0 01 1 9712- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-052-1 01 1 9611- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-713-0 01 1 9611-9711 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97161-713-0 01 1 9712- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97161-713-0 01 1 9712- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9611- ●
65 01.540 VALVE; OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94450-772-0 01 1 9611- ●
65 01.540 VALVE; OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 01.837 		8-94167-882-0 01 1 9611- ●
69 01.837 PLUG; BODY,OIL FILTER 8-94167-883-0 01 1 9611-9711 ●
69 01.837 PLUG; BODY,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) 		8-94167-883-0 01 1 9611-9711 ●
69 01.837 PLUG; BODY,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94167-883-0 01 1 9712- ●
69 01.837 PLUG; BODY,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) 		8-94167-883-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
(A) ID=13.6 		8-94167-884-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (A) ID=13.6 		8-94167-884-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (A) ID=13.6 		8-94167-884-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (A) ID=13.6 		8-94167-884-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
(B) ID=8.8 		8-94167-885-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (B) ID=8.8 		8-94167-885-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (B) ID=8.8 		8-94167-885-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (B) ID=8.8 		8-94167-885-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
(C) ID=6.8 		8-94167-886-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (C) ID=6.8 		8-94167-886-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) (C) ID=6.8 		8-94167-886-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) (C) ID=6.8 		8-94167-886-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		9-09921-193-0 01 1 9611-9711 ●
70 01.844 GASKET; PLUG,OIL FILTER
ARGENTINA EQUIPMENT(7SZ) 		9-09921-193-0 01 1 9712- ●
70 01.844 GASKET; PLUG,OIL FILTER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		9-09921-193-0 01 1 9712- ●
329 01.840 BOLT; OIL FILTER
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611-9711 ●
329 01.840 BOLT; OIL FILTER
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9712- ●
329 01.840 BOLT; OIL FILTER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9712- ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 9611- ● ●

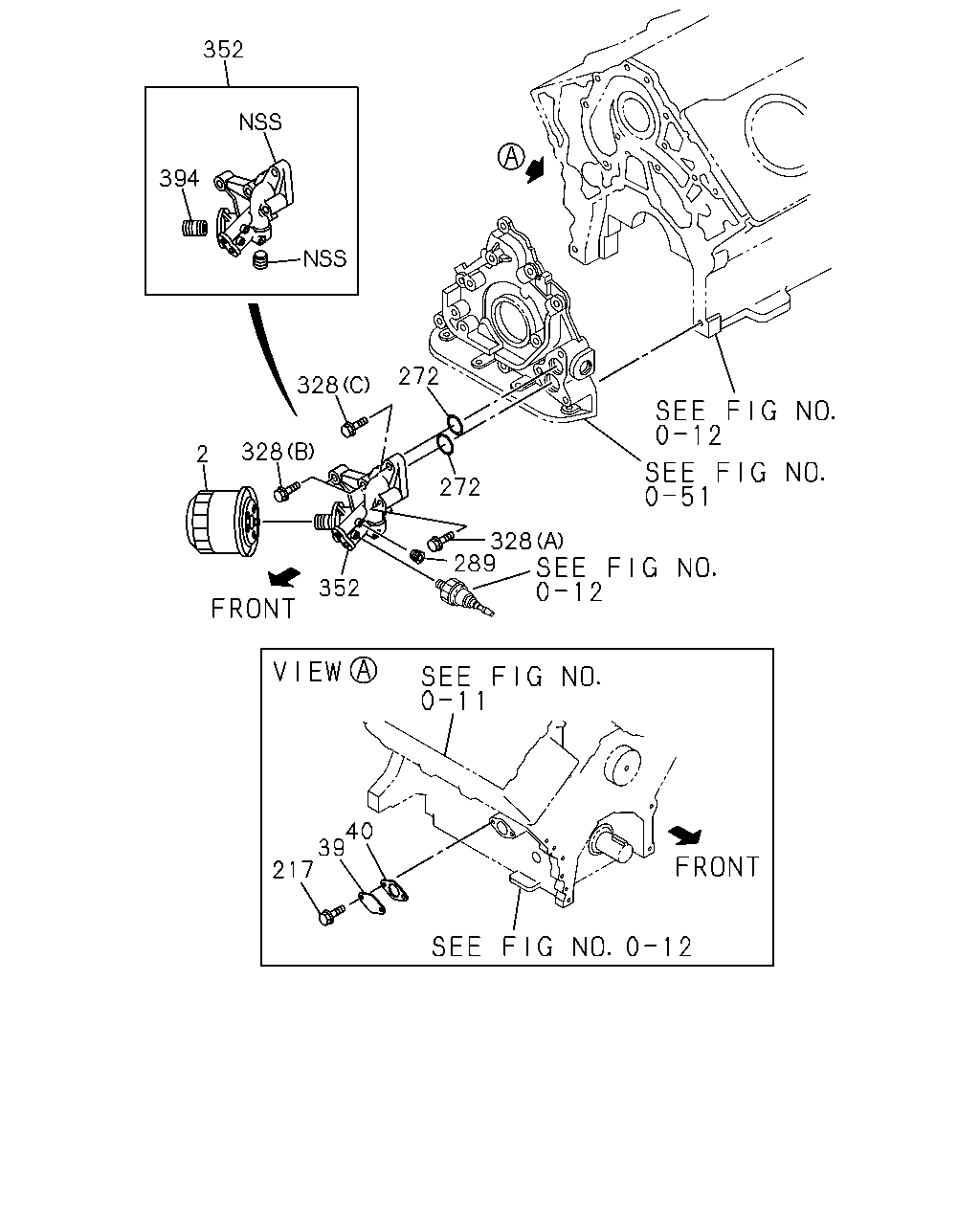

çizim 72372
352 394 272 328 328 2 272 328 289 352 40 39 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9611-9711 ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9712- ● ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-1 01 1 9611- ● ●
39 01.540 COVER; OIL COOLER 8-97031-507-1 01 1 9712- ●
40 01.550 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97031-084-0 01 1 9712- ●
217 01.540 BOLT; CONNECTOR
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9712- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9611- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2 		8-94329-964-0 02 1 9712- ●
289 01.840 PLUG; ADAPTER
01.531 PT1/8 		1-09605-050-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
M8X70 W/LK WASHER 		0-50040-870-0 01 1 9611- ● ● ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 9712- ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 9712- ●
352 01.840 ADAPTER; OIL FILTER 8-94476-127-0 01 1 9611- ● ●
352 01.840 ADAPTER; OIL FILTER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94476-127-0 01 1 9611- ●
352 01.840 ADAPTER; OIL FILTER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97021-073-0 01 1 9611- ●
352 01.840 ADAPTER; OIL FILTER 8-97149-343-2 01 1 9712- ●
394 01.837 STUD; OIL FILTER 8-97022-473-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
