1 |

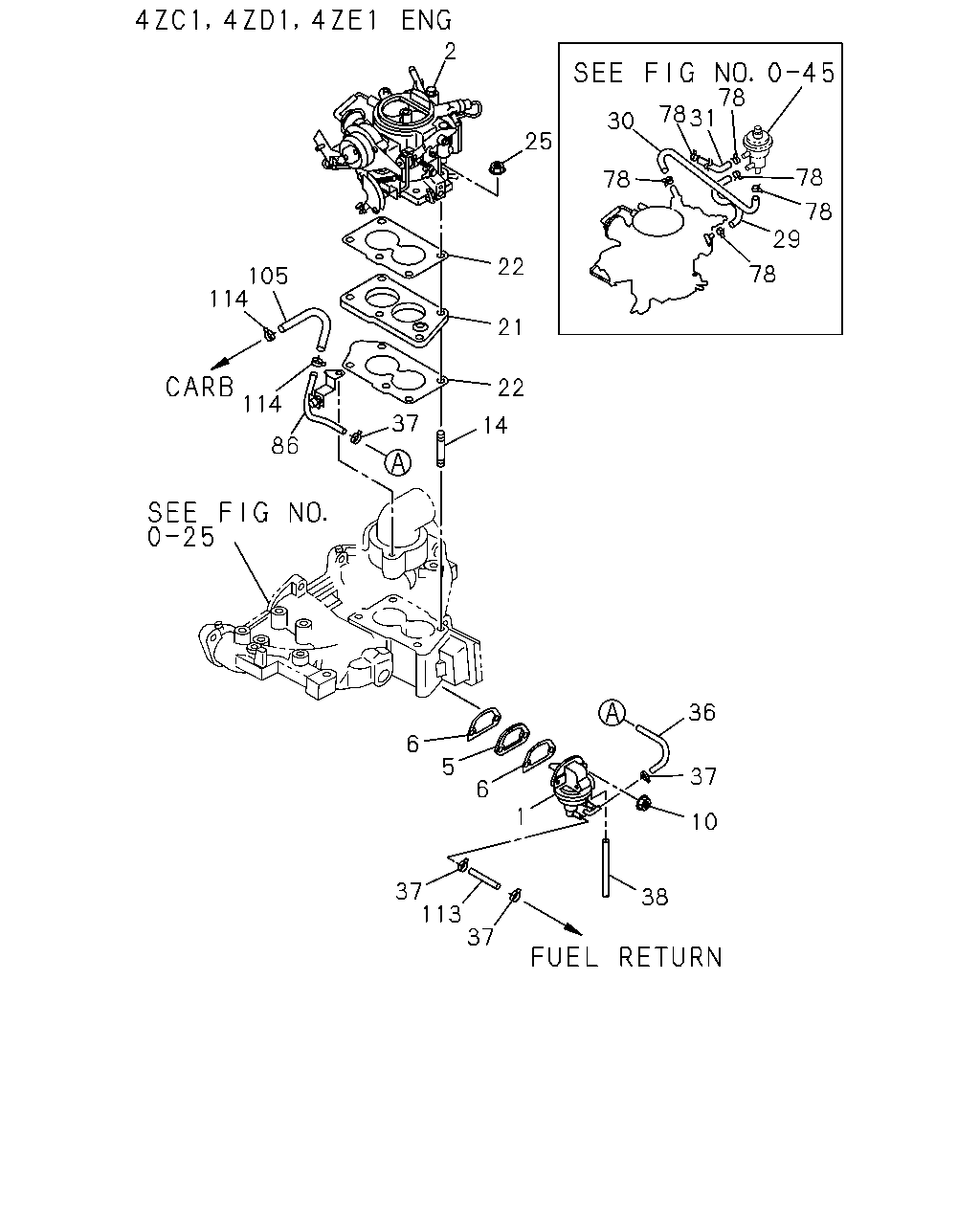

03.900 PUMP ASM; FUEL
|
8-94438-533-1 |
01 |
1 |
9611- |
● |
● |
|
| |
1 |
03.900 PUMP ASM; FUEL
EXC. ELECTRIC FUEL INJECTION<6GG>
|
8-94438-533-1 |
01 |
1 |
9611- |
|
|
● |
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
|
8-97101-000-1 |
01 |
1 |
9611- |
● |
|
|
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
|
8-94455-754-2 |
01 |
1 |
9611- |
|
|
● |
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
COLOMBIA EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>
|
8-97149-830-0 |
01 |
1 |
9611- |
|
|
● |
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(EU2),CHINA
EQUIPMENT(YT2)
|
8-94453-918-2 |
01 |
1 |
9611- |
|
|
● |
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
EXC. SAUDI ARABIA EQUIPMENT(EU2),
COLOMBIA EQUIPMENT(X74),CHINA
EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)
|
8-97149-829-0 |
01 |
1 |
9611- |
|
|
● |
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
|
8-97069-282-1 |
01 |
1 |
9611-9611 |
|
● |
|
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
HIGHLAND ZONE PACKAGE<7EG>
|
8-97069-282-1 |
01 |
1 |
9612- |
|
● |
|
| |
2 |
03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
EXC. HIGHLAND ZONE PACKAGE<7EG>
|
8-97171-296-0 |
01 |
1 |
9612- |
|
● |
|
| |
5 |
03.901 INSULATOR; HEAT,FUEL PUMP
03.843
|
8-94146-258-0 |
01 |
1 |
9611- |
● |
● |
|
| |
5 |
03.901 INSULATOR; HEAT,FUEL PUMP
EXC. ELECTRIC FUEL INJECTION<6GG>
03.843
|
8-94146-258-0 |
01 |
1 |
9611- |
|
|
● |
| |
6 |
03.904 GASKET; FUEL PUMP
|
8-94324-196-0 |
02 |
1 |
9611- |
● |
● |
|
| |
6 |
03.904 GASKET; FUEL PUMP
EXC. ELECTRIC FUEL INJECTION<6GG>
|
8-94324-196-0 |
02 |
1 |
9611- |
|
|
● |
| |
10 |
03.901 NUT; FUEL PUMP
00.854
M8 FLANGE
|
5-09440-005-0 |
02 |
1 |
9611- |
● |
● |
|
| |
10 |
03.901 NUT; FUEL PUMP
EXC. ELECTRIC FUEL INJECTION<6GG>
00.854
M8 FLANGE
|
5-09440-005-0 |
02 |
1 |
9611- |
|
|
● |
| |
14 |
03.278 STUD; CARB TO INL MANIF
03.726
M8X21 L=52
|
8-94150-232-0 |
04 |
1 |
9611- |
● |
|
|
| |
14 |
03.278 STUD; CARB TO INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG>
03.726
M8X21 L=52
|
8-94150-232-0 |
04 |
1 |
9611- |
|
|
● |
| |
14 |
03.278 STUD; CARB TO INL MANIF
03.275
M8X27 L=39
|
8-94202-304-0 |
04 |
1 |
9611- |
|
● |
|
| |
21 |
03.602 INSULATOR; HEAT
EXC. CHILE EQUIPMENT(6KB)
03.726
|
8-94156-661-1 |
01 |
1 |
9611-9702 |
● |
|
● |
| |
21 |
03.602 INSULATOR; HEAT
03.726
|
8-94156-661-1 |
01 |
1 |
9703- |
● |
|
|
| |
21 |
03.602 INSULATOR; HEAT
EXC. ELECTRIC FUEL INJECTION<6GG>,
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA
RICA EQUIPMENT(7LD)
03.726
|
8-94156-661-1 |
01 |
1 |
9703- |
|
|
● |
| |
22 |
03.726 GASKET; HEAT INSULATION
EXC. CHILE EQUIPMENT(6KB)
|
8-94150-145-0 |
02 |
1 |
9611-9702 |
● |
|
● |
| |
22 |
03.726 GASKET; HEAT INSULATION
|
8-94150-145-0 |
02 |
1 |
9703- |
● |
|
|
| |
22 |
03.726 GASKET; HEAT INSULATION
EXC. ELECTRIC FUEL INJECTION<6GG>,
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA
RICA EQUIPMENT(7LD)
|
8-94150-145-0 |
02 |
1 |
9703- |
|
|
● |
| |
25 |
03.275 NUT; CARB TO INL MANIF
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
9611- |
● |
● |
|
| |
25 |
03.275 NUT; CARB TO INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG>
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
9611- |
|
|
● |
| |
29 |
03.163 HOSE; RUBBER,CARBURETOR TO VLV
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=200
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9611- |
|
|
● |
| |
30 |
03.163 HOSE; RUBBER,VLV TO CARBURETOR
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=200
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9611- |
|
|
● |
| |
31 |
03.163 HOSE; RUBBER,VLV TO 3 WAY
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9611- |
|
|
● |
| |
36 |
03.163 HOSE; FUEL PUMP TO CARB
08.962
L=110
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611- |
● |
● |
|
| |
36 |
03.163 HOSE; FUEL PUMP TO CARB
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=110
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611- |
|
|
● |
| |
37 |
03.162 CLIP; FUEL HOSE
01.166
ID=14
|
8-94238-572-0 |
02 |
1 |
9611-9611 |
● |
● |
|
| |
37 |
03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG>
01.166
ID=14
|
8-94238-572-0 |
02 |
1 |
9611-9611 |
|
|
● |
| |
37 |
03.162 CLIP; FUEL HOSE
01.166
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
● |
|
|
| |
37 |
03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG>
01.166
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
|
|
● |
| |
37 |
03.162 CLIP; FUEL HOSE
HIGHLAND ZONE PACKAGE<7EG>
01.166
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
|
● |
|
| |
37 |
03.162 CLIP; FUEL HOSE
EXC. HIGHLAND ZONE PACKAGE<7EG>
01.166
ID=14
|
8-94238-572-0 |
04 |
1 |
9612- |
|
● |
|
| |
38 |
03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM
08.962
L=200
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9611-9705 |
● |
● |
|
| |
38 |
03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=200
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9611-9705 |
|
|
● |
| |
38 |
03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM
08.962
L=180
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9706- |
● |
● |
|
| |
38 |
03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM
EXC. ELECTRIC FUEL INJECTION<6GG>
08.962
L=180
SERVICED BY L=3000
|
0-04750-300-0 |
01 |
1 |
9706- |
|
|
● |
| |
78 |
03.675 CLIP; RUBBER HOSE
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
03.163
ID=11
|
8-94238-570-0 |
04 |
1 |
9611- |
|
|
● |
| |
78 |
03.675 CLIP; RUBBER HOSE
COLOMBIA EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>
03.163
ID=11
|
8-94238-570-0 |
02 |
1 |
9611- |
|
|
● |
| |
78 |
03.675 CLIP; RUBBER HOSE
COLOMBIA EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
9611- |
|
|
● |
| |
86 |
03.163 PIPE; FUEL,PUMP TO CARBURETOR
|
8-94328-844-0 |
01 |
1 |
9611- |
● |
● |
|
| |
86 |
03.163 PIPE; FUEL,PUMP TO CARBURETOR
EXC. ELECTRIC FUEL INJECTION<6GG>
|
8-94328-844-0 |
01 |
1 |
9611- |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
08.962
L=220
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9702 |
● |
|
|
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
COLOMBIA EQUIPMENT(X74)
EXC. CATALYSIS CONTROL<6MZ>
08.962
L=220
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9702 |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
EXC. COLOMBIA EQUIPMENT(X74),CHILE
EQUIPMENT(6KB),GUATEMALA/COSTA RICA
EQUIPMENT(7LD)
08.962
L=220
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9702 |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
08.962
L=220
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9703- |
● |
|
|
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
EXC. ELECTRIC FUEL INJECTION<6GG>,
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA
RICA EQUIPMENT(7LD)
08.962
L=220
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9703- |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA
RICA EQUIPMENT(7LD)
EXC. ELECTRIC FUEL INJECTION<6GG>
L=160
|
8-94362-089-0 |
01 |
1 |
9611- |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
CATALYSIS CONTROL<6MZ>
L=160
|
8-94362-089-0 |
01 |
1 |
9611- |
|
|
● |
| |
105 |
03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
L=160
|
8-94362-089-0 |
01 |
1 |
9611- |
|
● |
|
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9611 |
● |
● |
|
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
COLOMBIA EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>,
CATALYSIS CONTROL<6MZ>
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9611 |
|
|
● |
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
EXC. COLOMBIA EQUIPMENT(X74),CHILE
EQUIPMENT(6KB),GUATEMALA/COSTA RICA
EQUIPMENT(7LD)
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9611-9611 |
|
|
● |
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9612- |
● |
● |
|
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
ECUADOR EQUIPMENT(S6E),COLOMBIA
EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>,
CATALYSIS CONTROL<6MZ>
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9612- |
|
|
● |
| |
113 |
03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA
EQUIPMENT(X74),CHILE EQUIPMENT(6KB),
GUATEMALA/COSTA RICA EQUIPMENT(7LD)
08.962
L=60
SERVICED BY L=3000
|
0-01258-300-0 |
01 |
1 |
9612- |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
ID=14
|
8-94238-572-0 |
04 |
1 |
9612- |
● |
|
|
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
ECUADOR EQUIPMENT(S6E),COLOMBIA
EQUIPMENT(X74)
EXC. ELECTRIC FUEL INJECTION<6GG>,
CATALYSIS CONTROL<6MZ>
ID=14
|
8-94238-572-0 |
04 |
1 |
9612- |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA
EQUIPMENT(X74),CHILE EQUIPMENT(6KB),
GUATEMALA/COSTA RICA EQUIPMENT(7LD)
ID=14
|
8-94238-572-0 |
04 |
1 |
9612- |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
HIGHLAND ZONE PACKAGE<7EG>
ID=14
|
8-94238-572-0 |
04 |
1 |
9612- |
|
● |
|
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
CHILE EQUIPMENT(6KB)
EXC. ELECTRIC FUEL INJECTION<6GG>
ID=14
|
8-94238-572-0 |
02 |
1 |
9611-9611 |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA
RICA EQUIPMENT(7LD)
EXC. ELECTRIC FUEL INJECTION<6GG>
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
CATALYSIS CONTROL<6MZ>
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
|
|
● |
| |
114 |
01.166 CLIP; FUEL HOSE,DAMPER
EXC. HIGHLAND ZONE PACKAGE<7EG>
ID=14
|
8-94238-572-0 |
02 |
1 |
9612- |
|
● |
|
