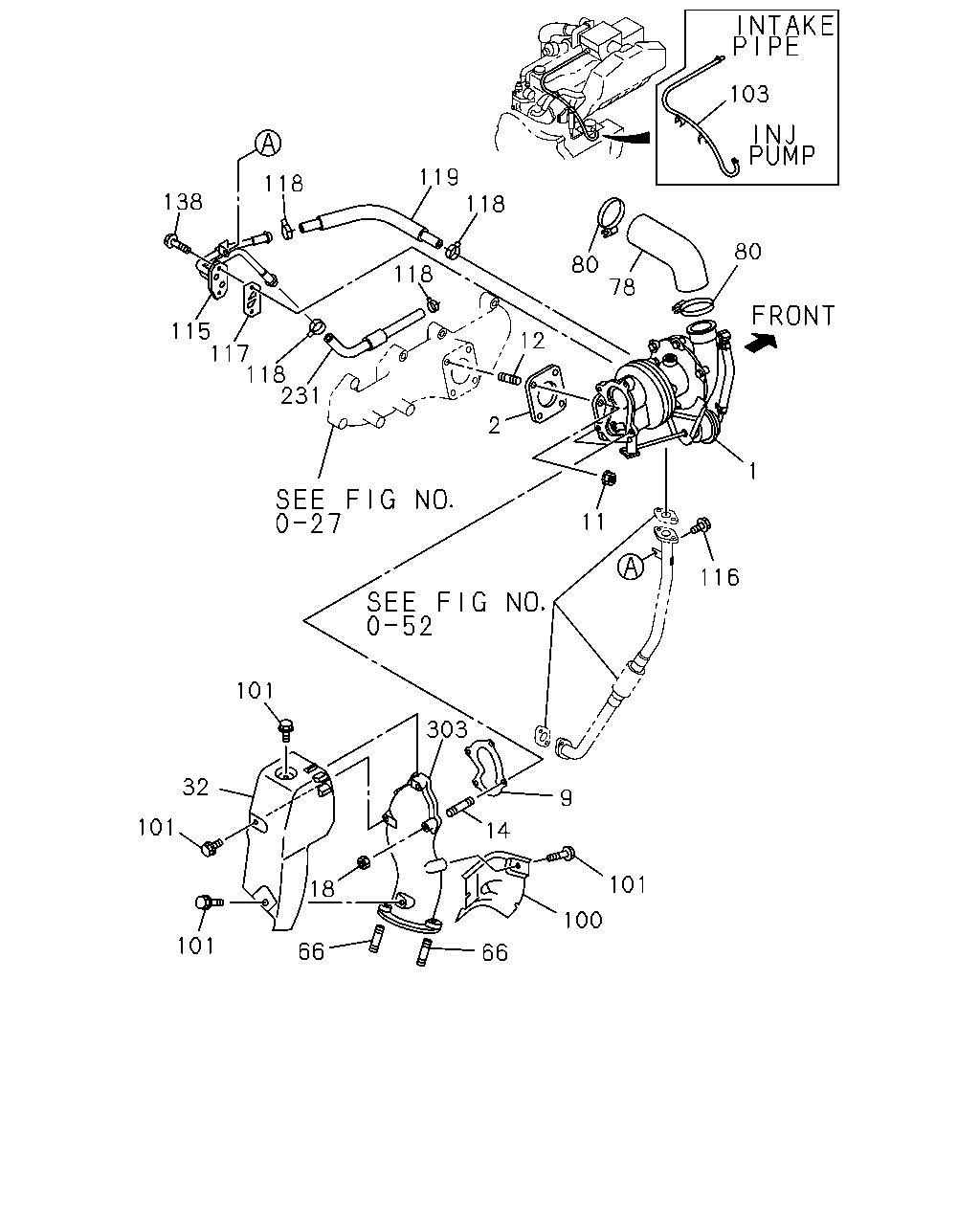

0-36 — TURBOCHARGER SYSTEM (#47931) — 50 parça

103 119 118 138 118 80 80 118 78 115 117 12 118 231 2 1 11 116 101 303 32 9 101 14 101 18 100 101 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. ARGENTINA EQUIPMENT(7SZ)	8-97185-645-0	01	1	9712-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97139-724-2	01	1	9611-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94481-980-0	01	1	9611-9711		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ARGENTINA EQUIPMENT(7SZ)	8-94481-980-0	01	1	9712-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94481-980-0	01	1	9712-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97139-726-0	01	1	9611-9711		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ARGENTINA EQUIPMENT(7SZ)	8-97139-726-0	01	1	9712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97139-726-0	01	1	9712-		●
11	03.342 NUT; TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.613 M8 FLANGE	8-97161-607-0	04	1	9611-9711		●
11	03.342 NUT; TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) 03.613 M8 FLANGE	8-97161-607-0	04	1	9712-	●
11	03.342 NUT; TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.613 M8 FLANGE	8-97161-607-0	04	1	9712-		●
12	03.342 STUD; TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X20 L=31	8-97104-508-1	04	1	9611-9711		●
12	03.342 STUD; TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) M8X20 L=31	8-97104-508-1	04	1	9712-	●
12	03.342 STUD; TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X20 L=31	8-97104-508-1	04	1	9712-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X43 L=54	8-97104-507-1	04	1	9611-9711		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE ARGENTINA EQUIPMENT(7SZ) M8X41 L=52	8-97188-452-0	04	1	9712-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X41 L=52	8-97188-452-0	04	1	9712-		●
18	03.613 NUT; EXH PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M8 FLANGE	8-97161-607-0	04	1	9611-9711		●
18	03.613 NUT; EXH PIPE ARGENTINA EQUIPMENT(7SZ) M8 FLANGE	8-97161-607-0	04	1	9712-	●
18	03.613 NUT; EXH PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M8 FLANGE	8-97161-607-0	04	1	9712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97087-029-0	01	1	9611-9711		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ)	8-97087-029-0	01	1	9712-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97087-029-0	01	1	9712-		●
66	03.342 STUD; EXH PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X38 L=53	5-09302-007-0	02	1	9611-9711		●
66	03.342 STUD; EXH PIPE ARGENTINA EQUIPMENT(7SZ) 03.613 M10X38 L=53	5-09302-007-0	02	1	9712-	●
66	03.342 STUD; EXH PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X38 L=53	5-09302-007-0	02	1	9712-		●
78	03.342 HOSE; INL PIPE,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ)	8-97096-628-2	01	1	9712-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ)	8-97188-117-0	01	1	9712-		●
78	03.342 HOSE; INL PIPE,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97120-727-0	01	1	9611-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B) ID=45.5-56.5	8-97131-943-0	02	1	9611-9711		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) ID=45.5-56.5	8-97131-943-0	02	1	9712-	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) ID=45.5-56.5	8-97131-943-0	02	1	9712-		●
100	03.417 PROTECTOR; HEAT,EXH MANIF EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97038-109-1	01	1	9611-9711		●
100	03.417 PROTECTOR; HEAT,EXH MANIF ARGENTINA EQUIPMENT(7SZ)	8-97038-109-1	01	1	9712-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97038-109-1	01	1	9712-		●
101	03.602 BOLT; HEAT PROTECTOR EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9611-9711		●
101	03.602 BOLT; HEAT PROTECTOR ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9712-	●
101	03.602 BOLT; HEAT PROTECTOR ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9712-		●
103	03.374 HOSE; TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97026-816-0	01	1	9611-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97149-127-1	01	1	9611-		●
116	03.342 BOLT; WATER PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-		●
116	03.342 BOLT; WATER PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9710-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.374	8-94321-135-1	01	1	9611-		●
118	03.342 CLIP; WATER HOSE EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.162 ID=15.5	8-94221-519-0	04	1	9611-		●
119	03.342 HOSE; WATER,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B) L=250 W/INSULATOR	8-94340-669-1	01	1	9611-		●
138	03.342 BOLT; EYE,WATER PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9611-9710		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. CHINA CHONGQING EQUIPMENT(R5B) L=160 W/INSULATOR	8-94325-255-0	01	1	9611-		●
303	03.440 ADAPTER; THROTTLE BODY,EXH EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97139-725-0	01	1	9611-9711		●
303	03.440 ADAPTER; THROTTLE BODY,EXH ARGENTINA EQUIPMENT(7SZ)	8-97139-725-0	01	1	9712-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97139-725-0	01	1	9712-		●
