0-35 — ENGINE CONTROL VALVE AND LEVER (#47930) — 12 parça

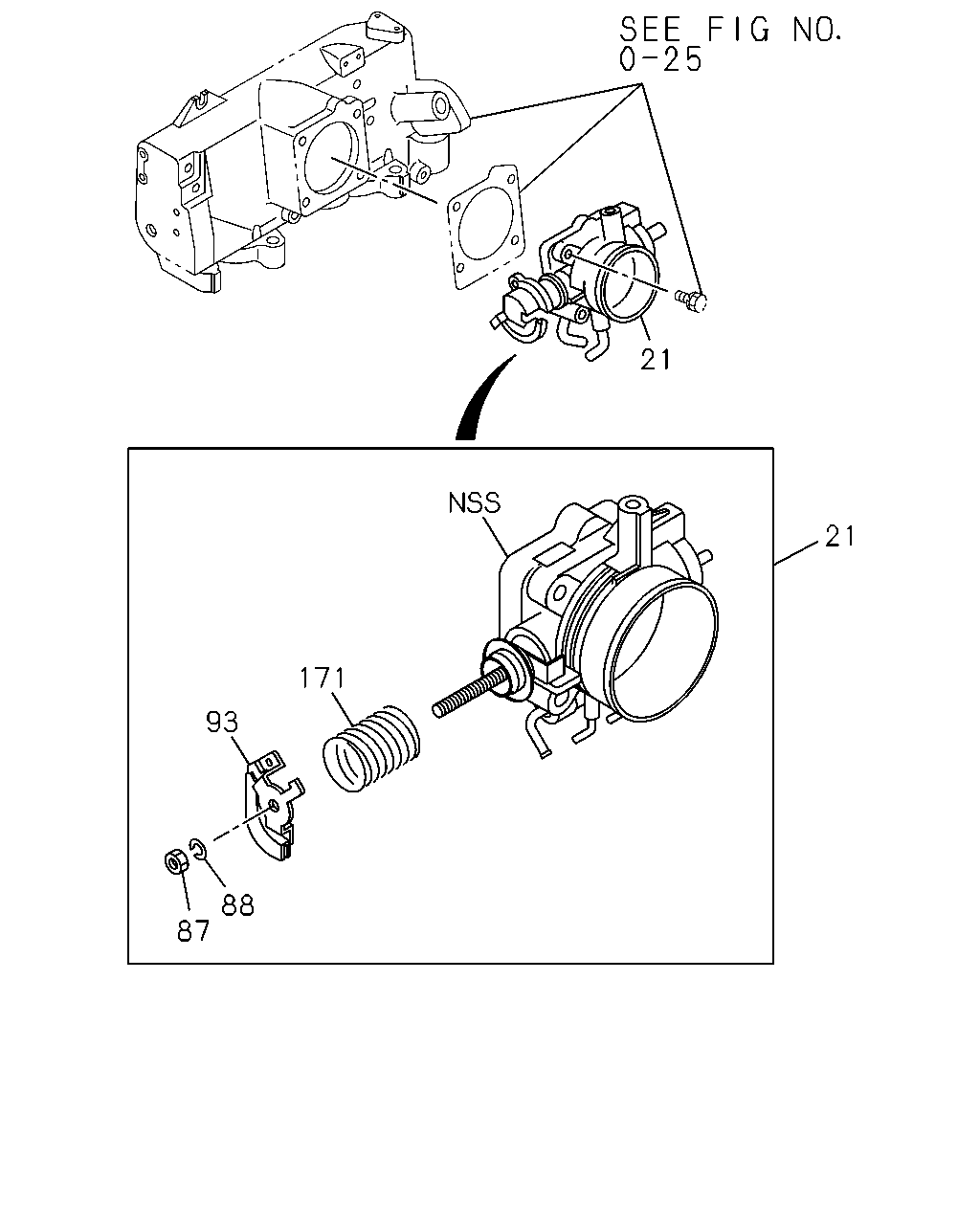

çizim 70148
21 21 171 93 88 87
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
ELECTRIC FUEL INJECTION<6GG> 		8-97038-771-3 01 1 9611- ●
21 03.440 VALVE ASM; THROTTLE 8-97180-040-0 01 1 9712- ●
87 03.440 NUT; SHAFT
ELECTRIC FUEL INJECTION<6GG> 		8-97081-680-0 01 1 9611- ●
88 03.440 WASHER; SHAFT
ELECTRIC FUEL INJECTION<6GG> 		8-97081-681-0 01 1 9611- ●
93 03.440 LEVER; THROTTLE,PRIMARY
ELECTRIC FUEL INJECTION<6GG> 		8-97081-672-0 01 1 9611- ●
171 03.440 SPRING; MAIN,THROTTLE BODY
ELECTRIC FUEL INJECTION<6GG> 		8-97145-801-0 01 1 9611- ●

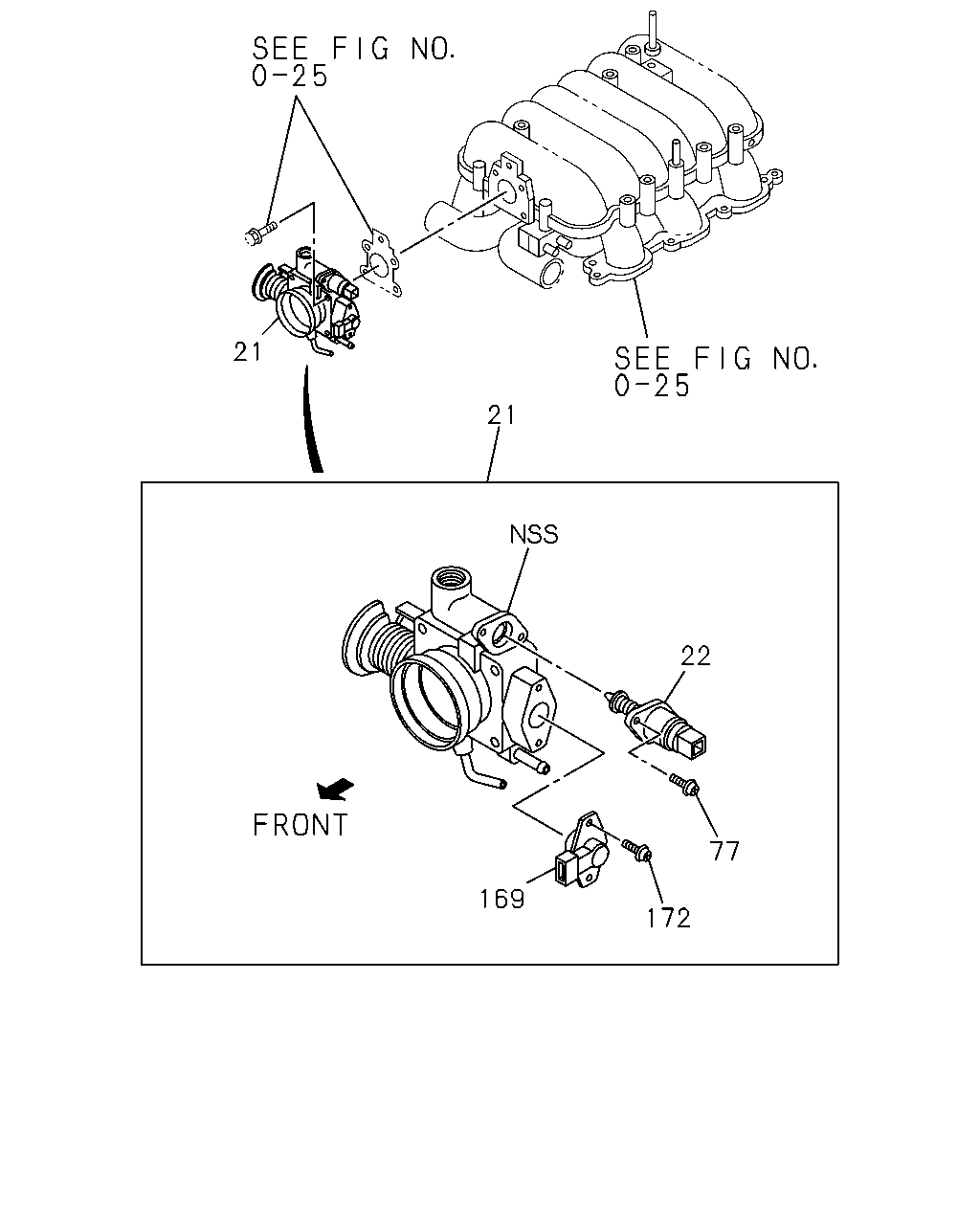

çizim 71105
21 21 22 77 169 172
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
ELECTRIC FUEL INJECTION<6GG> 		8-97038-771-3 01 1 9611- ●
21 03.440 VALVE ASM; THROTTLE 8-97180-040-0 01 1 9712- ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 9712- ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 9712- ●
169 03.440 SENSOR 8-97181-717-0 01 1 9712- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 9712- ●
