1 |

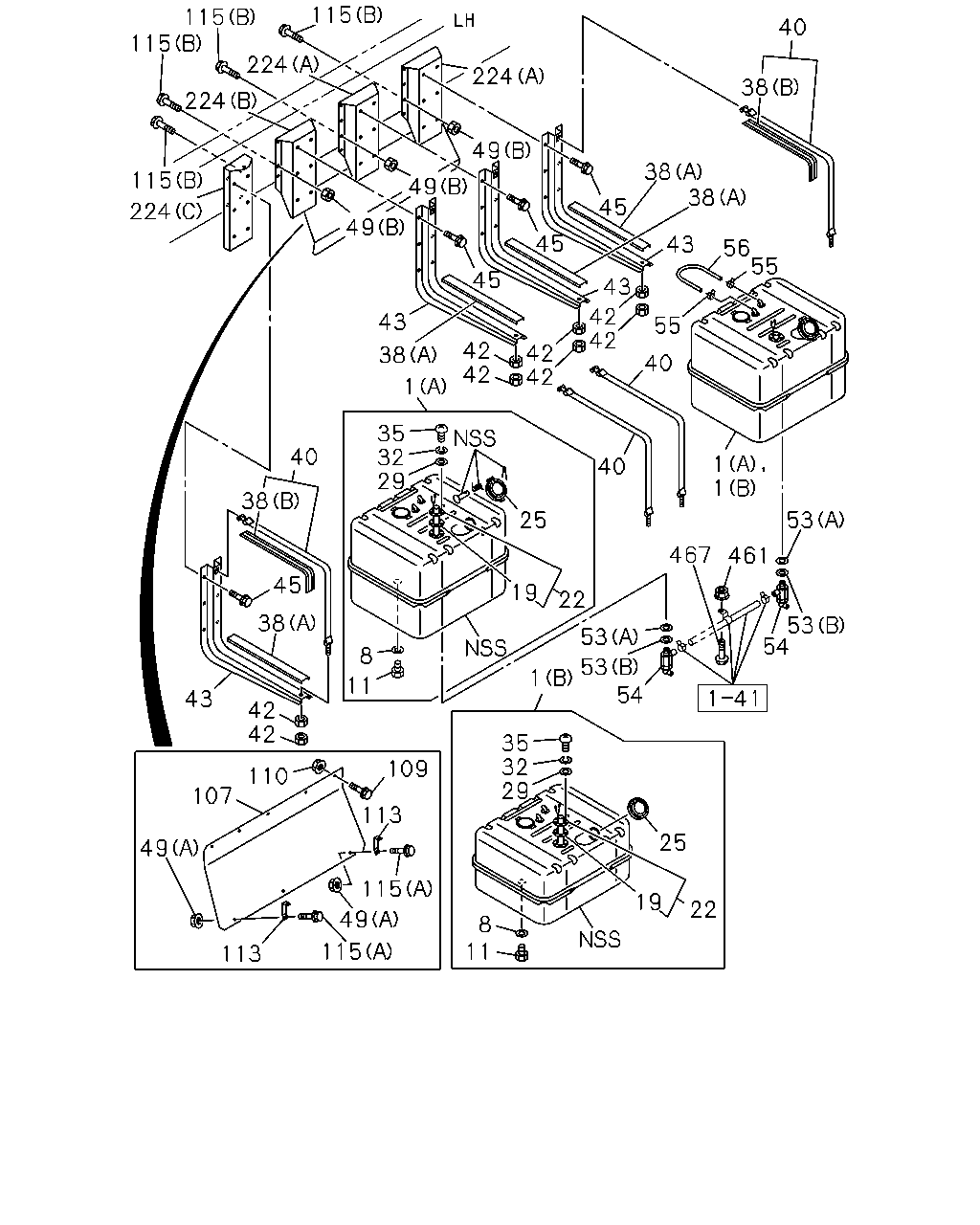

TANK; FUEL
FUEL FILLER CAP LOCK AUTO RETURN<W46>
(A)
720X610X496 200L
|
1-22400-855-0 |
02 |
1 |
9601-9610 |
● |
|
| |
1 |
TANK; FUEL
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
(B)
720X610X496 200L
|
1-22400-854-1 |
02 |
1 |
9601-9904 |
● |
|
| |
1 |
TANK; FUEL
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
(B)
720X610X496 200L
|
1-22400-854-1 |
02 |
1 |
9905-9907 |
● |
● |
| |
1 |
TANK; FUEL
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
(B)
720X610X496 200L
|
1-22400-854-1 |
02 |
1 |
9908-0003 |
● |
● |
| |
1 |
TANK; FUEL
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
(B)
720X610X496 200L
|
1-22401-117-1 |
02 |
1 |
0004- |
● |
● |
| |
1 |
TANK; FUEL
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
(B)
720X610X496 200L
|
1-22400-854-1 |
02 |
1 |
9611-9904 |
● |
|
| |
1 |
TANK; FUEL
FUEL FILLER CAP LOCK AUTO RETURN<W46>
(A)
720X610X496 200L
|
1-22400-855-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
1 |
TANK; FUEL
FUEL FILLER CAP LOCK AUTO RETURN<W46>
(A)
720X610X496 200L
|
1-22400-855-0 |
02 |
1 |
9908-0003 |
● |
● |
| |
1 |
TANK; FUEL
FUEL FILLER CAP LOCK AUTO RETURN<W46>
(A)
720X610X496 200L
|
1-22401-121-1 |
02 |
1 |
0004- |
● |
● |
| |
1 |
TANK; FUEL
FUEL FILLER CAP LOCK AUTO RETURN<W46>
(A)
720X610X496 200L
|
1-22400-855-0 |
02 |
1 |
9611-9904 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
02 |
1 |
9601-9610 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
02 |
1 |
9908- |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
02 |
1 |
9611-9904 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
02 |
1 |
9601-9610 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
02 |
1 |
9908-0003 |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
02 |
1 |
0004- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
02 |
1 |
9611-9904 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
|
9-83135-003-0 |
02 |
1 |
9601-9610 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
|
9-83135-003-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
|
9-83135-003-0 |
02 |
1 |
9908- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
|
9-83135-003-0 |
02 |
1 |
9611-9904 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-080-1 |
02 |
1 |
9601-9610 |
● |
|
| |
22 |
UNIT; FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-124-0 |
02 |
1 |
9601-9610 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-080-1 |
02 |
1 |
9905-9907 |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-080-1 |
02 |
1 |
9908- |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-080-1 |
02 |
1 |
9611-9904 |
● |
|
| |
22 |
UNIT; FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-124-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
22 |
UNIT; FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-124-0 |
02 |
1 |
9908- |
● |
● |
| |
22 |
UNIT; FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-83141-124-0 |
02 |
1 |
9611-9904 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-034-1 |
02 |
1 |
9601-9610 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-033-2 |
02 |
1 |
9601-9610 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-034-1 |
02 |
1 |
9905-9907 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-034-1 |
02 |
1 |
9908- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-034-1 |
02 |
1 |
9611-9904 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-033-2 |
02 |
1 |
9905-9907 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-033-2 |
02 |
1 |
9908-0003 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-067-0 |
02 |
1 |
0004- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>
|
1-22440-033-2 |
02 |
1 |
9611-9904 |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
02 |
1 |
9601-9610 |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
02 |
1 |
9908- |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
02 |
1 |
9611-9904 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
10 |
1 |
9601-9610 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
10 |
1 |
9905-9907 |
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
10 |
1 |
9908- |
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
10 |
1 |
9611-9904 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
10 |
1 |
9601-9610 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
10 |
1 |
9905-9907 |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
10 |
1 |
9908- |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
10 |
1 |
9611-9904 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
(A)
L=580
|
1-22553-003-0 |
04 |
1 |
9601-9610 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
(B)
L=650
|
1-22553-022-1 |
04 |
1 |
9601-9610 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
(A)
L=580
|
1-22553-003-0 |
04 |
1 |
9905-9907 |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
(A)
L=580
|
1-22553-003-0 |
04 |
1 |
9908- |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
(A)
L=580
|
1-22553-003-0 |
04 |
1 |
9611-9904 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
(B)
L=650
|
1-22553-022-1 |
04 |
1 |
9905-9907 |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
(B)
L=650
|
1-22553-022-1 |
04 |
1 |
9908- |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
(B)
L=650
|
1-22553-022-1 |
04 |
1 |
9611-9904 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1030
|
1-22550-204-1 |
04 |
1 |
9601-9610 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1030
|
1-22550-204-2 |
04 |
1 |
9905-9907 |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1030
|
1-22550-204-2 |
04 |
1 |
9908- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1030
|
1-22550-204-1 |
04 |
1 |
9611-9904 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
12 |
1 |
9601-9610 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
08 |
1 |
9905-9907 |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
08 |
1 |
9908- |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
12 |
1 |
9611-9904 |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-279-4 |
04 |
1 |
9601-9610 |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-279-4 |
04 |
1 |
9905-9907 |
● |
● |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-279-4 |
04 |
1 |
9908- |
● |
● |
| |
45 |
BOLT; BRKT,FUEL TANK
M12X30 FLANGE
|
0-28081-230-0 |
24 |
1 |
9601-9606 |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
M12X30 FLANGE
|
0-28681-235-0 |
24 |
1 |
9607-9610 |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
|
0-28681-235-0 |
24 |
1 |
9905-9907 |
● |
● |
| |
45 |
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
|
0-28681-235-0 |
24 |
1 |
9908- |
● |
● |
| |
45 |
BOLT; BRKT,FUEL TANK
M12X30 FLANGE
|
0-28681-235-0 |
24 |
1 |
9611-9904 |
● |
|
| |
49 |
NUT; BRKT
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
|
| |
49 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9904 |
● |
|
| |
49 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
49 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9908- |
● |
● |
| |
49 |
NUT; BRKT
(B)
M12
|
9-99110-512-0 |
18 |
1 |
9601-9904 |
● |
|
| |
49 |
NUT; BRKT
(B)
M12
|
9-99110-512-0 |
12 |
1 |
9905-9907 |
● |
● |
| |
49 |
NUT; BRKT
(B)
M12
|
9-99110-512-0 |
12 |
1 |
9908- |
● |
● |
| |
53 |
GASKET; COCK,FUEL TANK
(B)
T=1.60
|
1-22416-001-0 |
02 |
1 |
9601-9610 |
● |
|
| |
53 |
GASKET; COCK,FUEL TANK
(A)
T=0.80
|
1-22416-004-0 |
02 |
1 |
9601-9610 |
● |
|
| |
53 |
GASKET; COCK,FUEL TANK
(B)
T=1.60
|
1-22416-001-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
53 |
GASKET; COCK,FUEL TANK
(B)
T=1.60
|
1-22416-001-0 |
02 |
1 |
9908- |
● |
● |
| |
53 |
GASKET; COCK,FUEL TANK
(B)
T=1.60
|
1-22416-001-0 |
02 |
1 |
9611-9904 |
● |
|
| |
53 |
GASKET; COCK,FUEL TANK
(A)
T=0.80
|
1-22416-004-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
53 |
GASKET; COCK,FUEL TANK
(A)
T=0.80
|
1-22416-004-0 |
02 |
1 |
9908- |
● |
● |
| |
53 |
GASKET; COCK,FUEL TANK
(A)
T=0.80
|
1-22416-004-0 |
02 |
1 |
9611-9904 |
● |
|
| |
54 |
COCK ASM; FUEL TANK
|
9-09904-176-0 |
02 |
1 |
9601-9610 |
● |
|
| |
54 |
COCK ASM; FUEL TANK
|
9-09904-176-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
54 |
COCK ASM; FUEL TANK
|
9-09904-176-0 |
02 |
1 |
9908- |
● |
● |
| |
54 |
COCK ASM; FUEL TANK
|
9-09904-176-0 |
02 |
1 |
9611-9904 |
● |
|
| |
55 |
CLIP; FUEL PIPE
ID=14
|
1-09704-102-0 |
02 |
1 |
9601-9610 |
● |
|
| |
55 |
CLIP; FUEL PIPE
ID=14
|
1-09704-102-0 |
02 |
1 |
9905- |
● |
● |
| |
55 |
CLIP; FUEL PIPE
ID=14
|
1-09704-102-0 |
02 |
1 |
9611-9904 |
● |
|
| |
56 |
PIPE; FUEL SHUTTER
L=260
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9601-9610 |
● |
|
| |
56 |
PIPE; FUEL SHUTTER
L=260
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
● |
● |
| |
56 |
PIPE; FUEL SHUTTER
L=260
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9611-9904 |
● |
|
| |
107 |
PROTECTOR; HEAT,FUEL TANK
|
1-22159-276-0 |
01 |
1 |
9601-9701 |
● |
|
| |
107 |
PROTECTOR; HEAT,FUEL TANK
|
1-22159-276-0 |
01 |
1 |
9702-9904 |
● |
|
| |
107 |
PROTECTOR; HEAT,FUEL TANK
|
1-22159-276-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
107 |
PROTECTOR; HEAT,FUEL TANK
|
1-22159-276-0 |
01 |
1 |
9908- |
● |
● |
| |
109 |
BOLT; HEAT PROTECTOR
M8X20 FLANGE
|
0-28080-820-0 |
07 |
1 |
9601-9606 |
● |
|
| |
109 |
BOLT; HEAT PROTECTOR
M8X25 FLANGE
|
0-28680-825-0 |
07 |
1 |
9607-9904 |
● |
|
| |
109 |
BOLT; HEAT PROTECTOR
M8X25 FLANGE
|
0-28680-825-0 |
07 |
1 |
9905-9907 |
● |
● |
| |
109 |
BOLT; HEAT PROTECTOR
M8X25 FLANGE
|
0-28680-825-0 |
07 |
1 |
9908- |
● |
● |
| |
110 |
NUT; PROTECTOR
M8
|
9-09110-408-0 |
07 |
1 |
9601-9606 |
● |
|
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9607-9610 |
● |
|
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9905-9907 |
● |
● |
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9908- |
● |
● |
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9611-9904 |
● |
|
| |
113 |
BRACKET; PROTECTOR,FUEL TANK
|
1-22119-362-0 |
02 |
1 |
9601-9610 |
● |
|
| |
113 |
BRACKET; PROTECTOR,FUEL TANK
|
1-22119-362-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
113 |
BRACKET; PROTECTOR,FUEL TANK
|
1-22119-362-0 |
02 |
1 |
9908- |
● |
● |
| |
113 |
BRACKET; PROTECTOR,FUEL TANK
|
1-22119-362-0 |
02 |
1 |
9611-9904 |
● |
|
| |
115 |
BOLT; BRKT
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
|
| |
115 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9610 |
● |
|
| |
115 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
115 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9908- |
● |
● |
| |
115 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9611-9904 |
● |
|
| |
115 |
BOLT; BRKT
(B)
M12X35 FLANGE
|
0-28081-235-0 |
24 |
1 |
9601-9606 |
● |
|
| |
115 |
BOLT; BRKT
(B)
M12X40 FLANGE
|
0-28681-240-0 |
24 |
1 |
9607-9610 |
● |
|
| |
115 |
BOLT; BRKT
(B)
M12X40 FLANGE
|
0-28681-240-0 |
24 |
1 |
9905-9907 |
● |
● |
| |
115 |
BOLT; BRKT
(B)
M12X40 FLANGE
|
0-28681-240-0 |
24 |
1 |
9908- |
● |
● |
| |
115 |
BOLT; BRKT
(B)
|
0-28681-240-0 |
24 |
1 |
9611-9904 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(A)
|
1-53461-465-0 |
02 |
1 |
9601-9610 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(B)
|
1-53461-466-0 |
01 |
1 |
9601-9610 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(C)
|
1-53461-467-1 |
01 |
1 |
9601-9610 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(A)
|
1-53461-465-0 |
02 |
1 |
9905-9907 |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(A)
|
1-53461-465-0 |
02 |
1 |
9908- |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(A)
|
1-53461-465-0 |
02 |
1 |
9611-9904 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(B)
|
1-53461-466-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(B)
|
1-53461-466-0 |
01 |
1 |
9908- |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(B)
|
1-53461-466-0 |
01 |
1 |
9611-9904 |
● |
|
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(C)
|
1-53461-467-1 |
01 |
1 |
9905-9907 |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(C)
|
1-53461-467-1 |
01 |
1 |
9908- |
● |
● |
| |
224 |
BRACKET; FUEL TANK BRKT TO FRAME
(C)
|
1-53461-467-1 |
01 |
1 |
9611-9904 |
● |
|
| |
461 |
NUT; CLIP,FUEL PIPE
M8
|
9-09110-508-0 |
02 |
1 |
9601-9606 |
● |
|
| |
461 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9610 |
● |
|
| |
461 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905- |
● |
● |
| |
461 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9611-9904 |
● |
|
| |
467 |
BOLT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
|
| |
467 |
BOLT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9610 |
● |
|
| |
467 |
BOLT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9905- |
● |
● |
| |
467 |
BOLT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9611-9904 |
● |
|
