Sayfa 0-33 - Isuzu EPC

0-33 — FAN AND FAN BELT (#47929) — 200 parça

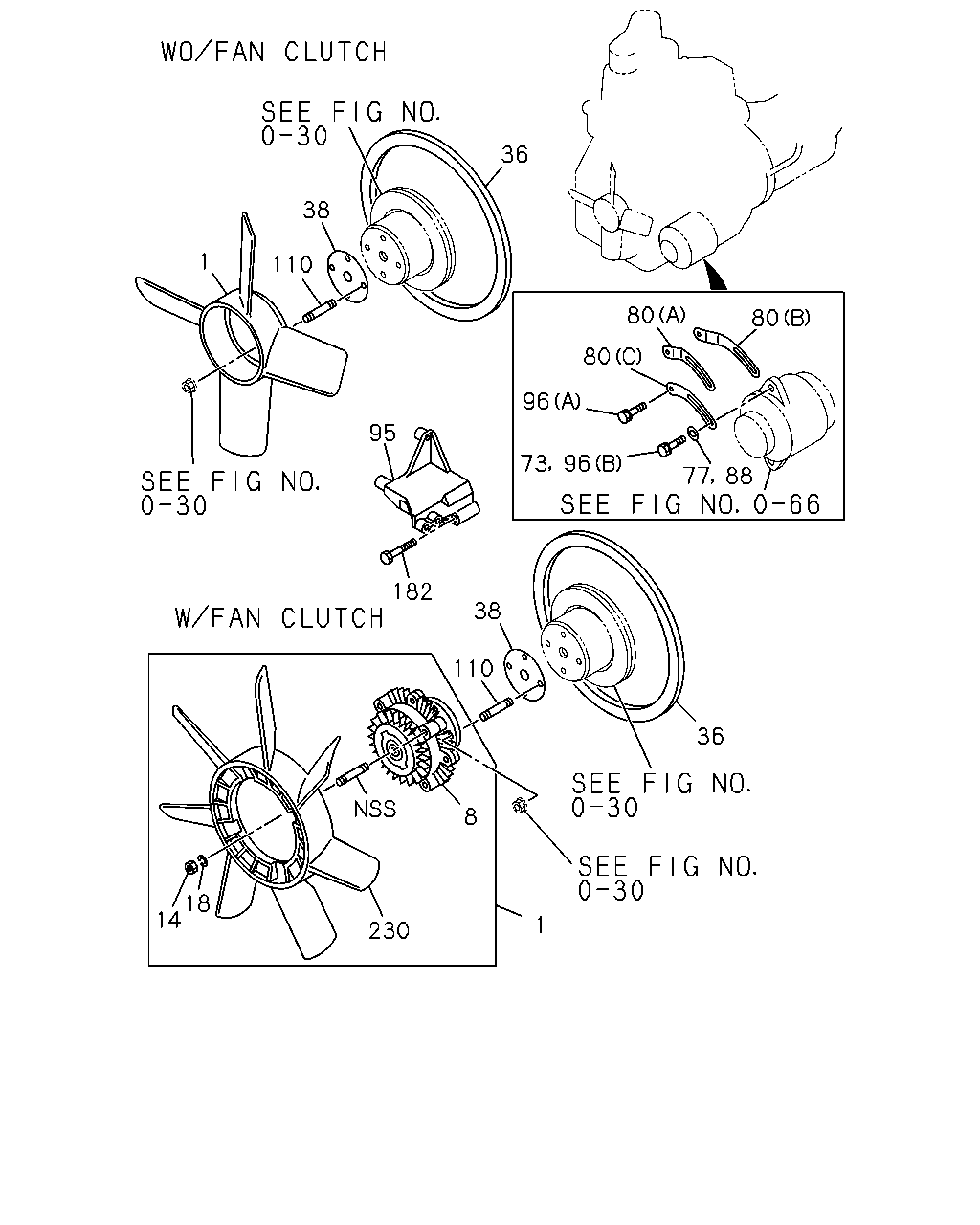

36 38 1 110 80 80 80 96 95 73 96 77 88 182 38 110 36 8 18 14 1 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9611-9704	●	●
1	01.064 FAN; COOLING CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9611-9704		●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9705-	●	●
1	01.064 FAN; COOLING ELECTRIC FUEL INJECTION<6GG> W/CLUTCH OD=390	8-94171-813-0	01	1	9705-		●
1	01.064 FAN; COOLING CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9705-		●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) WO/CLUTCH OD=330	8-94158-764-1	01	1	9611-9704	●	●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,C HILE EQUIPMENT(6KB) WO/CLUTCH OD=330	8-94158-764-1	01	1	9705-	●	●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94454-187-0	01	1	9611-			●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94436-150-0	01	1	9611-			●
1	01.064 FAN; COOLING OD=390	8-94175-331-0	01	1	9611-				●
1	01.064 FAN; COOLING CHINA CHONGQING EQUIPMENT(R5B) OD=390	8-94239-651-0	01	1	9611-					●
1	01.064 FAN; COOLING LONG(TF***F) TURBOCHARGER<K51> OD=410	8-94103-469-0	01	1	9611-					●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9611-9704	●	●	●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.066	8-94412-030-0	01	1	9611-9704		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-	●	●
8	01.064 CLUTCH; COOLING FAN ELECTRIC FUEL INJECTION<6GG> 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9705-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9611-			●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9611-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9611-					●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-						●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9611-9704	●	●	●
14	01.062 NUT; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.413 M6	9-09110-506-0	04	1	9611-9704		●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9611-9704					●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9705-	●	●
14	01.062 NUT; FAN TO CLU ELECTRIC FUEL INJECTION<6GG> 00.413 M6	9-09110-506-0	04	1	9705-		●
14	01.062 NUT; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9705-		●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.413 M6	9-09110-506-0	04	1	9705-			●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9705-					●
14	01.062 NUT; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-253-0	04	1	9611-			●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704	●	●	●
18	01.062 WASHER; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704		●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704					●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9705-	●	●
18	01.062 WASHER; FAN TO CLU ELECTRIC FUEL INJECTION<6GG> 00.206 ID=6.1	9-09150-506-0	04	1	9705-		●
18	01.062 WASHER; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9705-		●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1	9-09150-506-0	04	1	9705-			●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9705-					●
18	01.062 WASHER; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-254-0	04	1	9611-			●
36	01.066 BELT; COOLING FAN OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612	●
36	01.066 BELT; COOLING FAN ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612		●
36	01.066 BELT; COOLING FAN EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612		●
36	01.066 BELT; COOLING FAN L=894	8-94175-170-0	01	1	9701-9711	●
36	01.066 BELT; COOLING FAN COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> L=894	8-94175-170-0	01	1	9701-9711		●
36	01.066 BELT; COOLING FAN EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=894	8-94175-170-0	01	1	9701-9711		●
36	01.066 BELT; COOLING FAN OD=894 B=12.5 L=894	8-94175-170-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) OD=894 B=12.5 L=894	8-94175-170-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN CATALYSIS CONTROL<6MZ> L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN L=875	8-97100-606-0	01	1	9611-			●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	9611-				●	●
38	01.062 SPACER; FAN 01.060	8-94438-717-0	01	1	9611-	●	●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9611-				●	●
73	02.277 BOLT; GEN TO ADJ PLATE EXC. HIGHLAND ZONE PACKAGE<7EG> 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9612-			●
77	02.277 WASHER; PL,GEN TO ADJ PLATE EXC. HIGHLAND ZONE PACKAGE<7EG> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9612-			●
80	02.317 PLATE; ADJ POWER STEERING<N40> (A) W/BOSS	8-97115-746-0	01	1	9611-	●
80	02.317 PLATE; ADJ POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG> (A) W/BOSS	8-97115-746-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40> (B)	8-94475-025-0	01	1	9611-	●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40>,ELECTRIC FUEL INJECTION<6GG> (B)	8-94475-025-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. ELECTRIC FUEL INJECTION<6GG> (A) WO/BOSS	8-94475-026-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. HIGHLAND ZONE PACKAGE<7EG> (A)	8-97123-738-1	01	1	9612-			●
80	02.317 PLATE; ADJ POWER STEERING<N40> (C)	8-97134-600-0	01	1	9611-9611			●
80	02.317 PLATE; ADJ POWER STEERING<N40> HIGHLAND ZONE PACKAGE<7EG> (C)	8-97134-600-0	01	1	9612-			●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40> (B)	8-97135-379-0	01	1	9611-9611			●
80	02.317 PLATE; ADJ HIGHLAND ZONE PACKAGE<7EG> EXC. POWER STEERING<N40> (B)	8-97135-379-0	01	1	9612-			●
80	02.317 PLATE; ADJ (A)	8-97132-049-0	01	1	9611-				●	●
80	02.317 PLATE; ADJ (B)	8-97132-048-0	01	1	9611-				●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9611-9611	●	●	●	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9612-	●	●		●	●
88	02.317 WASHER; PL,ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9612-			●
95	02.317 BRACKET; ADJ PLATE POWER STEERING<N40>	8-97115-745-0	01	1	9611-9611	●	●	●
95	02.317 BRACKET; ADJ PLATE POWER STEERING<N40>	8-97115-745-0	01	1	9612-9703	●	●
95	02.317 BRACKET; ADJ PLATE POWER STEERING<N40> HIGHLAND ZONE PACKAGE<7EG>	8-97115-745-0	01	1	9612-9703			●
95	02.317 BRACKET; ADJ PLATE POWER STEERING<N40>	8-97115-745-0	01	1	9703-	●
95	02.317 BRACKET; ADJ PLATE POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97115-745-0	01	1	9703-		●	●
95	02.317 BRACKET; ADJ PLATE COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97115-745-0	01	1	9703-		●	●
96	02.317 BOLT; ADJ PLATE 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9611-9711	●	●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9611-9711			●
96	02.317 BOLT; ADJ PLATE 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-	●	●				●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-			●
96	02.317 BOLT; ADJ PLATE 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9611-9611	●	●	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9612-	●	●		●	●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9612-			●
96	02.317 BOLT; ADJ PLATE EXC. HIGHLAND ZONE PACKAGE<7EG> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9612-			●
96	02.317 BOLT; ADJ PLATE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9611-				●	●
110	01.064 SCREW; PULLEY 01.428 STUD M8X20 L=32	9-04110-820-0	04	1	9611-	●	●	●
182	01.062 BOLT; BRKT POWER STEERING<N40> 00.685 M10X50 FLANGE	0-28081-050-0	02	1	9611-	●	●	●
230	01.055 FAN; COOLING 01.064	8-94412-033-0	01	1	9611-	●	●
230	01.055 FAN; COOLING LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94310-517-0	01	1	9611-			●
230	01.055 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94311-255-0	01	1	9611-			●
230	01.055 FAN; COOLING 01.604	8-94311-258-0	01	1	9611-				●
230	01.055 FAN; COOLING CHINA CHONGQING EQUIPMENT(R5B) 01.064	5-13660-300-0	01	1	9611-					●
230	01.055 FAN; COOLING LONG(TF***F) TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9611-					●

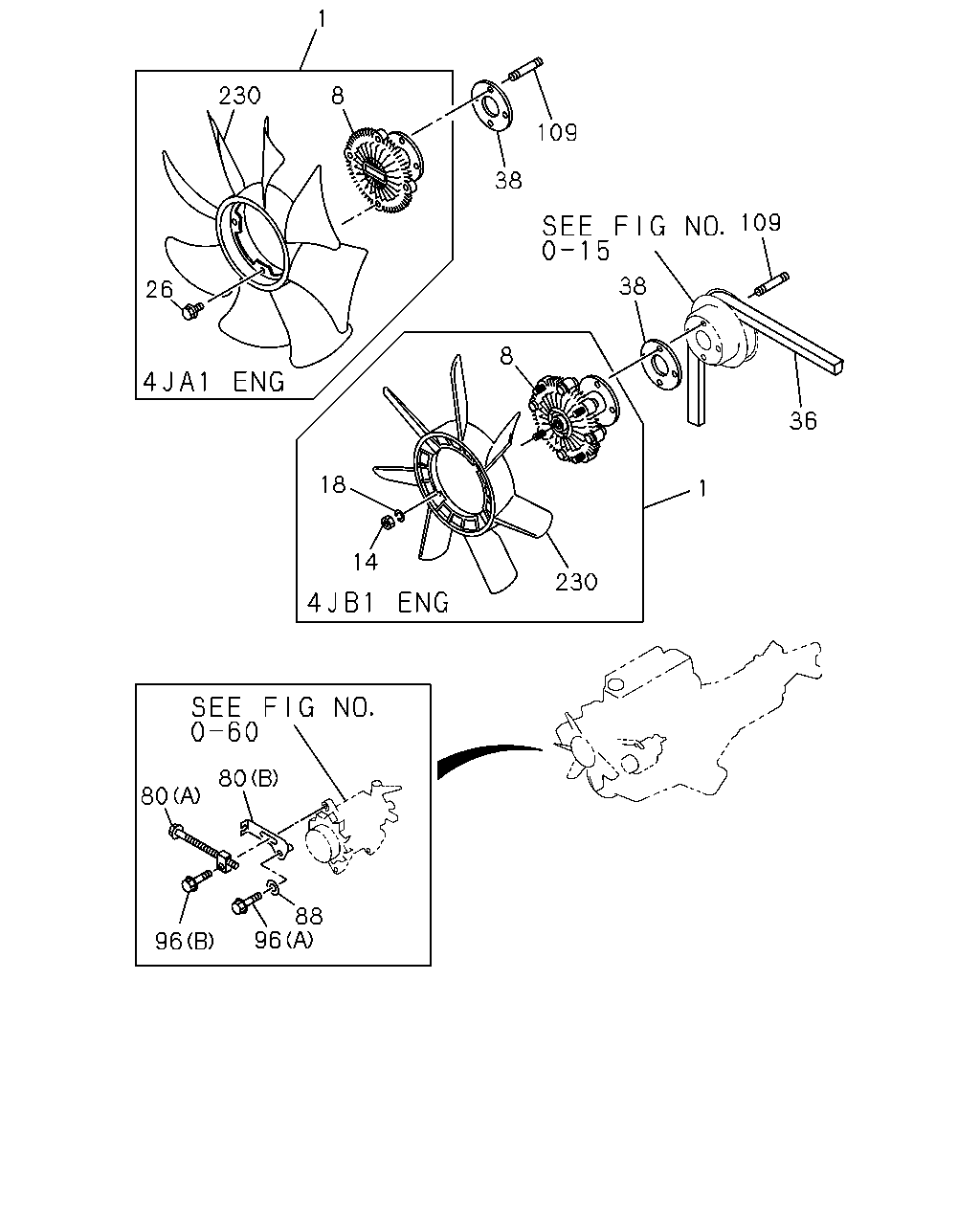

1 230 8 109 38 109 38 26 8 36 18 1 14 230 80 80 88 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9611-9704	●	●
1	01.064 FAN; COOLING CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9611-9704		●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9705-	●	●
1	01.064 FAN; COOLING ELECTRIC FUEL INJECTION<6GG> W/CLUTCH OD=390	8-94171-813-0	01	1	9705-		●
1	01.064 FAN; COOLING CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) W/CLUTCH OD=390	8-94171-813-0	01	1	9705-		●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) WO/CLUTCH OD=330	8-94158-764-1	01	1	9611-9704	●	●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,C HILE EQUIPMENT(6KB) WO/CLUTCH OD=330	8-94158-764-1	01	1	9705-	●	●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94454-187-0	01	1	9611-			●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94436-150-0	01	1	9611-			●
1	01.064 FAN; COOLING OD=390	8-94175-331-0	01	1	9611-				●
1	01.064 FAN; COOLING CHINA CHONGQING EQUIPMENT(R5B) OD=390	8-94239-651-0	01	1	9611-					●
1	01.064 FAN; COOLING LONG(TF***F) TURBOCHARGER<K51> OD=410	8-94103-469-0	01	1	9611-					●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9611-9704	●	●	●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.066	8-94412-030-0	01	1	9611-9704		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-	●	●
8	01.064 CLUTCH; COOLING FAN ELECTRIC FUEL INJECTION<6GG> 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9705-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9611-			●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9611-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9611-					●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-						●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9611-9704	●	●	●
14	01.062 NUT; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.413 M6	9-09110-506-0	04	1	9611-9704		●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9611-9704					●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9705-	●	●
14	01.062 NUT; FAN TO CLU ELECTRIC FUEL INJECTION<6GG> 00.413 M6	9-09110-506-0	04	1	9705-		●
14	01.062 NUT; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9705-		●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.413 M6	9-09110-506-0	04	1	9705-			●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9705-					●
14	01.062 NUT; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-253-0	04	1	9611-			●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704	●	●	●
18	01.062 WASHER; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704		●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9611-9704					●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9705-	●	●
18	01.062 WASHER; FAN TO CLU ELECTRIC FUEL INJECTION<6GG> 00.206 ID=6.1	9-09150-506-0	04	1	9705-		●
18	01.062 WASHER; FAN TO CLU CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9705-		●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1	9-09150-506-0	04	1	9705-			●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9705-					●
18	01.062 WASHER; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-254-0	04	1	9611-			●
26	01.062 BOLT; FAN TO CLU 03.671 M6X20 FLANGE	0-28020-620-0	04	1	9611-				●
36	01.066 BELT; COOLING FAN OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612	●
36	01.066 BELT; COOLING FAN ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612		●
36	01.066 BELT; COOLING FAN EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OD=894 B=12.5 L=894	8-94175-170-0	01	1	9611-9612		●
36	01.066 BELT; COOLING FAN L=894	8-94175-170-0	01	1	9701-9711	●
36	01.066 BELT; COOLING FAN COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG> L=894	8-94175-170-0	01	1	9701-9711		●
36	01.066 BELT; COOLING FAN EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) L=894	8-94175-170-0	01	1	9701-9711		●
36	01.066 BELT; COOLING FAN OD=894 B=12.5 L=894	8-94175-170-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) OD=894 B=12.5 L=894	8-94175-170-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN CATALYSIS CONTROL<6MZ> L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> L=875	8-97100-606-0	01	1	9611-		●
36	01.066 BELT; COOLING FAN L=875	8-97100-606-0	01	1	9611-			●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	9611-				●	●
38	01.062 SPACER; FAN 01.060	8-94438-717-0	01	1	9611-	●	●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9611-				●	●
80	02.317 PLATE; ADJ POWER STEERING<N40> (A) W/BOSS	8-97115-746-0	01	1	9611-	●
80	02.317 PLATE; ADJ POWER STEERING<N40> EXC. ELECTRIC FUEL INJECTION<6GG> (A) W/BOSS	8-97115-746-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40> (B)	8-94475-025-0	01	1	9611-	●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40>,ELECTRIC FUEL INJECTION<6GG> (B)	8-94475-025-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. ELECTRIC FUEL INJECTION<6GG> (A) WO/BOSS	8-94475-026-0	01	1	9611-		●
80	02.317 PLATE; ADJ EXC. HIGHLAND ZONE PACKAGE<7EG> (A)	8-97123-738-1	01	1	9612-			●
80	02.317 PLATE; ADJ POWER STEERING<N40> (C)	8-97134-600-0	01	1	9611-9611			●
80	02.317 PLATE; ADJ POWER STEERING<N40> HIGHLAND ZONE PACKAGE<7EG> (C)	8-97134-600-0	01	1	9612-			●
80	02.317 PLATE; ADJ EXC. POWER STEERING<N40> (B)	8-97135-379-0	01	1	9611-9611			●
80	02.317 PLATE; ADJ HIGHLAND ZONE PACKAGE<7EG> EXC. POWER STEERING<N40> (B)	8-97135-379-0	01	1	9612-			●
80	02.317 PLATE; ADJ (A)	8-97132-049-0	01	1	9611-				●	●
80	02.317 PLATE; ADJ (B)	8-97132-048-0	01	1	9611-				●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9611-9611	●	●	●	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9612-	●	●		●	●
88	02.317 WASHER; PL,ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9612-			●
96	02.317 BOLT; ADJ PLATE 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9611-9711	●	●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9611-9711			●
96	02.317 BOLT; ADJ PLATE 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-	●	●				●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-			●
96	02.317 BOLT; ADJ PLATE 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9611-9611	●	●	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9612-	●	●		●	●
96	02.317 BOLT; ADJ PLATE HIGHLAND ZONE PACKAGE<7EG> 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9612-			●
96	02.317 BOLT; ADJ PLATE EXC. HIGHLAND ZONE PACKAGE<7EG> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9612-			●
96	02.317 BOLT; ADJ PLATE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9611-				●	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9611-				●	●
230	01.055 FAN; COOLING 01.064	8-94412-033-0	01	1	9611-	●	●
230	01.055 FAN; COOLING LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94310-517-0	01	1	9611-			●
230	01.055 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94311-255-0	01	1	9611-			●
230	01.055 FAN; COOLING 01.604	8-94311-258-0	01	1	9611-				●
230	01.055 FAN; COOLING CHINA CHONGQING EQUIPMENT(R5B) 01.064	5-13660-300-0	01	1	9611-					●
230	01.055 FAN; COOLING LONG(TF***F) TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9611-					●

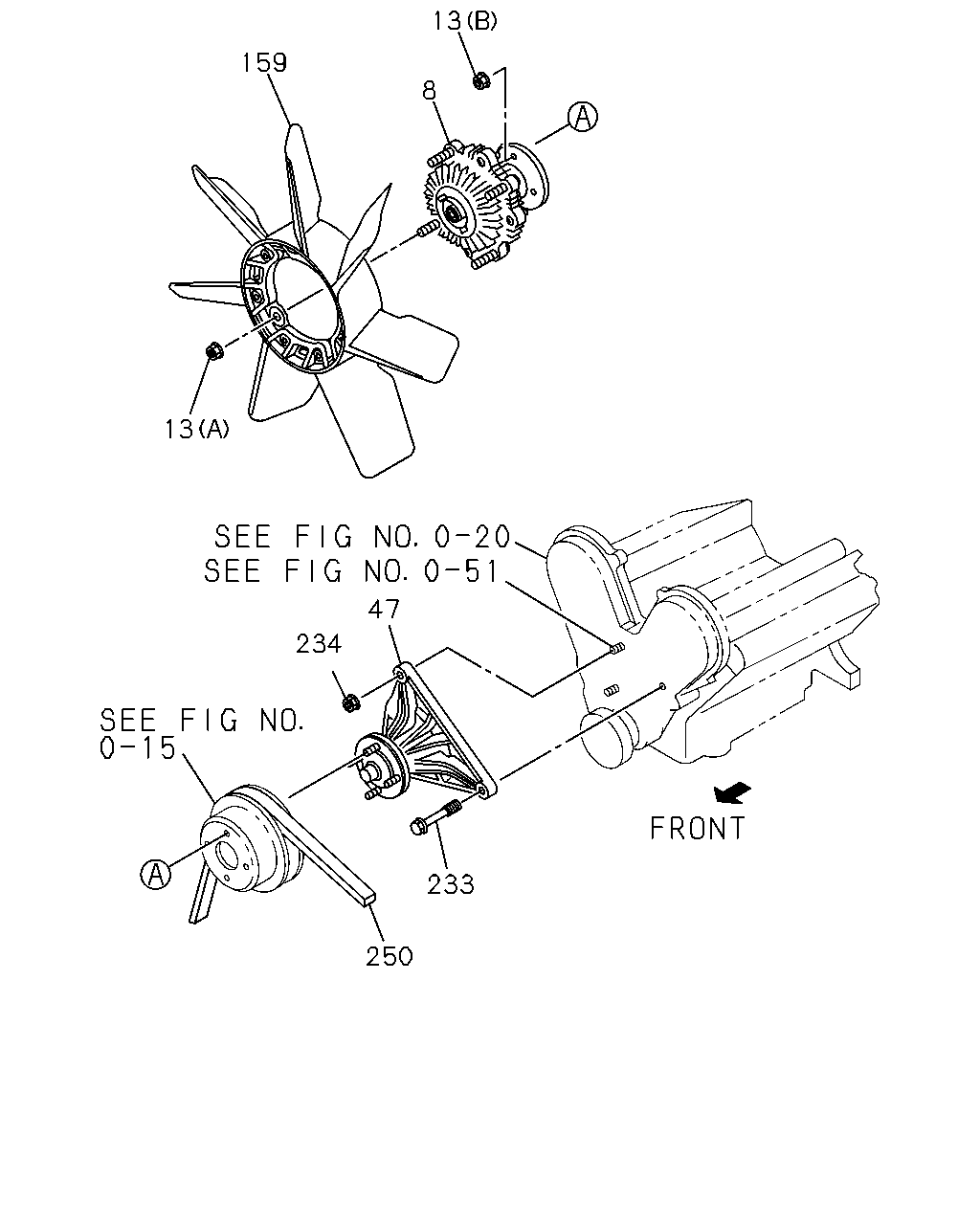

13 159 8 13 47 234 233 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9611-9704	●	●	●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.066	8-94412-030-0	01	1	9611-9704		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-	●	●
8	01.064 CLUTCH; COOLING FAN ELECTRIC FUEL INJECTION<6GG> 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.066	8-94412-030-0	01	1	9705-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9705-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9611-			●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9611-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9611-					●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-						●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9712-						●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9712-						●
47	01.060 BRACKET; FAN	8-97148-675-1	01	1	9712-						●
159	01.064 BLADE; COOLING FAN 7-BLADE OD=470	8-97130-757-1	01	1	9712-						●
233	01.060 BOLT; FAN BRKT M8X98 FLANGE	8-97182-861-0	02	1	9712-						●
234	01.060 NUT; FAN BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-						●
250	01.066 BELT; SERPENTINE DRIVE AIR CONDITIONER MANUAL CONT(C60) L=2288	8-97130-560-0	01	1	9712-						●
250	01.066 BELT; SERPENTINE DRIVE EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038	8-97130-561-0	01	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
