0-32 — WATER PIPING; ENGINE (#47928) — 197 parça

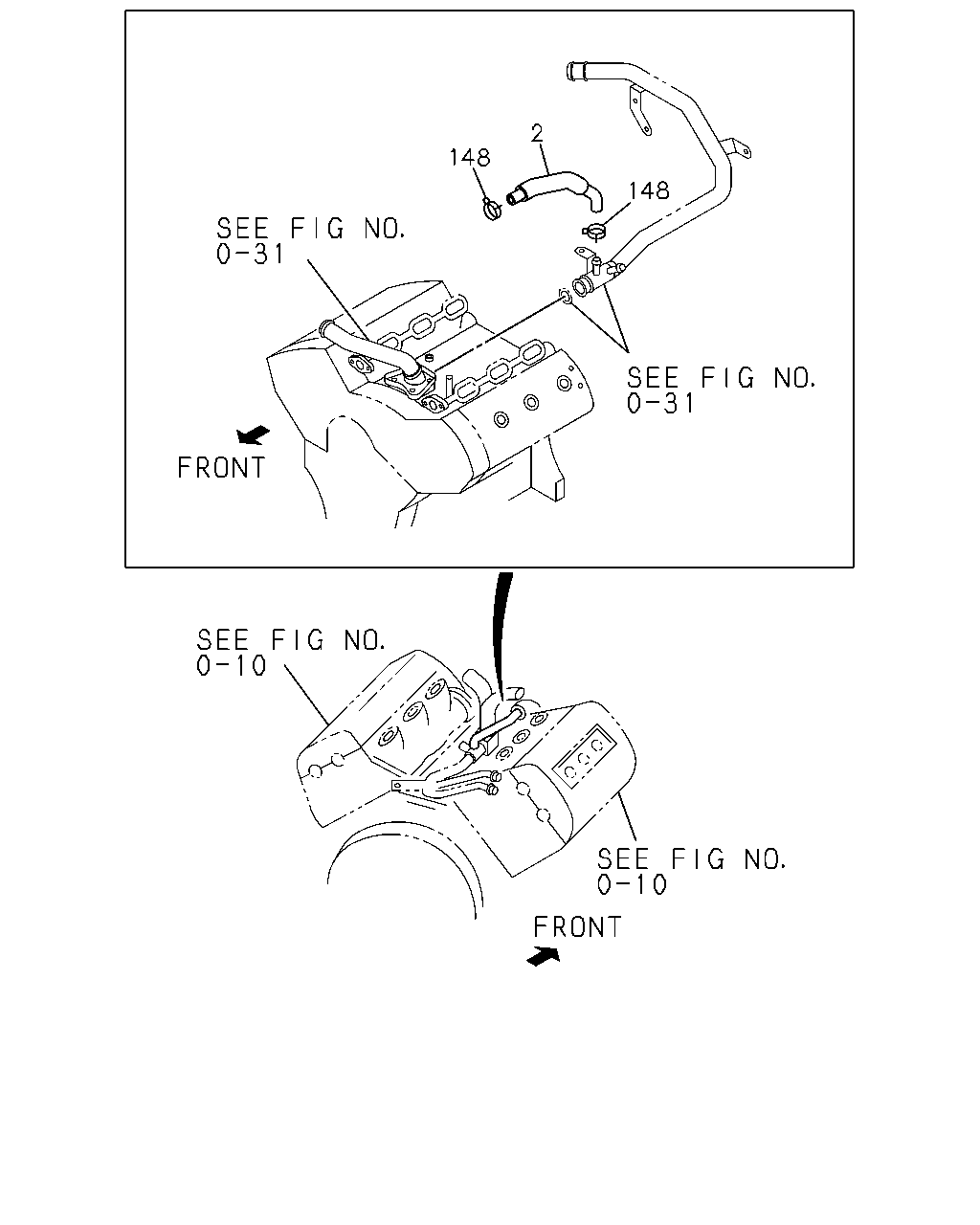

çizim 18308
2 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.097 HOSE; WATER,BY-PASS
ELECTRIC FUEL INJECTION<6GG> 		8-97108-079-0 01 1 9611- ●
2 01.097 HOSE; WATER,BY-PASS
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-94156-663-2 01 1 9611- ●
2 01.097 HOSE; WATER,BY-PASS 8-97167-694-1 01 1 9712- ●
148 01.097 CLIP; BYPASS HOSE
ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8 		8-94125-862-0 01 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9 		8-94478-875-0 01 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) ID=11 		8-94238-925-0 02 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
01.540 ID=18.9 		8-94478-875-0 02 1 9712- ●

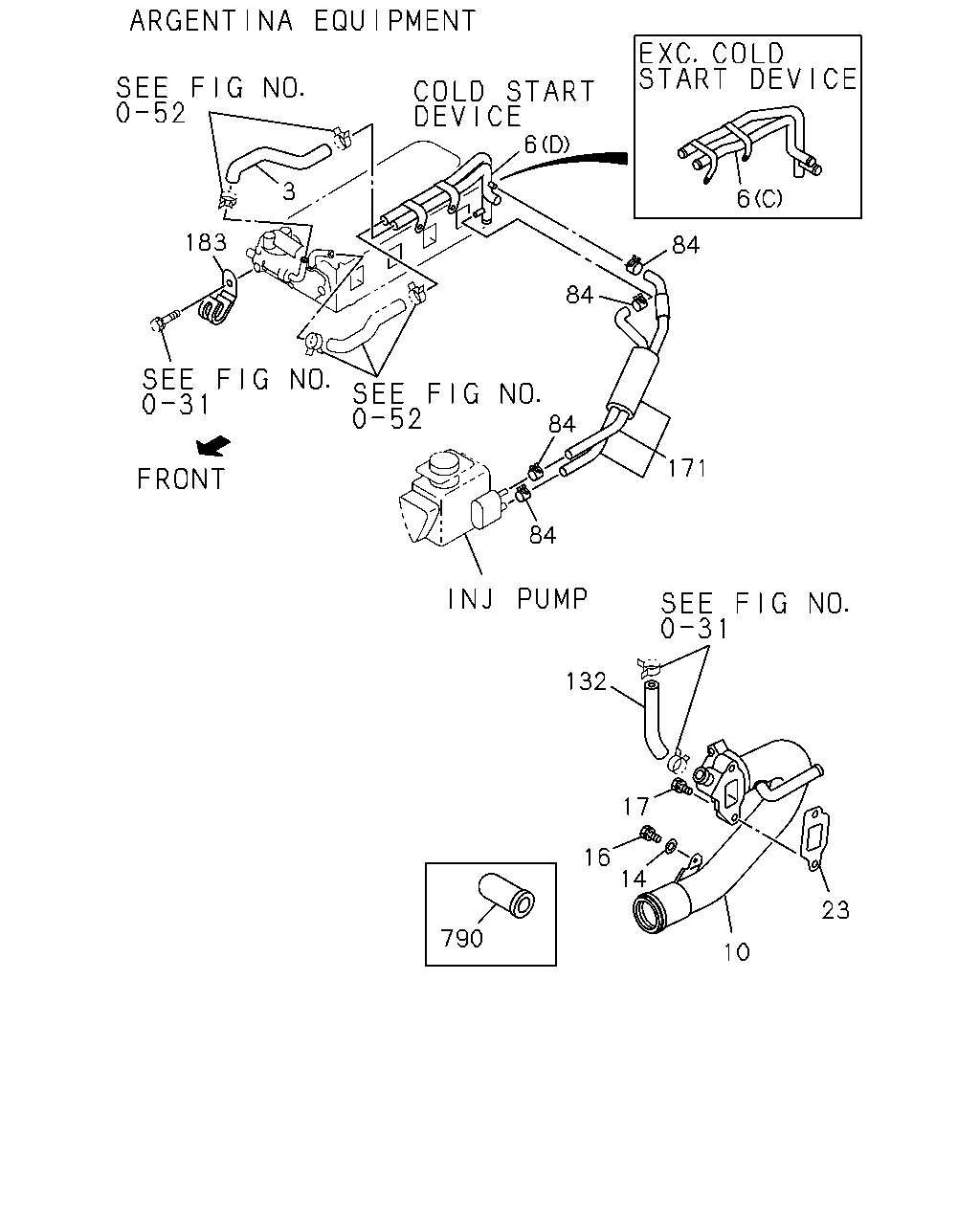

çizim 67294
6 3 6 183 84 84 84 171 84 132 17 16 14 23 790 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 01.540 HOSE; WATER,OIL COOLER
01.855 		8-94475-205-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 01.855 		8-94475-205-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-808-1 01 1 9611- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97043-720-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> (B) 		8-97133-316-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-316-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY> (A) 		8-94475-203-1 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY>, ARGENTINAEQUIPMENT(7SZ) (A) 		8-94475-203-2 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> (A) 		8-97160-414-0 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) EXC. COLD START DEVICE<7LY> (B) 		8-97038-114-1 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
ARGENTINA EQUIPMENT(7SZ) EXC. COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) (D) 		8-97049-193-4 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9712- ●
10 01.153 PIPE; SUCTION 8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) 		8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
ARGENTINA EQUIPMENT(7SZ) 		8-97188-176-0 01 1 9712- ●
10 01.153 PIPE; SUCTION
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97041-039-3 01 1 9611- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9611- ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
COLD START DEVICE<7LY> 03.162 ID=15.5 		8-94221-519-0 04 1 9611- ● ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> 		8-97133-305-0 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97133-305-0 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> 		8-97160-431-0 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) 		8-97049-001-2 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9712- ●
183 01.242 CLIP; VACUUM HOSE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●
790 01.097 CAP
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94414-688-0 02 1 9611-9711 ●
790 01.097 CAP
ARGENTINA EQUIPMENT(7SZ) 		8-94414-688-0 02 1 9712- ●
790 01.097 CAP
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94414-688-0 02 1 9712- ●

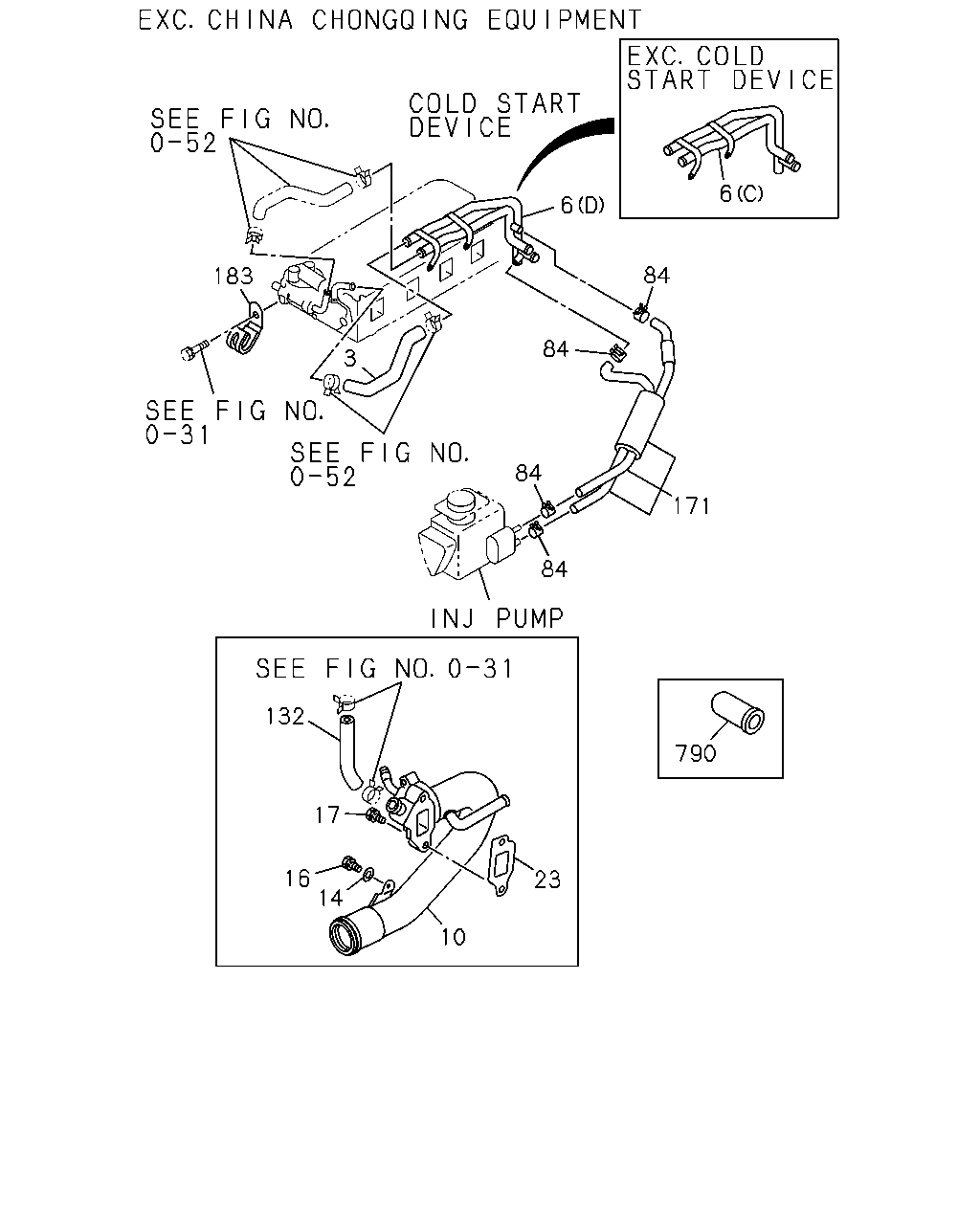

çizim 71277
6 6 84 183 84 3 84 171 84 132 790 17 16 23 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 01.540 HOSE; WATER,OIL COOLER
01.855 		8-94475-205-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 01.855 		8-94475-205-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-808-1 01 1 9611- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97043-720-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> (B) 		8-97133-316-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-316-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY> (A) 		8-94475-203-1 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY>, ARGENTINAEQUIPMENT(7SZ) (A) 		8-94475-203-2 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> (A) 		8-97160-414-0 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) EXC. COLD START DEVICE<7LY> (B) 		8-97038-114-1 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
ARGENTINA EQUIPMENT(7SZ) EXC. COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) (D) 		8-97049-193-4 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9712- ●
10 01.153 PIPE; SUCTION 8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) 		8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
ARGENTINA EQUIPMENT(7SZ) 		8-97188-176-0 01 1 9712- ●
10 01.153 PIPE; SUCTION
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97041-039-3 01 1 9611- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9611- ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
COLD START DEVICE<7LY> 03.162 ID=15.5 		8-94221-519-0 04 1 9611- ● ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> 		8-97133-305-0 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97133-305-0 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> 		8-97160-431-0 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) 		8-97049-001-2 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9712- ●
183 01.242 CLIP; VACUUM HOSE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●
790 01.097 CAP
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94414-688-0 02 1 9611-9711 ●
790 01.097 CAP
ARGENTINA EQUIPMENT(7SZ) 		8-94414-688-0 02 1 9712- ●
790 01.097 CAP
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94414-688-0 02 1 9712- ●

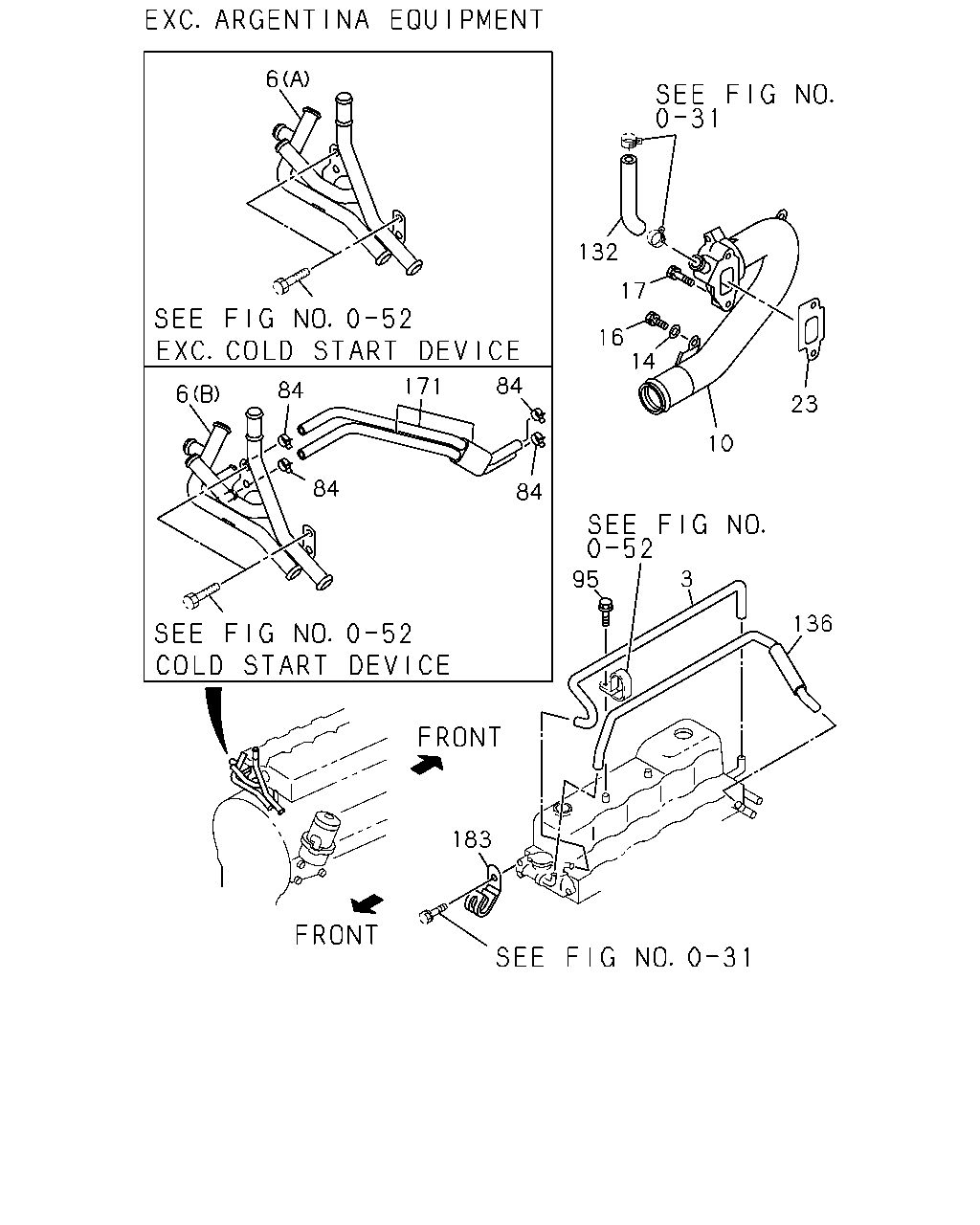

çizim 71886
6 132 17 16 84 171 84 6 23 84 84 95 136 183 14 10 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 01.540 HOSE; WATER,OIL COOLER
01.855 		8-94475-205-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 01.855 		8-94475-205-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-808-1 01 1 9611- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97043-720-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> (B) 		8-97133-316-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-316-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY> (A) 		8-94475-203-1 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY>, ARGENTINAEQUIPMENT(7SZ) (A) 		8-94475-203-2 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> (A) 		8-97160-414-0 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) EXC. COLD START DEVICE<7LY> (B) 		8-97038-114-1 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
ARGENTINA EQUIPMENT(7SZ) EXC. COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) (D) 		8-97049-193-4 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9712- ●
10 01.153 PIPE; SUCTION 8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) 		8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
ARGENTINA EQUIPMENT(7SZ) 		8-97188-176-0 01 1 9712- ●
10 01.153 PIPE; SUCTION
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97041-039-3 01 1 9611- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9611- ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
COLD START DEVICE<7LY> 03.162 ID=15.5 		8-94221-519-0 04 1 9611- ● ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
95 01.240 BOLT; CLIP
CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
95 01.240 BOLT; CLIP
EXC. ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
95 01.240 BOLT; CLIP
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9611- ●
136 01.540 HOSE; OIL COOLER,RETURN 8-94475-206-2 01 1 9611-9711 ●
136 01.540 HOSE; OIL COOLER,RETURN
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94475-206-2 01 1 9712- ●
136 01.540 HOSE; OIL COOLER,RETURN
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-809-1 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> 		8-97133-305-0 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97133-305-0 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> 		8-97160-431-0 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) 		8-97049-001-2 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9712- ●
183 01.242 CLIP; VACUUM HOSE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●

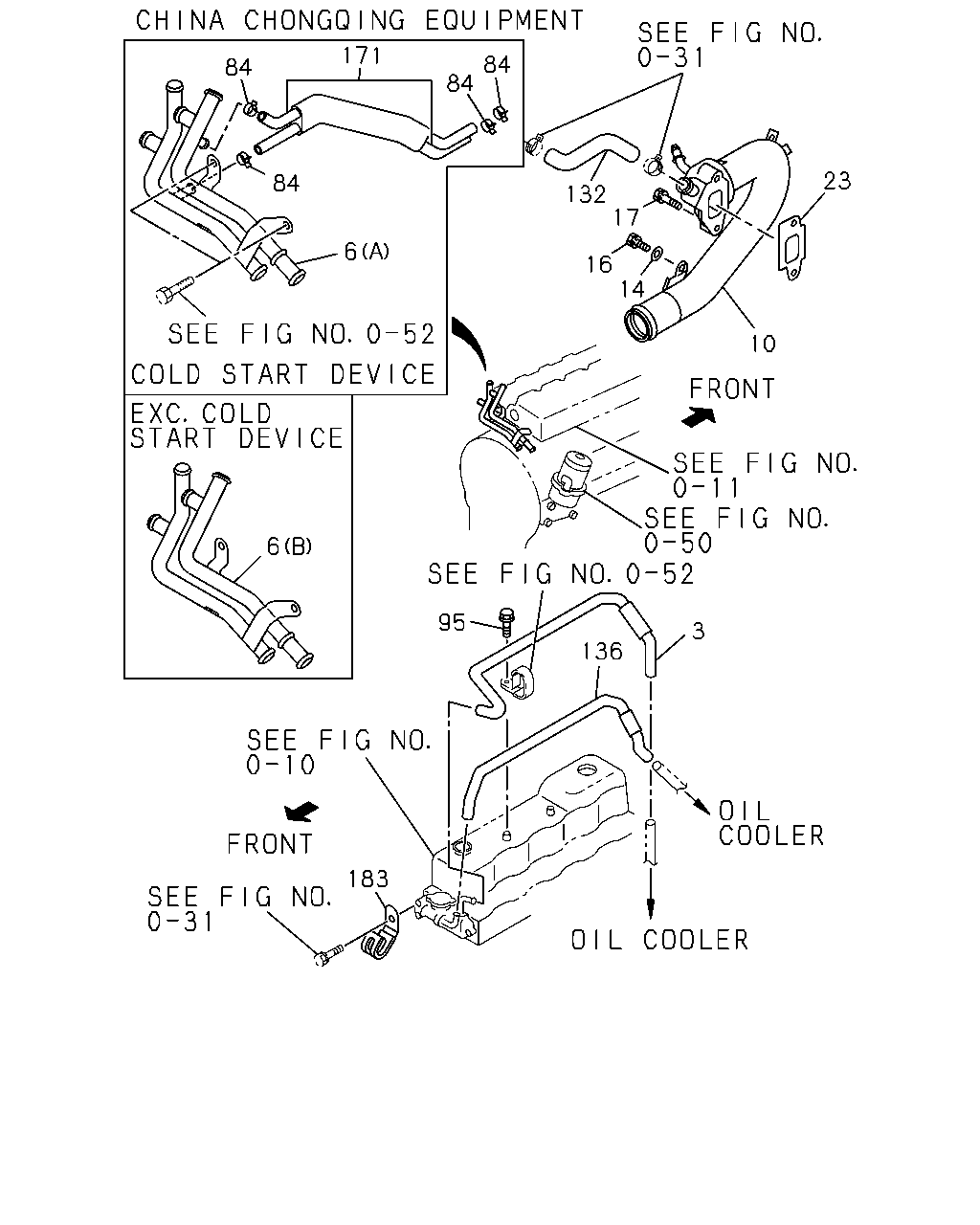

çizim 72329
84 84 84 23 84 132 17 6 16 6 95 3 136 183 171 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 01.540 HOSE; WATER,OIL COOLER
01.855 		8-94475-205-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. ARGENTINA EQUIPMENT(7SZ) 01.855 		8-94475-205-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-808-1 01 1 9611- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9611-9711 ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) 		8-97043-720-1 01 1 9712- ●
3 01.540 HOSE; WATER,OIL COOLER
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97043-720-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> (B) 		8-97133-316-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-316-1 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY> (A) 		8-94475-203-1 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. COLD START DEVICE<7LY>, ARGENTINAEQUIPMENT(7SZ) (A) 		8-94475-203-2 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> (A) 		8-97160-414-0 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
CHINA CHONGQING EQUIPMENT(R5B) EXC. COLD START DEVICE<7LY> (B) 		8-97038-114-1 01 1 9611- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
ARGENTINA EQUIPMENT(7SZ) EXC. COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. CHINA CHONGQING EQUIPMENT(R5B), COLD START DEVICE<7LY> (C) 		8-97116-640-0 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9611-9711 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) (D) 		8-97049-193-4 01 1 9712- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97049-193-4 01 1 9712- ●
10 01.153 PIPE; SUCTION 8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) 		8-94340-787-3 01 1 9611-9711 ●
10 01.153 PIPE; SUCTION
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94340-787-3 01 1 9712- ●
10 01.153 PIPE; SUCTION
ARGENTINA EQUIPMENT(7SZ) 		8-97188-176-0 01 1 9712- ●
10 01.153 PIPE; SUCTION
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97041-039-3 01 1 9611- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9611- ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
COLD START DEVICE<7LY> 03.162 ID=15.5 		8-94221-519-0 04 1 9611- ● ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
95 01.240 BOLT; CLIP
CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
95 01.240 BOLT; CLIP
EXC. ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
95 01.240 BOLT; CLIP
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9611- ●
136 01.540 HOSE; OIL COOLER,RETURN 8-94475-206-2 01 1 9611-9711 ●
136 01.540 HOSE; OIL COOLER,RETURN
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94475-206-2 01 1 9712- ●
136 01.540 HOSE; OIL COOLER,RETURN
CHINA CHONGQING EQUIPMENT(R5B) 		8-97038-809-1 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> 		8-97133-305-0 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97133-305-0 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
CHINA CHONGQING EQUIPMENT(R5B) COLD START DEVICE<7LY> 		8-97160-431-0 01 1 9611- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9611-9711 ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> ARGENTINA EQUIPMENT(7SZ) 		8-97049-001-2 01 1 9712- ●
171 01.240 HOSE; RUBBER,WAX CSD
COLD START DEVICE<7LY> EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97049-001-2 01 1 9712- ●
183 01.242 CLIP; VACUUM HOSE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●

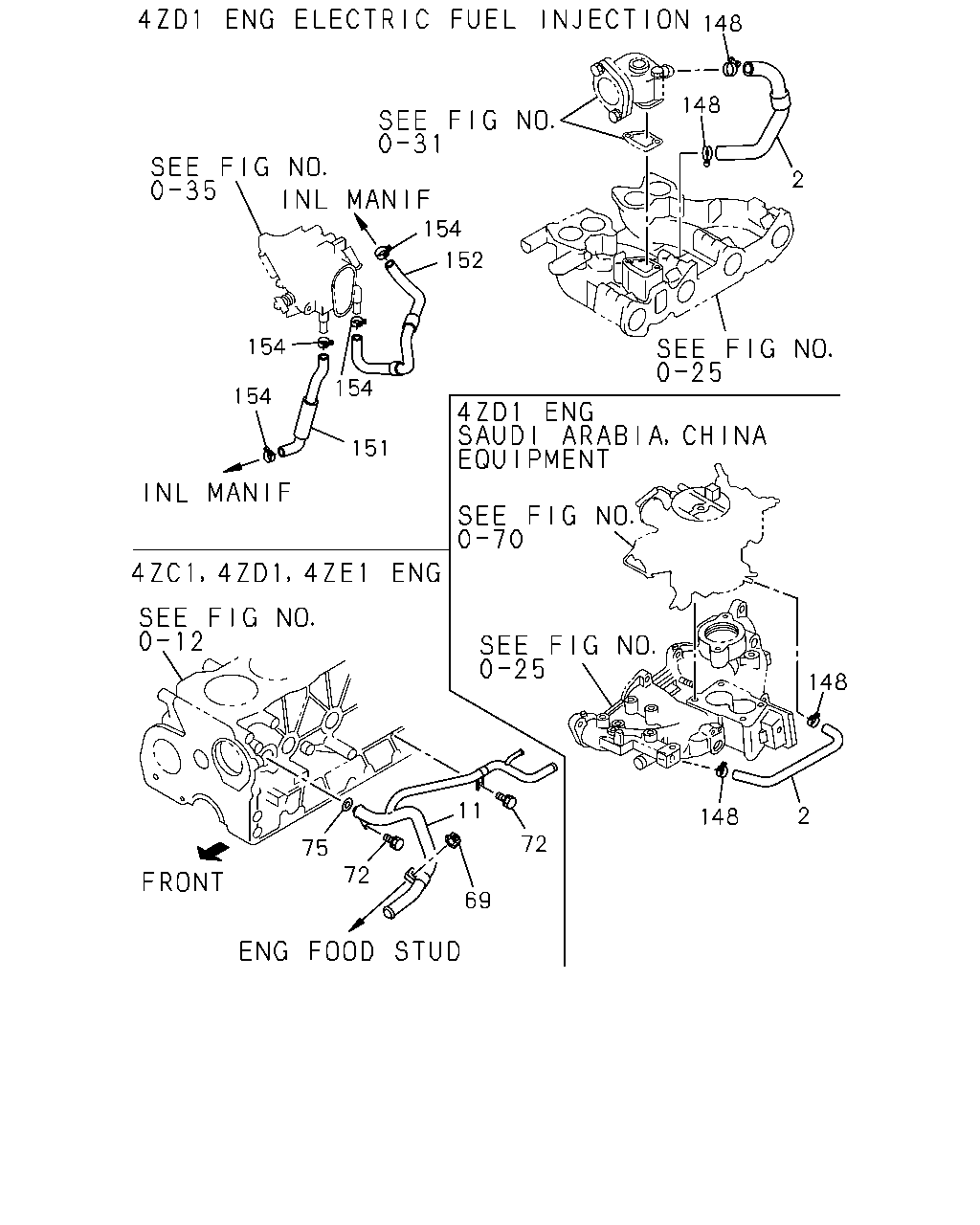

çizim 72368
148 148 2 154 152 154 154 154 151 148 2 148 75 72 69 11 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.097 HOSE; WATER,BY-PASS
ELECTRIC FUEL INJECTION<6GG> 		8-97108-079-0 01 1 9611- ●
2 01.097 HOSE; WATER,BY-PASS
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-94156-663-2 01 1 9611- ●
2 01.097 HOSE; WATER,BY-PASS 8-97167-694-1 01 1 9712- ●
11 01.097 PIPE; INL,WATER PUMP 8-94474-078-3 01 1 9611- ● ● ●
69 01.153 NUT; WATER PIPE
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ● ● ●
72 00.206 BOLT; WATER PIPE
M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611- ● ● ●
75 01.097 GASKET; INL PIPE TO WATER PUMP
01.154 		8-94235-013-0 01 1 9611- ● ● ●
148 01.097 CLIP; BYPASS HOSE
ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8 		8-94125-862-0 01 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9 		8-94478-875-0 01 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) ID=11 		8-94238-925-0 02 1 9611- ●
148 01.097 CLIP; BYPASS HOSE
01.540 ID=18.9 		8-94478-875-0 02 1 9712- ●
151 01.153 HOSE; WATER OUTLET
ELECTRIC FUEL INJECTION<6GG> 		8-97037-869-0 01 1 9611- ●
152 01.153 HOSE; WATER INL
ELECTRIC FUEL INJECTION<6GG> 		8-97037-868-0 01 1 9611- ●
154 01.153 CLIP; WATER HOSE
ELECTRIC FUEL INJECTION<6GG> 03.162 ID=15.5 		8-94221-519-0 04 1 9611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
