0-31 — THERMOSTAT AND HOUSING (#47927) — 84 parça

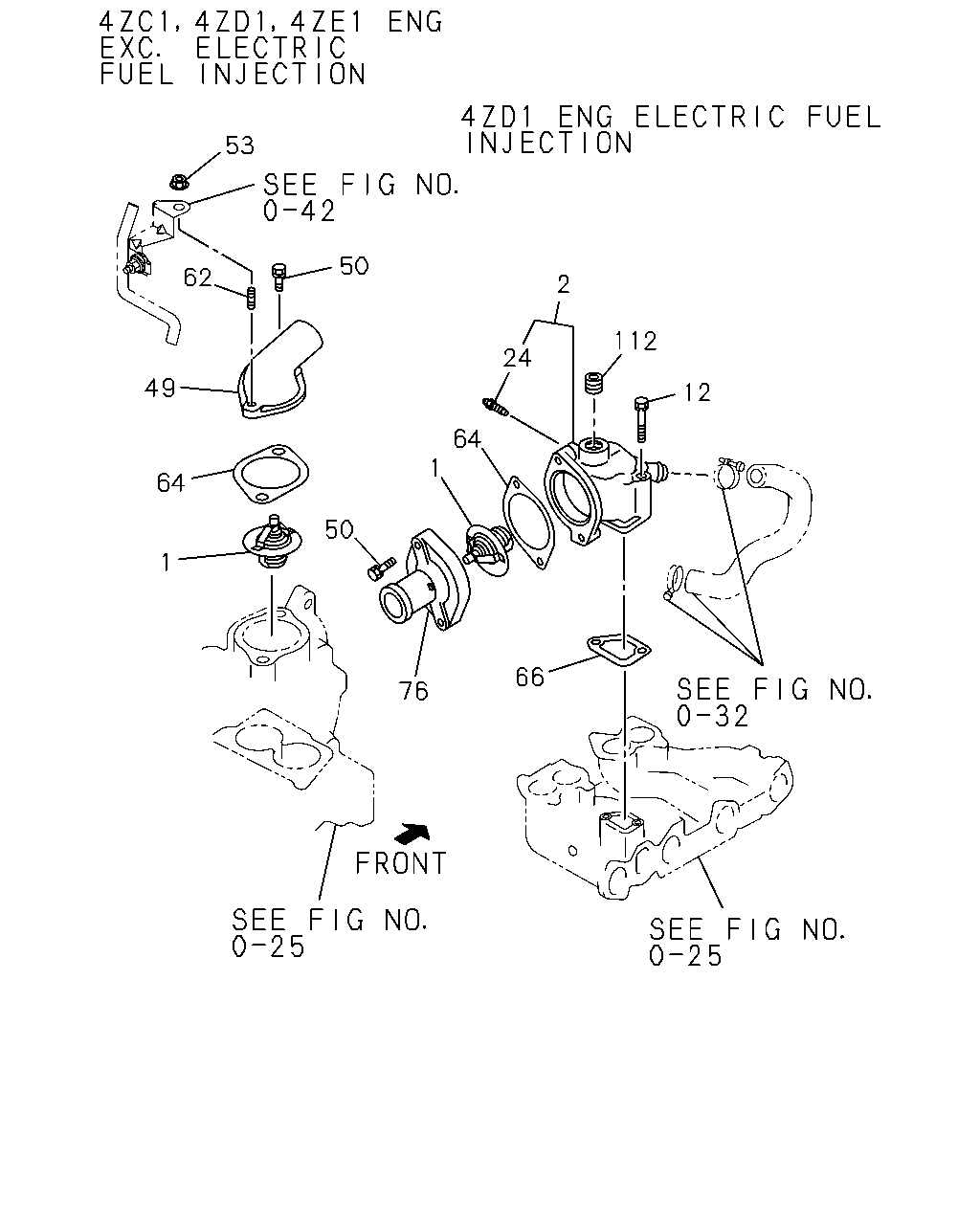

çizim 69807
53 50 62 2 112 24 49 12 64 1 64 50 1 66 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 82 CELSIUS 		8-94336-069-0 01 1 9611- ●
1 01.246 THERMOSTAT
SAUDI ARABIA EQUIPMENT(EU2) 01.252 76.5 CELSIUS 		8-94336-068-0 01 1 9611- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-3 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-158-0 01 1 9611- ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9611- ● ●
12 01.252 BOLT; HSG
ELECTRIC FUEL INJECTION<6GG> M8X60 W/LK WASHER 		0-50040-860-0 02 1 9611- ●
24 01.252 PLUG; AIR BLEED
ELECTRIC FUEL INJECTION<6GG> 04.666 L=27 		8-94133-684-0 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9611- ● ●
49 01.153 PIPE; WATER OUTLET
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94172-420-1 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97139-712-0 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-94368-587-0 01 1 9611-9709 ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97183-181-0 01 1 9710- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ●
50 01.252 BOLT; OUTLET PIPE
ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9611- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9611- ● ●
53 01.153 NUT; OUTLET PIPE
00.854 M8 FLANGE 		5-09440-005-0 01 1 9611- ● ●
53 01.153 NUT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9611- ●
62 01.153 STUD; OUTLET PIPE TO INL MANIF
09.173 M8X22 L=34 		9-04110-822-0 01 1 9611- ● ●
62 01.153 STUD; OUTLET PIPE TO INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 09.173 M8X22 L=34 		9-04110-822-0 01 1 9611- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9611- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-1 01 1 9611- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-94324-198-1 01 1 9611- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9611- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9712- ●
76 01.251 JOINT; WATER DUCT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-164-0 01 1 9611- ●
112 01.251 PLUG
ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8 		5-09605-005-0 01 1 9611- ●

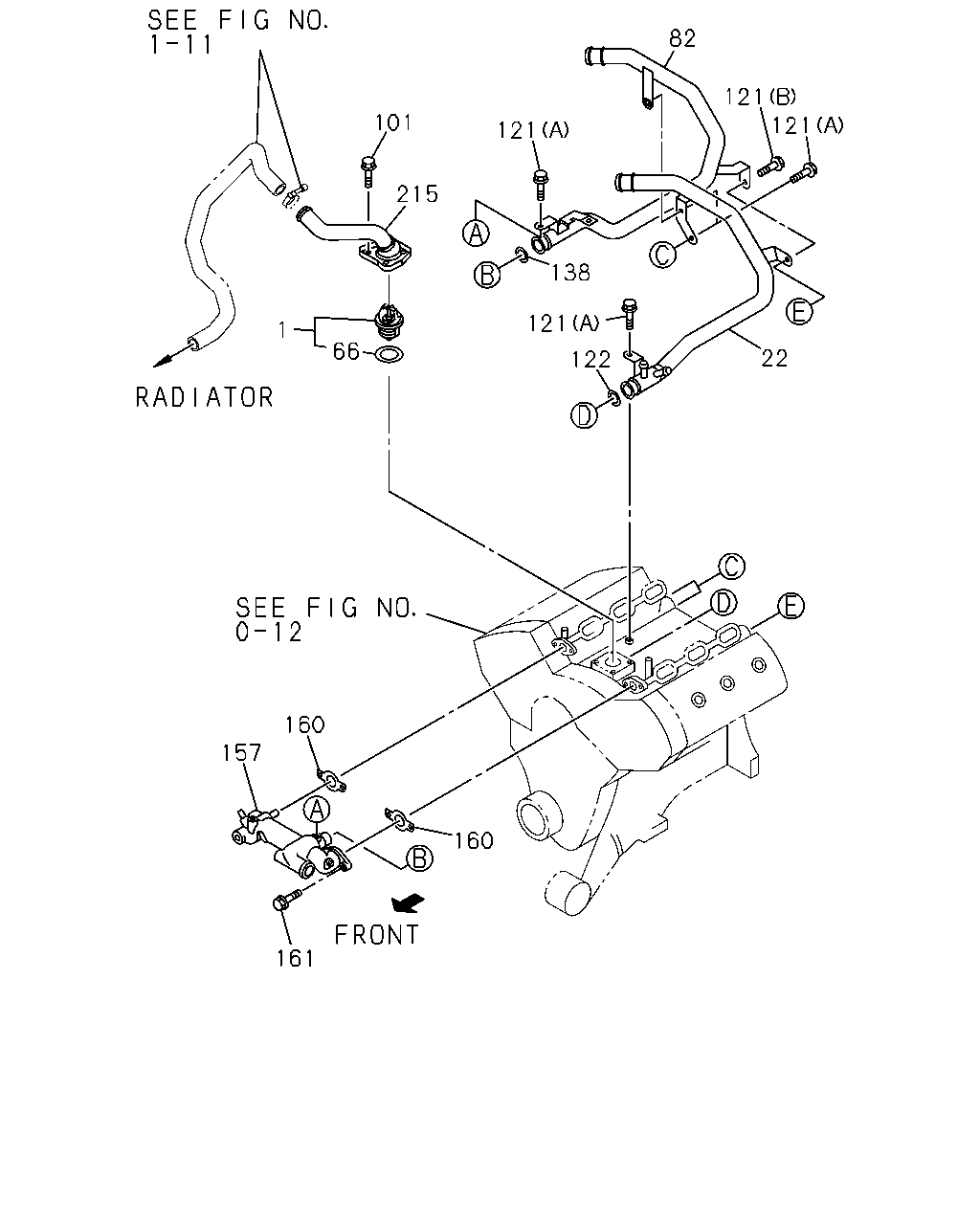

çizim 71021
82 121 101 121 215 138 66 22 122 160 157 160 161 1 121 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 82 CELSIUS 		8-94336-069-0 01 1 9611- ●
1 01.246 THERMOSTAT
SAUDI ARABIA EQUIPMENT(EU2) 01.252 76.5 CELSIUS 		8-94336-068-0 01 1 9611- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-3 01 1 9712- ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9611- ● ●
22 03.278 PIPE; HTR,RETURN 8-97131-890-2 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-94324-198-1 01 1 9611- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9611- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9712- ●
82 08.845 PIPE; WATER,HTR 8-97131-889-2 01 1 9712- ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 9712- ●
121 08.900 BOLT; HTR PIPE
(A) M8X12 FLANGE 		0-28080-812-0 04 1 9712- ●
121 08.900 BOLT; HTR PIPE
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 ID=22 		9-09561-220-0 01 1 9712- ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 ID=25 		9-09561-225-0 01 1 9712- ●
157 01.251 MANIFOLD; WATER 8-97136-345-2 01 1 9712- ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9712- ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE M8X40 FLANGE 		0-28690-840-0 04 1 9712- ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9712- ●

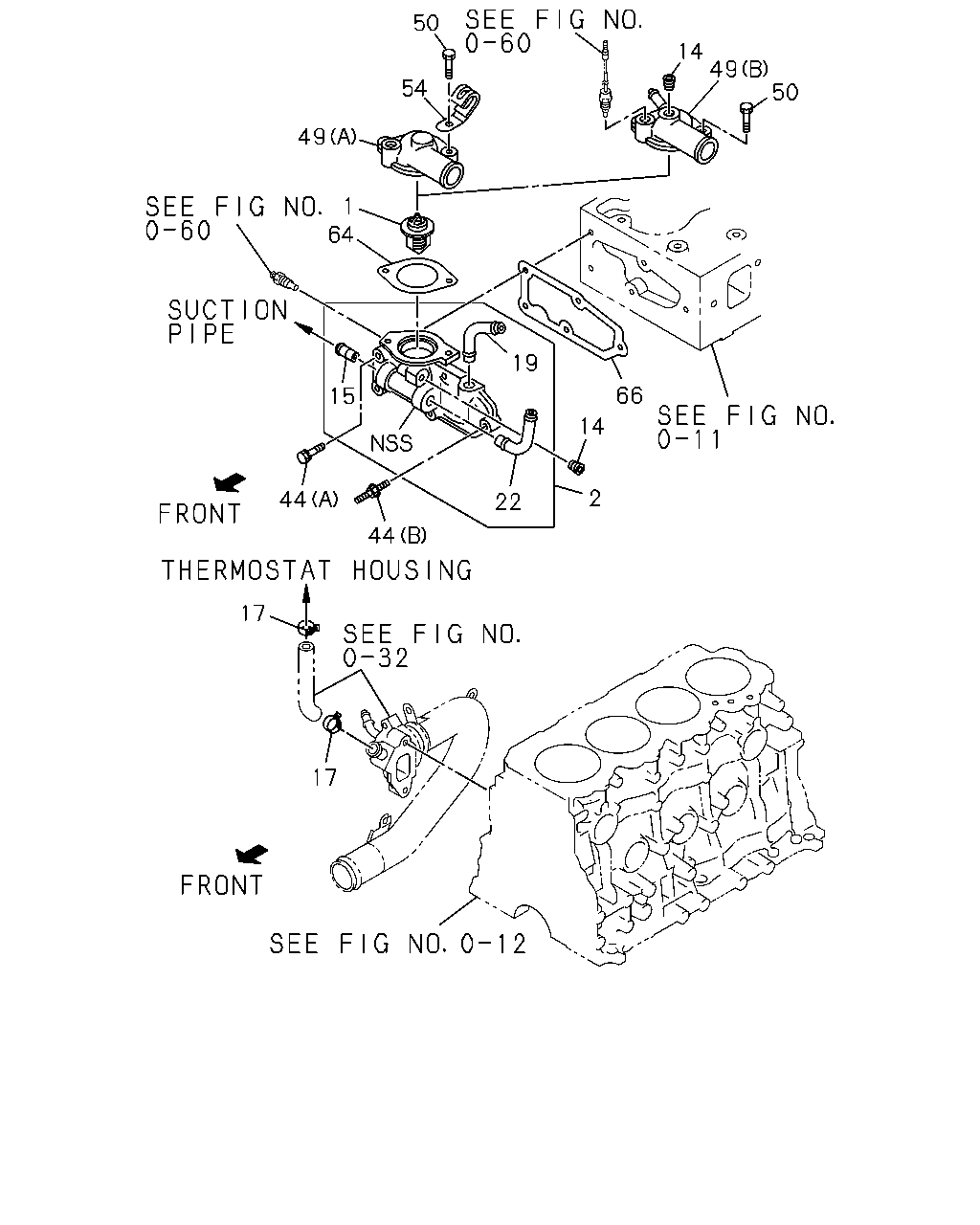

çizim 71111
50 14 49 50 54 49 1 64 19 66 15 14 2 44 22 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 82 CELSIUS 		8-94336-069-0 01 1 9611- ●
1 01.246 THERMOSTAT
SAUDI ARABIA EQUIPMENT(EU2) 01.252 76.5 CELSIUS 		8-94336-068-0 01 1 9611- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9611- ● ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-3 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-158-0 01 1 9611- ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9611- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9611- ●
14 01.252 PLUG; SW
CHINA CHONGQING EQUIPMENT(R5B) 01.073 PT3/8 		5-09605-005-0 01 1 9611- ●
14 01.252 PLUG; SW
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.073 PT3/8 		5-09605-005-0 02 1 9611- ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9611- ● ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-0 02 1 9611- ● ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9611- ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9611- ● ●
22 03.278 PIPE; HTR,RETURN 8-97131-890-2 01 1 9712- ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9611- ● ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9611- ● ●
44 01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9611- ● ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9611- ● ●
49 01.153 PIPE; WATER OUTLET
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94172-420-1 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97139-712-0 01 1 9611- ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-94368-587-0 01 1 9611-9709 ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97183-181-0 01 1 9710- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9611- ●
50 01.252 BOLT; OUTLET PIPE
ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9611- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9611- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9611- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-1 01 1 9611- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-94324-198-1 01 1 9611- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9611- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9712- ●
