0-27 — EXHAUST MANIFOLD (#47924) — 316 parça

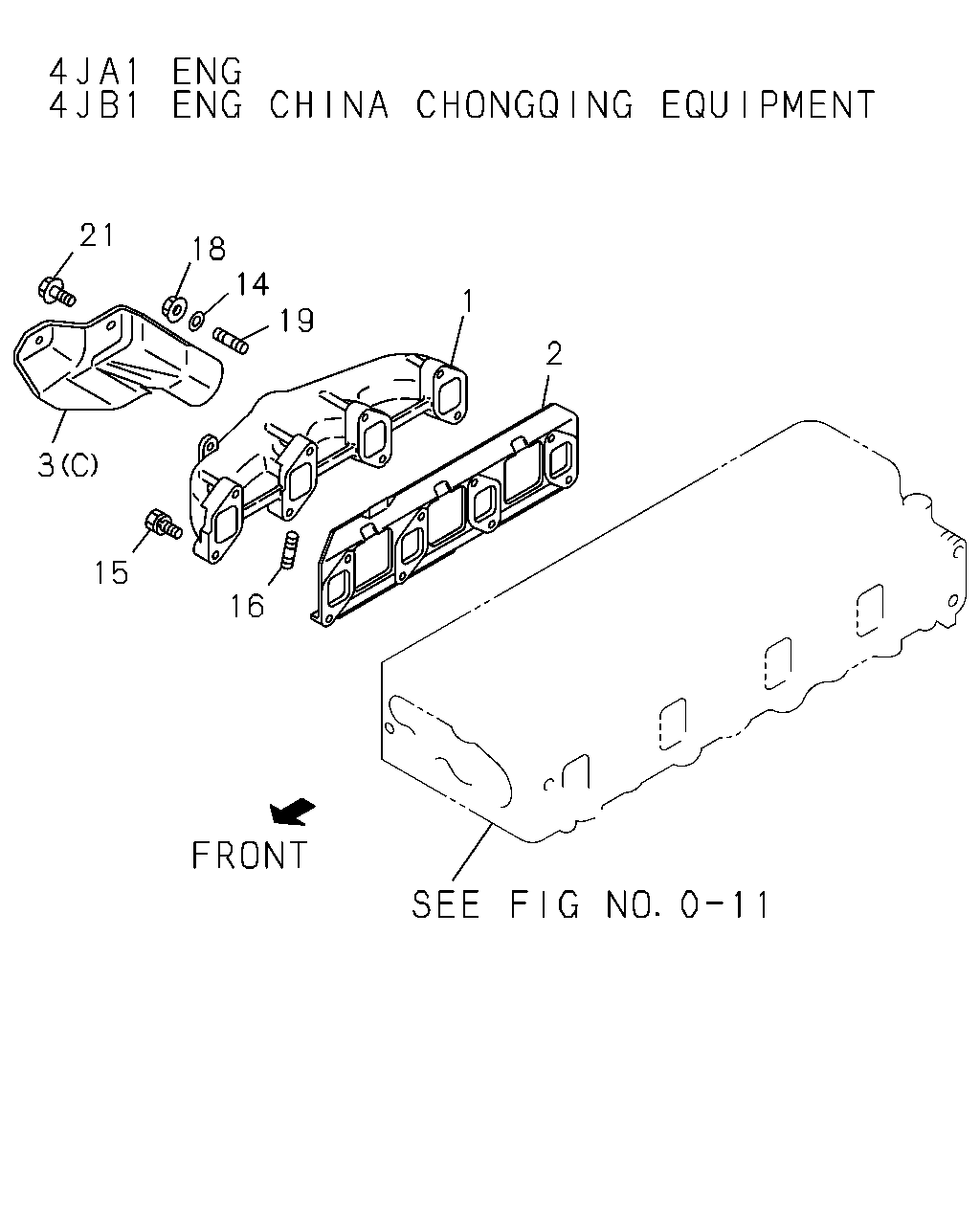

çizim 17326
21 18 14 1 19 2 3 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
ELECTRIC FUEL INJECTION<6GG> 		8-97041-990-1 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
CATALYSIS CONTROL<6MZ> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST 8-97083-579-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
HIGHLAND ZONE PACKAGE<7EG> 		8-97083-579-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) 		8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97188-177-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97140-087-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97139-723-0 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9611- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-1 01 1 9611- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-94472-396-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-276-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-278-1 01 1 9712- ●
14 03.604 WASHER; PL,EXH MANIF
ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9611- ● ●
15 03.604 BOLT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9612- ●
15 03.604 BOLT; EXH MANIF
M8X35 FLANGE W/PL WASHER 		8-97131-597-1 06 1 9611- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 03 1 9611- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9611- ● ● ●
18 03.604 NUT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9611- ● ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9611- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9611- ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ●
çizim 67300
2 1 14 13 18 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
ELECTRIC FUEL INJECTION<6GG> 		8-97041-990-1 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
CATALYSIS CONTROL<6MZ> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST 8-97083-579-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
HIGHLAND ZONE PACKAGE<7EG> 		8-97083-579-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) 		8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97188-177-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97140-087-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97139-723-0 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9611- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-1 01 1 9611- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9712- ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 07 1 9611- ● ● ●
14 03.604 WASHER; PL,EXH MANIF
ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9611- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 03 1 9611- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9611- ● ● ●
18 03.604 NUT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9611- ● ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ●

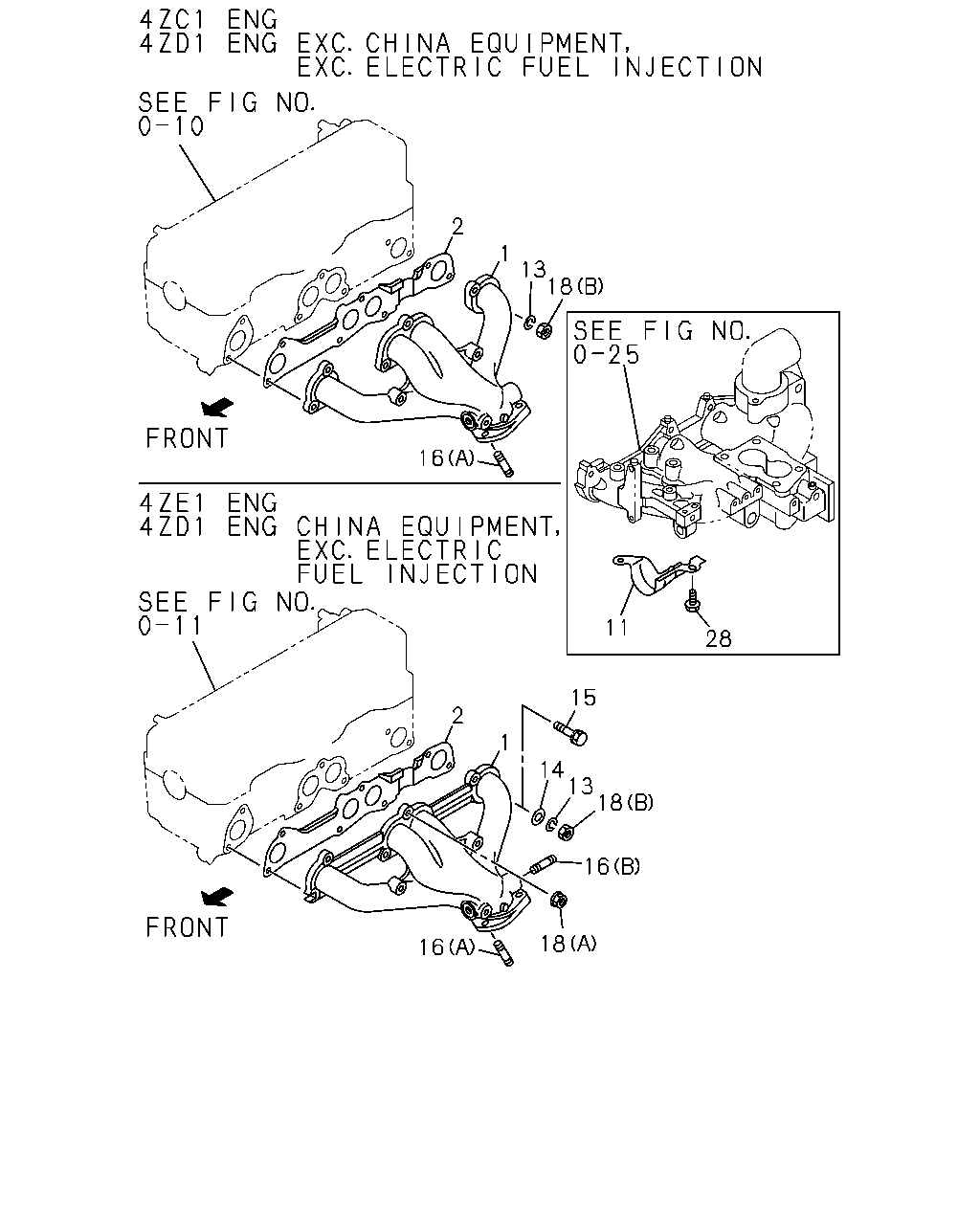

çizim 69699
2 1 13 18 16 11 28 15 2 1 14 13 18 16 18 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
ELECTRIC FUEL INJECTION<6GG> 		8-97041-990-1 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
CATALYSIS CONTROL<6MZ> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST 8-97083-579-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
HIGHLAND ZONE PACKAGE<7EG> 		8-97083-579-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) 		8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97188-177-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97140-087-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97139-723-0 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9611- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-1 01 1 9611- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9712- ●
11 03.901 PROTECTOR; HEAT,FUEL PUMP
EXC. ELECTRIC FUEL INJECTION<6GG> WO/SPACER 		8-97072-441-0 01 1 9611- ●
11 03.901 PROTECTOR; HEAT,FUEL PUMP
EXC. HIGHLAND ZONE PACKAGE<7EG> W/SPACER 		8-97136-056-0 01 1 9612- ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 07 1 9611- ● ● ●
14 03.604 WASHER; PL,EXH MANIF
ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9611- ● ●
15 03.604 BOLT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9612- ●
15 03.604 BOLT; EXH MANIF
M8X35 FLANGE W/PL WASHER 		8-97131-597-1 06 1 9611- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 03 1 9611- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9611- ● ● ●
18 03.604 NUT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9611- ● ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ●
28 03.907 BOLT; HEAT PROTECTOR,FUEL PUMP
EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9611- ●
28 03.907 BOLT; HEAT PROTECTOR,FUEL PUMP
EXC. HIGHLAND ZONE PACKAGE<7EG> 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9612- ●

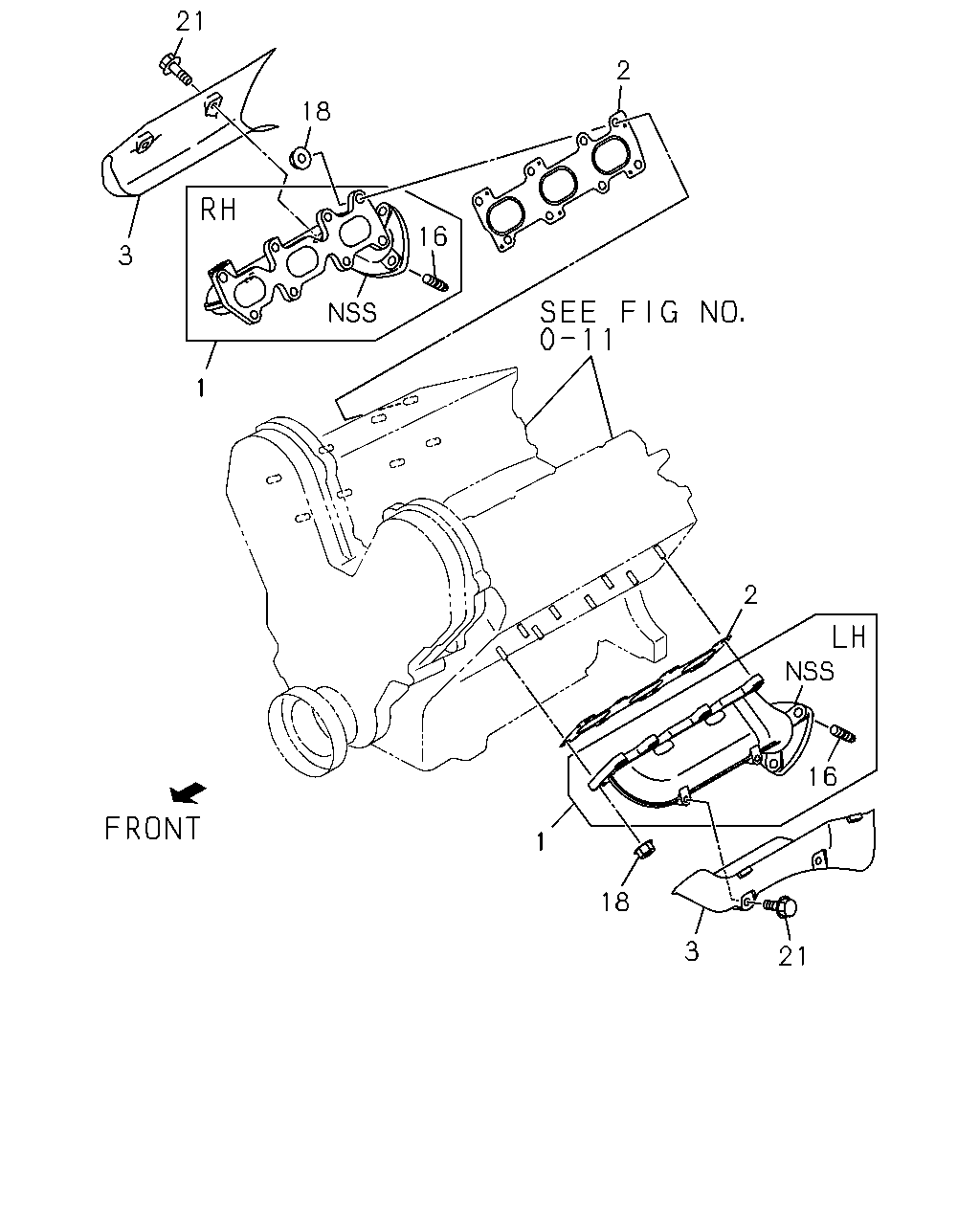

çizim 69740
21 2 18 16 3 1 2 16 1 18 3 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
ELECTRIC FUEL INJECTION<6GG> 		8-97041-990-1 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
CATALYSIS CONTROL<6MZ> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST 8-97083-579-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
HIGHLAND ZONE PACKAGE<7EG> 		8-97083-579-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) 		8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97188-177-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97140-087-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97139-723-0 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9611- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-1 01 1 9611- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-94472-396-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-276-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-278-1 01 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9611-9611 ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA EQUIPMENT(YT2) (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> (B) M8X18 L=29 		8-97061-377-1 02 1 9612- ●
16 03.604 STUD; EXH PIPE TO MANIF
ELECTRIC FUEL INJECTION<6GG> 03.275 (A) M10X25 L=40 		9-04411-025-0 03 1 9611- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9611-9711 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9611- ● ● ●
18 03.604 NUT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9611- ● ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9611- ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ●

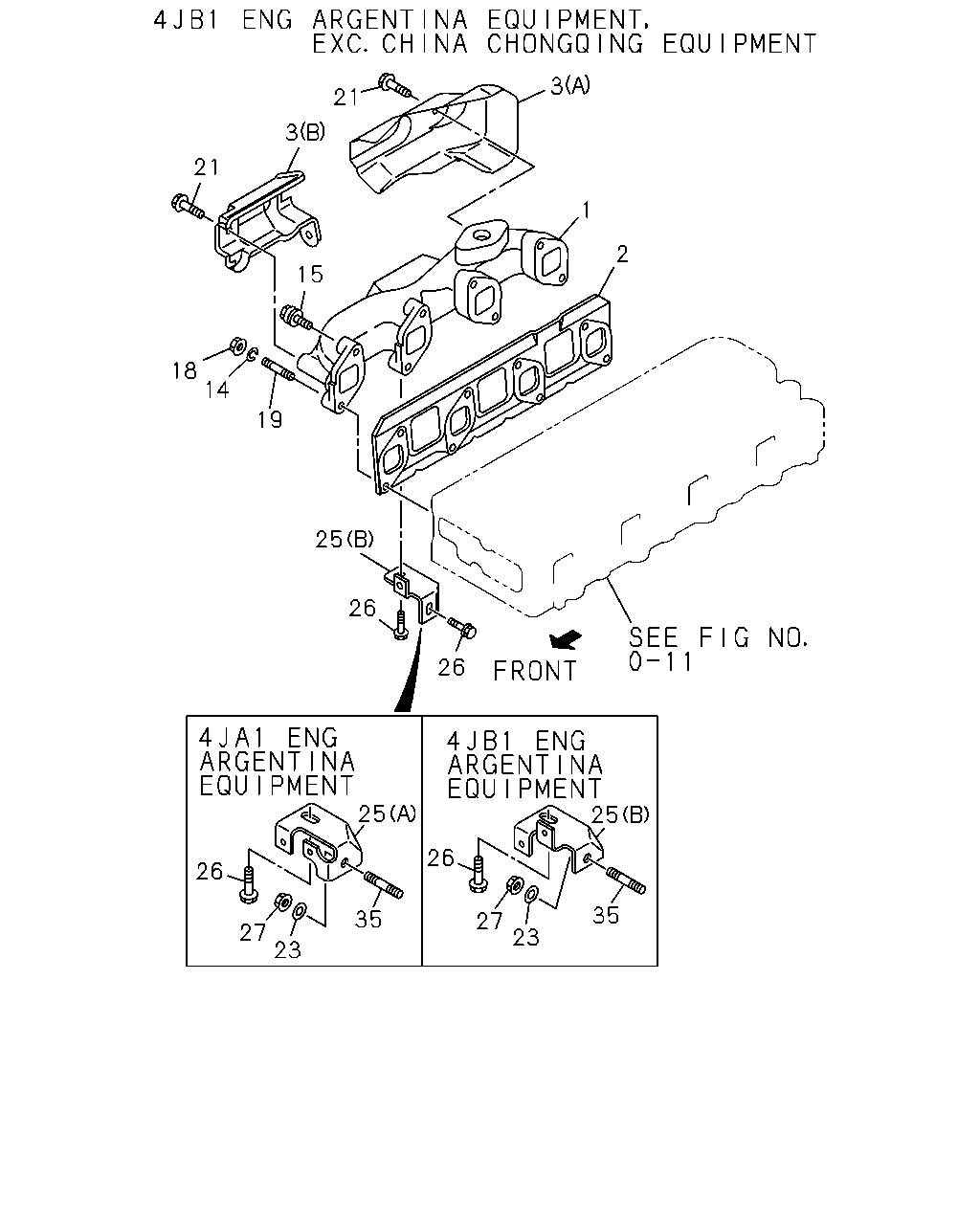

çizim 71098
3 21 3 21 1 2 15 18 14 19 25 26 26 25 25 26 26 35 35 27 27 23 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> WO/EGR 		8-94159-205-1 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB) WO/EGR 		8-94159-205-1 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97127-546-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST
ELECTRIC FUEL INJECTION<6GG> 		8-97041-990-1 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
CATALYSIS CONTROL<6MZ> W/EGR 		8-94136-788-2 01 1 9611-9612 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR 		8-94136-788-2 01 1 9701- ●
1 03.601 MANIFOLD; EXHAUST 8-97083-579-0 01 1 9611-9611 ●
1 03.601 MANIFOLD; EXHAUST
HIGHLAND ZONE PACKAGE<7EG> 		8-97083-579-0 01 1 9612- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) 		8-97065-960-1 01 1 9611-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97188-177-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) 		8-97140-087-0 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97139-723-0 01 1 9611- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9611- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-1 01 1 9611- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-94472-396-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9611-9701 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9702-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9611-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-276-1 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97164-278-1 01 1 9712- ●
14 03.604 WASHER; PL,EXH MANIF
ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9611- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9611- ● ●
15 03.604 BOLT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9612- ●
15 03.604 BOLT; EXH MANIF
M8X35 FLANGE W/PL WASHER 		8-97131-597-1 06 1 9611- ● ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9611- ● ● ●
18 03.604 NUT; EXH MANIF
EXC. HIGHLAND ZONE PACKAGE<7EG> 00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9611- ● ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9611- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9611- ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ●
23 03.613 WASHER; PL EXH MANIF BRKT
ARGENTINA EQUIPMENT(7SZ) 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ●
25 03.602 BRACKET; EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-185-0 01 1 9712- ●
25 03.602 BRACKET; EXH MANIF
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97188-186-0 01 1 9712- ●
25 03.602 BRACKET; EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97161-202-0 01 1 9611- ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9611- ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9611-9711 ●
26 03.602 BOLT; BRKT TO EXH MANIF
ARGENTINA EQUIPMENT(7SZ) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9712- ●
26 03.602 BOLT; BRKT TO EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9712- ●
27 03.602 NUT; BRKT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9712- ● ●
35 03.604 STUD; BRKT
ARGENTINA EQUIPMENT(7SZ) 05.387 M8X30 L=41 		9-04110-830-0 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
