Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#47920) — 395 parça

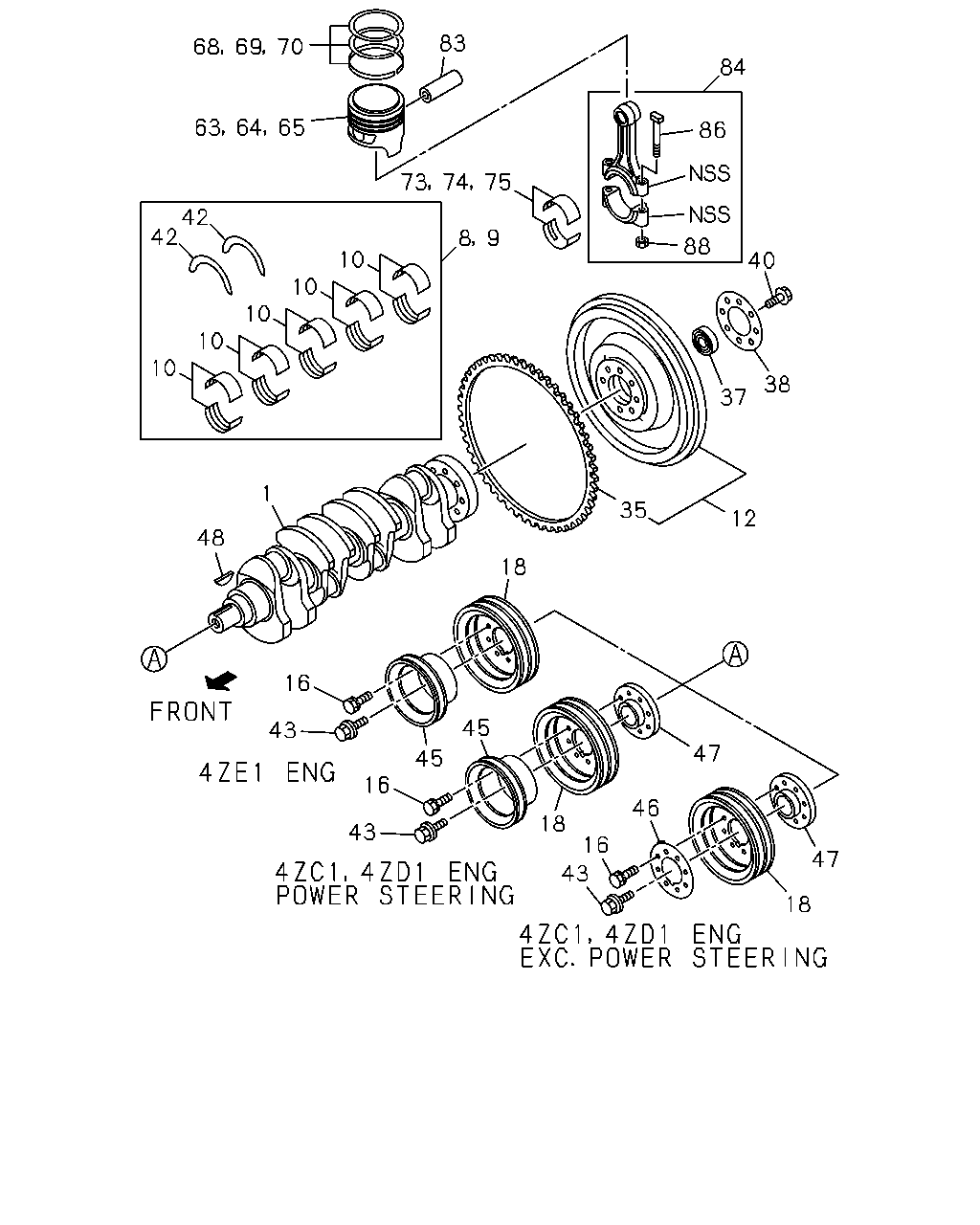

83 68 69 70 84 63 64 65 86 73 74 75 42 42 8 88 10 40 10 10 10 10 38 37 1 35 12 48 18 16 45 43 47 45 16 46 18 43 16 47 43 18 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT CHINA CHONGQING EQUIPMENT(R5B)	8-94443-662-0	01	1	9611-					●
1	00.646 CRANKSHAFT EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94133-028-1	01	1	9611-	●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94320-176-0	01	1	9611-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94133-029-1	01	1	9611-	●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94320-177-0	01	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-9611				●
12	00.666 FLYWHEEL CHINA CHONGQING EQUIPMENT(R5B)	8-94172-529-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9612-				●
12	00.666 FLYWHEEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94172-531-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9612-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	08	1	9611-	●	●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	04	1	9611-			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94483-683-1	01	1	9611-	●	●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9611-			●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97131-859-0	01	1	9712-						●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL M10X31 FLANGE	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9611-9711	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9712-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94438-534-0	01	1	9611-	●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94136-782-2	01	1	9611-			●
46	00.662 PLATE; PULLEY,CR/SHF EXC. POWER STEERING<N40>	8-94159-197-1	01	1	9611-	●	●
47	00.662 BOSS; CR/SHF PULLEY	8-97073-079-0	01	1	9611-	●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9611-9711	●	●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9712-	●	●	●			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-788-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-789-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-810-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-811-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-798-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-799-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-751-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-752-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-606-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-607-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	06	1	9712-						●
64	00.629 PISTON; O/S=0.50	8-94414-055-1	04	1	9611-	●
64	00.629 PISTON; O/S=0.50 CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94166-778-2	04	1	9611-		●
64	00.629 PISTON; O/S=0.50 ELECTRIC FUEL INJECTION<6GG>	8-97084-113-1	04	1	9611-		●
64	00.629 PISTON; O/S=0.50 EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB)	8-94413-459-2	04	1	9611-		●
64	00.629 PISTON; O/S=0.50	8-97069-548-1	04	1	9611-9611			●
64	00.629 PISTON; O/S=0.50 HIGHLAND ZONE PACKAGE<7EG>	8-97069-548-1	04	1	9612-			●
64	00.629 PISTON; O/S=0.50 EXC. HIGHLAND ZONE PACKAGE<7EG>	8-94319-522-1	04	1	9612-			●
65	00.629 PISTON; O/S=1.00	8-94414-056-1	04	1	9611-	●
65	00.629 PISTON; O/S=1.00 CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94166-780-2	04	1	9611-		●
65	00.629 PISTON; O/S=1.00 ELECTRIC FUEL INJECTION<6GG>	8-97084-114-1	04	1	9611-		●
65	00.629 PISTON; O/S=1.00 EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB)	8-94413-460-2	04	1	9611-		●
65	00.629 PISTON; O/S=1.00 EXC. HIGHLAND ZONE PACKAGE<7EG>	8-94319-523-1	04	1	9612-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
69	00.643 RING SET; PISTON,O/S=0.50	8-94143-049-0	04	1	9611-	●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-245-1	04	1	9611-		●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-249-0	04	1	9611-			●
70	00.643 RING SET; PISTON,O/S=1.00	8-94143-050-0	04	1	9611-	●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-246-1	04	1	9611-		●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-250-0	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	01	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94133-026-0	01	1	9611-	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94320-178-0	01	1	9611-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94133-027-0	01	1	9611-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94320-179-0	01	1	9611-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B)	8-94454-479-0	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN CHINA CHONGQING EQUIPMENT(R5B)	8-94329-692-1	04	1	9611-					●
84	00.603 ROD ASM; CONN EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) M11X59	5-12235-009-0	08	1	9611-					●
86	00.623 BOLT; CONNROD EXC. CHINA CHONGQING EQUIPMENT(R5B) M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) 00.626 M11	5-09409-016-0	08	1	9611-					●
88	00.623 NUT; CONNROD 00.626	8-94377-785-0	12	1	9712-						●

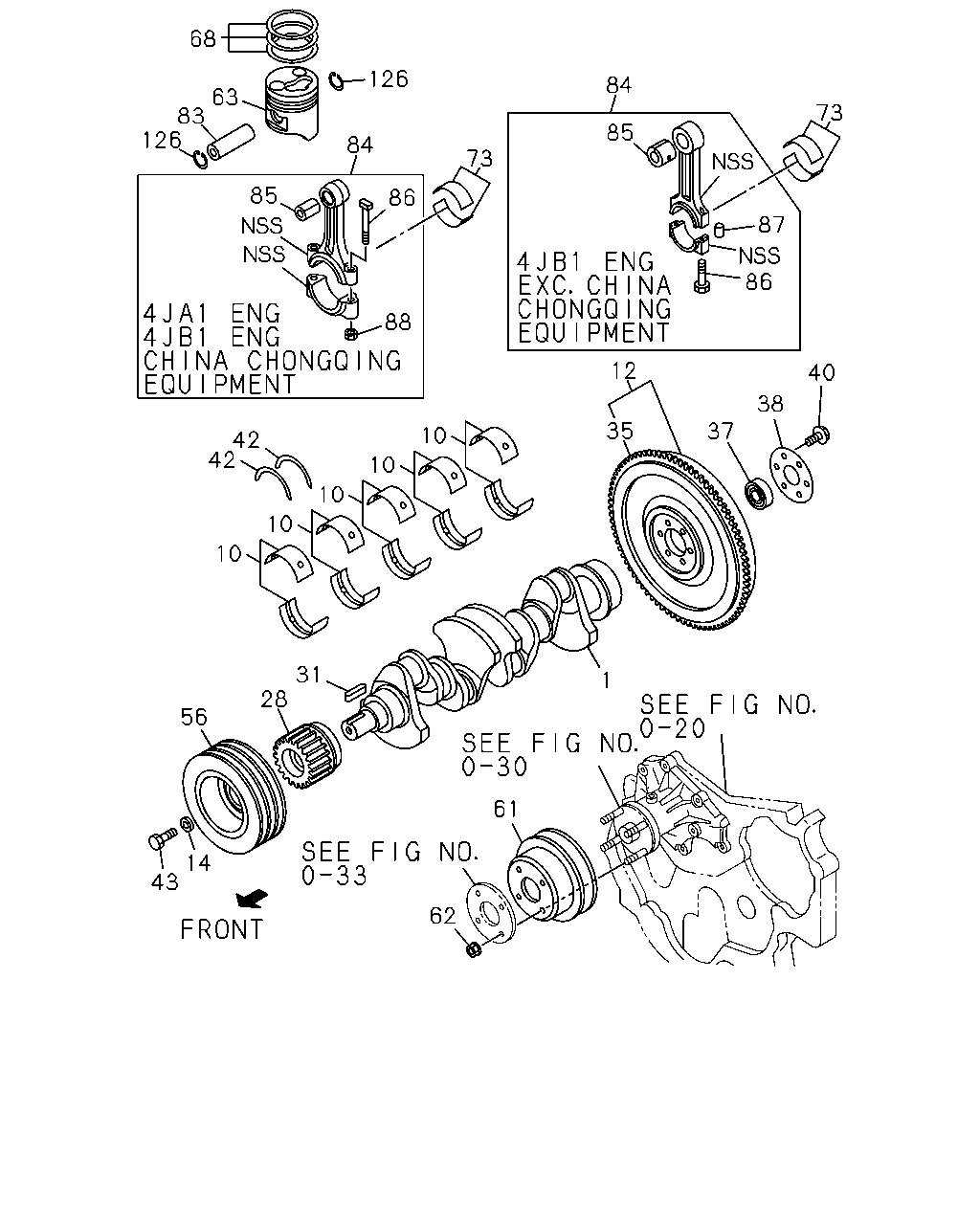

68 126 84 63 73 83 126 85 84 73 85 86 87 86 88 12 40 38 35 37 10 42 42 10 10 10 10 31 1 28 56 61 14 43 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT CHINA CHONGQING EQUIPMENT(R5B)	8-94443-662-0	01	1	9611-					●
1	00.646 CRANKSHAFT EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-9611				●
12	00.666 FLYWHEEL CHINA CHONGQING EQUIPMENT(R5B)	8-94172-529-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9612-				●
12	00.666 FLYWHEEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94172-531-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9612-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9611-				●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9611-				●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9611-				●	●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL M10X31 FLANGE	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9611-9711	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9712-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9611-				●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-3	01	1	9611-				●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9611-				●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE 1-GROOVE	8-97130-518-0	01	1	9712-						●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9611-				●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-788-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-789-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-810-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-811-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-798-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-799-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-751-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-752-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-606-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-607-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	06	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	01	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B)	8-94454-479-0	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN CHINA CHONGQING EQUIPMENT(R5B)	8-94329-692-1	04	1	9611-					●
84	00.603 ROD ASM; CONN EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94419-455-0	04	1	9611-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9611-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94457-158-0	04	1	9611-					●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) M11X59	5-12235-009-0	08	1	9611-					●
86	00.623 BOLT; CONNROD EXC. CHINA CHONGQING EQUIPMENT(R5B) M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
87	00.613 PIN; CONNROD BIG END EXC. CHINA CHONGQING EQUIPMENT(R5B) OD=5 L=8	9-08160-508-0	08	1	9611-					●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) 00.626 M11	5-09409-016-0	08	1	9611-					●
88	00.623 NUT; CONNROD 00.626	8-94377-785-0	12	1	9712-						●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9611-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) ID=33.9	8-94133-969-0	08	1	9611-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) OD=37.5	8-94460-687-0	08	1	9611-					●

68 63 83 86 84 37 40 73 38 88 35 12 61 42 42 1 48 10 18 43 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT CHINA CHONGQING EQUIPMENT(R5B)	8-94443-662-0	01	1	9611-					●
1	00.646 CRANKSHAFT EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO,4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO,3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-9611				●
12	00.666 FLYWHEEL CHINA CHONGQING EQUIPMENT(R5B)	8-94172-529-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9612-				●
12	00.666 FLYWHEEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94172-531-1	01	1	9611-9611					●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9612-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94483-683-1	01	1	9611-	●	●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9611-			●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97131-859-0	01	1	9712-						●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL M10X31 FLANGE	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9611-9711	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30 FLANGE	8-94108-479-0	01	1	9712-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9611-9711	●	●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9712-	●	●	●			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9611-				●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE 1-GROOVE	8-97130-518-0	01	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-788-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-789-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=AX	8-97176-810-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. ELECTRIC FUEL INJECTION<6GG> GRADE=CX	8-97176-811-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. ELECTRIC FUEL INJECTION<6GG>, CHILE EQUIPMENT(6KB) GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-798-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-9611			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-799-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=AX	8-97176-751-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. HIGHLAND ZONE PACKAGE<7EG> GRADE=CX	8-97176-752-0	04	1	9612-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-606-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-607-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	06	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	06	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	01	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	01	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. CHINA CHONGQING EQUIPMENT(R5B)	8-94454-479-0	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN CHINA CHONGQING EQUIPMENT(R5B)	8-94329-692-1	04	1	9611-					●
84	00.603 ROD ASM; CONN EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) M11X59	5-12235-009-0	08	1	9611-					●
86	00.623 BOLT; CONNROD EXC. CHINA CHONGQING EQUIPMENT(R5B) M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD CHINA CHONGQING EQUIPMENT(R5B) 00.626 M11	5-09409-016-0	08	1	9611-					●
88	00.623 NUT; CONNROD 00.626	8-94377-785-0	12	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
