Sayfa 1-40A - Isuzu EPC

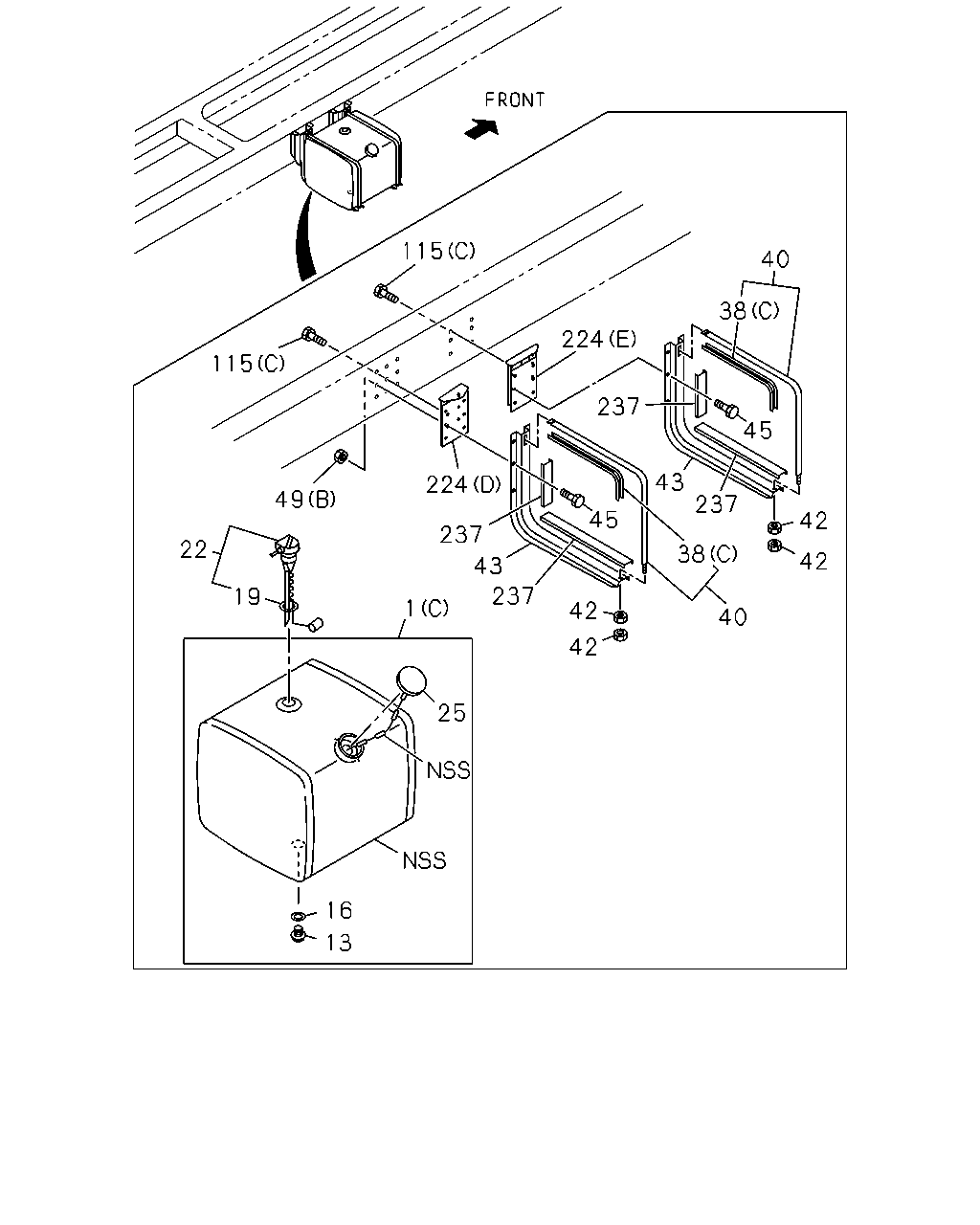

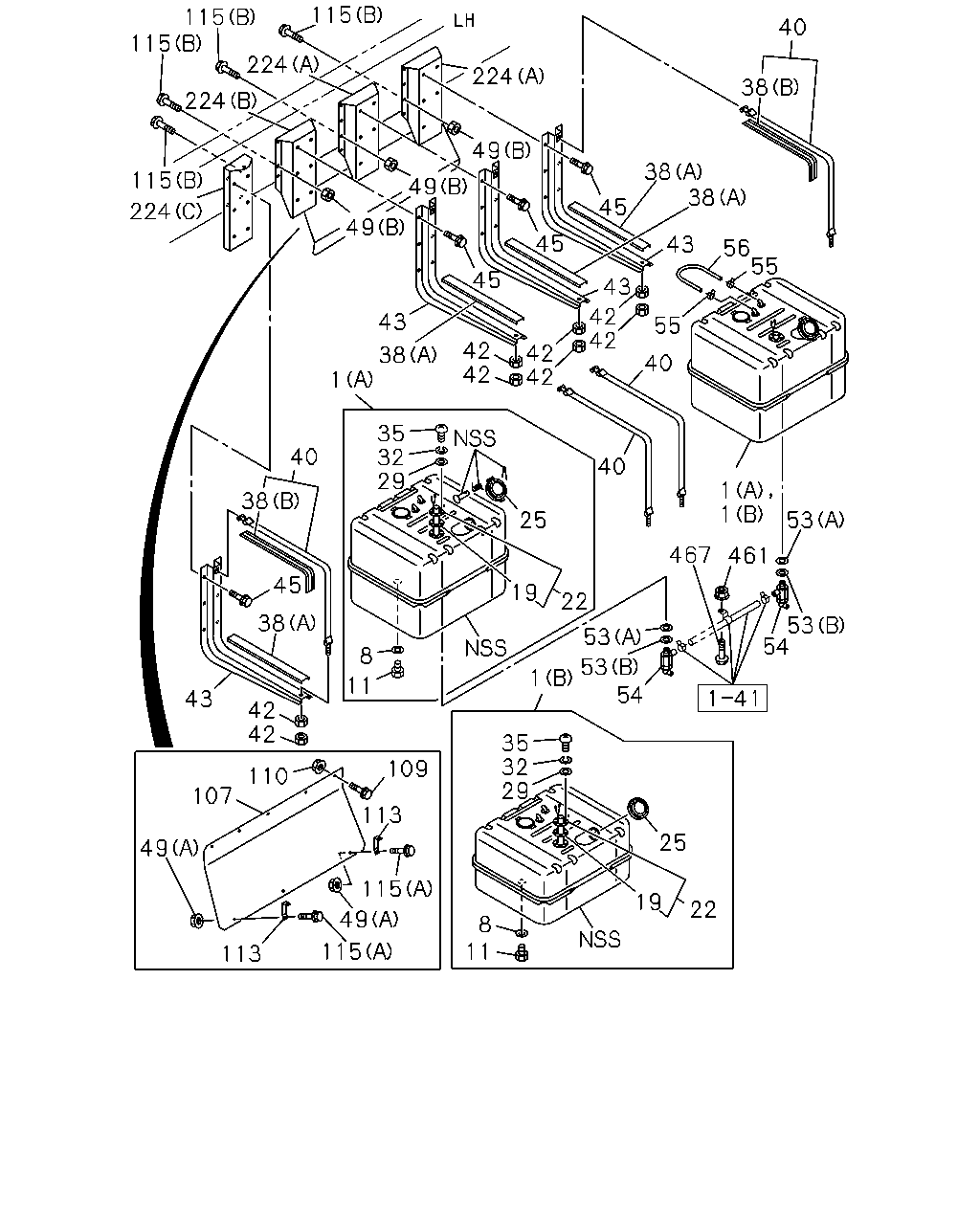

1-40A — FUEL TANK (#4792) — 266 parça

115 115 115 40 224 224 38 224 49 49 49 38 38 115 45 224 45 43 56 55 45 43 55 42 42 43 42 42 42 42 38 40 1 35 32 29 40 40 1 1 38 53 25 467 461 45 19 22 38 53 54 53 8 53 1 54 11 43 42 42 35 32 29 109 110 107 113 25 49 115 19 22 49 8 11 115 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9601-9610	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9601-9904	●
1	TANK; FUEL EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9905-9907		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9908-0003		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9611-9904	●		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	02	1	9905-9907		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9908-0003		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9611-9904	●		●
1	TANK; FUEL FUEL TANK 400L<SDH> (C) 1020X680X625 400L	1-87411-168-0	01	1	9905-9907		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9601-9610	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	02	1	9905-9907		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9908-		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9611-9904	●		●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9601-9610	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 400L<SDH> M36	1-09604-052-0	02	1	9905-9907		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9908-0003		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	0004-		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9611-9904	●		●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9601-9610	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-9907		●	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>	9-83135-003-0	02	1	9905-9907		●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9908-		●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9611-9904	●		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9601-9610	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9601-9610	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH>	1-83141-080-1	02	1	9905-9907		●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9908-		●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9611-9904	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-9907		●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9905-9907		●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9908-		●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9611-9904	●		●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9601-9610	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9601-9610	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH>	1-22440-034-1	02	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9908-		●	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9611-9904	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9908-0003		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9611-9904	●		●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	9601-9610	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	02	1	9905-9907		●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	9908-		●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	9611-9904	●		●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	9601-9610	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	10	1	9905-9907		●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	9908-		●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	9611-9904	●		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9601-9610	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> M5X10	9-93497-510-0	10	1	9905-9907		●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9908-		●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9611-9904	●		●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9601-9610	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9601-9610	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-0	02	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	04	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9908-		●	●	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9611-9904	●		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	04	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9908-		●	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9611-9904	●		●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9601-9610	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-1	02	1	9905-9907		●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> L=1030	1-22550-204-2	04	1	9905-9907		●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	9908-		●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9611-9904	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	12	1	9601-9610	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9905-9907		●	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L<SDH> M10	9-09110-510-0	08	1	9905-9907		●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9908-		●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	12	1	9611-9904	●		●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9601-9610	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9905-9907		●	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L<SDH>	1-53461-279-4	04	1	9905-9907		●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9908-		●	●	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28081-230-0	24	1	9601-9606	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28681-235-0	24	1	9607-9610	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L<SDH> M12X35 FLANGE	0-28681-235-0	24	1	9905-9907		●	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	9908-		●	●	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28681-235-0	24	1	9611-9904	●		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> M12X35 FLANGE	0-28081-235-0	12	1	9905-9907		●	●	●
49	NUT; BRKT (A) M8	9-09110-408-0	02	1	9601-9606	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
49	NUT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	18	1	9601-9904	●
49	NUT; BRKT EXC. FUEL TANK 400L<SDH> (B) M12	9-99110-512-0	12	1	9905-9907		●	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	9908-		●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> (B) M12	9-99110-512-0	03	1	9905-9907		●	●	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	9601-9610	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	9601-9610	●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 400L<SDH> (B) T=1.60	1-22416-001-0	02	1	9905-9907		●	●	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	9908-		●	●	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	9611-9904	●		●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 400L<SDH> (A) T=0.80	1-22416-004-0	02	1	9905-9907		●	●	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	9908-		●	●	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	9611-9904	●		●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9601-9610	●
54	COCK ASM; FUEL TANK EXC. FUEL TANK 400L<SDH>	9-09904-176-0	02	1	9905-9907		●	●	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9908-		●	●	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9611-9904	●		●
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	9601-9610	●
55	CLIP; FUEL PIPE EXC. FUEL TANK 400L<SDH> ID=14	1-09704-102-0	02	1	9905-		●	●	●
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	9611-9904	●		●
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9610	●
56	PIPE; FUEL SHUTTER EXC. FUEL TANK 400L<SDH> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9905-		●	●	●
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9611-9904	●		●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	9601-9701	●
107	PROTECTOR; HEAT,FUEL TANK FULLER M/T<X9B>,ZF M/T<X9E>	1-22159-276-0	01	1	9702-9904	●		●
107	PROTECTOR; HEAT,FUEL TANK FULLER M/T<X9B>,ZF M/T<X9E> EXC. FUEL TANK 400L<SDH>	1-22159-276-0	01	1	9905-9907		●	●	●
107	PROTECTOR; HEAT,FUEL TANK FULLER M/T<X9B>,ZF M/T<X9E>	1-22159-276-0	01	1	9908-		●	●	●
107	PROTECTOR; HEAT,FUEL TANK ISUZU M/T<X9A>	1-22159-311-0	01	1	9611-9904	●		●
107	PROTECTOR; HEAT,FUEL TANK ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH>	1-22159-311-0	01	1	9905-9907		●	●	●
107	PROTECTOR; HEAT,FUEL TANK ISUZU M/T<X9A>	1-22159-311-0	01	1	9908-		●	●	●
109	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	07	1	9601-9606	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	9607-9904	●
109	BOLT; HEAT PROTECTOR EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	07	1	9905-9907		●	●	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	9908-		●	●	●
110	NUT; PROTECTOR M8	9-09110-408-0	07	1	9601-9606	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	9607-9610	●
110	NUT; PROTECTOR EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	07	1	9905-9907		●	●	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	9908-		●	●	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	9611-9904	●		●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	9601-9610	●
113	BRACKET; PROTECTOR,FUEL TANK EXC. FUEL TANK 400L<SDH>	1-22119-362-0	02	1	9905-9907		●	●	●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	9908-		●	●	●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	9611-9904	●		●
115	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9610	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9907		●	●	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9908-		●	●	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●		●
115	BOLT; BRKT (B) M12X35 FLANGE	0-28081-235-0	24	1	9601-9606	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9607-9610	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (B) M12X40 FLANGE	0-28681-240-0	24	1	9905-9907		●	●	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9908-		●	●	●
115	BOLT; BRKT (B)	0-28681-240-0	24	1	9611-9904	●		●
115	BOLT; BRKT FUEL TANK 400L<SDH> (C) M12X30 FLANGE	0-28681-230-0	08	1	9905-9907		●	●	●
115	BOLT; BRKT FUEL TANK 400L<SDH> (C) M12X35 FLANGE	0-28681-235-0	04	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 400L<SDH> (D)	1-53461-498-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 400L<SDH> (E)	1-53461-499-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (A)	1-53461-465-0	02	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9611-9904	●		●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (B)	1-53461-466-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9611-9904	●		●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (C)	1-53461-467-1	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9611-9904	●		●
461	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	02	1	9601-9606	●
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9610	●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9611-9904	●		●
467	BOLT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
467	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9607-9610	●
467	BOLT EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	9905-		●	●	●
467	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●		●

115 40 38 224 115 237 45 224 43 49 237 45 42 237 22 38 42 43 237 19 1 42 40 42 25 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9601-9610	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9601-9904	●
1	TANK; FUEL EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9905-9907		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9908-0003		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-		●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9611-9904	●		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH> (A) 720X610X496 200L	1-22400-855-0	02	1	9905-9907		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9908-0003		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-		●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9611-9904	●		●
1	TANK; FUEL FUEL TANK 400L<SDH> (C) 1020X680X625 400L	1-87411-168-0	01	1	9905-9907		●	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	9905-9907		●	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	9905-		●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9601-9610	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	9905-9907		●	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>	9-83135-003-0	02	1	9905-9907		●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9908-		●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9611-9904	●		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9601-9610	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9601-9610	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH>	1-83141-080-1	02	1	9905-9907		●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9908-		●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9611-9904	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	9905-9907		●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9905-9907		●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9908-		●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9611-9904	●		●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9601-9610	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9601-9610	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 400L<SDH>	1-22440-034-1	02	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9908-		●	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9611-9904	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9905-9907		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9908-0003		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9611-9904	●		●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9601-9610	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9601-9610	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-0	02	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> (A) L=580	1-22553-003-0	04	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9908-		●	●	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9611-9904	●		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> (B) L=650	1-22553-022-1	04	1	9905-9907		●	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9908-		●	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9611-9904	●		●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9601-9610	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-1	02	1	9905-9907		●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> L=1030	1-22550-204-2	04	1	9905-9907		●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	9908-		●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9611-9904	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	12	1	9601-9610	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	9905-9907		●	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L<SDH> M10	9-09110-510-0	08	1	9905-9907		●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9908-		●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	12	1	9611-9904	●		●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9601-9610	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	9905-9907		●	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L<SDH>	1-53461-279-4	04	1	9905-9907		●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9908-		●	●	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28081-230-0	24	1	9601-9606	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28681-235-0	24	1	9607-9610	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L<SDH> M12X35 FLANGE	0-28681-235-0	24	1	9905-9907		●	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	9908-		●	●	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28681-235-0	24	1	9611-9904	●		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> M12X35 FLANGE	0-28081-235-0	12	1	9905-9907		●	●	●
49	NUT; BRKT (A) M8	9-09110-408-0	02	1	9601-9606	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
49	NUT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	18	1	9601-9904	●
49	NUT; BRKT EXC. FUEL TANK 400L<SDH> (B) M12	9-99110-512-0	12	1	9905-9907		●	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	9908-		●	●	●
49	NUT; BRKT FUEL TANK 400L<SDH> (B) M12	9-99110-512-0	03	1	9905-9907		●	●	●
115	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9610	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9907		●	●	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9908-		●	●	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●		●
115	BOLT; BRKT (B) M12X35 FLANGE	0-28081-235-0	24	1	9601-9606	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9607-9610	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (B) M12X40 FLANGE	0-28681-240-0	24	1	9905-9907		●	●	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9908-		●	●	●
115	BOLT; BRKT (B)	0-28681-240-0	24	1	9611-9904	●		●
115	BOLT; BRKT FUEL TANK 400L<SDH> (C) M12X30 FLANGE	0-28681-230-0	08	1	9905-9907		●	●	●
115	BOLT; BRKT FUEL TANK 400L<SDH> (C) M12X35 FLANGE	0-28681-235-0	04	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9601-9610	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 400L<SDH> (D)	1-53461-498-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 400L<SDH> (E)	1-53461-499-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (A)	1-53461-465-0	02	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9611-9904	●		●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (B)	1-53461-466-0	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9611-9904	●		●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> (C)	1-53461-467-1	01	1	9905-9907		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9908-		●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9611-9904	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-0	04	1	9905-9907		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
