Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#47919) — 289 parça

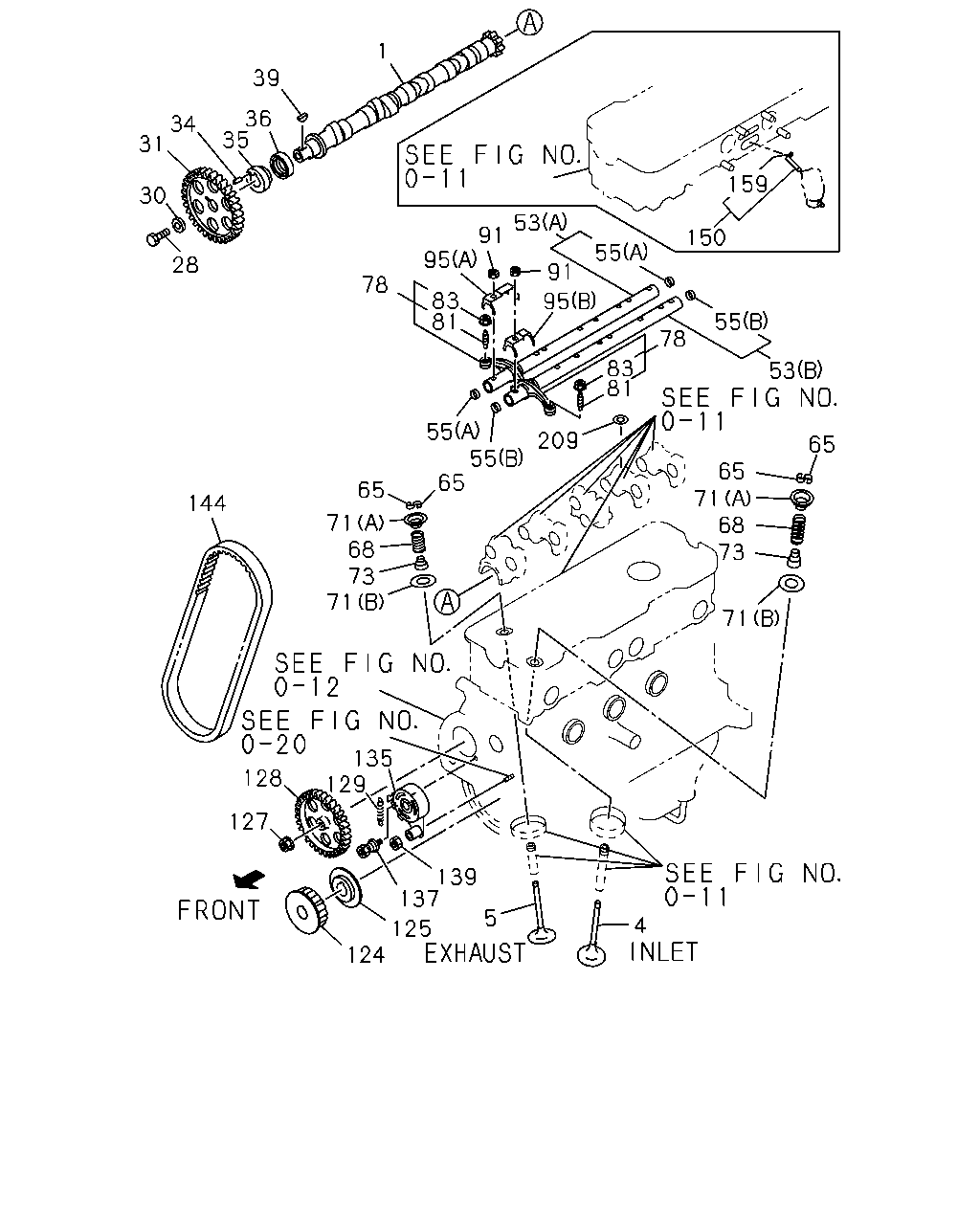

39 36 35 34 31 159 53 91 150 55 95 28 78 83 81 95 55 78 83 81 53 55 65 55 65 65 65 68 68 73 73 71 135 128 129 127 139 137 5 125 124 1 30 91 209 71 71 144 71 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9611-	●	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-				●	●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9611-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9611-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9611-9711				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B)	8-94133-275-1	04	1	9611-9711					●
4	00.296 VALVE; INL EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-					●
4	00.296 VALVE; INL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9611-9711					●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ)	8-94464-921-0	04	1	9712-				●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9712-					●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9611-9711				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B)	8-94247-875-1	04	1	9611-9711					●
5	00.297 VALVE; EXH EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-					●
5	00.297 VALVE; EXH EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9611-9711					●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ)	8-94433-245-0	04	1	9712-				●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9712-					●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9611-	●	●	●
28	00.738 BOLT; CAM PULLEY M11X25 FLANGE	8-97149-393-0	02	1	9712-						●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9611-	●	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9611-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9611-			●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9611-	●	●	●
35	00.533 BOSS; CM/SHF	8-94251-272-1	01	1	9611-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9611-	●	●	●
39	00.529 KEY; WOODRUFF,BOSS 08.960	9-08055-516-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9611-				●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-				●	●
71	00.309 SEAT; SPR (A) OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR (B) OD=27	8-97149-155-0	24	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9611-	●	●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9712-						●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9611-				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9611-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9611-				●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9611-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9611-				●	●
91	00.349 NUT; ROCKER SHAFT 00.002 M8	9-09110-508-0	10	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9611-				●	●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9611-			●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-						●
125	00.662 PLATE; GUIDE,TIMING BELT 00.724	8-94215-184-0	01	1	9611-	●	●	●
127	00.724 NUT; PULLEY M12	8-94221-051-0	01	1	9611-	●	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=38	8-97136-108-0	01	1	9611-	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9611-			●
129	00.724 SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9611-	●	●
129	00.724 SPRING; TENSIONER L=65	8-94472-329-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9611-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9712-						●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9611-	●	●	●
139	00.724 NUT; TENSIONER 00.002 M8	9-09110-508-0	01	1	9611-	●	●	●
144	00.724 BELT; TIMING	8-97066-863-0	01	1	9611-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9611-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9611-			●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-						●
150	00.426 ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9611-	●		●
150	00.426 ROD ASM; PUSH,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> W/RING	8-94159-290-1	01	1	9611-		●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9611-	●		●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG>	8-94159-292-0	01	1	9611-		●
209	00.349 WASHER; LK,ROCKER ARM BRKT 16.674 ID=8.4	9-09160-508-0	02	1	9611-	●	●	●

85 87 86 84 78 78 78 56 55 78 78 78 86 85 95 86 53 83 55 54 81 88 54 78 84 89 78 56 65 65 71 68 72 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9611-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9611-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9611-9711				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B)	8-94133-275-1	04	1	9611-9711					●
4	00.296 VALVE; INL EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-					●
4	00.296 VALVE; INL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9611-9711					●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ)	8-94464-921-0	04	1	9712-				●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9712-					●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9611-9711				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B)	8-94247-875-1	04	1	9611-9711					●
5	00.297 VALVE; EXH EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-					●
5	00.297 VALVE; EXH EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9611-9711					●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ)	8-94433-245-0	04	1	9712-				●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9712-					●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9611-				●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9611-				●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9611-				●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-				●	●
71	00.309 SEAT; SPR (A) OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR (B) OD=27	8-97149-155-0	24	1	9712-						●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9611-				●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9611-				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9611-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9611-				●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9611-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9611-				●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9611-				●	●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9611-				●	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9611-				●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9611-				●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9611-				●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9611-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9611-					●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9611-				●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-						●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9611-				●	●

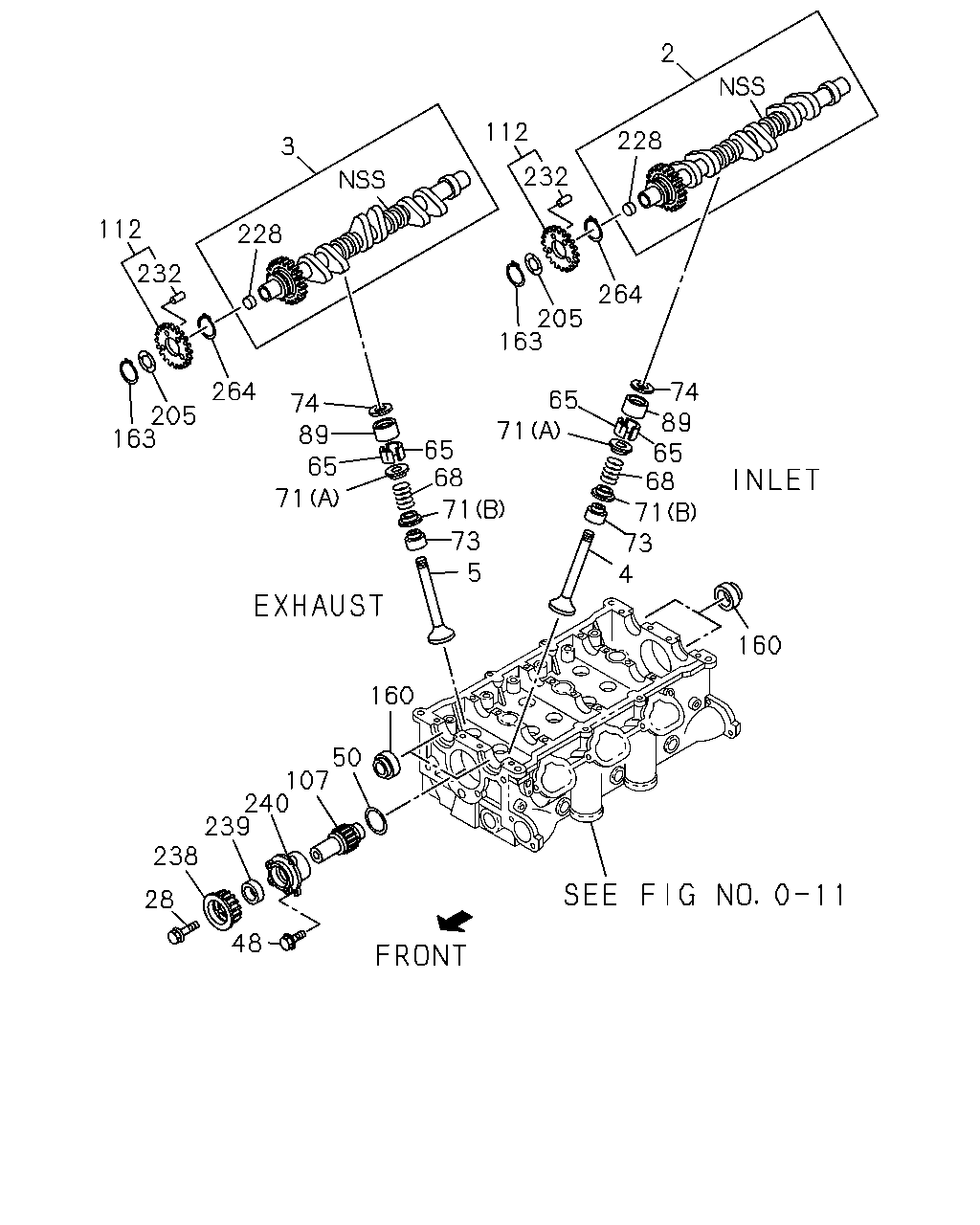

2 112 228 3 232 112 228 232 264 205 163 264 74 65 74 205 163 89 71 89 65 68 65 65 68 71 71 71 73 3 5 4 160 160 50 107 240 239 238 28 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL	8-97131-946-0	01	1	9712-						●
2	00.519 CAMSHAFT; INL	8-97131-944-0	01	1	9712-						●
3	00.519 CAMSHAFT; EXH	8-97136-139-0	02	1	9712-						●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9611-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9611-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9611-9711				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B)	8-94133-275-1	04	1	9611-9711					●
4	00.296 VALVE; INL EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-				●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94133-275-1	04	1	9712-					●
4	00.296 VALVE; INL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9611-9711					●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ)	8-94464-921-0	04	1	9712-				●
4	00.296 VALVE; INL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94464-921-0	04	1	9712-					●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9611-9711				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B)	8-94247-875-1	04	1	9611-9711					●
5	00.297 VALVE; EXH EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-				●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-94247-875-1	04	1	9712-					●
5	00.297 VALVE; EXH EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9611-9711					●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ)	8-94433-245-0	04	1	9712-				●
5	00.297 VALVE; EXH ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94433-245-0	04	1	9712-					●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9611-	●	●	●
28	00.738 BOLT; CAM PULLEY M11X25 FLANGE	8-97149-393-0	02	1	9712-						●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9712-						●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9712-						●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97149-238-0	02	1	9712-						●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-				●	●
71	00.309 SEAT; SPR (A) OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR (B) OD=27	8-97149-155-0	24	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9611-	●	●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.40	8-97149-262-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.42	8-97149-263-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.44	8-97149-264-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.46	8-97149-265-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.48	8-97149-266-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.50	8-97149-267-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.52	8-97149-268-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.54	8-97149-269-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.56	8-97149-270-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.58	8-97149-271-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97149-272-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.62	8-97149-273-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.64	8-97149-274-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.66	8-97149-275-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97149-276-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97149-277-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.72	8-97149-278-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.74	8-97149-279-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.76	8-97149-280-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97149-281-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97149-282-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97149-283-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97149-284-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97149-285-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97149-286-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97149-287-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97149-288-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97149-289-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97149-290-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97149-291-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97149-292-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97149-293-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97149-294-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97149-295-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97149-296-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97149-297-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97149-298-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97149-299-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97149-300-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97149-301-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97149-302-0	AR	1	9712-						●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9611-				●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-						●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR	8-97131-966-1	01	1	9712-						●
107	00.724 SHAFT; IDLE GEAR	8-97131-965-1	01	1	9712-						●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9611-9611				●	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-				●	●
112	00.724 GEAR; IDLE Z=40	8-97136-655-0	04	1	9712-						●
160	00.533 PLUG; CM/SHF END	8-97149-338-0	08	1	9712-						●
163	00.724 RING; SNAP,IDLE	8-97149-334-0	04	1	9712-						●
205	00.724 WASHER; LK,IDLE	8-97136-589-0	04	1	9712-						●
228	00.738 CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	04	1	9712-						●
232	00.662 PIN; GEAR SET 00.738 OD=5 L=6	9-09878-626-0	04	1	9712-						●
238	00.659 PULLEY; TIMING,CAM	8-97136-327-0	02	1	9712-						●
239	00.533 SEAL; OIL,IDLE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94389-593-1	02	1	9712-						●
240	00.724 RETAINER; IDLE	8-97132-365-1	01	1	9712-						●
240	00.724 RETAINER; IDLE	8-97132-364-1	01	1	9712-						●
264	00.349 SPRING; GEAR 00.659	8-97136-343-0	04	1	9712-						●

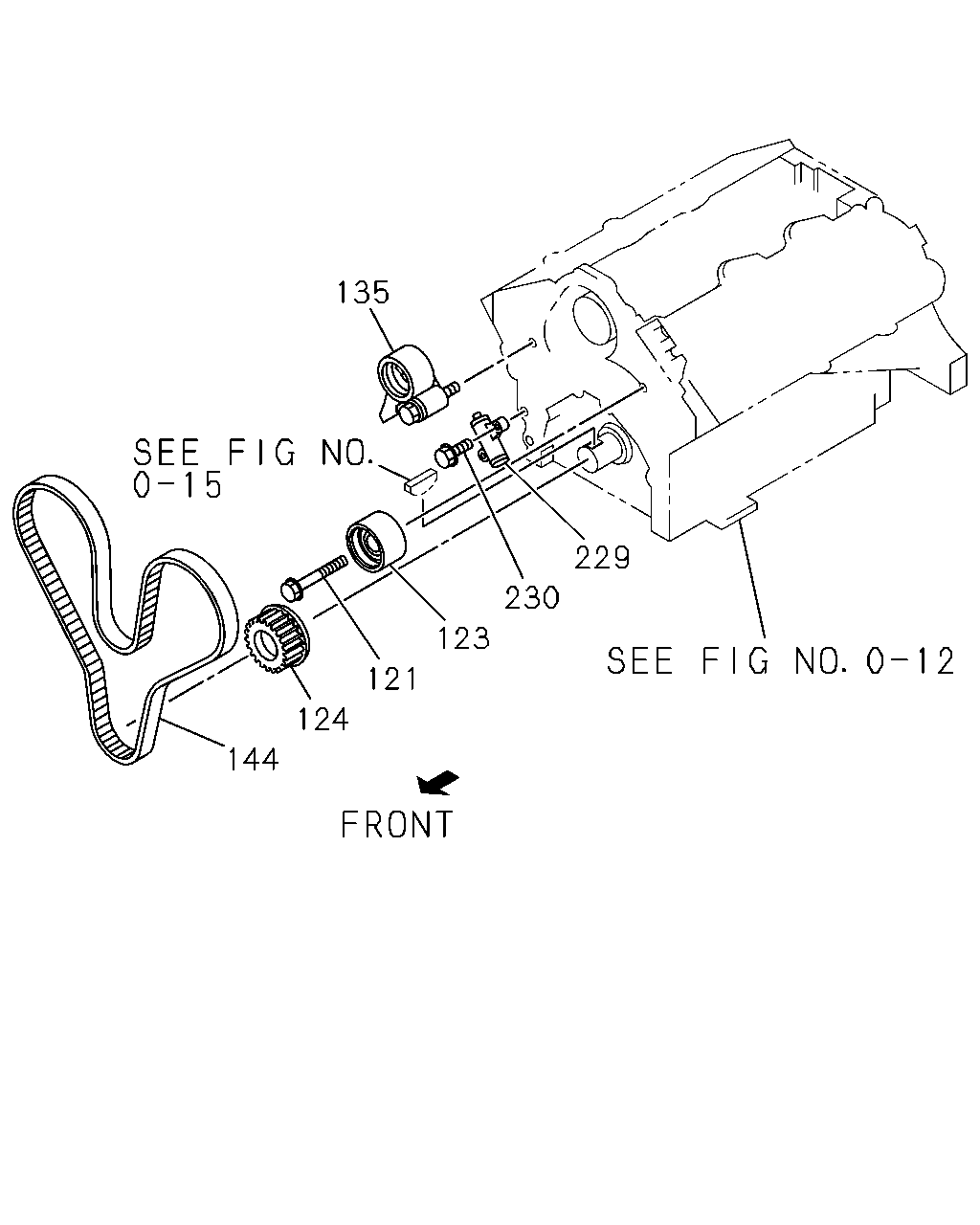

135 229 230 123 121 124 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	F
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9712-				●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9712-				●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9611-			●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-				●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9611-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9712-				●
144	00.724 BELT; TIMING	8-97066-863-0	01	1	9611-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9611-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9611-			●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-				●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97136-257-0	01	1	9712-				●
230	00.724 BOLT; PUSH ROD 02.183 M8X35 FLANGE	0-28680-835-0	02	1	9712-				●

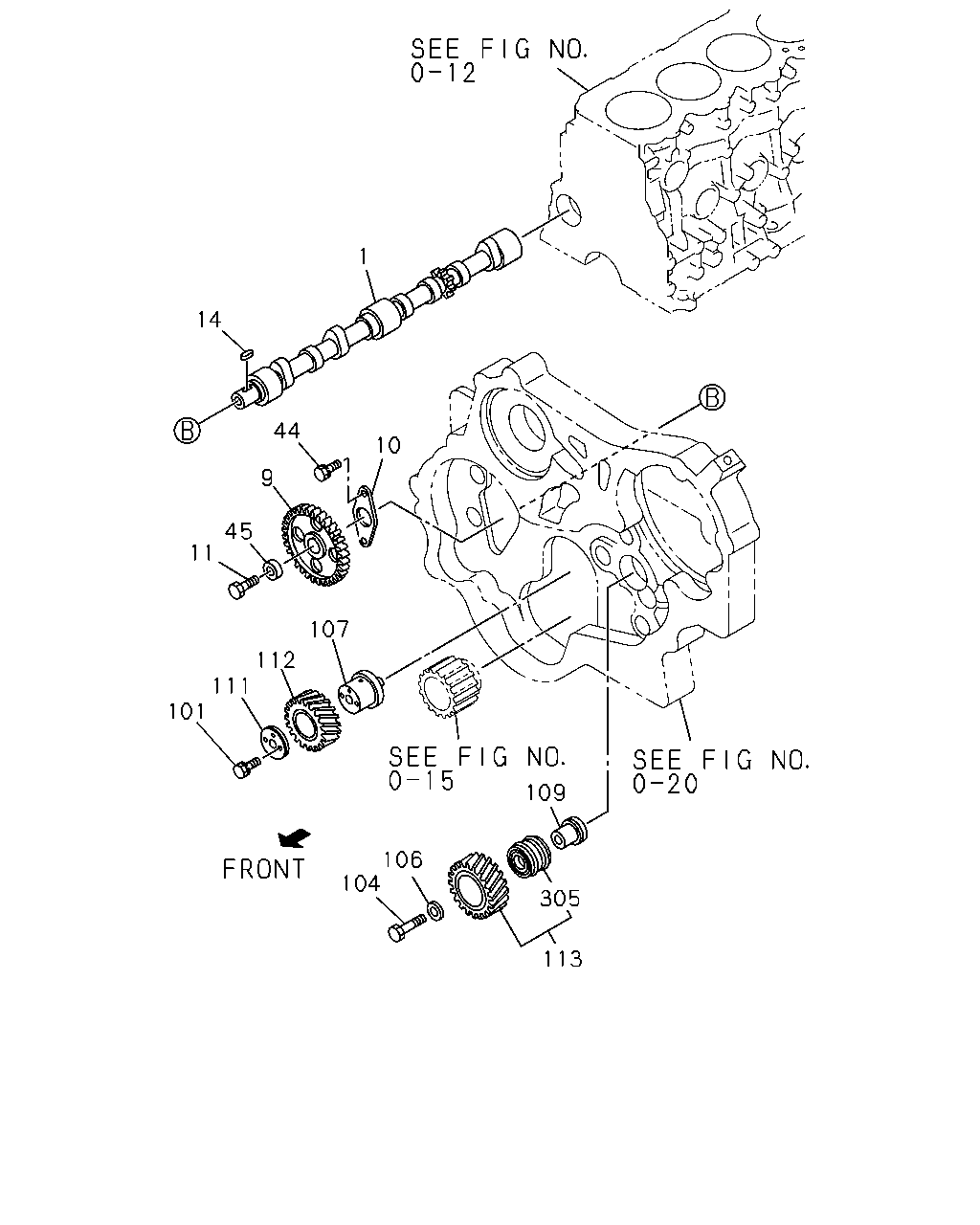

9 45 112 101 305 113 1 14 44 10 11 107 111 106 104 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9611-	●	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-				●	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9611-				●	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9611-				●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9611-				●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9611-				●	●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9611-				●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9611-				●	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9611-				●	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9611-				●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR	8-97131-966-1	01	1	9712-						●
107	00.724 SHAFT; IDLE GEAR	8-97131-965-1	01	1	9712-						●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9611-				●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9611-				●	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9611-9611				●	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-				●	●
112	00.724 GEAR; IDLE Z=40	8-97136-655-0	04	1	9712-						●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9611-				●	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
