0-13 — OIL PAN AND LEVEL GAUGE (#47918) — 296 parça

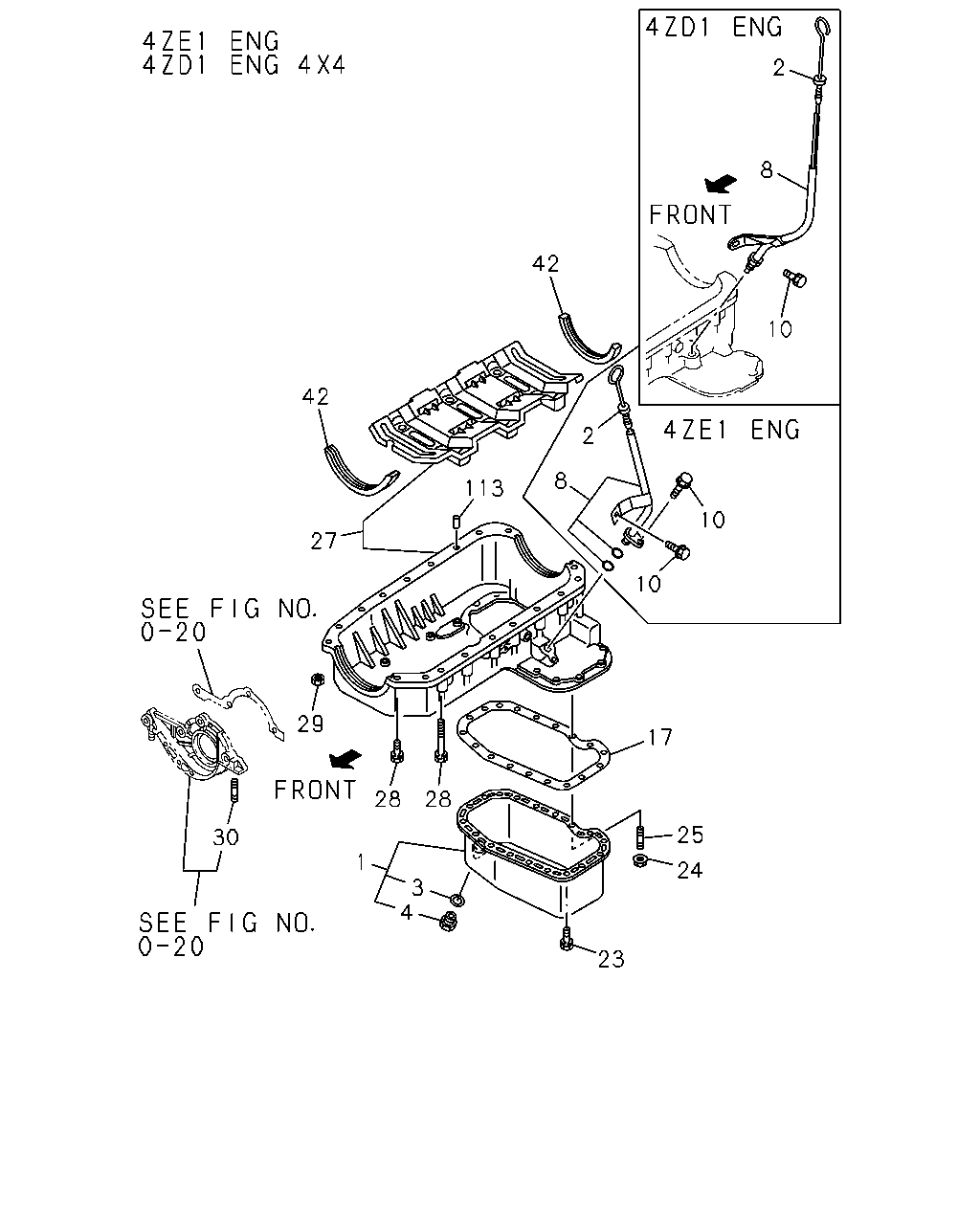

2 8 42 42 2 8 113 10 27 10 29 28 28 25 30 24 3 23 10 17 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-94338-201-0	01	1	9611-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-94338-201-0	01	1	9611-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9611-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9611-			●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9611-				●	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-						●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9611-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9611-			●
2	01.516 GAUGE; OIL LEVEL (A)	8-94362-305-0	01	1	9611-9711				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94362-305-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) (B)	8-97085-167-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9611-	●	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9611-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9611-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9611-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97143-693-0	01	1	9611-9711				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) (A)	8-97143-693-0	01	1	9611-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) (B)	8-97109-027-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97113-145-0	01	1	9611-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-		●
10	01.516 BOLT; GUIDE TUBE HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-			●
10	01.516 BOLT; GUIDE TUBE EXC. HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9612-			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-				●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***).	8-94324-200-0	01	1	9611-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9611-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9611-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9611-			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9611-				●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16 SOCKET HD	9-05820-816-0	12	1	9712-						●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-	●
24	01.453 NUT; OIL PAN 4X2(TFB***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9611-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9611-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-						●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9611-		●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9611-			●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9611-9711				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9611-9711					●
27	01.426 CRANKCASE EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-					●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9611-9711					●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-				●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-					●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9712-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9611-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9611-9612				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9701-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 SOCKET HD M6X25	9-05820-625-0	18	1	9712-						●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9611-			●	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-						●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9611-		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9611-			●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRONT	8-94152-790-2	01	1	9611-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-94152-790-2	01	1	9611-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). REAR	8-94152-791-2	01	1	9611-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-94152-791-2	01	1	9611-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9611-				●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9611-				●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9611-			●	●	●

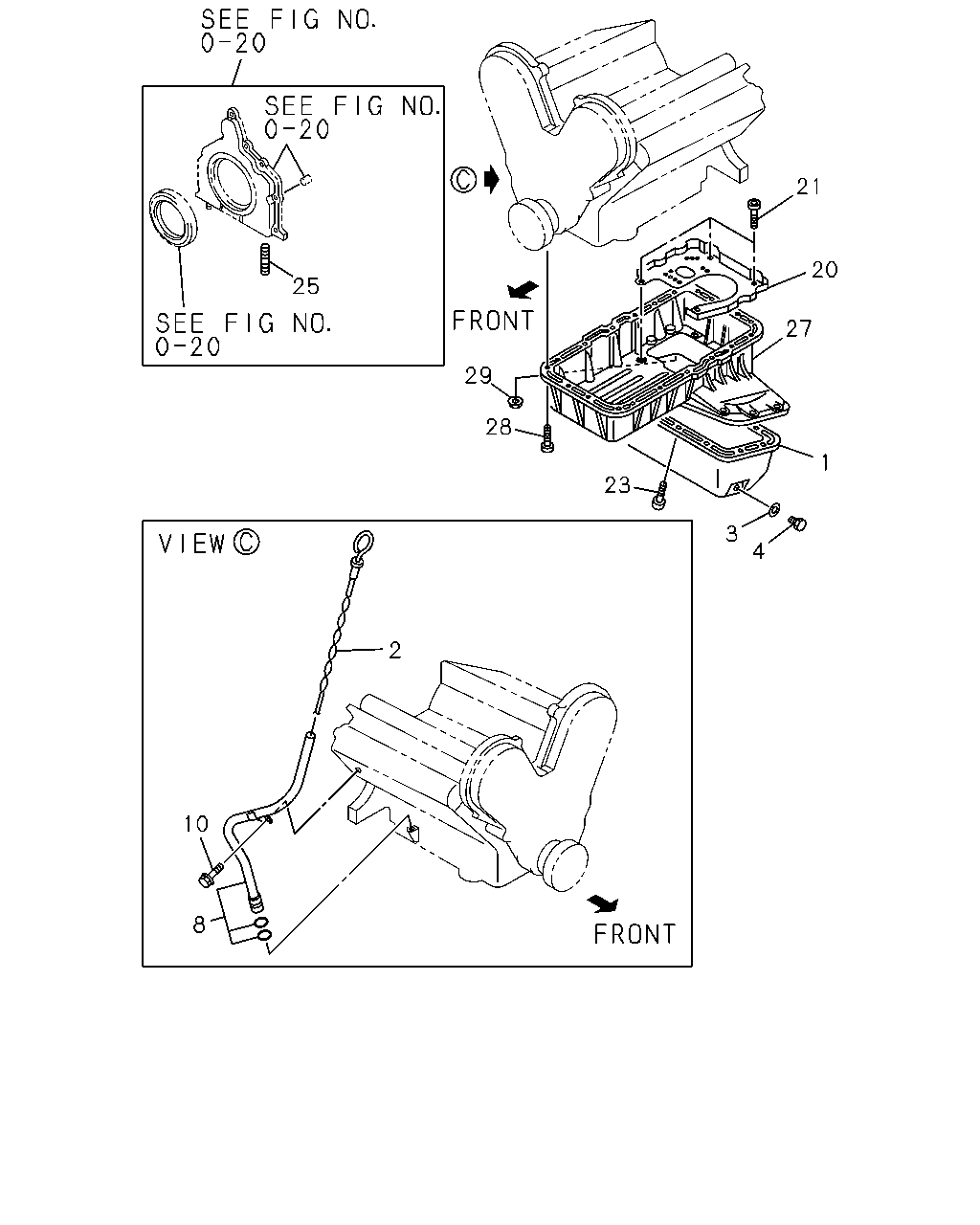

21 20 25 27 29 28 1 23 3 4 2 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-94338-201-0	01	1	9611-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-94338-201-0	01	1	9611-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9611-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9611-			●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9611-				●	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-						●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9611-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9611-			●
2	01.516 GAUGE; OIL LEVEL (A)	8-94362-305-0	01	1	9611-9711				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94362-305-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) (B)	8-97085-167-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9611-	●	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9611-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9611-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9611-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97143-693-0	01	1	9611-9711				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) (A)	8-97143-693-0	01	1	9611-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) (B)	8-97109-027-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97113-145-0	01	1	9611-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-		●
10	01.516 BOLT; GUIDE TUBE HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-			●
10	01.516 BOLT; GUIDE TUBE EXC. HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9612-			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-				●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-						●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9712-						●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9712-						●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9611-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9611-			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9611-				●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16 SOCKET HD	9-05820-816-0	12	1	9712-						●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9611-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-						●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9611-		●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9611-			●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9611-9711				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9611-9711					●
27	01.426 CRANKCASE EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-					●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9611-9711					●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-				●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-					●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9712-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9611-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9611-9612				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9701-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 SOCKET HD M6X25	9-05820-625-0	18	1	9712-						●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9611-			●	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-						●

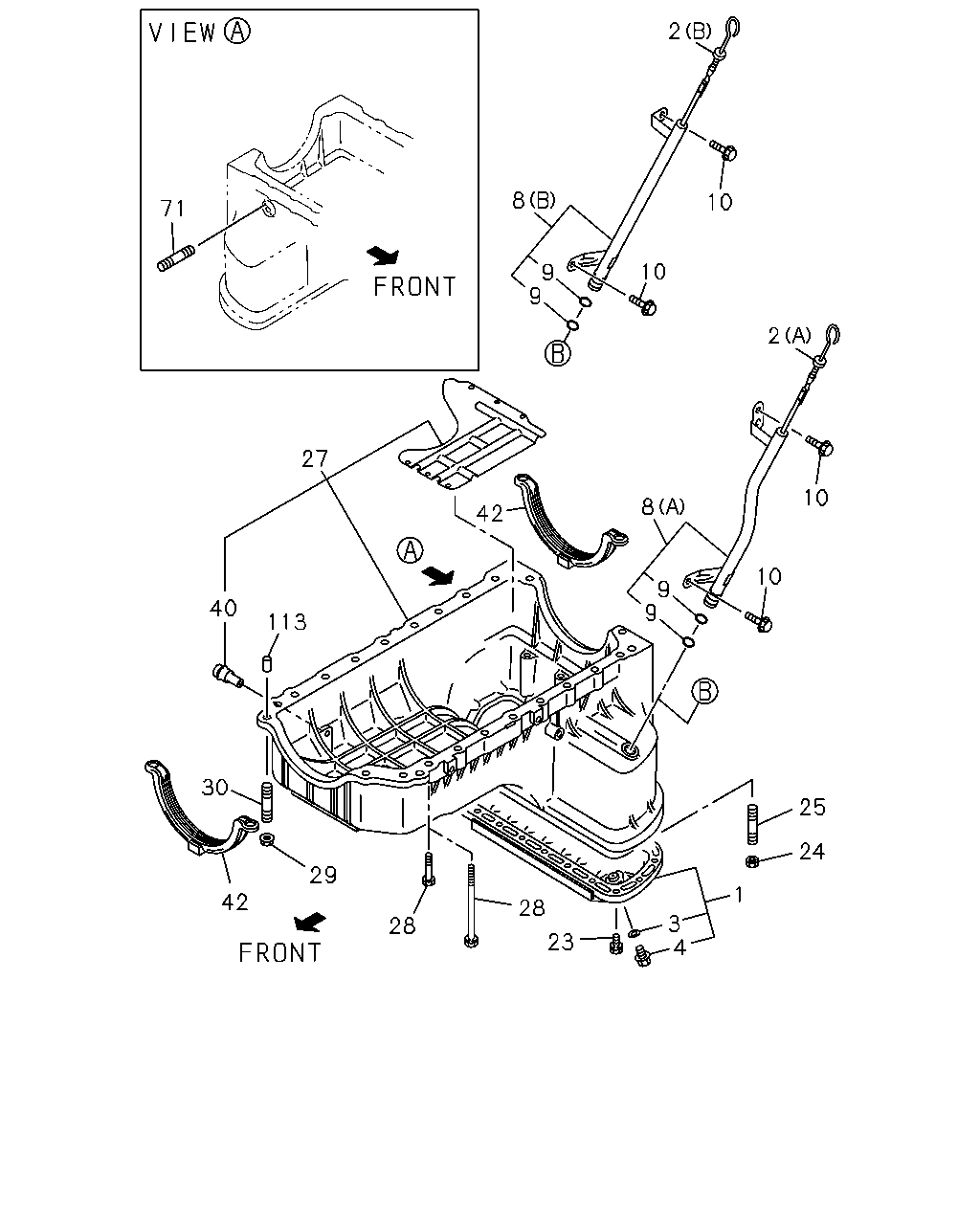

2 8 10 71 10 9 9 2 27 10 8 42 10 9 9 40 113 30 25 24 29 1 42 28 3 4 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-94338-201-0	01	1	9611-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-94338-201-0	01	1	9611-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9611-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9611-			●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9611-				●	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-						●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9611-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9611-			●
2	01.516 GAUGE; OIL LEVEL (A)	8-94362-305-0	01	1	9611-9711				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94362-305-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) (B)	8-97085-167-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9611-	●	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9611-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9611-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9611-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97143-693-0	01	1	9611-9711				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) (A)	8-97143-693-0	01	1	9611-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-97143-693-0	01	1	9712-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) (B)	8-97109-027-0	01	1	9712-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97113-145-0	01	1	9611-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9611-				●	●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-9611			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-		●
10	01.516 BOLT; GUIDE TUBE HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9612-			●
10	01.516 BOLT; GUIDE TUBE EXC. HIGHLAND ZONE PACKAGE<7EG> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9612-			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-				●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-						●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9611-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9611-			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9611-				●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16 SOCKET HD	9-05820-816-0	12	1	9712-						●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-	●
24	01.453 NUT; OIL PAN 4X2(TFB***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9611-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9611-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-						●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9611-		●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9611-			●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9611-9711				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9611-9711					●
27	01.426 CRANKCASE EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-				●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9712-					●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9611-9711					●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-				●
27	01.426 CRANKCASE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-					●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9712-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9611-			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9611-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9611-9612				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9701-				●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 SOCKET HD M6X25	9-05820-625-0	18	1	9712-						●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9611-			●	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-						●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9611-		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9611-			●	●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9611-				●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRONT	8-94152-790-2	01	1	9611-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-94152-790-2	01	1	9611-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). REAR	8-94152-791-2	01	1	9611-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-94152-791-2	01	1	9611-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9611-				●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9611-				●	●
71	01.428 STUD; OIL DRAIN PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X18 L=30	9-04110-818-0	02	1	9611-9711					●
71	01.428 STUD; OIL DRAIN PIPE ARGENTINA EQUIPMENT(7SZ) M8X18 L=30	9-04110-818-0	02	1	9712-				●
71	01.428 STUD; OIL DRAIN PIPE ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X18 L=30	9-04110-818-0	02	1	9712-					●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9611-			●	●	●

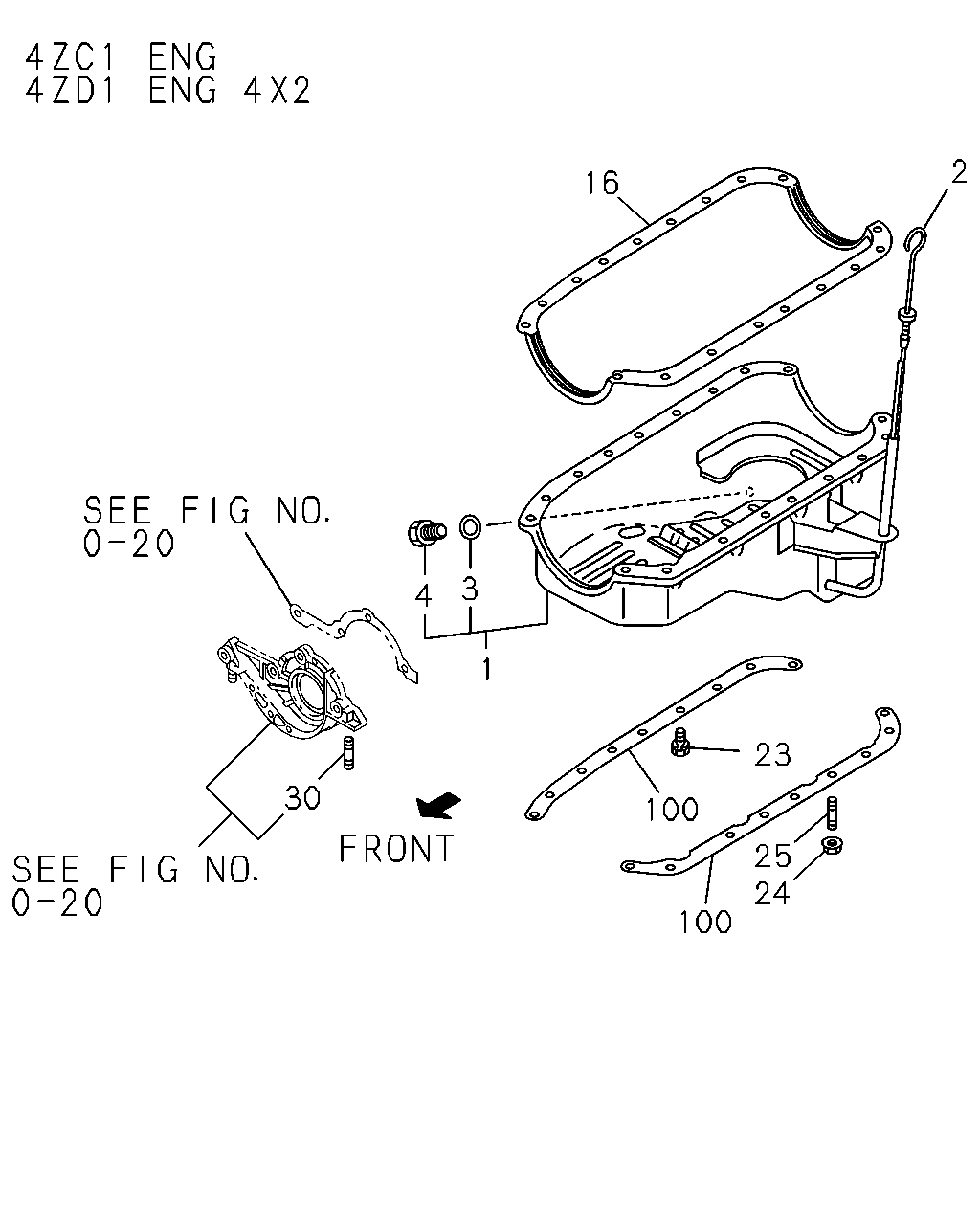

2 16 3 4 1 23 30 100 25 24 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-94338-201-0	01	1	9611-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-94338-201-0	01	1	9611-		●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9611-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9611-			●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9611-				●	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-						●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9611-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9611-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9611-			●
2	01.516 GAUGE; OIL LEVEL (A)	8-94362-305-0	01	1	9611-9711				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94362-305-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) (A)	8-94362-305-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9611-9711					●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) (B)	8-97085-167-0	01	1	9712-				●
2	01.516 GAUGE; OIL LEVEL ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97085-167-0	01	1	9712-					●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9611-	●	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9611-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-						●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94235-288-1	01	1	9611-	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X2(TFB***)	8-94235-288-1	01	1	9611-		●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9611-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9611-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9611-			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9611-				●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16 SOCKET HD	9-05820-816-0	12	1	9712-						●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-	●
24	01.453 NUT; OIL PAN 4X2(TFB***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9611-		●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9611-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9611-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9611-				●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-						●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9611-		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9611-		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9611-			●	●	●
100	01.453 PLATE; DAMPER,OIL PAN 01.429	8-94245-944-1	01	1	9611-	●
100	01.453 PLATE; DAMPER,OIL PAN 4X2(TFB***) 01.429	8-94245-944-1	01	1	9611-		●
100	01.453 PLATE; DAMPER,OIL PAN 01.429	8-94245-945-1	01	1	9611-	●
100	01.453 PLATE; DAMPER,OIL PAN 4X2(TFB***) 01.429	8-94245-945-1	01	1	9611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
