◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#47916) — 429 parça

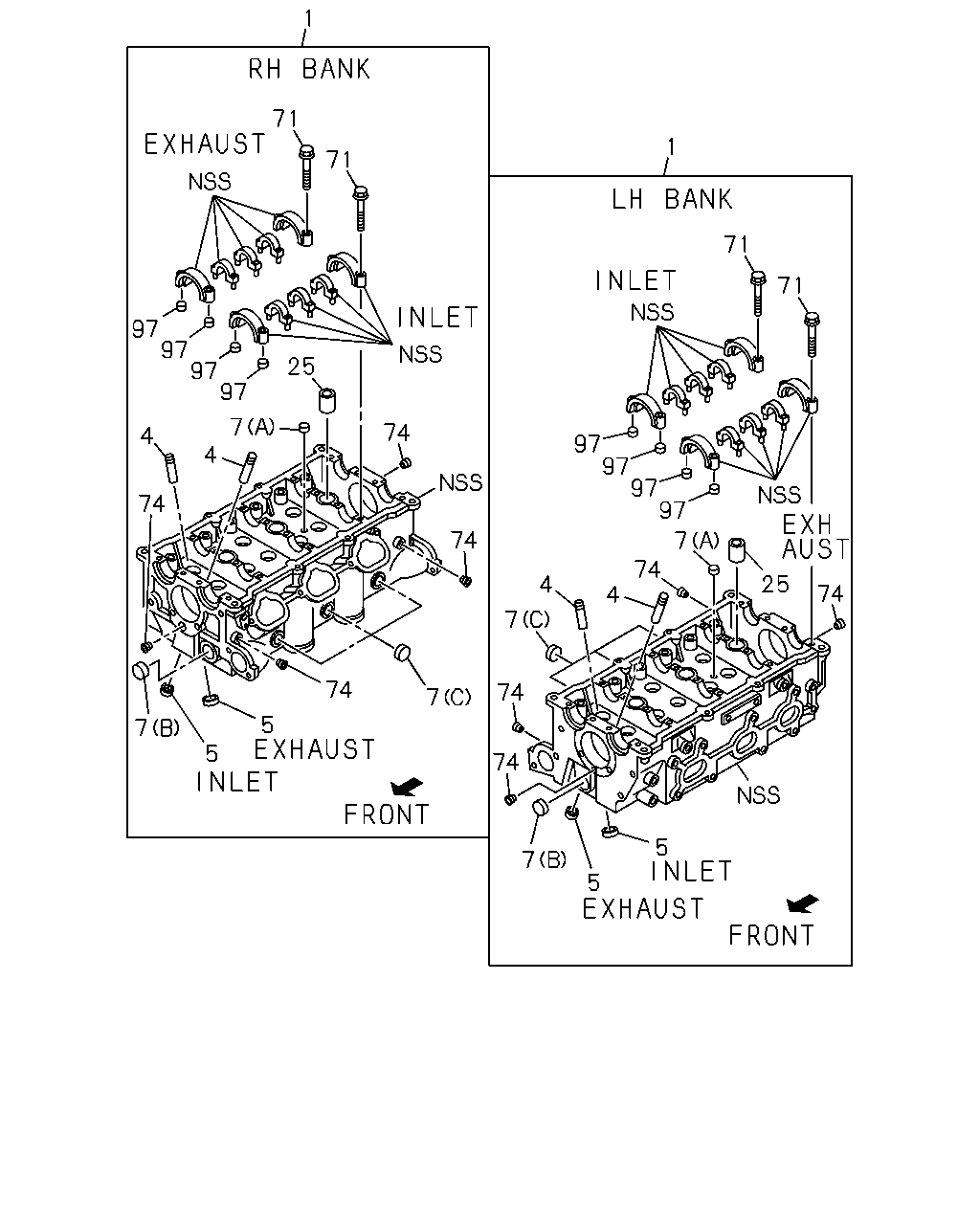

çizim 17408
1 71 1 71 71 71 97 97 97 97 25 7 74 4 97 97 7 97 4 74 74 7 74 25 4 74 4 7 74 74 7 5 7 5 74 5 7 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97119-760-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611-9611 ●
1 00.269 HEAD ASM; CYL
HIGHLAND ZONE PACKAGE<7EG> 		8-97111-155-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-630-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9611- ● ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE M6X40 FLANGE 		0-28690-640-0 40 1 9712- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9712- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9712- ●

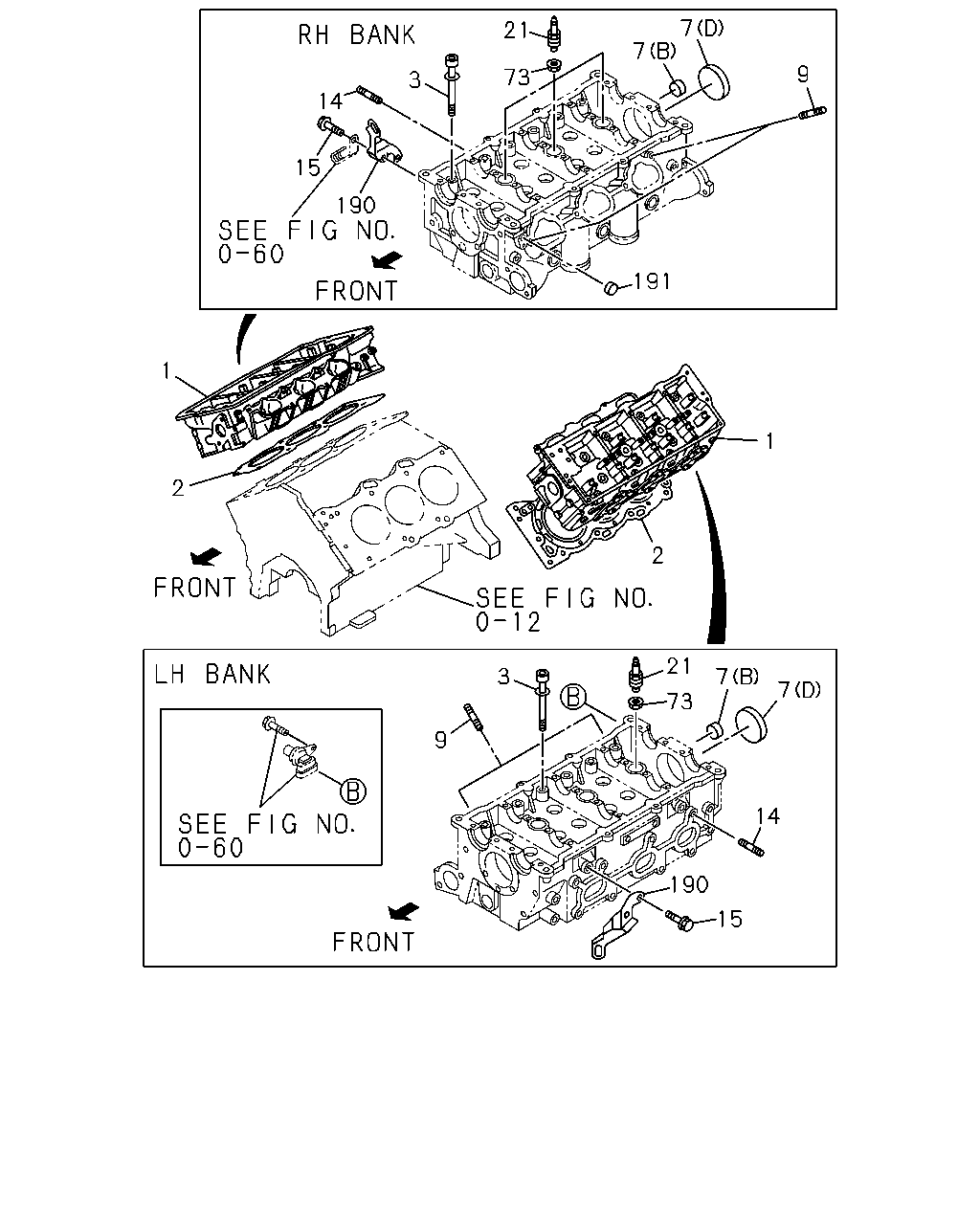

çizim 71176
7 7 21 9 73 3 14 15 190 191 1 1 2 2 21 3 7 7 73 14 190 15 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97119-760-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611-9611 ●
1 00.269 HEAD ASM; CYL
HIGHLAND ZONE PACKAGE<7EG> 		8-97111-155-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-630-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9611-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-355-1 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97011-998-2 16 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9611- ● ●
9 03.275 STUD; INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> M8X27 L=39 		8-94202-304-0 04 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X75 L=87 		9-04110-875-0 02 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X107 L=120 		9-09630-014-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> 00.349 M8X83 L=96 		9-09830-163-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
06.665 M10 		0-49641-030-0 16 1 9712- ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9611-9611 ● ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E) ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9612- ● ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-173-0 06 1 9712- ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9712- ●
191 00.293 CAP; BLIND
TP1/24 		8-97167-998-0 01 1 9712- ●

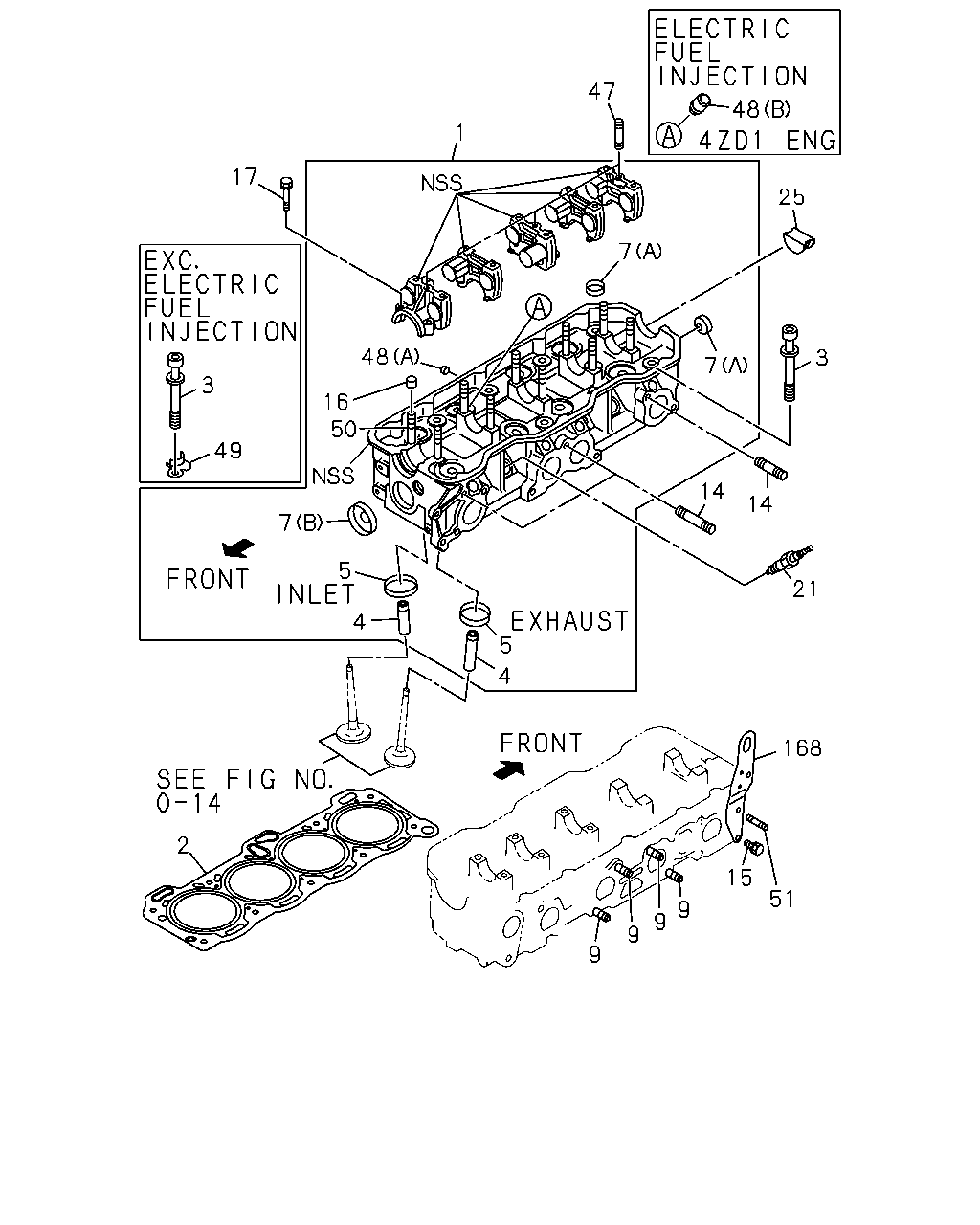

çizim 71276
47 48 1 17 25 7 48 3 7 3 16 50 49 14 14 7 5 21 4 5 4 168 2 15 51 9 9 9 9

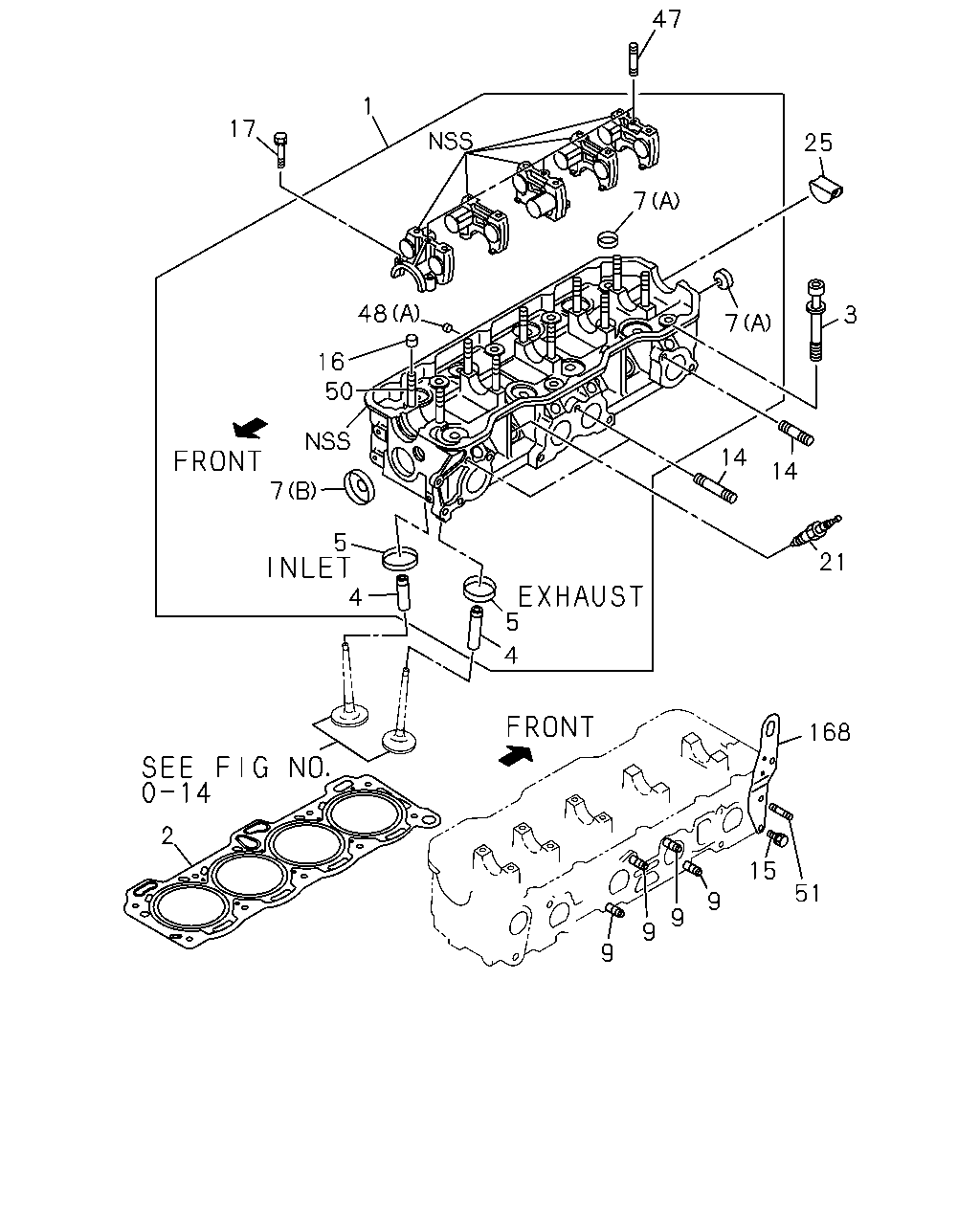

BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97119-760-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611-9611 ●
1 00.269 HEAD ASM; CYL
HIGHLAND ZONE PACKAGE<7EG> 		8-97111-155-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-630-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9611-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-355-1 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97011-998-2 16 1 9712- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9611- ● ●
9 03.275 STUD; INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> M8X27 L=39 		8-94202-304-0 04 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X75 L=87 		9-04110-875-0 02 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X107 L=120 		9-09630-014-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> 00.349 M8X83 L=96 		9-09830-163-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
06.665 M10 		0-49641-030-0 16 1 9712- ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9611- ● ● ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9611- ● ● ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9611-9611 ● ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E) ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9612- ● ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9611- ● ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9611- ● ● ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 (A) OD=6.3 		8-94200-790-2 01 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
ELECTRIC FUEL INJECTION<6GG> (B) OD=7 		8-94407-625-0 01 1 9611- ●
49 00.293 COVER; OIL DRAIN,CYL HD 8-94178-447-0 01 1 9611- ●
49 00.293 COVER; OIL DRAIN,CYL HD
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94178-447-0 01 1 9611- ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9611- ● ● ●
51 00.413 STUD; HANGER
POWER STEERING<N40> M8X60 L=72 		9-04110-860-0 01 1 9611- ● ● ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9611- ● ● ●

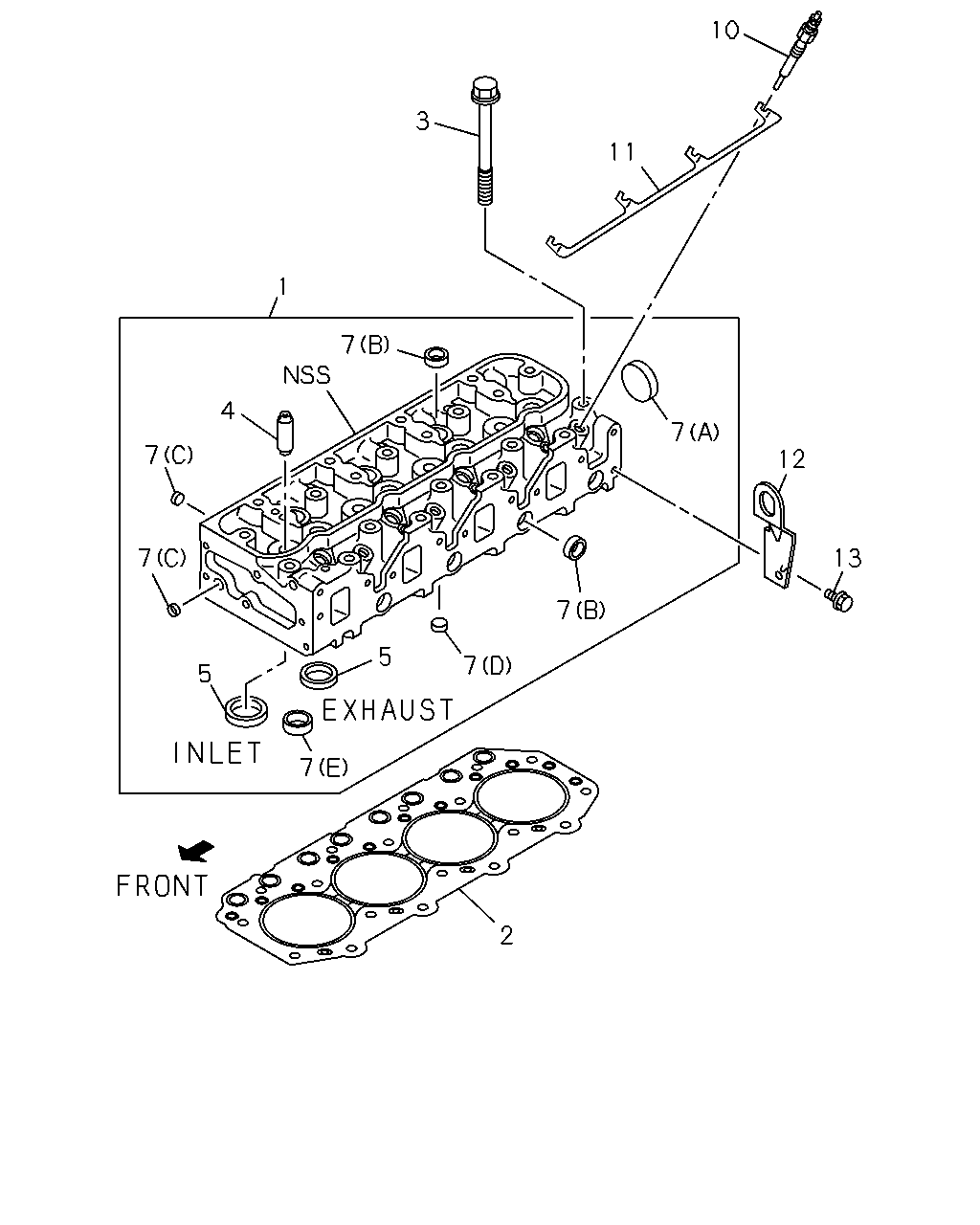

çizim 72325
10 3 13 5 5 2 11 1 7 4 7 7 7 7 7 12 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97119-760-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611-9611 ●
1 00.269 HEAD ASM; CYL
HIGHLAND ZONE PACKAGE<7EG> 		8-97111-155-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-630-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9611-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-355-1 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97011-998-2 16 1 9712- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> BOSCH 		8-94133-759-7 04 1 9611- ● ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> NGK 		8-94175-158-1 04 1 9611- ● ●
10 02.270 PLUG; GLOW
EXC. COLD START DEVICE<7LY> 		8-94140-115-5 04 1 9611- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9611- ● ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9611-9701 ●
12 00.004 HANGER; ENG,RR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97019-563-0 01 1 9702- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9611-9701 ●
13 00.004 BOLT; HANGER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9702- ●
çizim 72328
47 1 17 25 7 48 3 7 16 50 14 14 7 5 21 4 5 4 168 2 15 51 9 9 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
ELECTRIC FUEL INJECTION<6GG> 		8-97119-761-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97119-760-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611-9611 ●
1 00.269 HEAD ASM; CYL
HIGHLAND ZONE PACKAGE<7EG> 		8-97111-155-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL
EXC. HIGHLAND ZONE PACKAGE<7EG> 		8-97129-630-0 01 1 9612- ●
1 00.269 HEAD ASM; CYL 8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9611-9711 ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9611-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97133-416-0 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-355-1 18 1 9706- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-97011-998-2 16 1 9712- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) OD=36.7 		8-94130-559-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXC. ARGENTINA EQUIPMENT(7SZ) OD=36.7 		8-94130-559-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9611-9711 ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9611- ● ●
9 03.275 STUD; INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> M8X27 L=39 		8-94202-304-0 04 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X75 L=87 		9-04110-875-0 02 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X107 L=120 		9-09630-014-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> 00.349 M8X83 L=96 		9-09830-163-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
06.665 M10 		0-49641-030-0 16 1 9712- ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9611- ● ● ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9611- ● ● ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9611-9611 ● ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
EXC. COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9612-9702 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
EXC. CHINA EQUIPMENT(YT2) NGK 		9-82513-103-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
ECUADOR EQUIPMENT(S6E) ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CATALYSIS CONTROL<6MZ> NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) NGK 		8-94120-560-0 04 1 9701-9702 ●
21 02.270 PLUG; SPARK
ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9703- ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9611-9611 ●
21 02.270 PLUG; SPARK
CHINA EQUIPMENT(YT2) NGK 		8-94219-943-0 04 1 9612- ● ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9611- ● ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9611- ● ● ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 (A) OD=6.3 		8-94200-790-2 01 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
ELECTRIC FUEL INJECTION<6GG> (B) OD=7 		8-94407-625-0 01 1 9611- ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9611- ● ● ●
51 00.413 STUD; HANGER
POWER STEERING<N40> M8X60 L=72 		9-04110-860-0 01 1 9611- ● ● ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9611- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
