◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#47909) — 92 parça

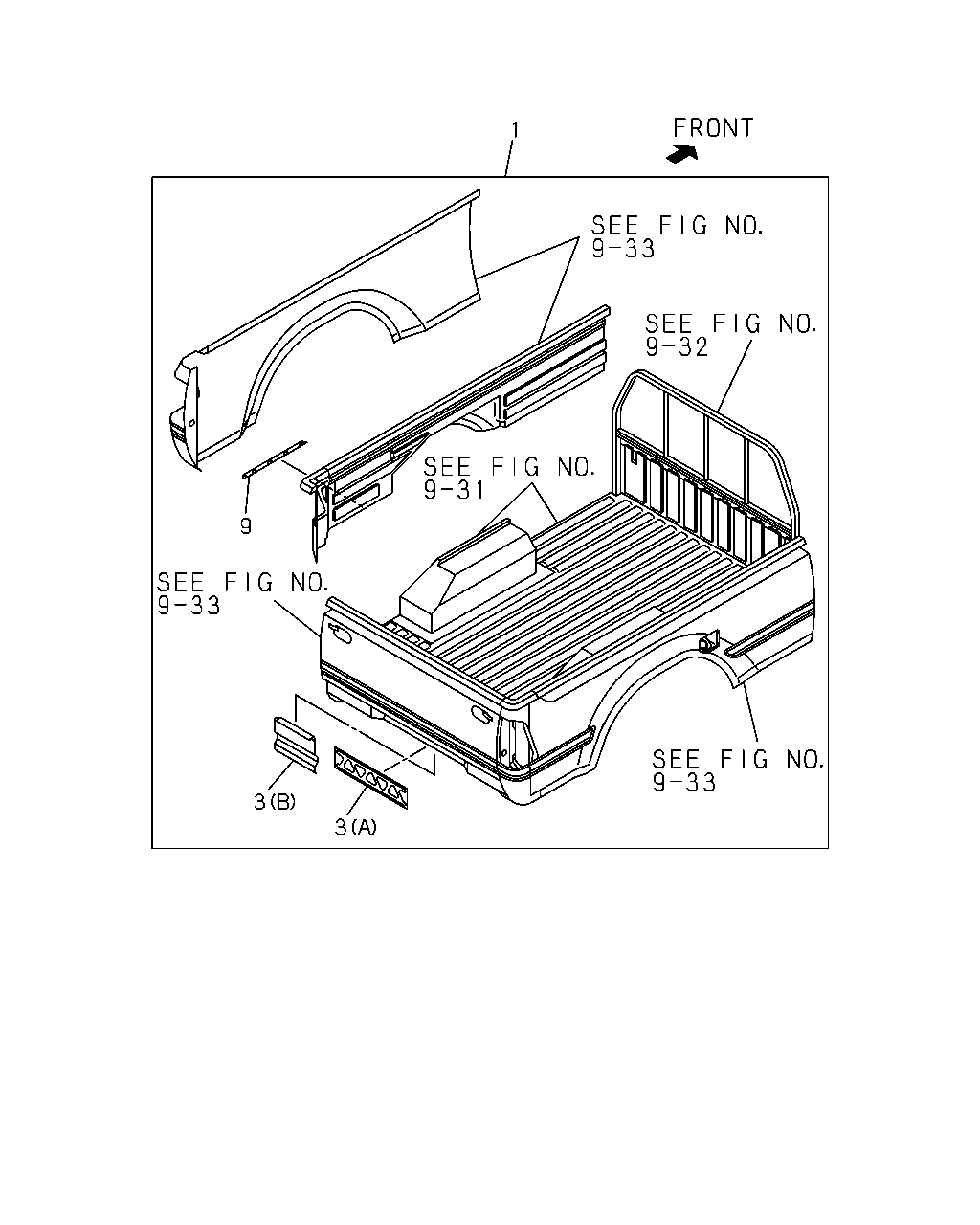

çizim 17292
3 3 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-755-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97114-322-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97114-320-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-319-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9611- ●
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-754-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-321-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-317-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97135-774-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-771-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-756-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-475-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-323-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97135-773-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-770-0 01 1 9611- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-97115-001-3 01 1 9611- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97115-001-3 01 1 9611- ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		8-94404-323-0 01 1 9611- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) 		8-94327-560-1 01 1 9611- ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97115-008-0 02 1 9611- ● ● ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97115-008-0 02 1 9611- ● ● ● ● ● ●

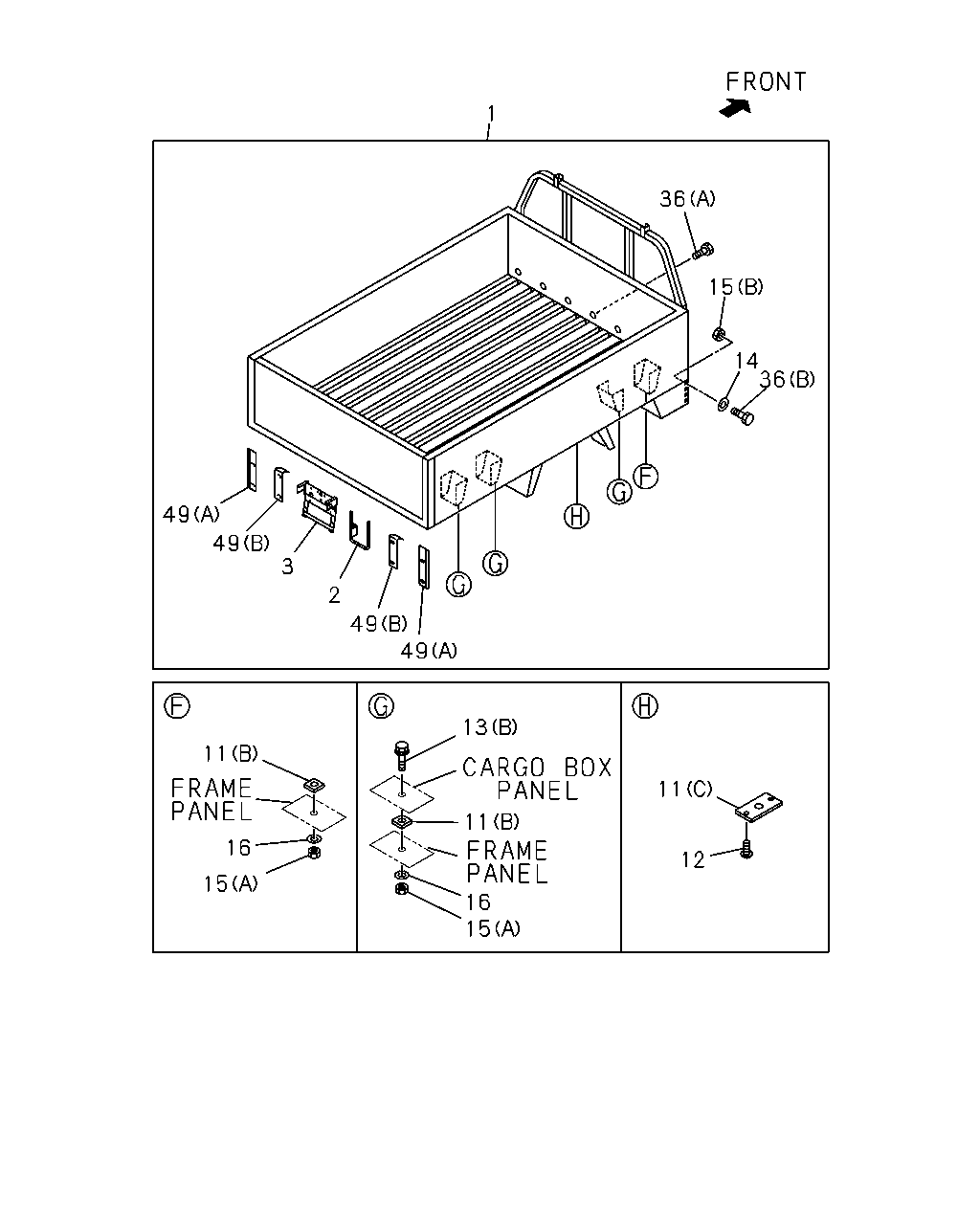

çizim 67342
12 11 15 16 11 13 15 16 11 49 49 2 3 49 49 36 14 15 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-755-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97114-322-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97114-320-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-319-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9611- ●
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-754-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-321-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-317-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97135-774-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-771-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97180-756-0 01 1 9712- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-475-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-323-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ) 		8-97135-773-0 01 1 9611- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-770-0 01 1 9611- ● ●
2 17.185 STEP; RR
RR BODY FLAT BED<RS6> 		8-94178-853-0 01 1 9611- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-97115-001-3 01 1 9611- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
AUSTRALIA EQUIPMENT(RR3) RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97115-001-3 01 1 9611- ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 		8-94404-323-0 01 1 9611- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) 		8-94327-560-1 01 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-94331-737-0 04 1 9611- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (B) 		8-94331-738-1 06 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (B) 		8-94331-738-1 08 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9611- ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-94331-737-0 02 1 9611- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 03.163 M6X20 		9-07077-620-0 08 1 9611- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9611- ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 03.163 M6X20 		9-07077-620-0 04 1 9611- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9702- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-94479-376-1 02 1 9611-9702 ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97169-896-0 02 1 9703- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9611-9701 ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER 		8-97169-423-0 06 1 9702- ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-94479-376-1 04 1 9611-9702 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97169-896-0 04 1 9703- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 		8-97065-438-0 12 1 9611- ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) M12 FLANGE 		8-97028-764-0 06 1 9611- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (A) M12 FLANGE 		8-97028-764-0 08 1 9611- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 12 1 9611- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 07.874 ID=12.5 		5-09503-093-0 06 1 9611- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 07.874 ID=12.5 		5-09503-093-0 08 1 9611- ● ● ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 07 1 9611- ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 17.455 (B) M10X22 FLANGE 		8-97065-440-0 12 1 9611- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-734-0 01 1 9611- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-685-0 01 1 9611- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-733-0 01 1 9611- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-684-0 01 1 9611- ●
çizim 72158
13 11 16 15 13 11 16 15 11 16 15 12 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-94331-737-0 04 1 9611- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (B) 		8-94331-738-1 06 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (B) 		8-94331-738-1 08 1 9611- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9611- ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-94331-737-0 02 1 9611- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 03.163 M6X20 		9-07077-620-0 08 1 9611- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9611- ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 03.163 M6X20 		9-07077-620-0 04 1 9611- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9702- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-94479-376-1 02 1 9611-9702 ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97169-896-0 02 1 9703- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9611-9701 ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER 		8-97169-423-0 06 1 9702- ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-94479-376-1 04 1 9611-9702 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) 		8-97169-896-0 04 1 9703- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A) M12 FLANGE 		8-97028-764-0 06 1 9611- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (A) M12 FLANGE 		8-97028-764-0 08 1 9611- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 12 1 9611- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 07.874 ID=12.5 		5-09503-093-0 06 1 9611- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 07.874 ID=12.5 		5-09503-093-0 08 1 9611- ● ● ● ●
